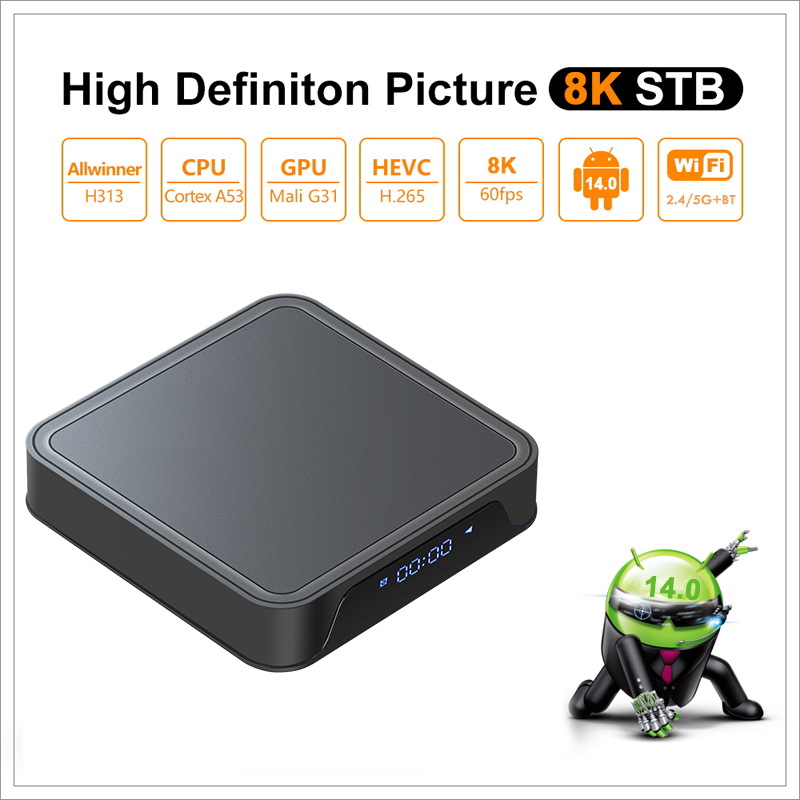

| CPU |
Allwinner H313 Quad Core ARM Cortex A53 |
| GPU |
G31 OPenGL3.2 |
| Memory |
DDR3:2GB (Option:2GB) |
| Flash |
eMMC:8GB (Option:16GB ) |
| WiFi |
802.11 b/g/n 2.4G.+5G WIFI+Blutooth 5.2 |
| Bluetooth |
BT 5.2 |
|
|
|
|
|
|
|
| Moudle |
Plastic : Black Color |

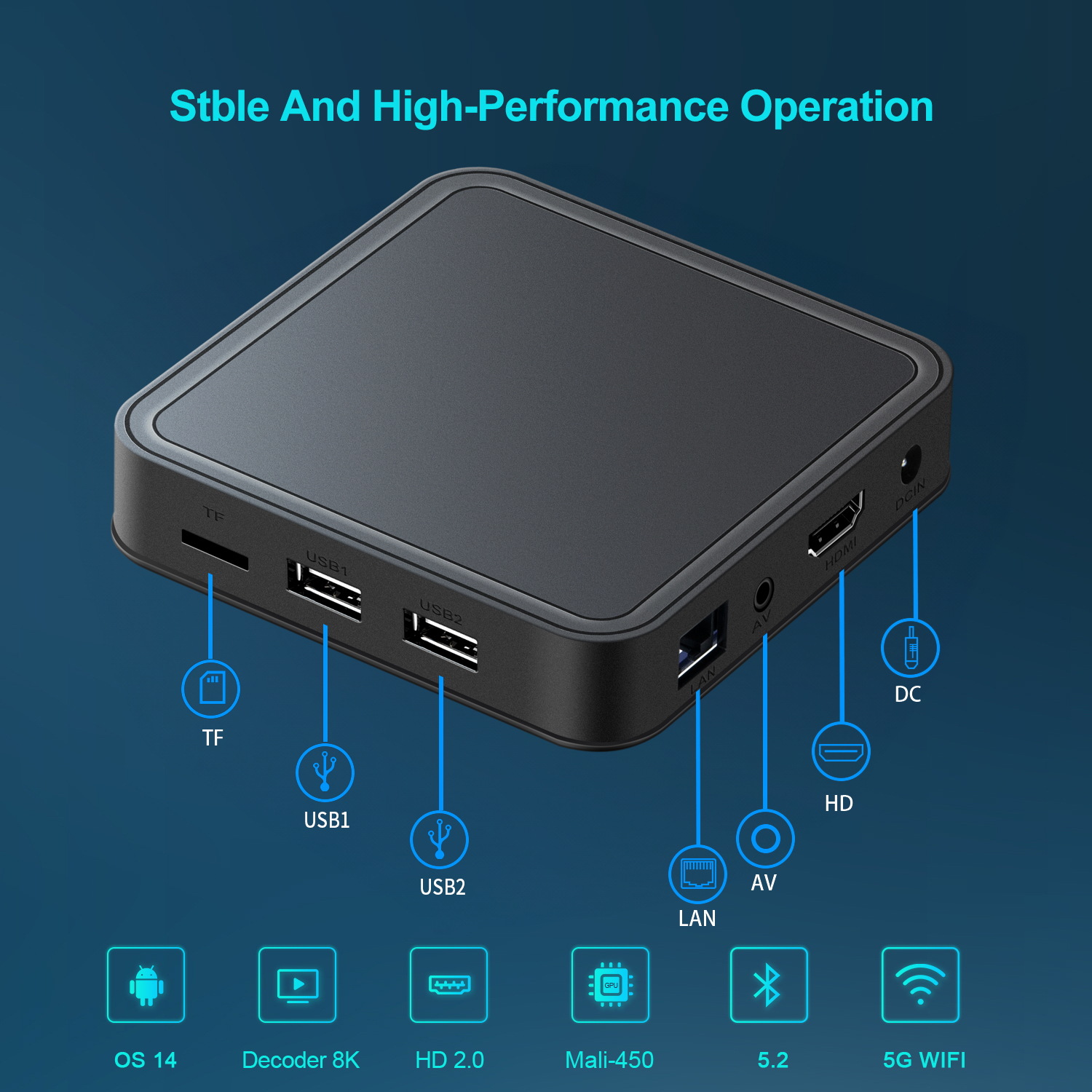

| I/O |
1*HDMI |
4K*2K UHD Output, HDMI 2.0A |
| 1*AV OUT |
480i/576i standard definition output |
| 2*USB |
1* USB Host Port ,1*USB Device |
| 1*IR Reciver |
Remote Reciver Connect |
| 1*RJ45 |
Ethernet Interface |
| 1*TF CARD |
Support 4GB/8GB/16GB/32GB/64GB |
| Power |
DC 5V/2A;LED indicator,Working :Blue; Standby:Red |
| Software |
| OS |
Android 10.0 update to 14.0 ATV |
| Video |
Amlogic Video Engine (AVE) with dedicated hardware decoders and encoders Support multi-video decoder up to 4K@60fps Supports multiple “secured” video decoding sessions and simultaneous decoding and encoding Video/Picture Decoding - VP9 Profile-2 up to 4K@30fps - H.265 Main10@L5.1 up to 4K@60fps - AVS2 JiZhun 10bit Profile up to 4K@60fps - H.264 BP/MP/HP@L4.2 up to 4K@30fps - H.263 BP up to 1080P@60fps - MPEG-4 SP/ASP@L5 up to 1080P@60fps - MPEG-2 MP/HL up to 1080P@60fps - MPEG-1 MP/HL up to 1080P@60fps - Xvid up to 1080P@60fps - Sorenson Spark up to 1080P@60fps - VP8 up to 1080P@60fps - AVS/AVS+ JiZhun Profile up to 1080P@60fps - WMV9/VC1 SP/MP/AP up to 1080P@60fps - JPEG HFIF file format up to 45M PPS - Multiple language and multiple format sub-title video support - MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918) - Supports JPEG thumbnail, scaling, rotation and transition effects - Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file formats |
| Audio |
Supports MP3, AAC, WMA, RM, FLAC, Ogg and programmable with 7.1/5.1 down-mixing Built-in serial digital audio SPDIF/IEC958 input/output and PCM input/output • Two DAC channels • Supports 1 audio output interface (differential LINEOUTP/N or single-end LINEOUTL/LINEOUTR) • One Audio HUB, supporting internal mixing function • Embedded 3 I2S/PCM (I2S0 for extended audio codec, I2S2 for BT, I2S3 for digital power amplifier) • Supports Left-justified, Right-justified, Standard I2S mode, PCM mode, and TDM mode • I2S mode supports 8 channels, and 32-bit/192kbit sample rate • I2S and TDM modes support maximum 16 channels, and 32-bit/96kbit sample rate • One OWA OUT interface, supporting 16-/20-/24-bit inputs and outputs • Integrated digital microphone(DMIC), supporting maximum 8 digital PDM microphones |
| Image |
HD JPEG、BMP、GIF、PNG、TIF |
| Language |
English French German Spanish Italian etc multilateral languages |
| Appliactions |
|
|
| Apps |
Apps download freely form android market、amazon app store etc. |
| Medium |
Local Media playback,Support HDD, U Disck ,TF Card . |
|
|
| Others |
Support Email,office suit etc. Support DLNA function Support 2.4G wireless mouse/keyboard |
| Packing |
Product dimension |
100*100*20(mm) |
| Qty per unit packing |
1pcs |
| Unit packing: (LxWxH) |
180*107*54(mm) |
| Unit packing (G.W.) |
0.33Kg |
| Qty per export carton |
40PCS |
| Export carton (WxHxL) |
550*360*235 (mm) |
| Export carton (G.W.) |
13.8Kg |

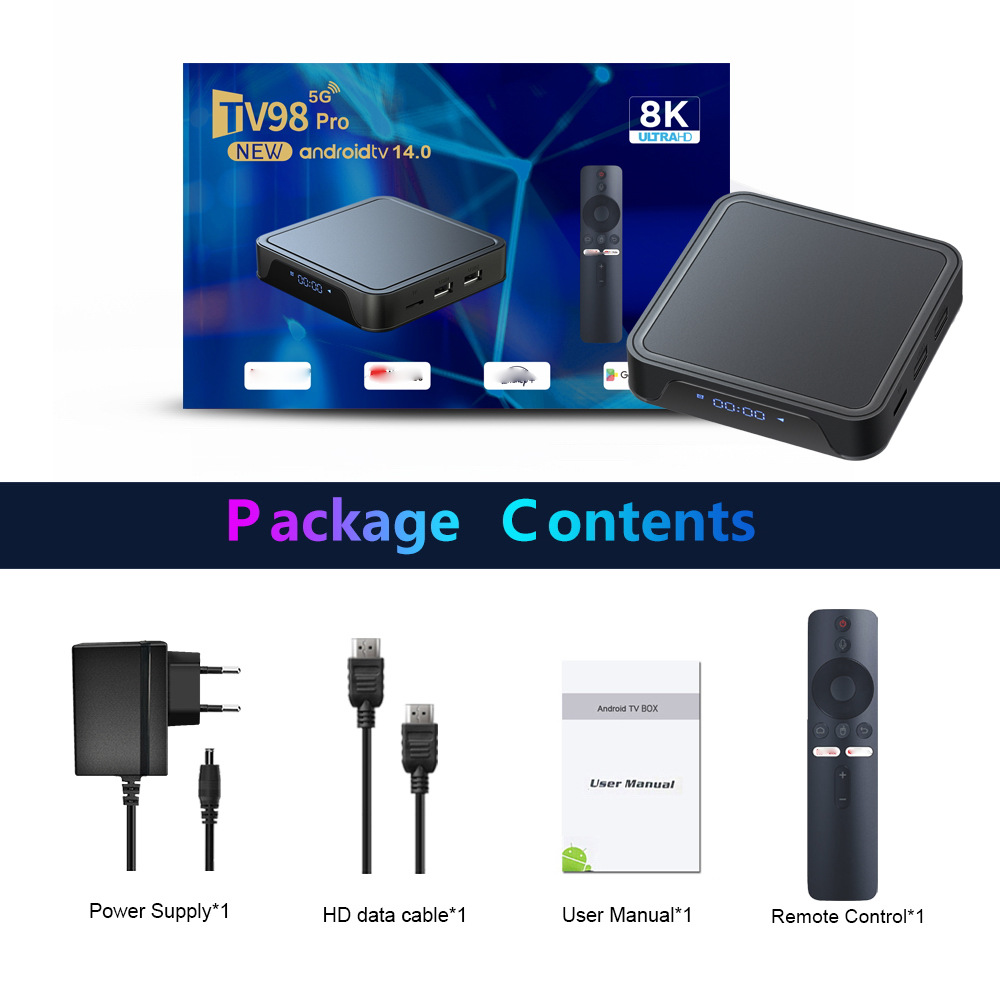

| Accessories : |
| 1、HDMI cable *1 |
| 2、Voice remote control *1 |
| 3、User Manual *1 |
| 4、Package box *1 |
| 5、Power adapter *1 |
