DVB-T2 H264 BOX HD

Model Type Mainchip: SUNPLUS1509CT

Function：

   1. Fully DVB-T/DVB-T2/MPEG-2/MPEG-4/H.264 compliant

   2. CVBS/RGB/YPbPr/Scart output supported,USB 2.0 port PVR, multi-media player

   3. Electronic program guide (EPG) , VBI Teletext,Supports up to 64 satellites

   4. Auto/Manual Program search, Multi-language supported

   5. USB 2.0 for PVR, Timeshift, Software upgrade, Multimeida Playback,OTA software upgrade

   6. Transmission mode: LDPC/BCH 8PSK/QPSK, DVB QPSK

   7. Support up to 5000 channels

   8. Support up full HD 1080P

 DVBT2 Specification

 Input Inpedance 75Ohms unbalanced

 Signal Input Level -65 ~ -25dBm

 47-862 MHz

 Demodulation

 Demodulator QPSK/8PSK

 FEC Modes Rate 1/2,2/3,3/4,5/6,7/8,8/9,9/10

 System Resources

 Video Decoder

 Standard ISO/IEC 13818-2 and ISO/IEC 14496-10

 Transport stream ISO/IEC 13818-1

 Video decoding “MPEG-2 SD/HD (MP@ML and MP@HL), MPEG-4 H.264/AVC SD/HD

 JPEG,BMP,PNG, Motion JPEG

 AVI, VOB, MOV, MKV

 Video Resolution 480i, 480p, 576i, 576p, 720p, 1080i, 1080p

 Aspect ratio 4:3, 16:9，Auto

 Audio Decoder

 Standard MPEG-1 Layer I & II, MPEG-2 Layer II, AAC, MP3, HE-AAC,AC-3(optional), E-AC-3(optional)

 Sample rate 32, 44.1, 48

 Subtitles & Teletext

 Subtitle DVB Subtitle

 Front Panel

 bi-colored LED Support 4/8 Led Display

 USB /Front Panel Buttons CH+/CH-/POWER

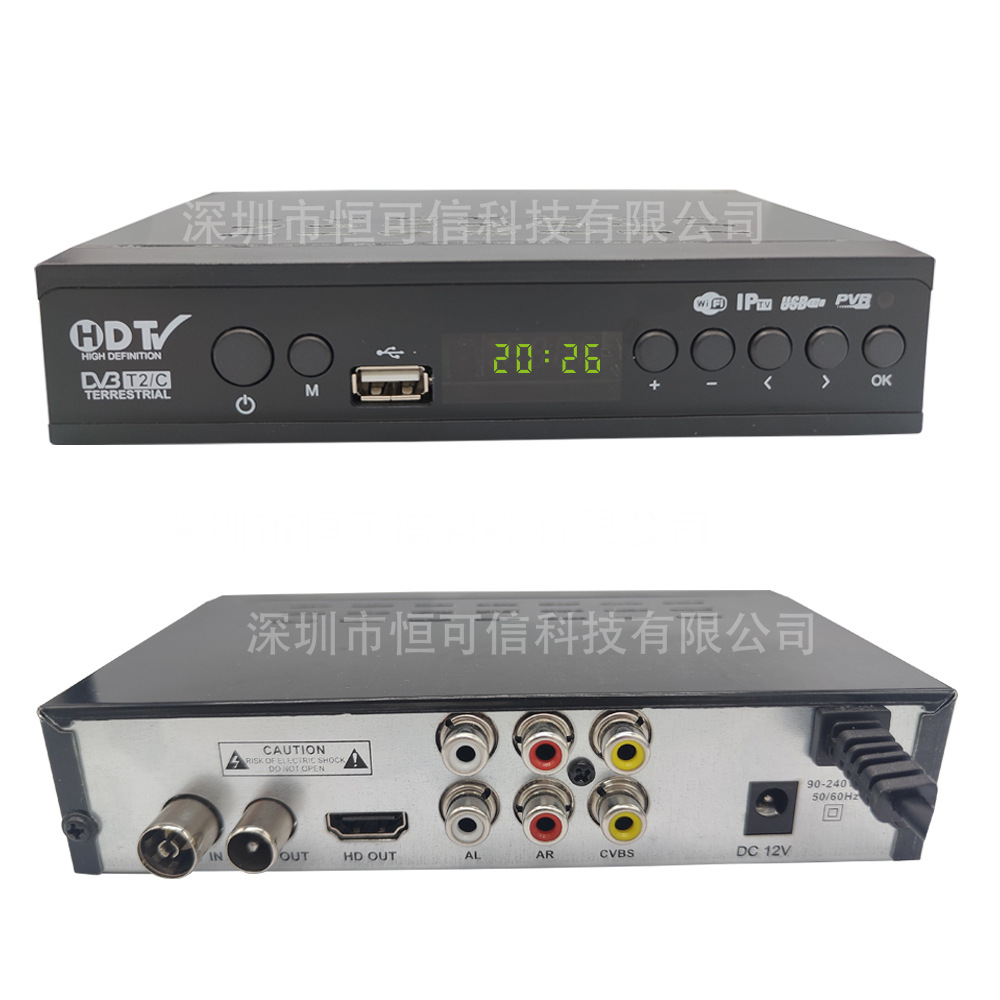

 Rear Panel

 Digital HDTV video output with HDCP.

 LNB Input IEC169-2 Female

 OPTICAL&COAXIAL No

 RS232 Optional

 USB 2pcs

 CVBS & Audio R/L RCA(3 ports)

 Accessories

 Remote control unit IR 38kHz NEC

 User Manual 1 in English

 Cable 1(Optional)

 Power

 DC INPUT /AC input range 100V-240V 50Hz/60Hz

 Power consumption Max 18W

 Physical

 Operating Temperature 0 ~ 45 °C
