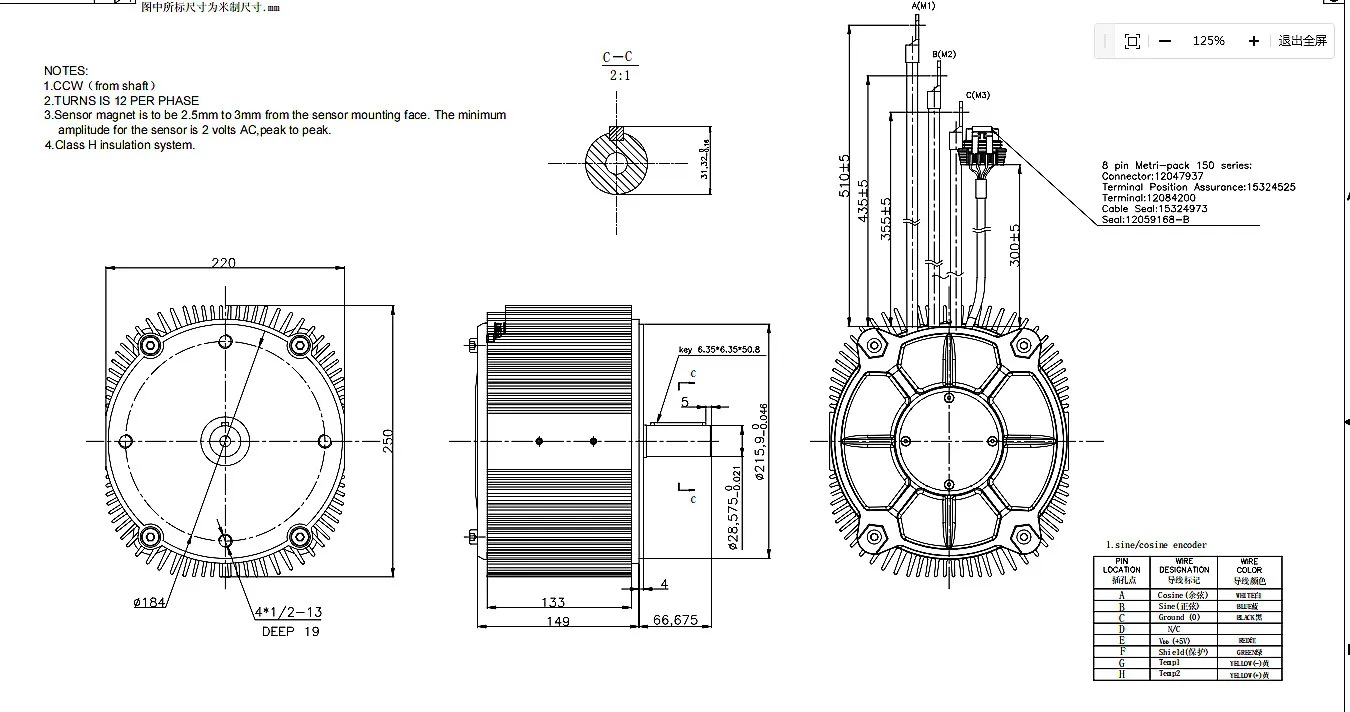

1. Specification of Motor:

1) Designed for battery pack voltage of 100 VDC or less.

2) A maximum rotor speed of 6000-8000rpm.

3) Continuous current of 157 Amps RMS

4) Continuous power of 13 kW,Peak Power: 44 kW

5) Weighs approx. 22kgs

6) Sine/Cosine speed sensor, input voltage of 24-72 VDC

7) Internal temperature sensor

8)Peak torque:120 Nm, continous torque:32Nm

9) Encoder
