产品介绍：

CPU:  Sunplus1508CT/ALI3821P/MSD7B00   MIPS 34Kf@600MHz

Memory: 32X16Mbit DDR2: Frequency1066

Flash: 32M bytes

Demodulator Type: ISDB SOC Chip Set

TUNER: Rafael R836

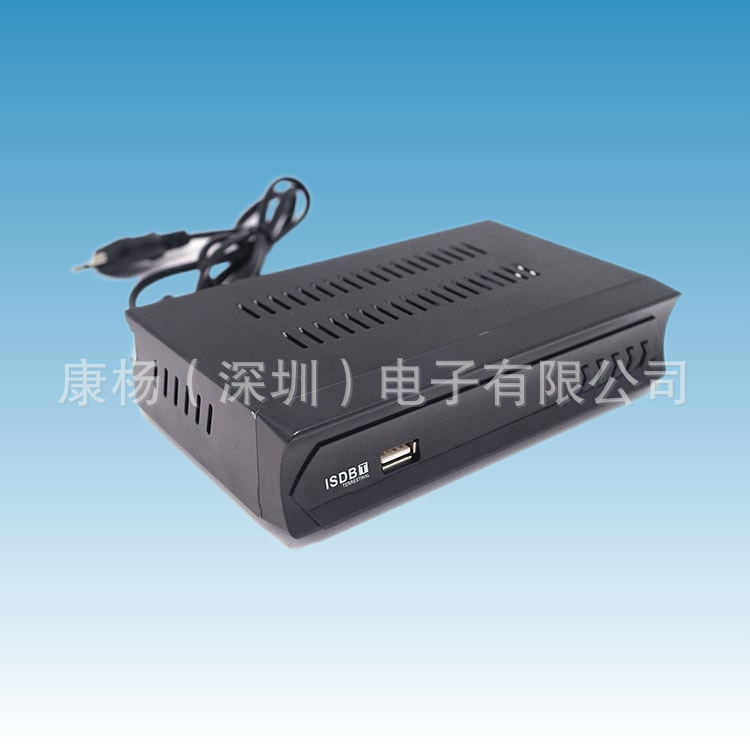

Front Panel: USB 2.0 Embedded One Host,

        4-digit LED display on front panel

        red LED Standby, green LED Lock

        Panel KEY, POWER, CH+ , CH-

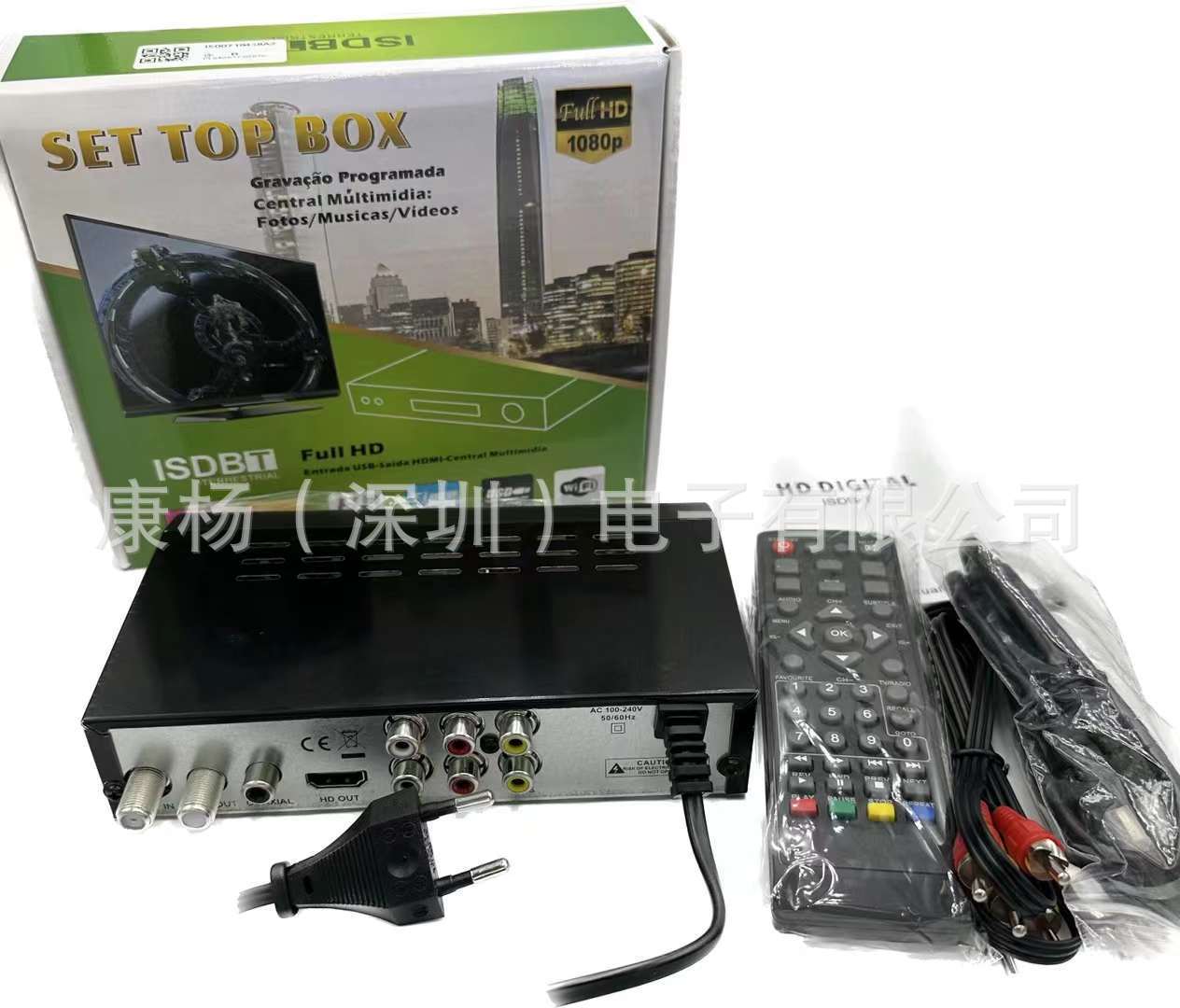

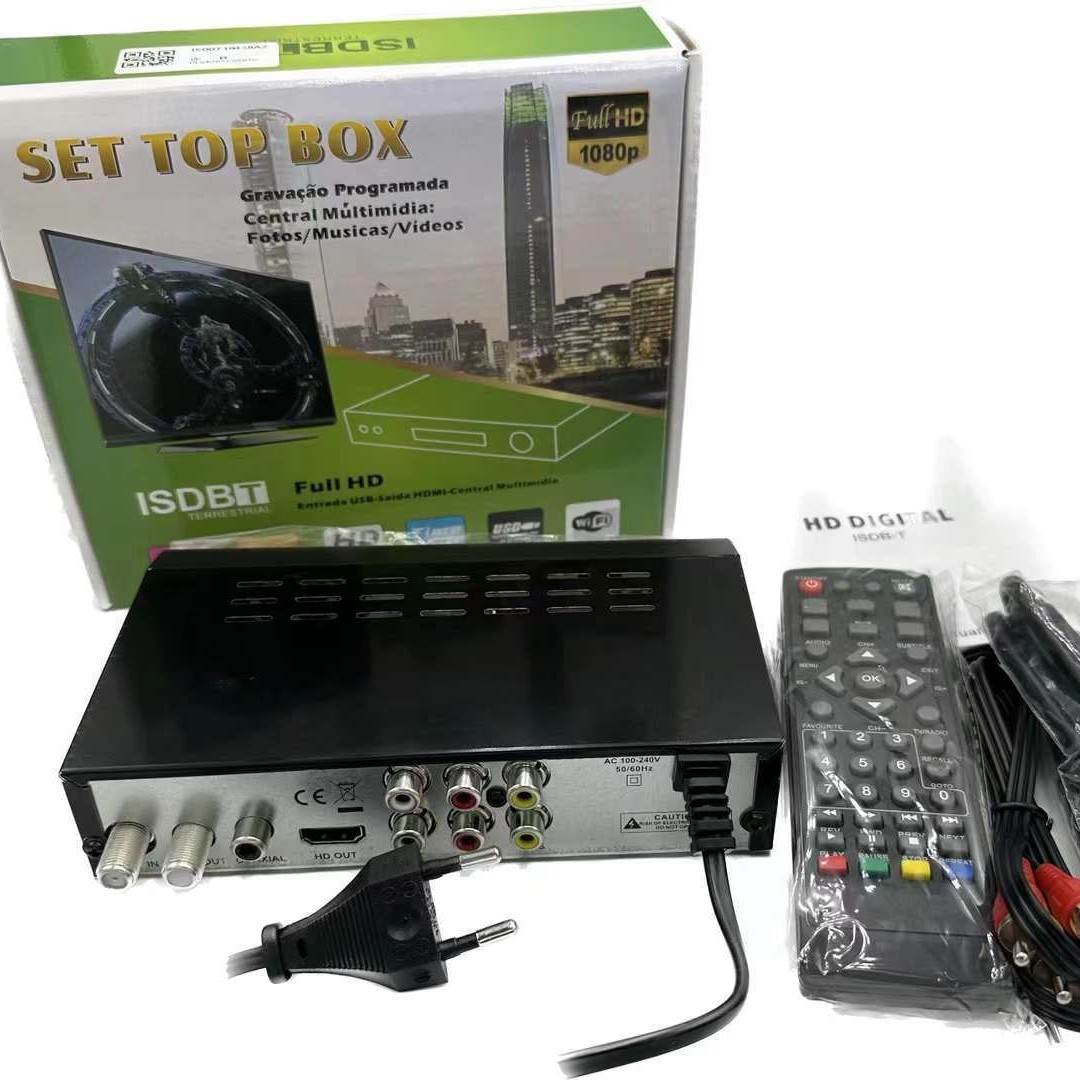

Rear Panel: Tuner RF input connector EC-type IEC169-2 Female

Tuner RF Loop through connector IEC-type IEC169-24 Male

HDMI V1.3/V1.4

        RCA CVBS AL AR Connector x1

       Coaxial x1

        Power AC100~240V 50Hz/60Hz

Demodulation

Terrisal Receiver Standard: ISDB-T broadcast (1, 3, 13 segment)

Input RF Frequency: VHF: 177.143~213.143 MHz: UHF 473.143~803.143MHz.

Bandwidth: 6MHz

Demodulatio: QPSK / 16QAM / 64QAM/QPSK or DQPSK

FEC: 1/ 2, 2/3, 3/4, 5/6, 7/8 Automatic

Guard Interval : 1/4，1/8，1/16，1/32

FFT Mode: 2K/ 8K/32K

Input level: -83 - -5dBm

Software Features

•used for any ISDB-T countries like Brazil, Peru, Argentina, Chile, Venezuela, Philippines Ecuador

•Supports all ISDB-T broadcast (1, 3, 13 segment), MPEG-2/MPEG-4 AVC/H.264 HD/SD Video , DiVX compliant

•Support 3D interface

•Support teletext /subtitle /muti-language

•Supported 7-Day EPG function, VBI Teletext

•AUTO, 16:9 Pillar Box, 16:9 Pan G Scan, 4:3 Letter Box, 4:3 Pan G Scan, 4:3 Full, 16:9 Wide Scr

•USB 2.0 for PVR, TIMESHIFT, software upgrade and media files playback

•Video output resolution: 480i/576i/480p/576p/720p/1080i/1080P

Decoder

Video Decoder:

mpliant with: MPEG-4 part10/MPEG-2 ISO/IEC 13818

MPEG-4 Simple/Main/Advanced Profile@ LEVEL3 (10Mbps)

MPEG-2 Main Profile# Main Level (15Mbps)

H.264 MP#L3 (10Mbps).H.264 HP L4.1(25Mbps)

Audio Decoder:

MPEG-1, MPEG-2 (Layer I/II), MP3, AC-3 (Dolby Digital), AAC-LC, WMA

E-AC-3 (Dolby Digital Plus) decoding HE-AAC 5.1 multi-channel decoding

Powerful Multimedia Features

Media Codec: avi. mpg, .dat, .vob, .div, .mov, .mkv, .jpeg, .ts etc

Audio Codec: WMA, MP3, AAC (.wma,.mp3,m4a)

Photo Codec: JPEG, BMP, PNG
