【2021款私模】全新数字Toslink/光纤SPDIF至RCA音频转换器允许您将2通道数字同轴或Toslink/光纤SPDIF输入信号转换为RCA模拟立体声出
这款SPDIF至RCA音频转换器非常适合家庭和专业音频应用，可节省升级设备以实现兼容连接的成本，并提供单独的数字同轴电缆和Toslink输入，以实现双功能转换。小巧的外形设计使其适合安装在几乎任何位置，无论空间有限，同时仍能提供无损音频信号。此外，数字同轴或Toslink至RCA转换器支持即插即用安装，为您节省时间和麻烦。

[2021 private mode] the new digital Toslink / fiber SPDIF to RCA Audio Converter allows you to convert 2-channel digital coaxial or Toslink / fiber SPDIF input signals into RCA analog stereo output.
This SPDIF to RCA Audio Converter is ideal for home and professional audio applications, saves the cost of upgrading equipment for compatible connection, and provides separate digital coaxial cable and Toslink input for dual function conversion. The compact design makes it suitable for installation in almost any position, regardless of space constraints, while still providing lossless audio signals. In addition, the digital coaxial or Toslink to RCA converter supports plug and play installation, saving you time and trouble.

模拟音频L/R转换器ATV，SPDIF数字音频转换器
附件：数字音频转换器、5V电源适配器（可选电源：USB电源线）
参数：支持采样率能到192KHz，输入流24位编码，提供电子降噪技术传输，为了达到高保真的声音损失，本产品采用全镀金接口连接器端口，内置数字芯片！

Analog audio L / R converter, ATV, SPDIF Digital Audio Converter
Accessories: digital audio converter, 5V power adapter (optional power: USB power cable)
Parameters: support sampling rate up to 192Khz, input stream 24 bit coding, and provide electronic noise reduction technology transmission. In order to achieve high fidelity sound loss, this product adopts full gold-plated interface connector port and built-in digital chip!

2.0规范
输入连接器：1 - 数字同轴音频（RCA）母头
1 - Toslink（SPDIF;光学）女性
输出连接器：1 - 立体声音频（2 x RCA）母头
音频规格：支持2声道（立体声）
尺寸（L-W-H）：5.5x4.6x1.5cm
N.W.:60g
工作温度：0℃至70℃
工作湿度：10％至85％RH（无冷凝）
储存温度：-10℃至+ 80℃
储存湿度：5％至90％} RH（无冷凝）
外部电源：5V DC @ 1A
功耗：0.5瓦
交流电源适配器：美国，欧盟，英国，澳大利亚标准等

2.0 specifications

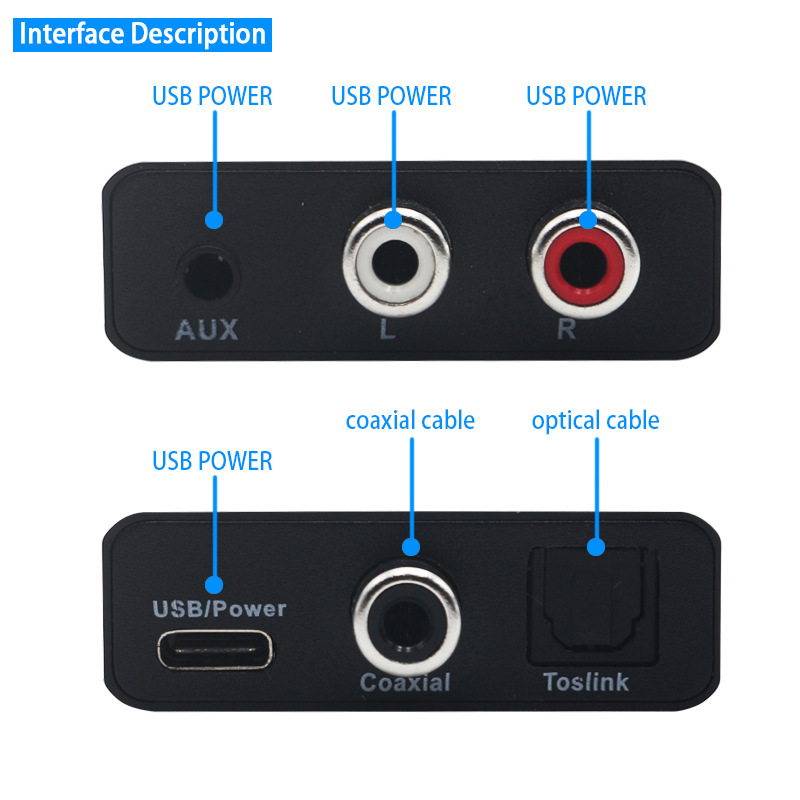

Input connector: 1 - digital coaxial audio (RCA) female
1 - Toslink (SPDIF; Optics) female
Output connector: 1 - stereo audio (2 x RCA) female
Audio specification: support 2 channels (stereo)

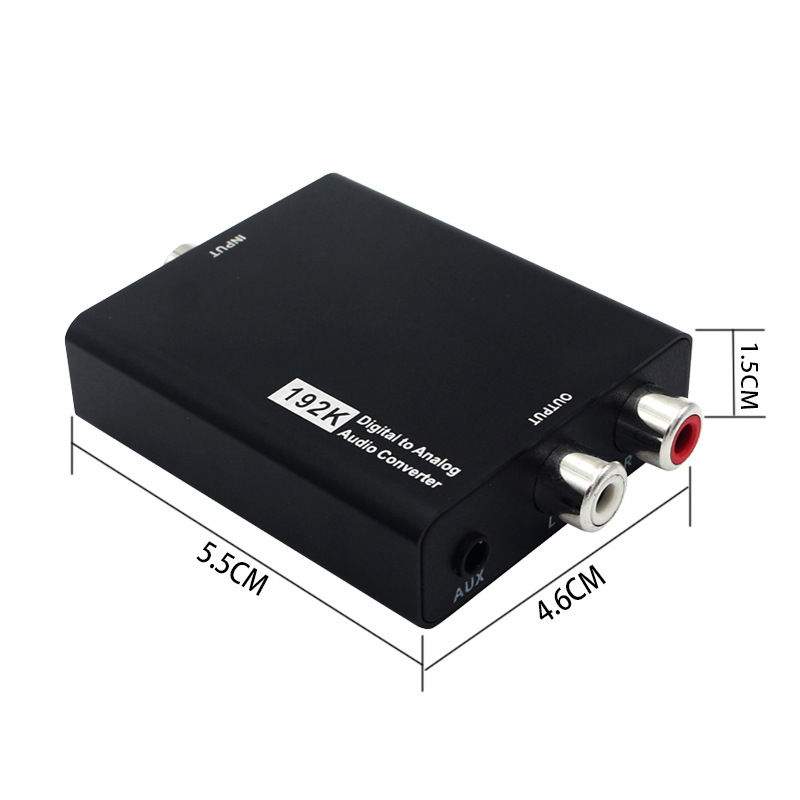

Size (l-w-h): 5.5x4.6x1.5cm
N.W.:60g
Operating temperature: 0 ℃ to 70 ℃
Operating humidity: 10% to 85% RH (non condensing)
Storage temperature: - 10 ℃ to + 80 ℃
Storage humidity: 5% to 90%} Rh (non condensing)
External power supply: 5V DC @ 1A
Pow
er consumption: 0.5 w (max.)
AC power adapter: American, European Union, British, Australian standards, etc

全新的数模转换音质优越，音质清晰！轻便耐用
可选包装内容：数字音频转换器、电源适配器、光缆，请将以上随附接线。

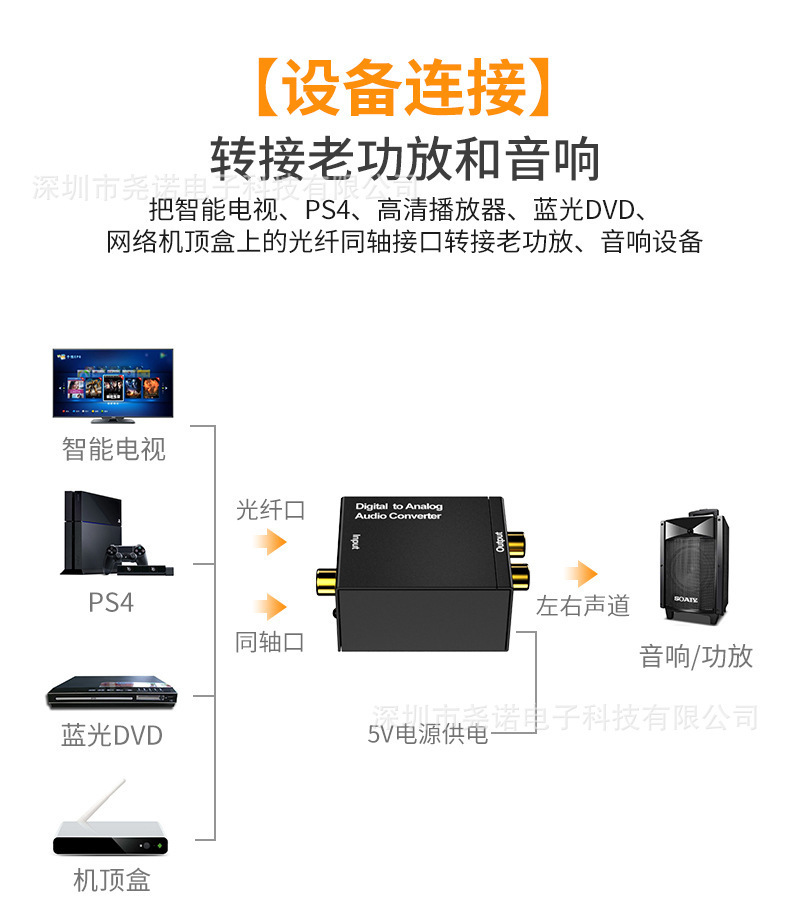

数字电视/云电视/苹果电视/蓝光/网络播放器/XBOX360/计算机光学同轴输出声卡/数字机顶盒/网络盒设备，如电视设备，配备全SPDIF同轴音频/电气设备的数字光学音频输出，您可以使用此转换器转换模拟音频信号L/R通道输出。设备成功将非破坏性噪声音频信号转换为连接的放大器声音！实现高保真无损音频输出！

New digital to analog conversion, superior sound quality and clear sound quality! Lightweight and durable
Optional package contents: digital audio converter, power adapter and optical cable. Please connect the above attached wires.

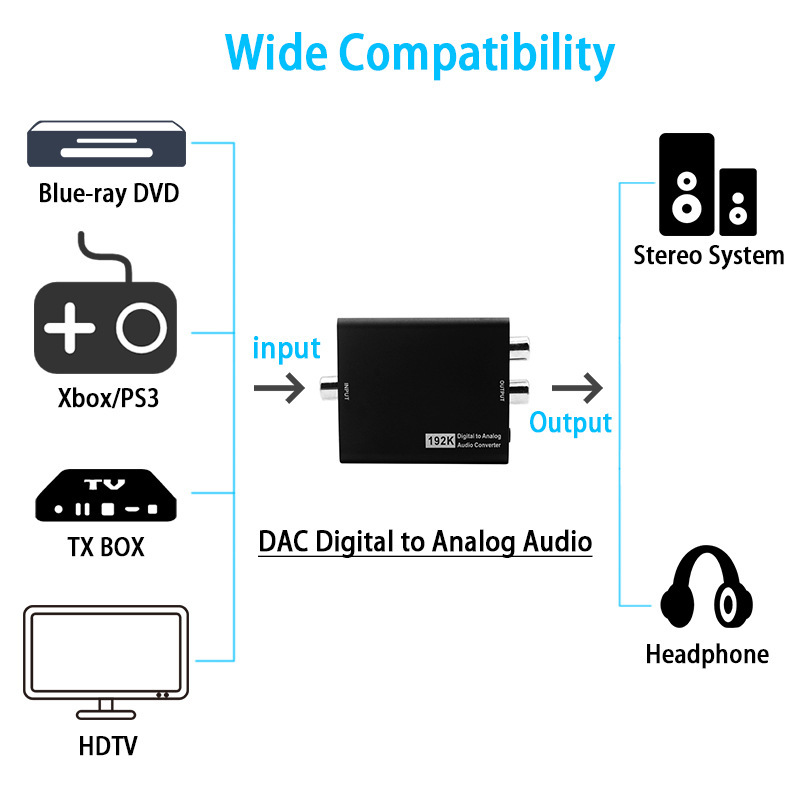

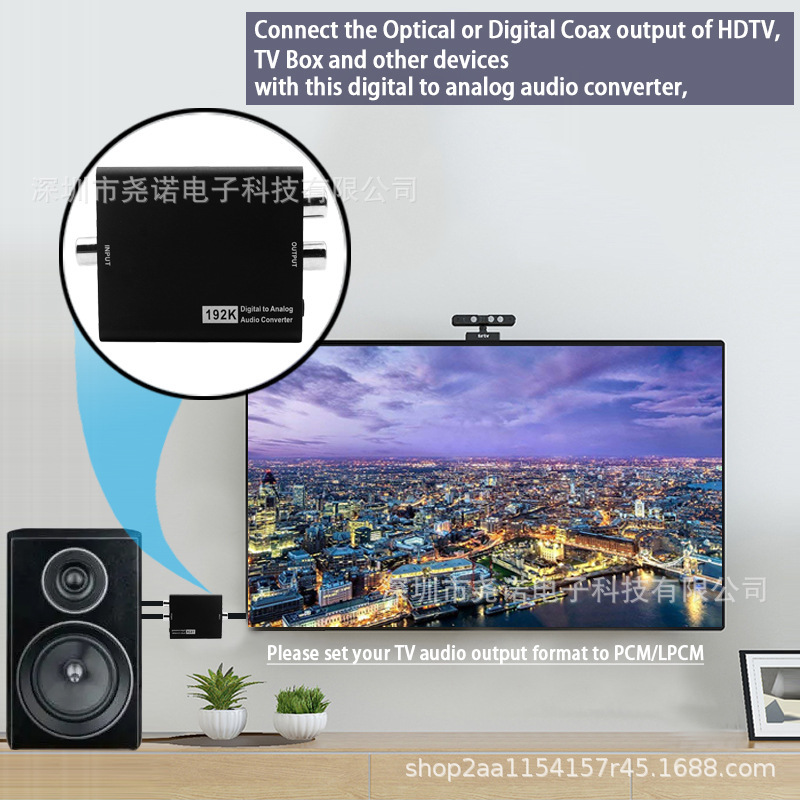

Digital TV / cloud TV / Apple TV / blu ray / network player / XBOX360 / computer optical coaxial output sound card / digital set-top box / network box equipment, such as TV equipment, is equipped with digital optical audio output of all SPDIF coaxial audio / electrical equipment. You can use this converter to convert analog audio signal L / R channel output. The device successfully converts the non-destructive noise audio signal into the connected amplifier sound! Achieve high fidelity lossless audio output!

包装内容
1）主机x1
2）USB供电线x1
3）用户手册（英文版）x1

Package content
1) Host x1
2) USB power cord x1
3) User manual (English version) x1
