技术指标：

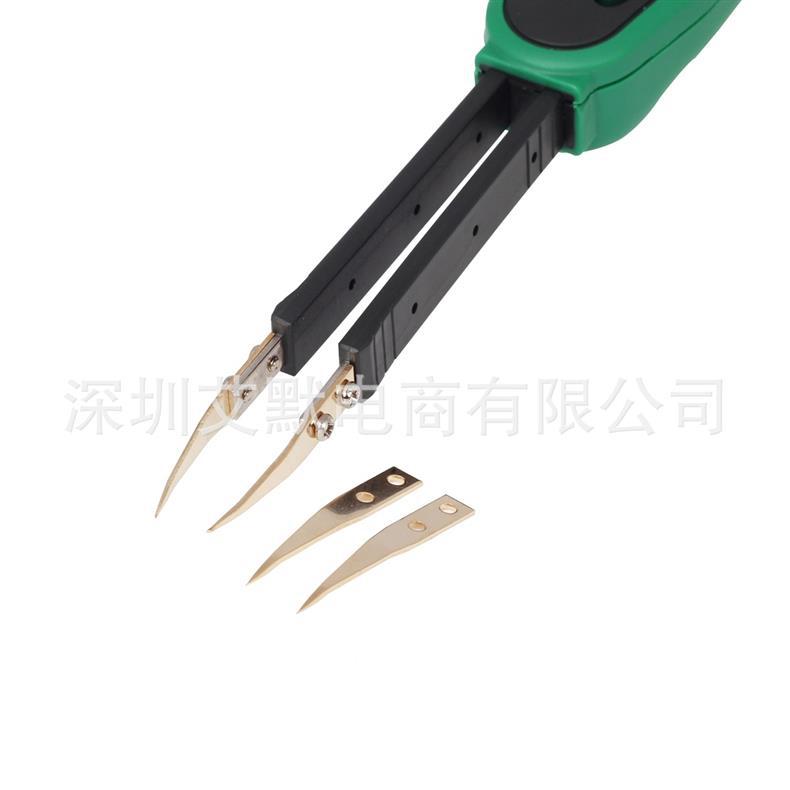

附件:  备份测试针：2个

The Tester is a handheld and battery operated very convenient small Tool that is specially used to measuring SMD （Surface Mounting

Device), there are Chip type resistor, Chip type capacitor and diode, for example. Moreover, the Tester have the continuity checking function

The Tester is automatically identified the passive Component as has been indicated above. Therefore, the measurement are allowed by fully automatic detection. The Tester is designed to meet IEC1010-1 standard and Stipulation of 2-Poulation Grade. The Tester conform to the European Union’s following Requirement:  CE regulation  89/336 (EMC Electromagnetic  Compatibility）。

The entire outer surface of the Tester case has been with thermo plastic elastomer, and the two testing pins has been gold-plated, so that it is reduce pin contact resistance and prevent to get rusty.

This operating instruction covers information on safety and caution, so please read relevant information carefully and observe all the warming and note strictly.

Features:

• 3000 counts LCD display
• Full automatic measurement
• Auto scanning the Resistance/Capacitance/Diode
• Function selection by one “FUNC”  Push Button
• Data Hold function
• Continuity Checking function
• Over Load Indication ( ‘OL’)
• Low Battery Indication

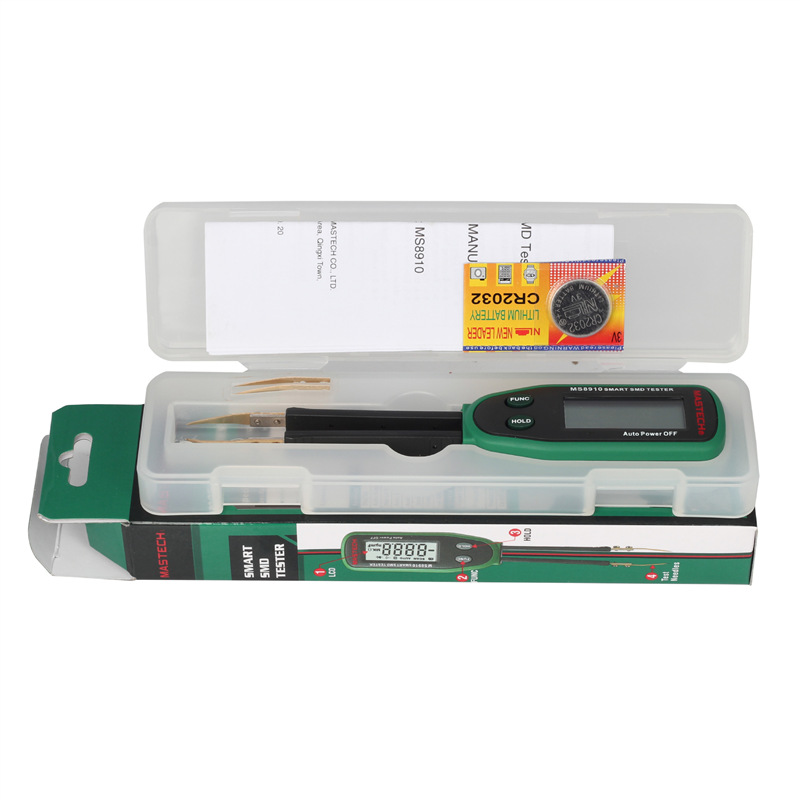

• Power Supply: 3V Lithium Battery CR2032 (included)
• Auto Power OFF. If the Tester is idle for more than 10 minutes, the tester will automatically turn off the power .
• Operating temperature & Humidity: 0 ~ 40℃(32 ~104 ℉)  & < 80% RH
• Storage temperature & Humidity:  -10 ~ 50℃  (14 ~ 122 ℉)  & <70%RH
• Safety Class:  IEC61010-1, 50V CAT III
• EMC： According to CE regulation 89/336.

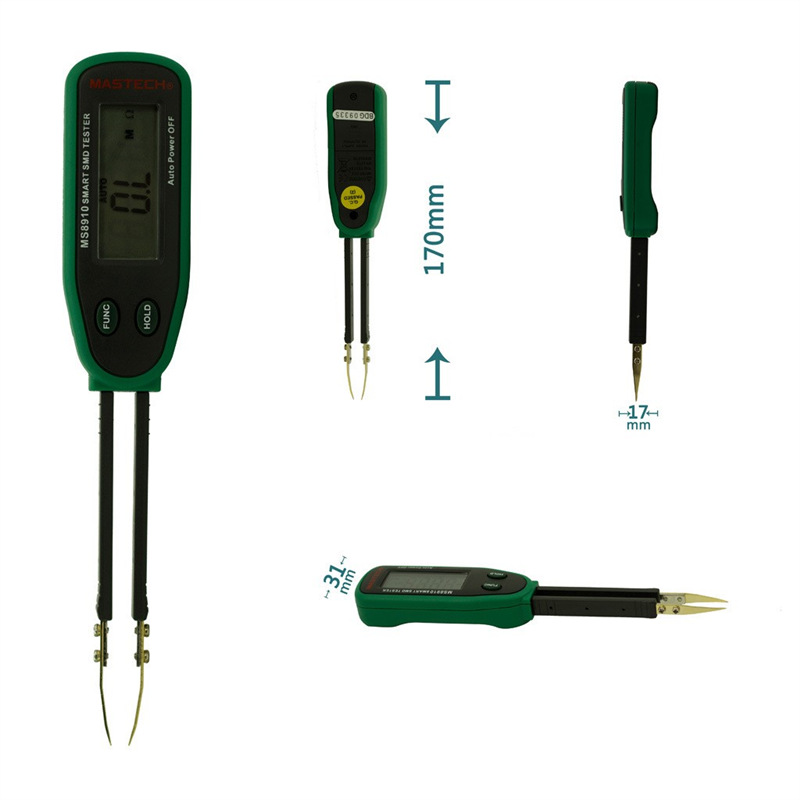

• Dimension (L x W x H) & Weight:  170 x 31 x 17mm,  Approx. 48.6 g
