대외 무역 ms309 수 버스 엔진 리더 자동차 진단 도구 오류 코드 탐지기 OBD2

가격
₩6,600~₩7,500
가격
¥22.00~¥25.00
구매수량별 가격
1~¥25.00
500~¥23.00
1,000~¥22.00
최소구매수량 1개

사양

선택하세요.

선택한 옵션

예상 내륙운임비
/
총 상품금액(내륙운임 포함)
/
수입시 예상 금액
?

수입시 예상 금액이란?

물품대금 · 국제운임 · 검수 · 바코드 부착 · 관부가세까지 수입에 필요한 모든 비용이 포함되어 있습니다.

위시리스트

관련상품

  • 상품 상세설명

    O1CN012dsOD823CoLw5ECUZ_!!1011

    undefined

    O1CN01taVDeS23CoLr99FAP_!!1011
    9c4b7ab8ded04d67e87314f1717b48



    OBD2 OBDII EOBD Scanner Car Code Reader Data Tester Scan Diagnostic Tool


    Product Description:

    The CAN OBD2/EOBD code reader provides DIYers easy and quick access to diagnostic trouble
    codes and their definitions on all OBDII compliant vehicles sold worldwide since 1996. Though small in size,
    it is powerful enough to retrieve the same information as large expensive scanners. It is the best solution to
    diagnose all 1996 and newer OBDII compliant vehicles!

    Retrieves generic and manufacturer specific Diagnostic Trouble Codes (DTC), vehicle information, identifies
    pending codes, views freeze frame data and easily determines the cause of the Check Engine Light, includes
    definitions lookup software on CD and displays DTC definitions on screen.

    This code reader Features a large easy-to-read backlit LCD screen, multilingual menu and DTC definitions and
    standard 16-pin OBD-II connector; no additional cables are needed.

    Views freeze frame data, displays monitor and I/M readiness status, turns off Check Engine Light (MIL), clears
    codes and resets monitors. Supports the CAN (Controller Area Network) protols and all other current OBD-II protocols.



    Product Features:

    1) Retrieves generic and manufacturer specific Diagnostic Trouble Codes (DTC), includes definitions lookup
         software on CD and displays DTC definitions on screen.
    2) Features a large easy-to-read backlit LCD screen, multilingual menu and DTC definitions and standard 16-pin
         OBD-II connector; no additional cables are needed.
    3) Views freeze frame data, displays monitor and I/M readiness status, turns off Check Engine Light (MIL), clears
         codes and resets monitors.
    4) Supports the CAN (Controller Area Network) protols and all other current OBD-II protocols.
    5) Works with all OBD-II compliant U.S., European and Asian vehicles (OBD-II is standard on all cars sold in U.S. post-1996).



    Compatible Protocols

    CAN/KWP 2000/ISO 9141-2/J1850 VPW/J1850 PWM.
    Supports ISO, VPW and PWM bus systems as well as CANBUS systems.



    Support vehicles:

    U.S. Models - European - Japanese - Asian - German - Korean.
    Suitable for almost all cars after 1996 .
    GM '96 - now (OBD-II)
    Ford '96 - now (OBD-II)
    Chrysler '96 - now (OBD-II)
    Toyota '96 - now (OBD-II)
    Honda '96 - now (OBD-II)
     NISSAN '96 - now (OBD-II)
    All other - Asian and European '96 - 2012(OBD-II).





    Using the Scan Tool Procedures:

    1) Turn the ignition off.
    2) Locate the vehicle's 16-pin Data Link Connector(DLC).
    3) Connect the Scan Tool cable connector to the vehicle 's DLC. The cable connector is keyed
       and will only fit one way. (If you have problems connecting the cable connector to the DLC, rotate
       the connector 180 and try again.
    4) Turn the ignition on. But do not start the engine.
    5) When the Scan Tool cable connector is properly connect to the vehicle's DLC, the LCD display
        shows instructions for select New Scan.
    6) Press the New Scan button. A sequence of message showing the OBD2 protocols will be observed
       on the display until the vehicle Protocols.




    Note:

    If the Scan Tool fails to communicate with the vehicle's computer, an Unable to establish a link with the vehicle message shows up.
    -Verify that the ignition is ON.
    -Check if the Scan Tool's OBD2 connector is securely connected to the vehicle's DLC.
    -Verify that the vehicle is OBD2 compliant.
    -Turn the ignition off and wait for about 10 seconds. Turn the ignition back to on and repeat the procedure from the step 6.

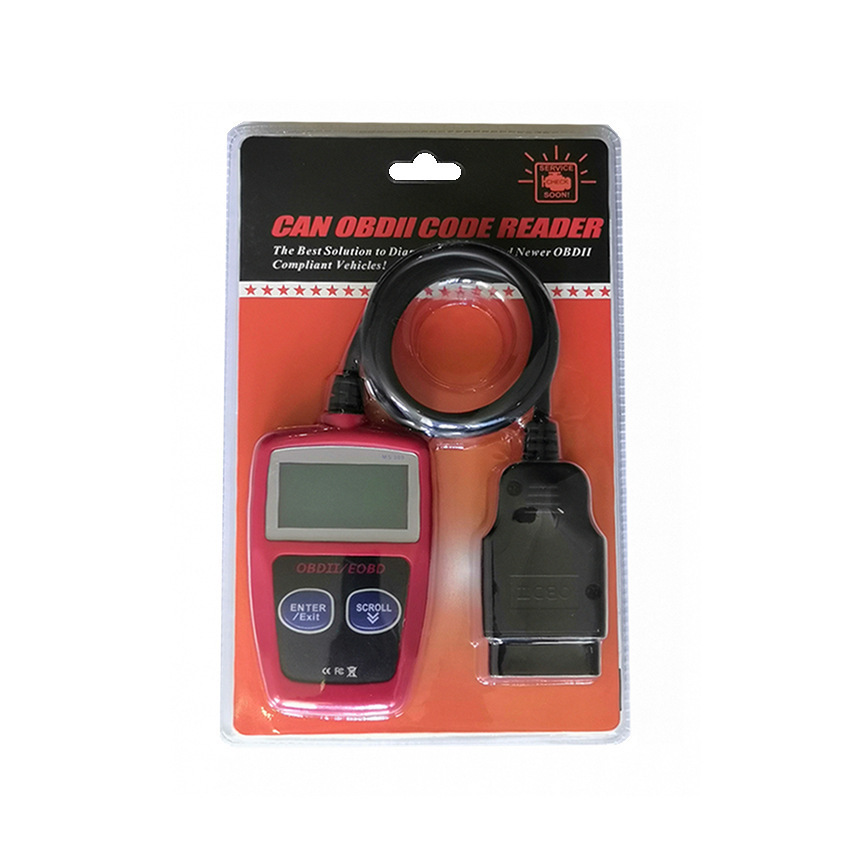

    Package Included:

    1 x OBD2 Diagnostic Code Scanner Tool
    1 x Manual


    100% Brand new and high quality.



    상품정보 제공고시

    원산지 원산지
    수입 여부 수입 여부
    품목 번호 주문 품목 번호 주문
    처리 및 맞춤화 국경 간 수출 전용 공급 여부
    품목 번호 품목 번호 주문
    유형 유형
    전압 전압
    작동 온도 작동 온도
    브랜드 브랜드
    모델 모델
    적용 가능한 모델 적용 가능한 모델
    주요 다운스트림 플랫폼 주요 다운스트림 플랫폼
    주요 판매지역 주요 판매지역
    라이센스가 있는 개인 브랜드가 있습니다. 국경 간 수출 전용 공급 여부
    국경 간 수출 전용 공급 여부 국경 간 수출 전용 공급 여부
    사양 크래프트 카톤 포장
