125KHz RFID ID Card Reader Keypad Door Access Control Kit +

                           Magnetic  Lock+Door switch +DoorBell

--------------------------------------------------------------------------------------------------------------------------------

Why use access control ?

With this full kit set can set up the company, or authority of office building image standardization management, improve the management level, at the same time, standardized internal management system.

If induction card lost can immediately report the loss in the system, so that even if someone else picked up the induction card can't through the entrance guard system, is more convenient than ordinary mechanical lock, more safety.

--------------------------------------------------------------------------------------------------------------------------------

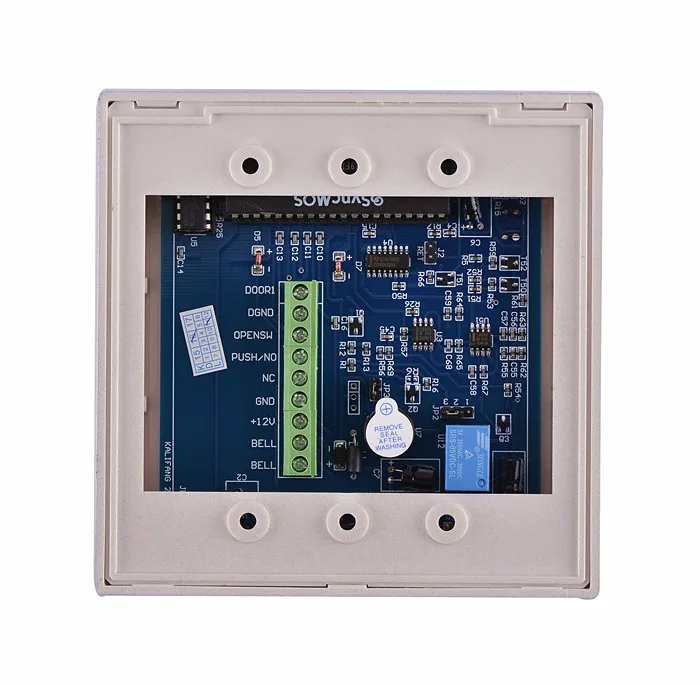

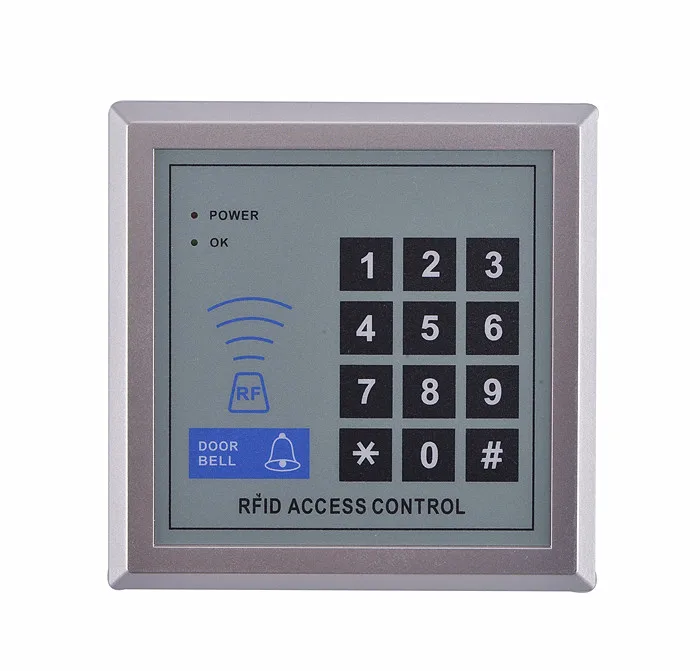

Access Control:

Features:
High quality and high security.
Sensitively and response quickly.
Support 500 standard users.
Support card password, card plus password & password plus card.
add card number and delete card number as your requirement.
With 10 pcs of Key fobs.
Classical Appearance with useful function.
Professional design for Home and Office.

Specifications:
Working voltage: DC 12V
Unlock current: ≤1000mA
Static current: ≤60mA
Memory: 250 standard users
Card read distance: 0-10 cm
RF type: EM card
Working temperature: -10 ~ 70 C
Wide rel. humdity range : 10 to 90 %
Door open options (admin user selectable): Card (Key Tag) & Password/ Card (Key Tag) Only/ Password Only
Item dimension: 11.7*11.7*2.1cm
Item weight: 134g
Package size: 13.5*11.8*2.2cm
Package weight: 210g

--------------------------------------------------------------------------------------------------------------------------------

Power supply:

This AC110V--240V Power supply controller is a transformer which provides stable output voltage for access controller, lock, and exit button.

 Can reduce the load of access controller, save wiring to reduce the hidden troubleSet NC / NO outputs, can control various types of electric locks

Specification:

 Input Voltage: AC 110~220V  50~60Hz

Output Voltage: DC 12V 3A

Magnetic Lock:


It is a High-performance 180kg Holding Force electric magnetic lock which suits for many access control

system. This electric lock can meet your need perfectly.

NC Mode - (Locked while supplied with power) Fail Safe Mode

Performance Testing: 1000000 times aging test

Suitable For: Wooden Door, Metal Doorr, Fireproof Door, Glass Door, etc.

Safety function: Built-in voltage spike suppressor

Anti-Residual Magnesium Designed.



Specification:



Voltage: 12V DC

Current: 400mA

Mode: NC (locked whilst power supply is operating), fail safe mode

Application: wood, iron doors

Faceplate dimensions: 130 x 32 x 9.3mm

Main body dimensions: 170 x 40 x 22mm

Pack includes: electric magnetic lock, installation diagrams

Construction: stainless steel

Holding force: 180KG







Key Card:



There are 10 pcs 125KHz RFID Proximity ID cards , they can work with the product which has 125Khz RFID card reader.
Operation Frequency: 125KHz
Each card has an uniqe ID number.
Perfect for attendance system, access control system, identification, low frequency tag card, etc.

Specifications:
Water resistant
Detecting distance: 3-10cm
Each comes with Key ring included
Compatible with all RFID ID card reader to gain access
Each token pre-programmed with unique ID which is printed on it.







--------------------------------------------------------------------------------------------------------------------------------





--------------------------------------------------------------------------------------------------------------------------------

Wiring Diagram:

--------------------------------------------------------------------------------------------------------------------------------

Item Includes:

1 x Access control keypad

1 x Electric magnetic lock

1 x Power supply

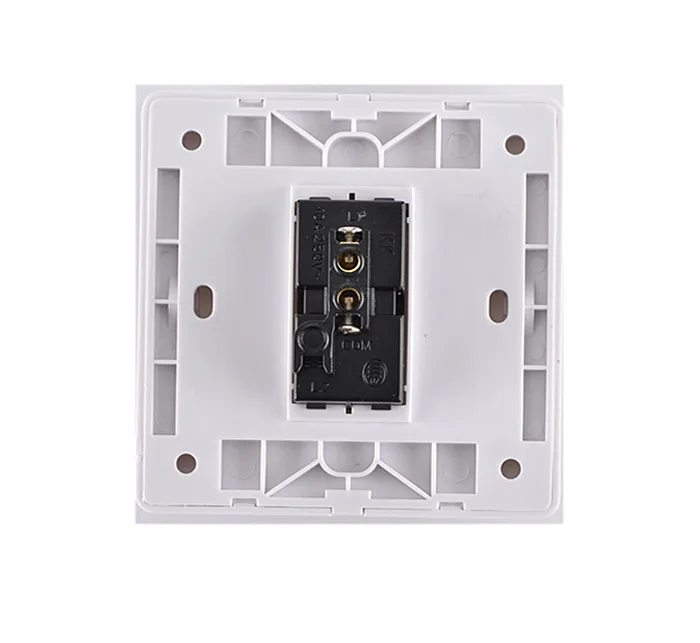

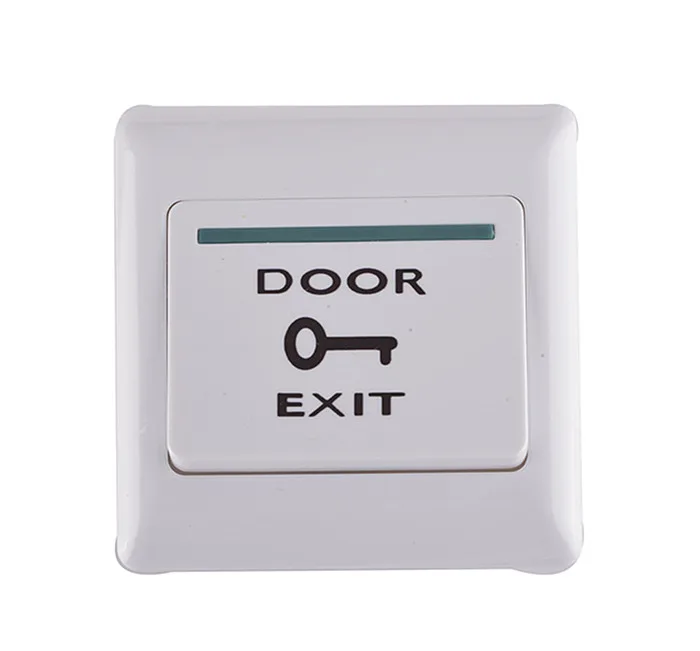

1 x Exit button

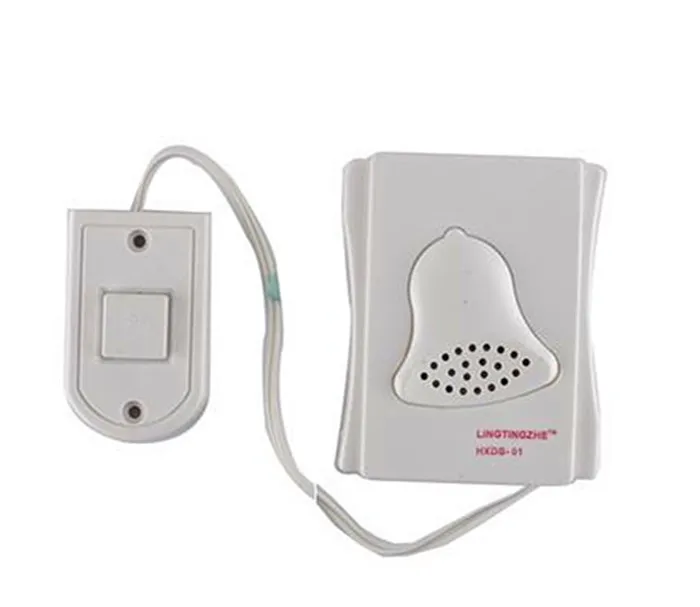

1 x DoorBell

10 x Keyfob
