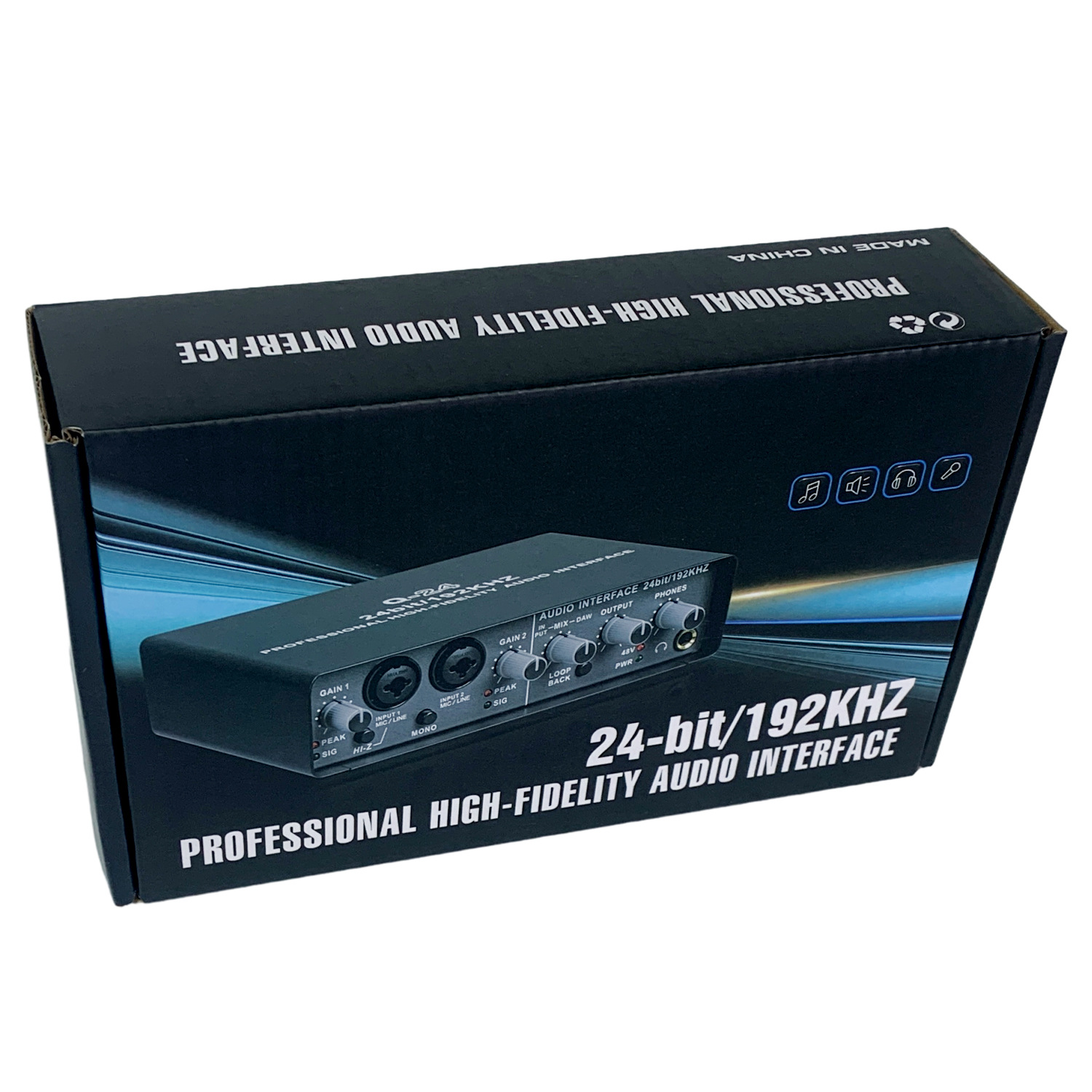

包装尺寸:25X15X7CM 重量:0.84KG
箱尺寸：20PCS/CTN 48.3X29.2X29.8CM 重量:15KG

Technicalspecifications

MICINPUT1-2(balanced)
Frequencyresponse:-1/-1dB,20Hz-20kHz
Dynamic Range:82 dB,A weighting
THD+N 0.03%,1kHz
Maximum input level: +6dBulnput resistance 4kΩ
Gainrange:+3dB- +60dB
HI-ZINPUT 2(Unbalanced)
Maximum input level: +3.0dBV
Input resistance:1 MΩ
Gain range:0dB-+40dB
LINE INPUT½(Unbalanced)
Maximum input level:+10dBu
Input resistance: 18.5kΩ
Gainrange:-10dB-+40dB

MAIN OUTPUT(lmpedance balance)
Frequency response:-1/-1dB,20Hz-20kHz
Dvnamic Range:82 dB,A weighting
THD+N 0.03%,1kHz，
Maximum output level: +6dBu
Output resistance 100Ω
PHONES
Maximum input level: 15mW +15mW40Ω

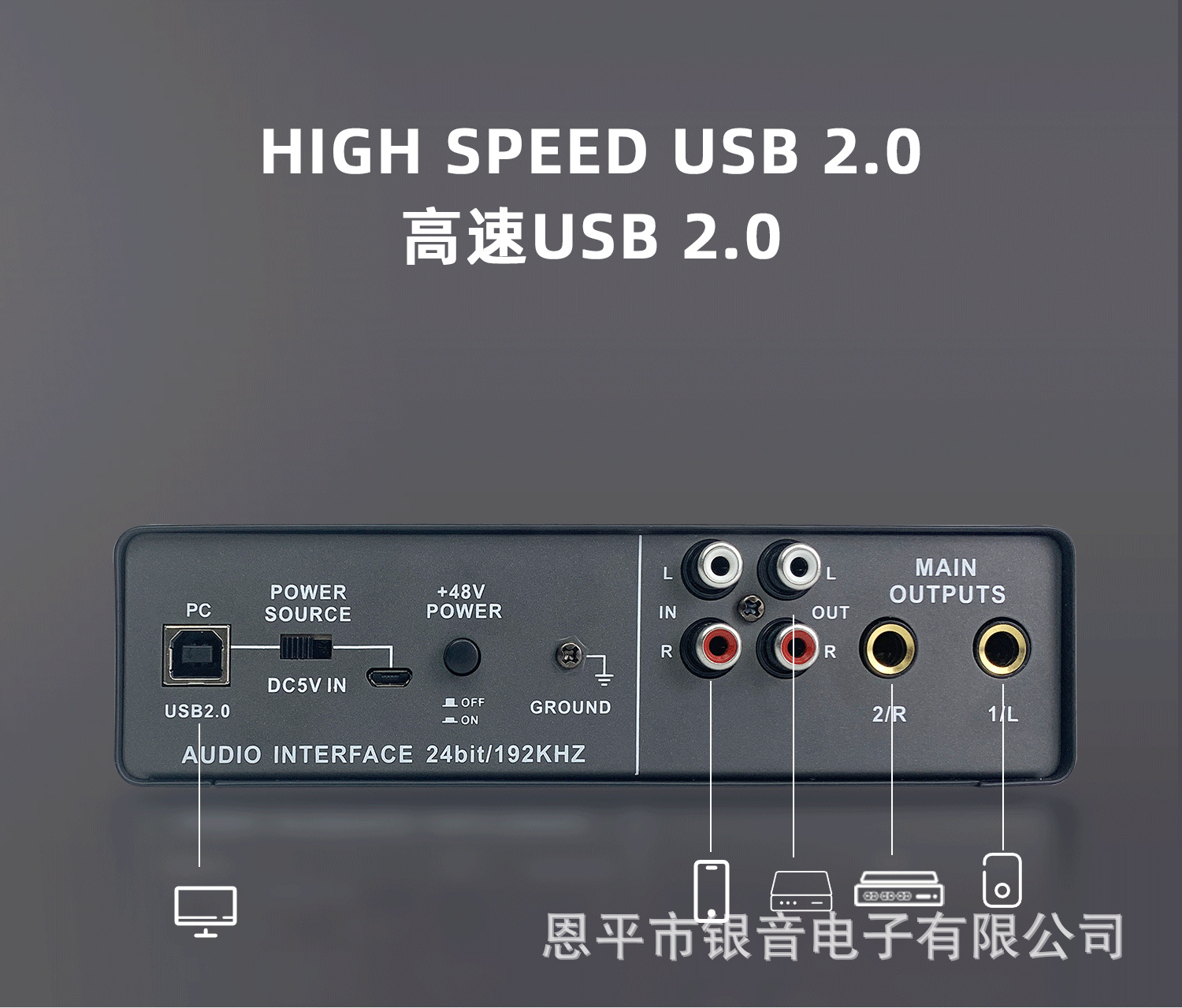

USB

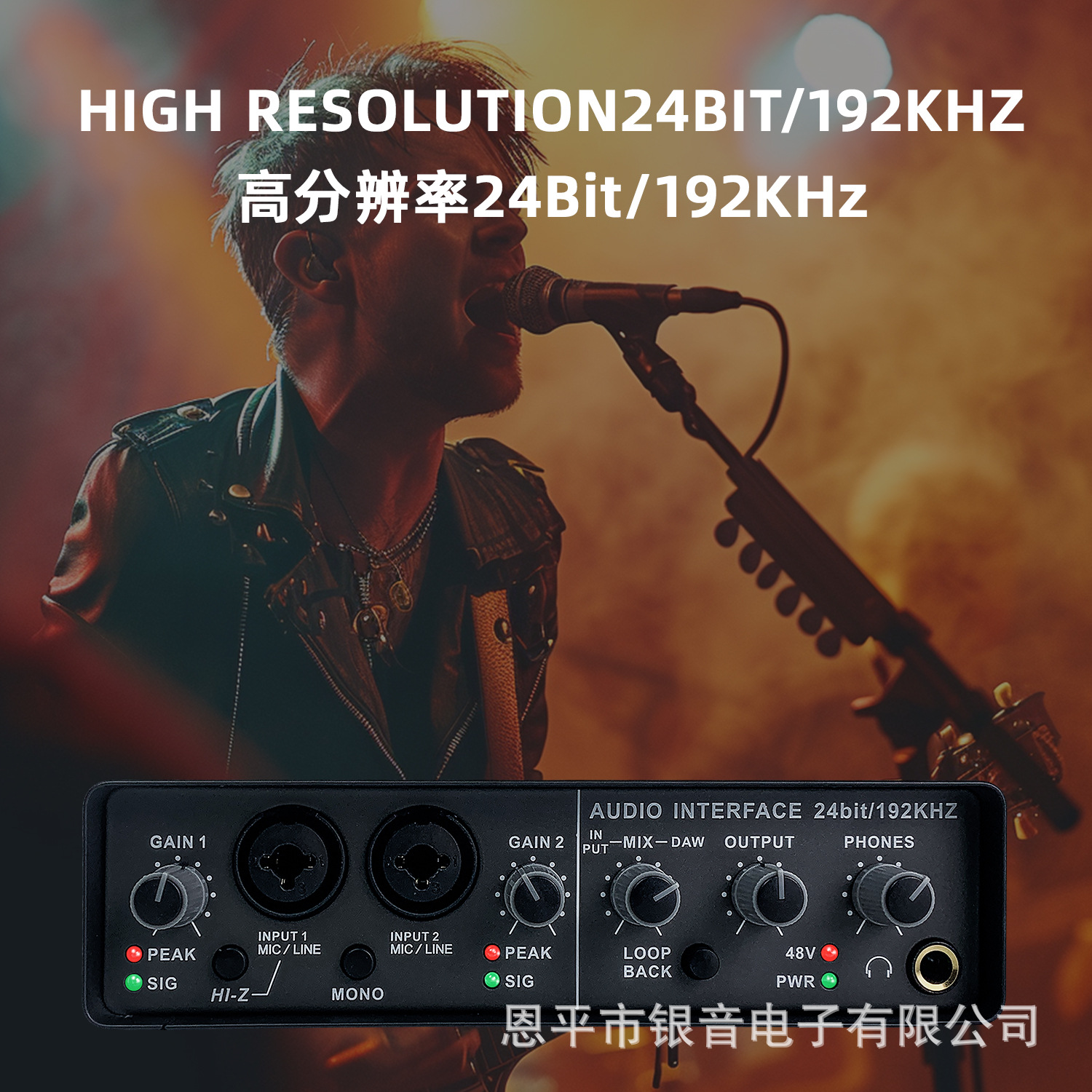

Technical specifications: full speed USB 2.0,24bit
44.1kHz/48kHz/88.2kHz/96kHz/176.4kHz/192kHz
XLR INPUT
Polarity:1 Grounding 2: Hot wire(+) 3: Cold wire (one)

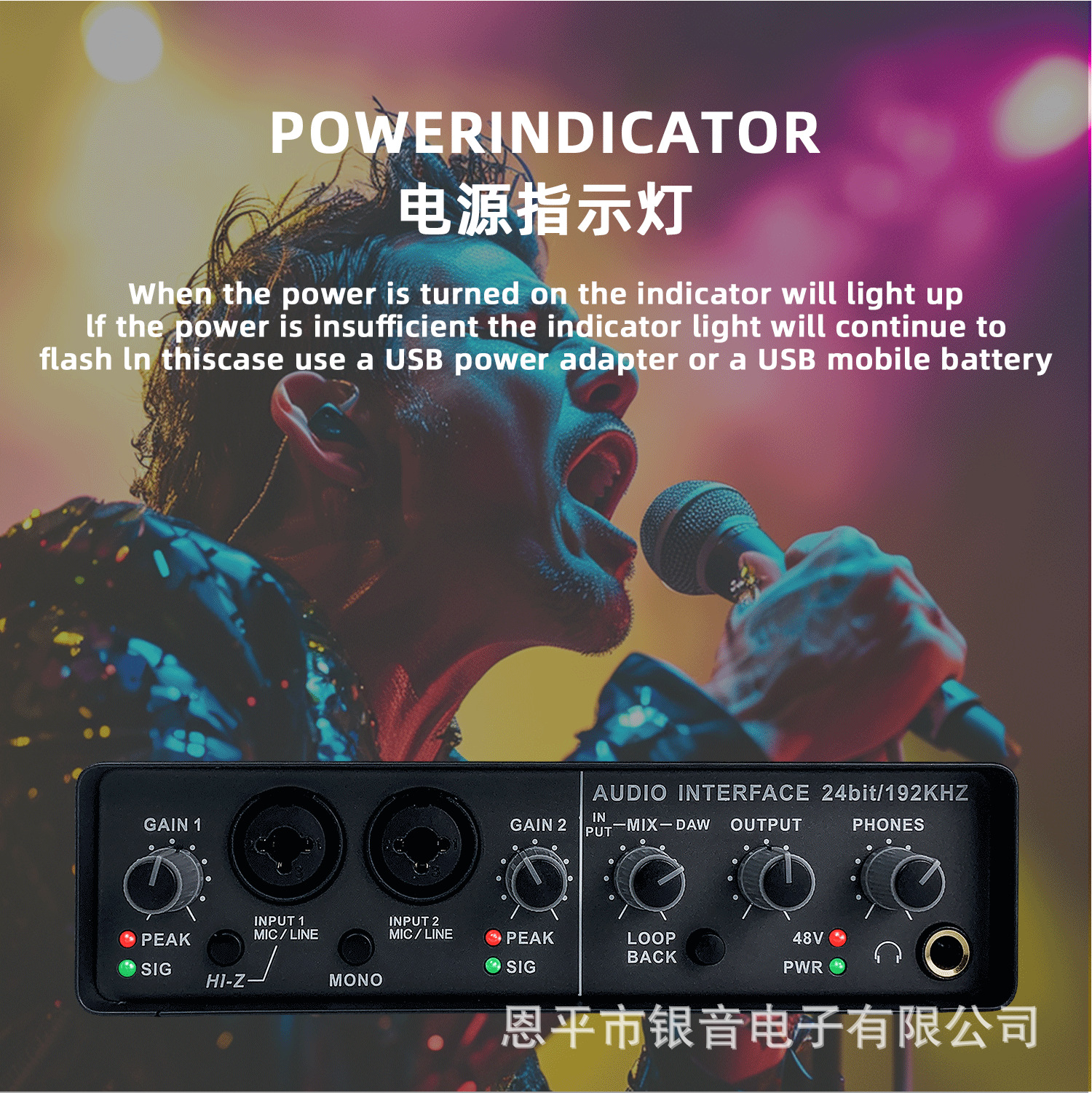

Power requirements: >5W
