DM8817
INSTRUCTION MANUAL
Radio-controlled weather station
.Intended use

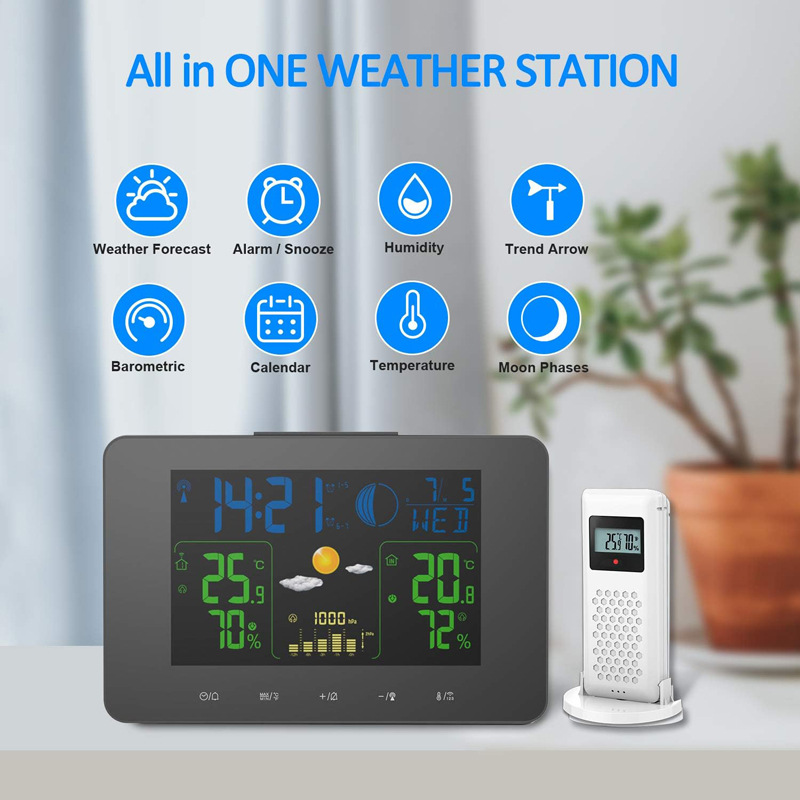

This radio-controlled weather station displays the indoor and outdoor temperature, indoor and
outdoor humidity ,and barometric pressure. It features a radio-controlled clock and several alarm
functions. The probable weather trend is calculated based on data collected. This product is not
intended for commercial use.
.Parts description
Technical Data

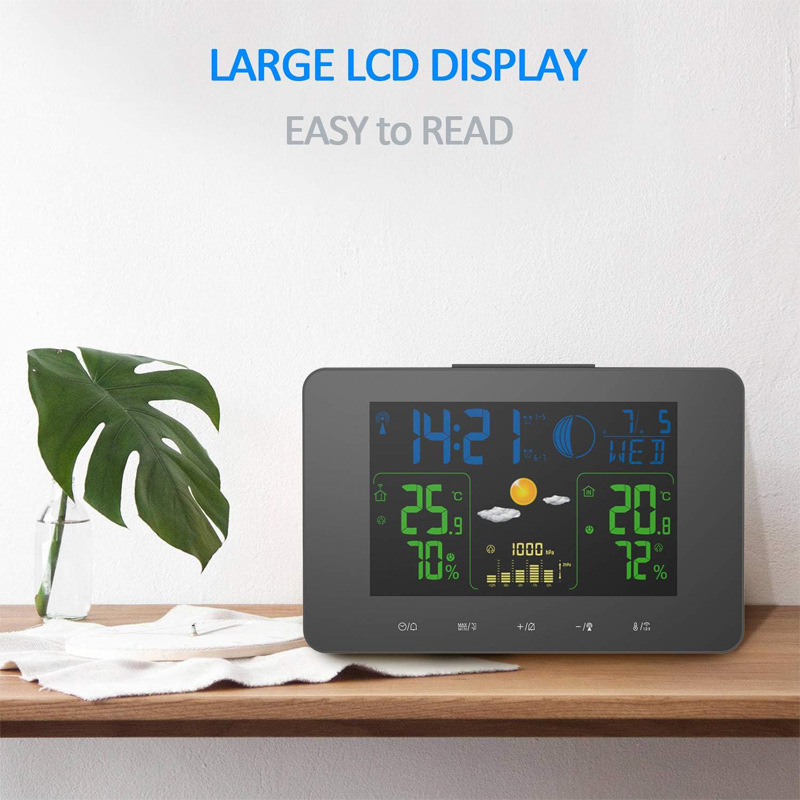

Base station:
Temperature measurement rang: 0℃ to 50℃
Humidity measurement rang: 20% to 95%
Barometric pressure : 850hPa to 1050hPa
Batteries: 2x LR06, 1.5V
(size AA)
Input: 3.0-3.6V
Sensor
Temperature measurement range: -20℃ to 50℃
Humidity measurement range: 20% to 95%
Data transmission frequency : 433MHz
Wireless rang: max.100m(open area)
Batteries: 2XLR03,1.5V
(SIZE AAA)
Mains adapter
Input: 230V-,50Hz
Output:3.6V
USB charger
Output:5.0V
Scope of delivery
.Weather station, comprised of the base station and radio sensor
.2 batteries type LR6(AA)/1.5V (base station)
.2 batteries typeLR03(AAA)/1.5V (radio sensor)
.Operating instructions with warranty
.mains adaptor for base station
