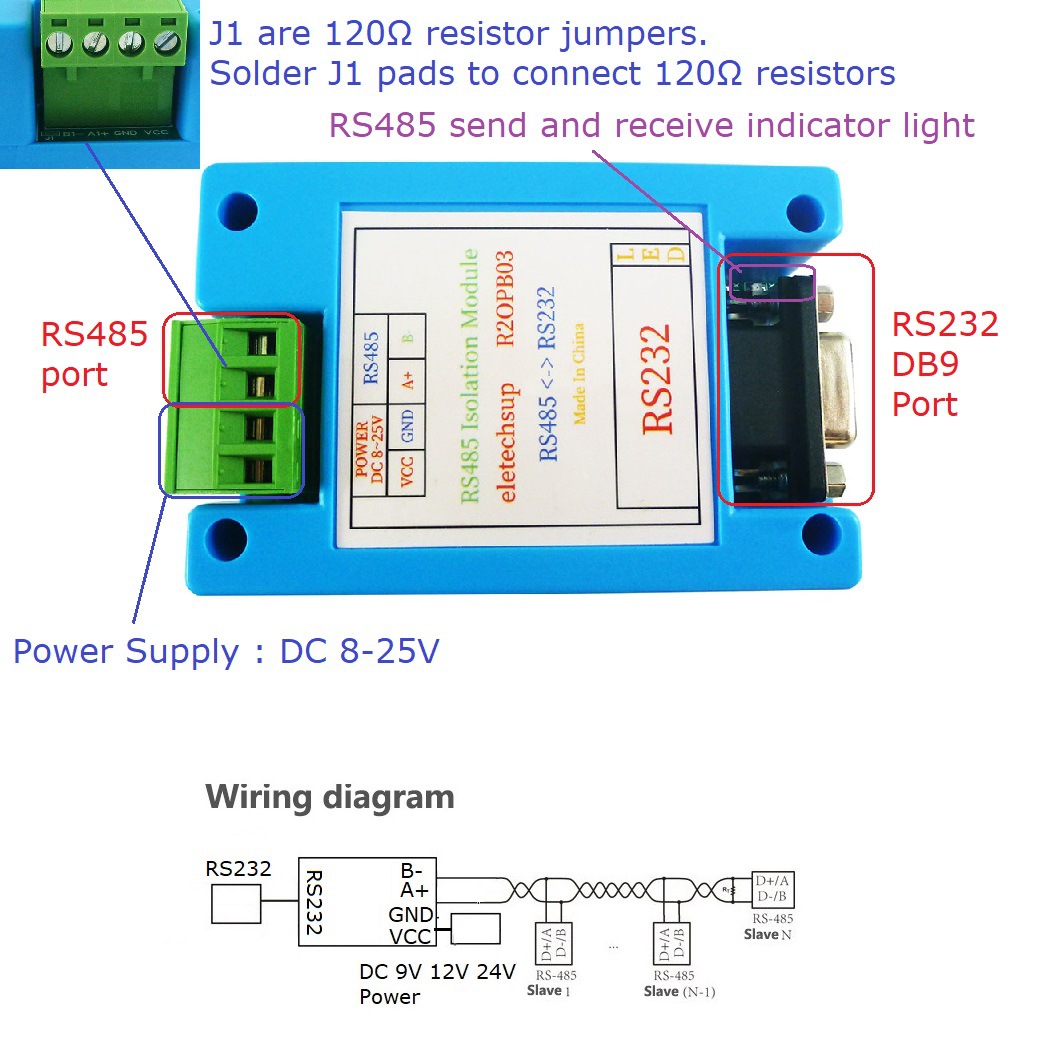

    Product Name: DC 12V 24V RS232 to RS485 Isolator Converter PC COM Serial Port UART for Modbus RTU PLC Analog Digital IO HMI

    Packing list:
    1PCS RS232 to RS485 Isolator Converter





    Product Introduction

    The isolated RS485 to RS232 Converter is a high-performance industrial-grade RS485/RS232 signal amplifier and extender. The product can automatically sense the data flow direction and communication baud rate, without any control or handshake signals, ensuring transparent data transmission. The power supply and communication signal of the equipment are completely isolated, and measures such as surge protection and electrostatic protection are provided. It has the characteristics of long transmission distance, high speed, stable and reliable performance. Widely used in attendance machines, IC card toll systems, automatic control, access control systems, parking lots, canteen food sales systems, road toll systems.

    Features
    1. Industrial design, complete communication isolation, stable and reliable performance, adaptive baud rate 100-115200Kbps;
    2. Built-in high-quality DC/DC isolation power module to realize electrical isolation between ports;
    3. RS485 Support multi-machine communication, up to 128 nodes can be connected, and the longest transmission distance is 1500 meters;
    4. Data flow automatic control technology, automatically distinguish and control the direction of data transmission;
    5. Multiple protection measures: ESD protection of plus or minus 15KV, 600W dual-channel TVS protection and 3KV communication isolation;
    6. The power supply has a wide range of 8-25VDC, and has anti-reverse connection protection;

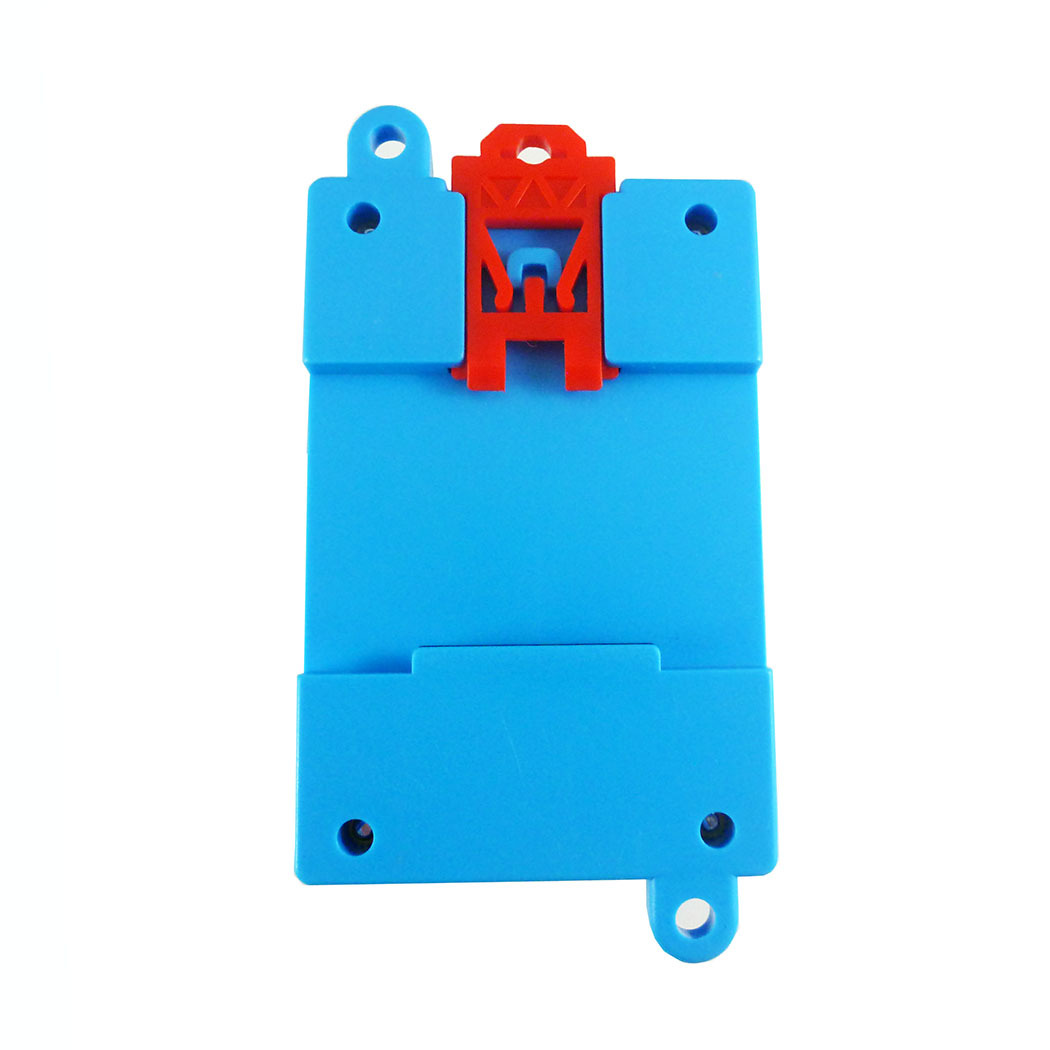

    7. Support standard 35 guide rail installation;

    RS232to RS485 Bus Isolation Protector
    Working voltage DC 12V/24V
    3000V photoelectric isolation
    ESD protectio 15KV
    RS485 Load capacity 1-128 nodes
    Adaptive BaudRate(100-150K)
    Adaptive DataBit/Parity/StopBit

    Electrical parameters
    1 Working voltage 8-25V (DC 9V 12V 24V)
    2 Working current: 12-15MA
    3 3000V photoelectric isolation
    4 RS485 load capacity 1-128 nodes,RS232 can only connect to 1 node
    5 RS485 Communication distance 0-1500 meters,RS232 transmission distance within 20 meters
    6 Adaptive baud rate 100-115200BPS, adaptive parity (NONE ODD EVEN)
    7 Size: 100*53*32
    8 Weight: 68 grams
