  • 상품 상세설명

    Product Name : DC 5V 12V 24V 24CH Current Voltage to RS485 Converter 4-20MA 0-30V ADC Collection for SCADA DCS MES RTU PLC HMI

    Package inlcuded:

    1 PCS24CH mini RS485 Modbus Rtu Current Voltage Collector Board

    Features:
    1 Working voltage: DC5V or DC 7-24V two versions
    2 Working current: Standby 6-7MA, working current 12-20MA
    3 Support standard Modbus RTU command, function code: Write 06/16 ,Read 03/04
    4 With hardware reset function, RS485 with TVS anti-surge protection, anti-reverse power supply

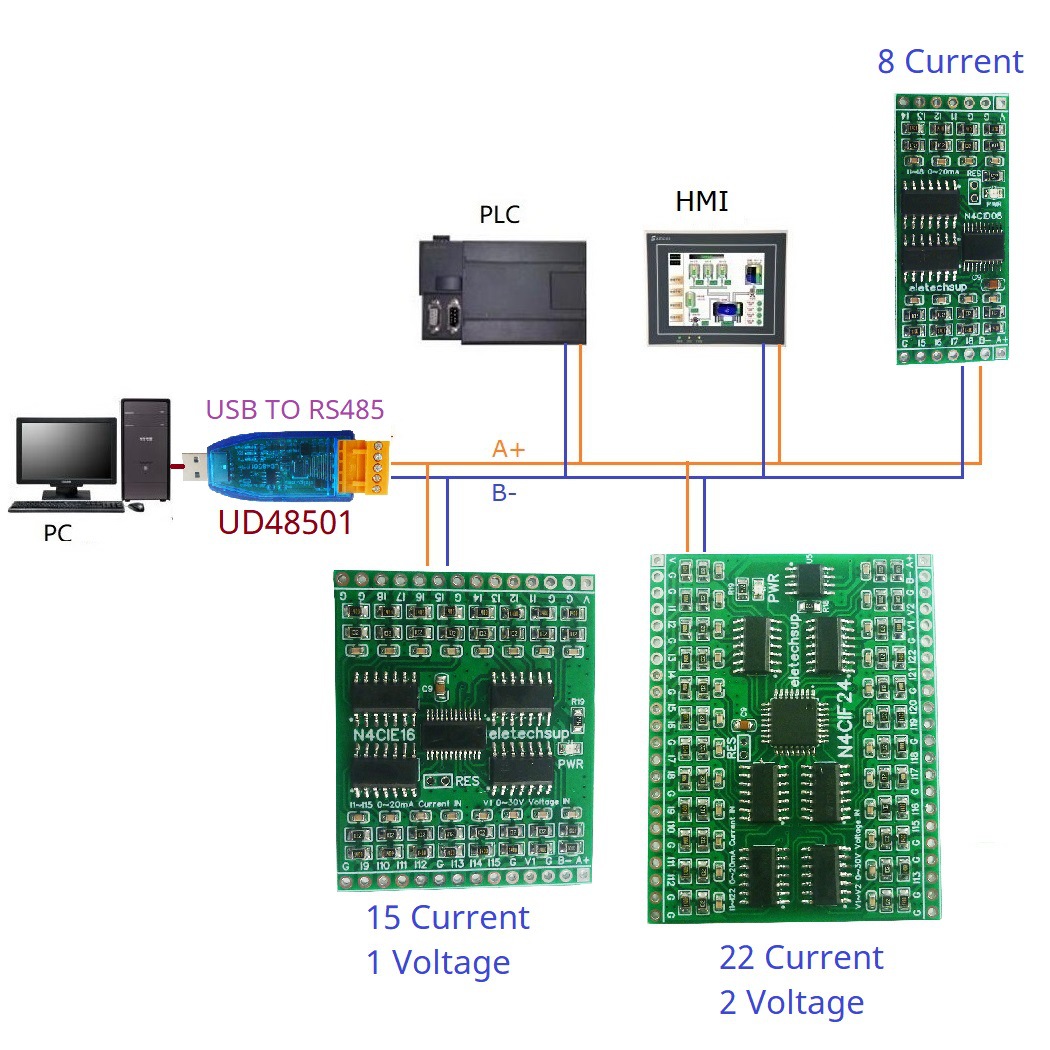

    5. In MODBUS command mode, up to 64 devices can be used in parallel
    6 The default baud rate is 9600BPS, the baud rate can be selected by command 1200 2400 4800 19200 38400 57600 115200BPS
    7 You can choose the check mode is no check, even check and odd check
    8 You can set the data sending return time, the maximum can be set to 1000ms

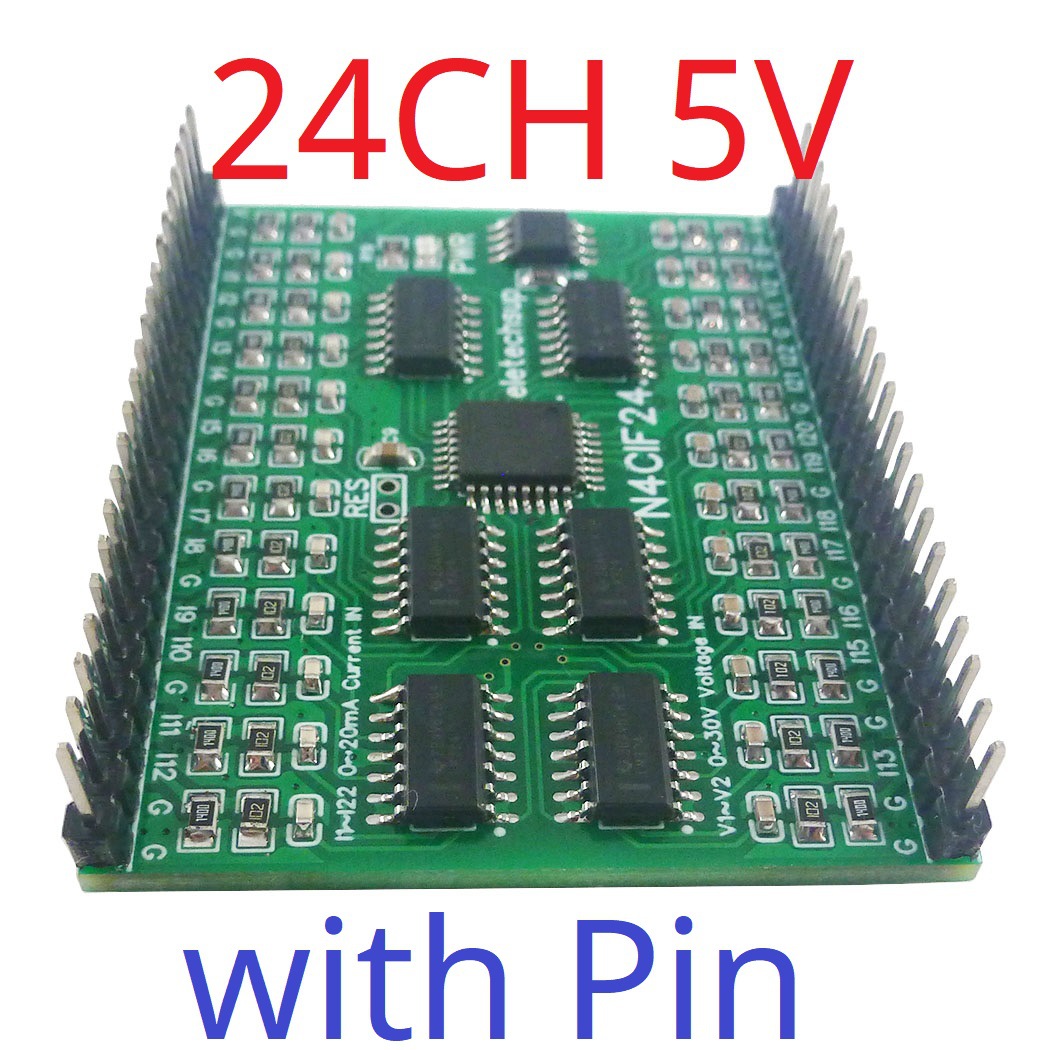

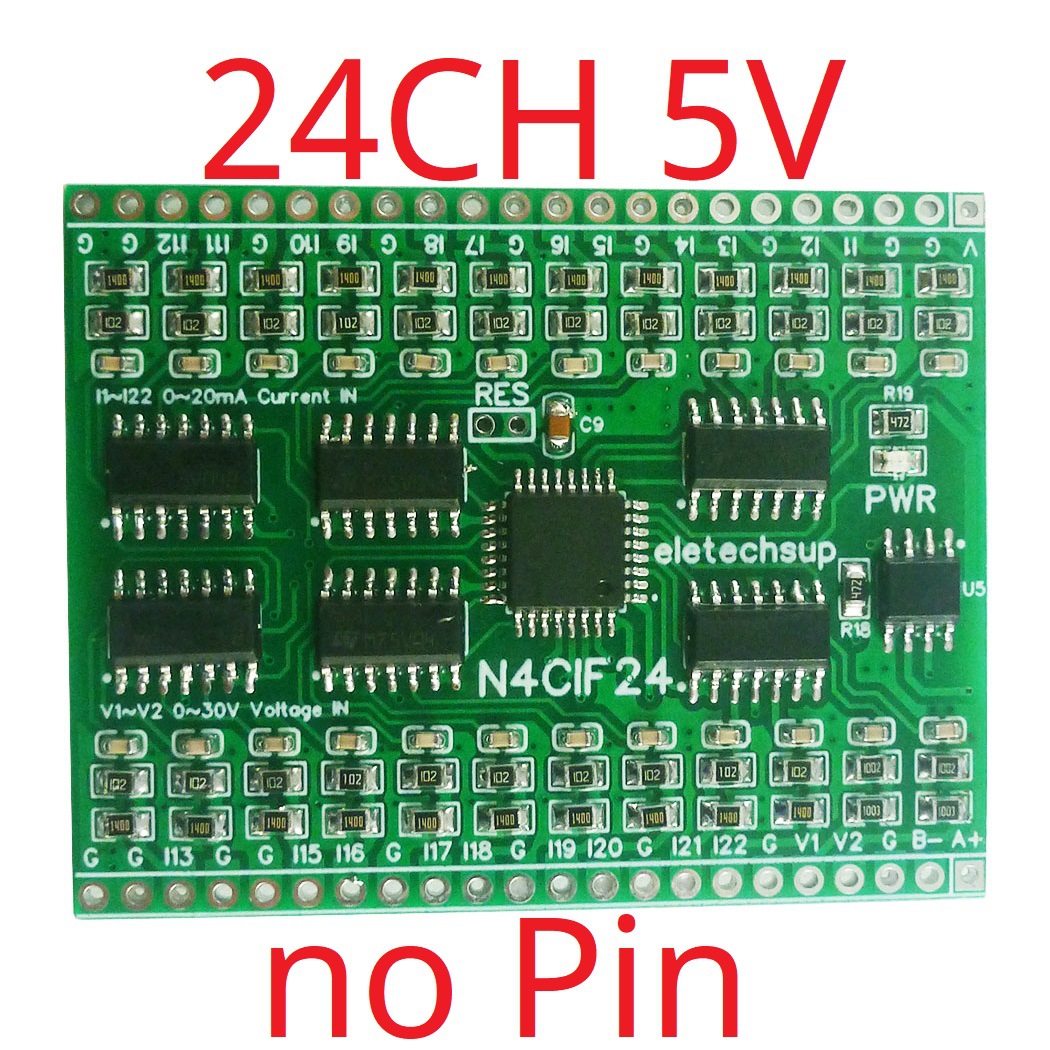

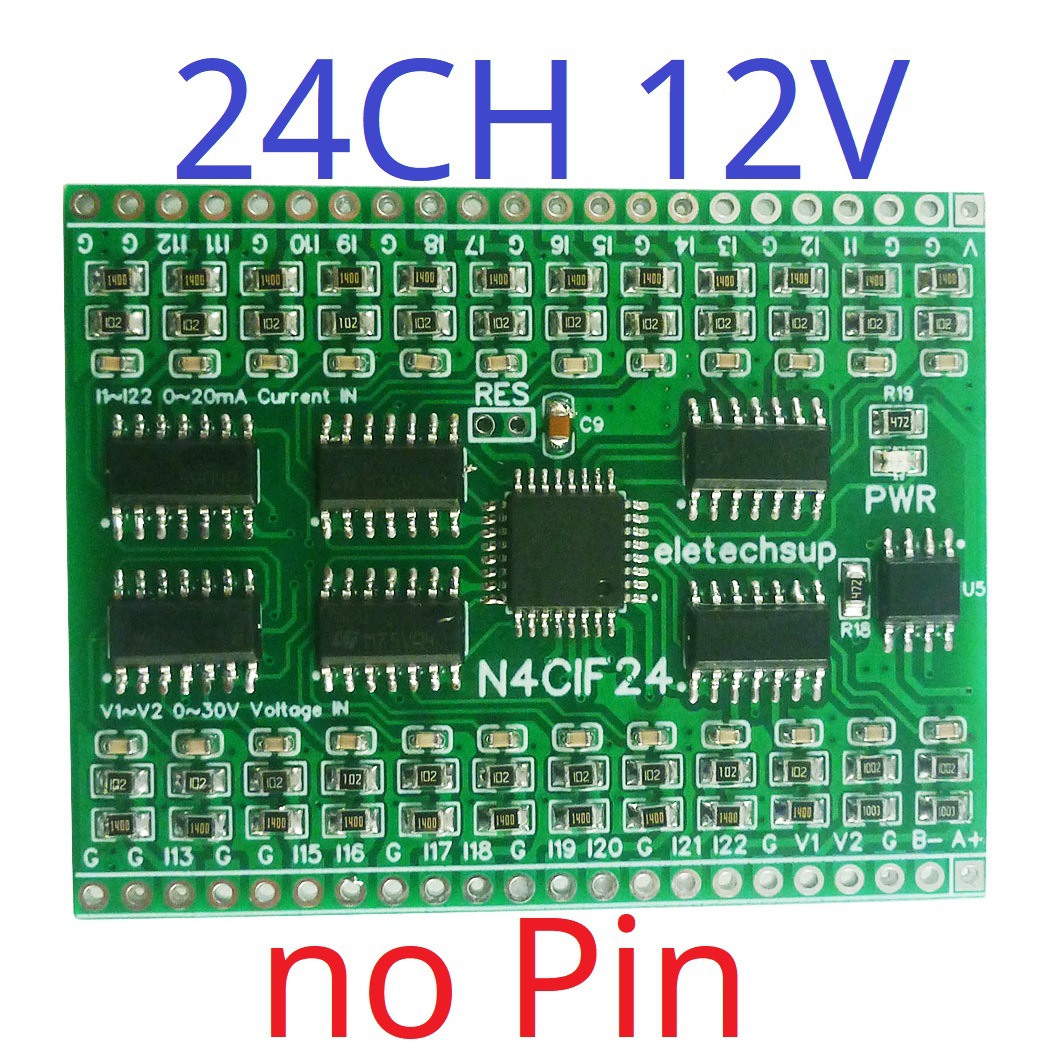

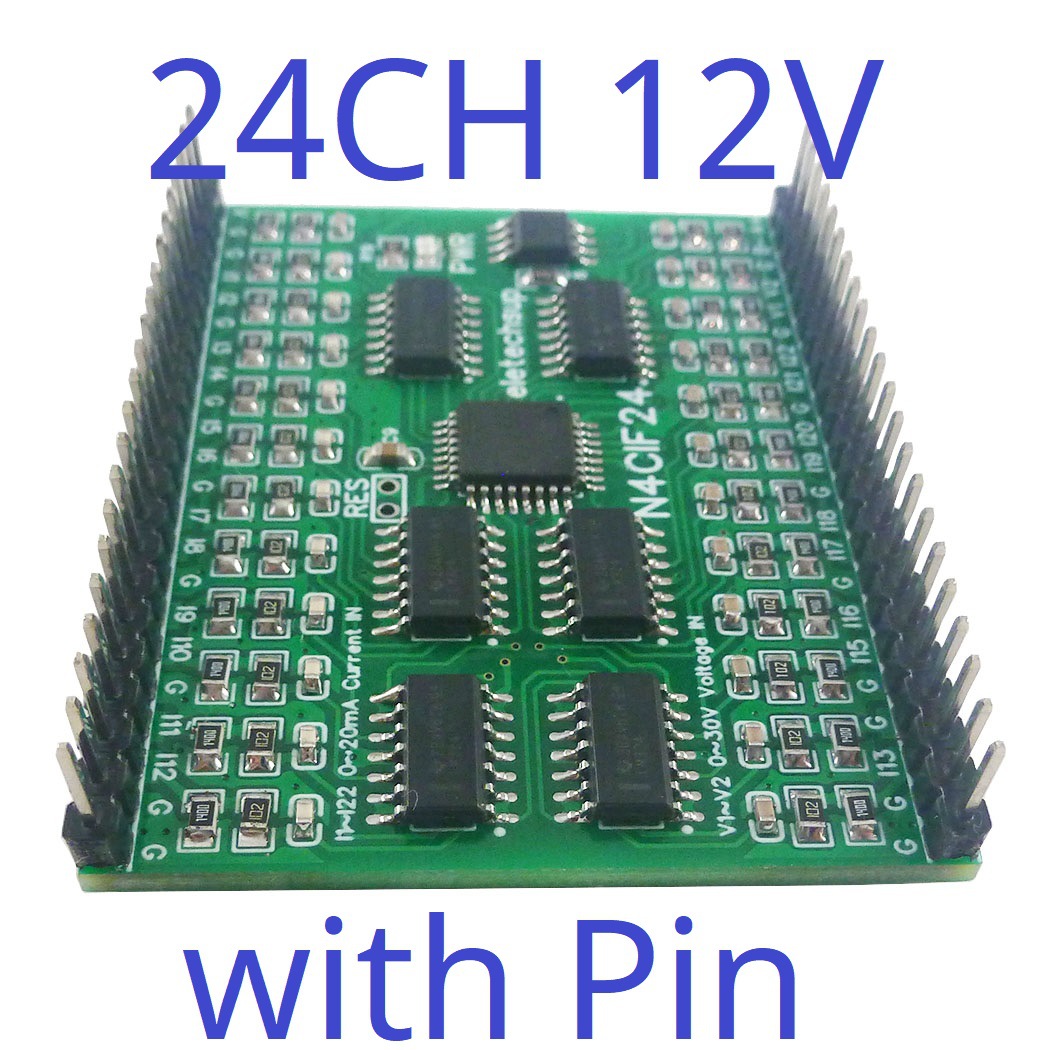

    N4CIF24 Version:
    22-channel 0-20MA/4-20MA acquisition and 2-channel 0-30V voltage acquisition;
    Size: 44 * 55.9 * 5mm ( only board) 44* 55.9*11mm (with pin)
    Weight: 11.2 grams (only board ); 13.7 grams (with pin)

    This is a 2.54MM pin header version of the RS485 current collector, fully compatible with the terminal block version (N4AIA08 N4AIB16 N4AIC24).
    The size is kept to a minimum while meeting the functional performance. It can be used as a core board and embedded into the base board.

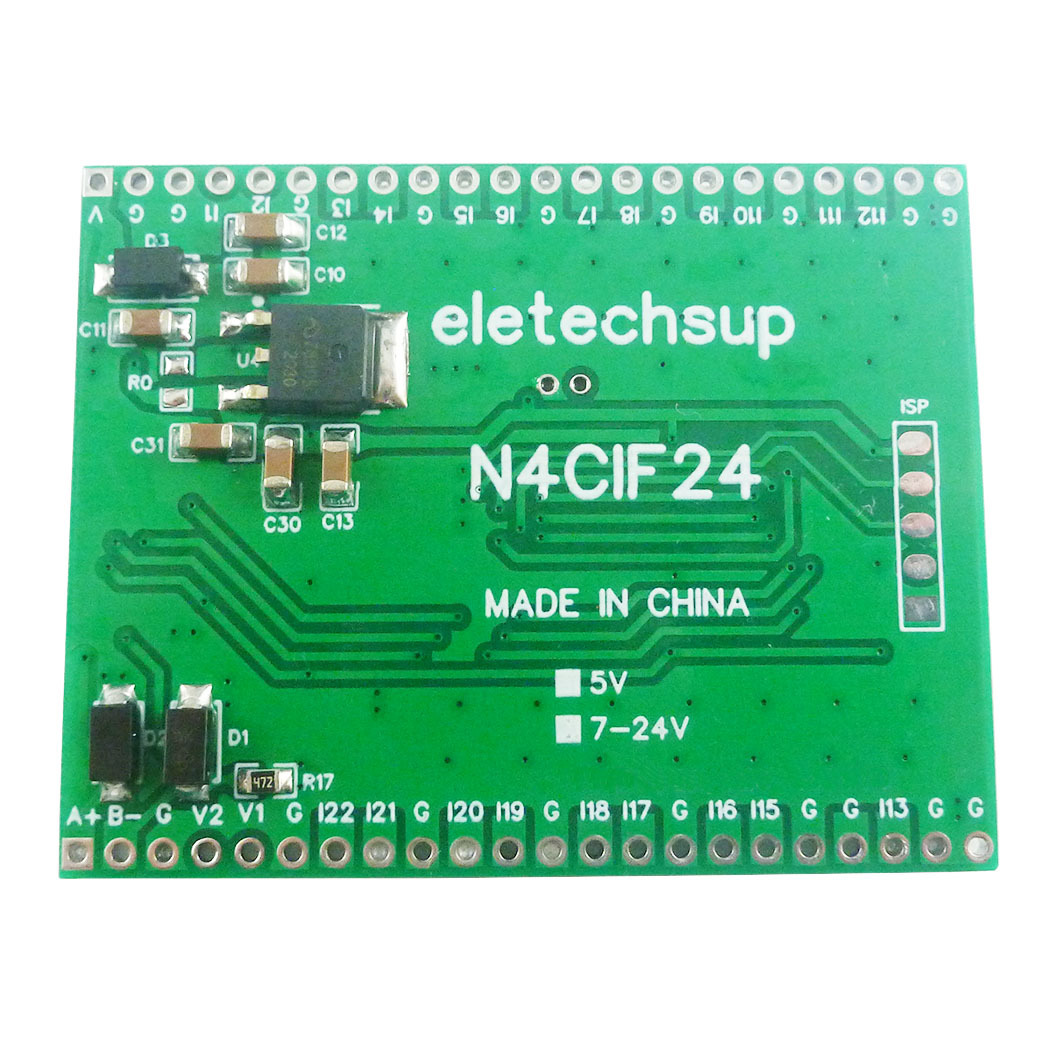

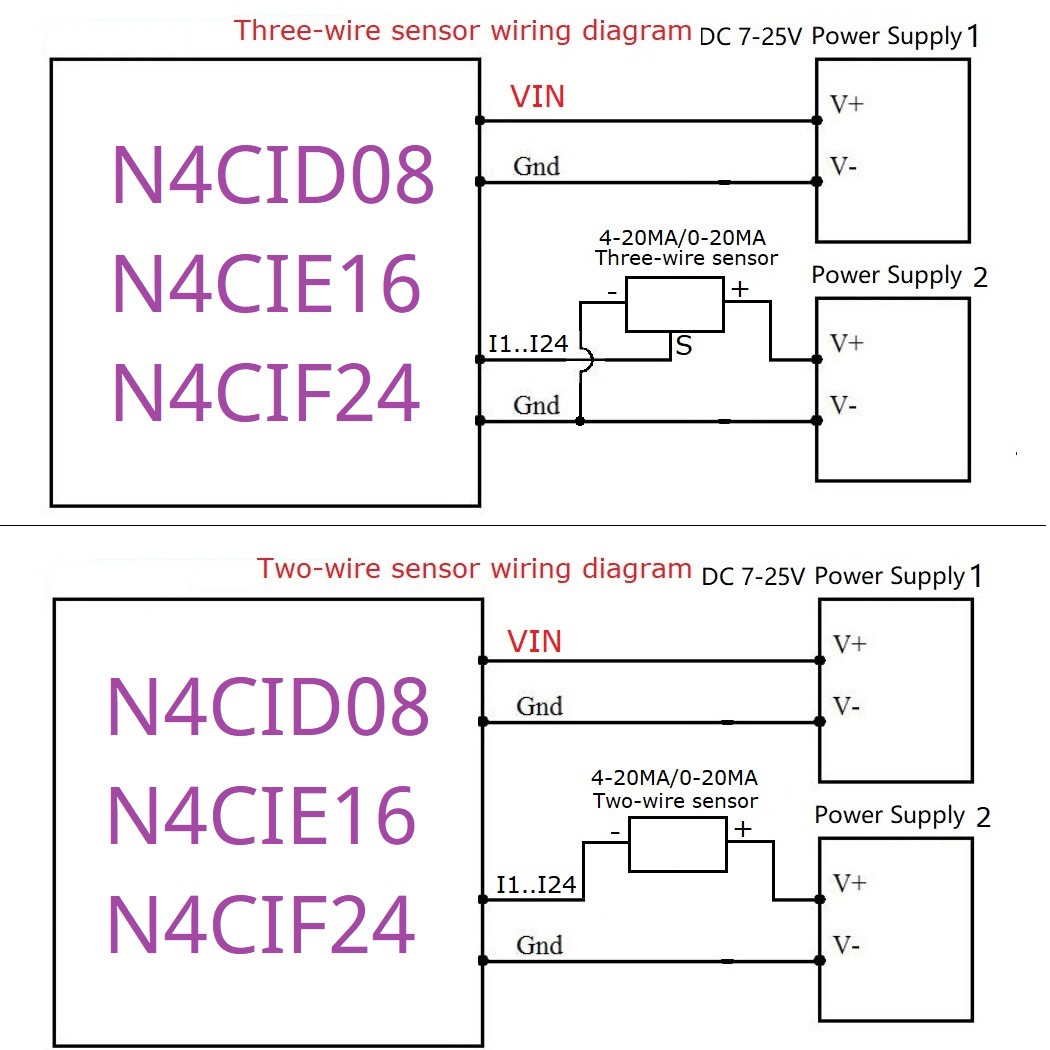

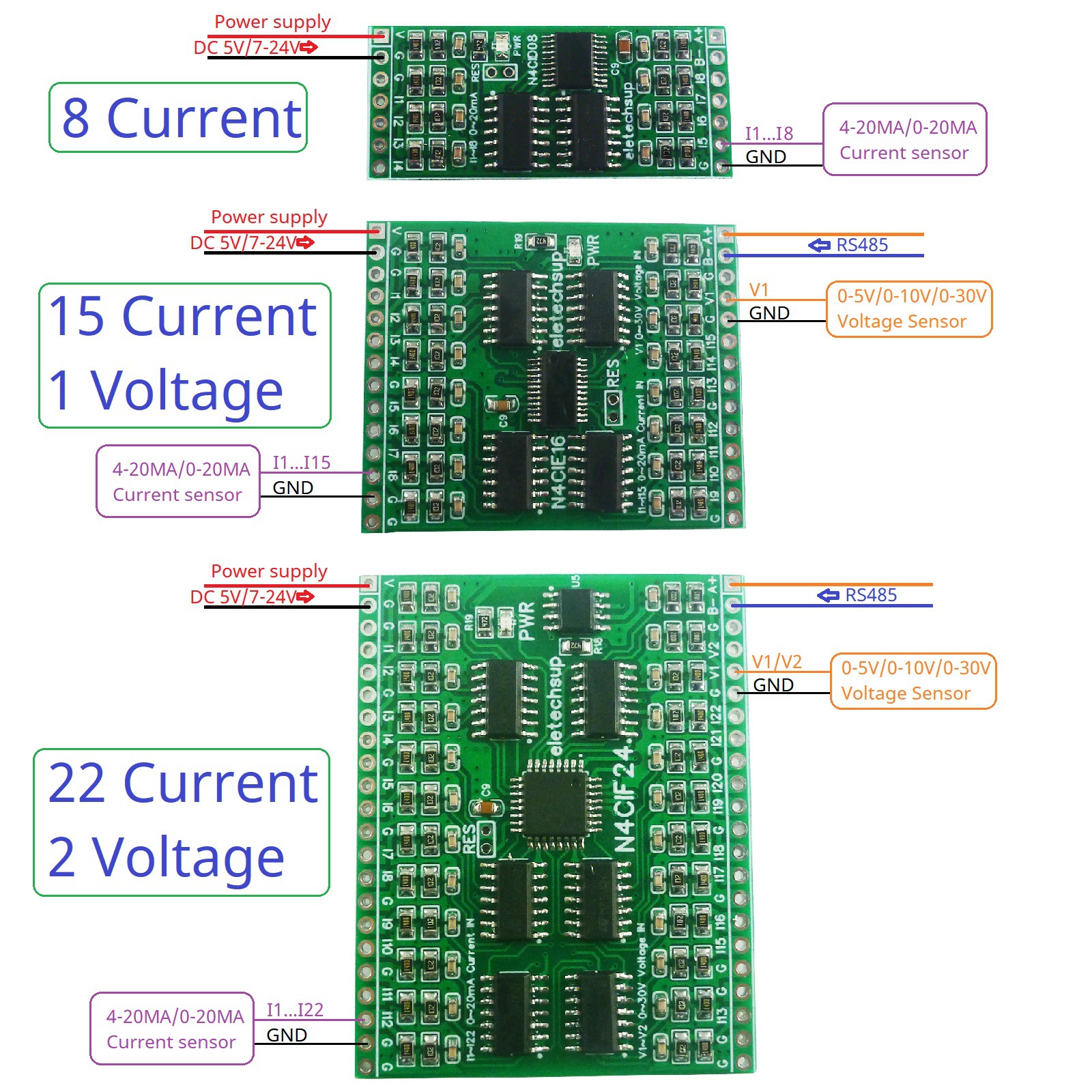

    Interface definition:
    VIN : Power input+
    GND: Power input-
    I1: Current input channel 1
    I2: Current input channel 2
    I3: Current input channel 3
    I4: Current input channel 4
    ...
    I22: Current input channel 22
    V1: Voltage input channel 1
    V2: Voltage input channel 2
    A+: RS485 signal A+
    B-: RS485 signal B-
    For more information, please contact me
    Application

    PLC Output expansion board
    Smart Home,Home Automation ,Wiser Home;
    PTZ CCTV Camera
    Security Monitoring
    Displacement/Hall sensor
    PT100 K P J Thermocouple Sensor
    Automatic curtain control
    0-20MA/4-20MA Current     Sensor
    0-10V/0-5V Voltage Sensor
    Motion detector
    Industrial field measurement and sensing











































































































    상품정보 제공고시

    브랜드 eletechsup
    적용 범위 전압
    국경 간 수출의 원천이 독점적인지 여부 예
    주요 판매 지역 아시아
    주요 하류 플랫폼 LAZADA
    사양 및 모델 12V with Pin*6-7MA*N4CIF24
