  • 상품 상세설명




    Product Name:

    64DI-64DO 12V 24V RS485 Modbus RTU Isolate Communication PLC IO Expansion Board Digital Switch Quantity NPN Input Output Port









    Package inlcuded:

    1PCS

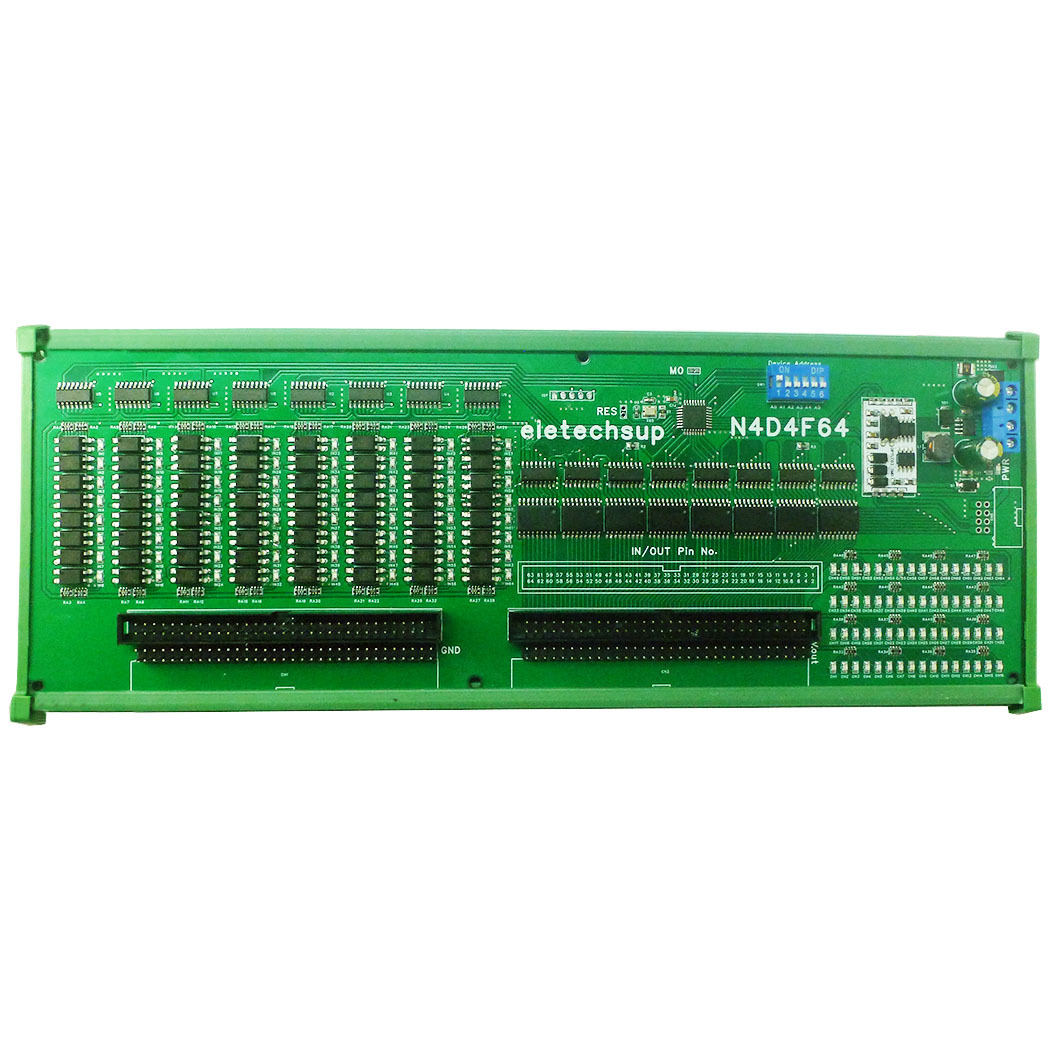

    DC 7-27V 64 Channels DI-DO RS485 Isolate Communications IO Module












    Description:


    1 Working voltage: DC 7-27V (9V 12V 24V)
    2 Working current: 8-50MA
    3 64 optically isolated input ports, NPN input
    4 64 Darlington transistor outputs (ULN2803 NPN output)
    5 The default command has a variety of output modes: open, close, Momentary, self-locking, interlocking, delay six output modes
    6 The input port can remotely control the output port of another board through the RS485 bus
    7 MODBUS command 1 supports 03 06 16 function codes, MODBUS command 2 supports 01/02/03/05/06/15/16 function codes
    8 The maximum delay of 1 MODBUS command is 255 seconds
    9 In MODBUS command mode, up to 64 devices can be used in parallel

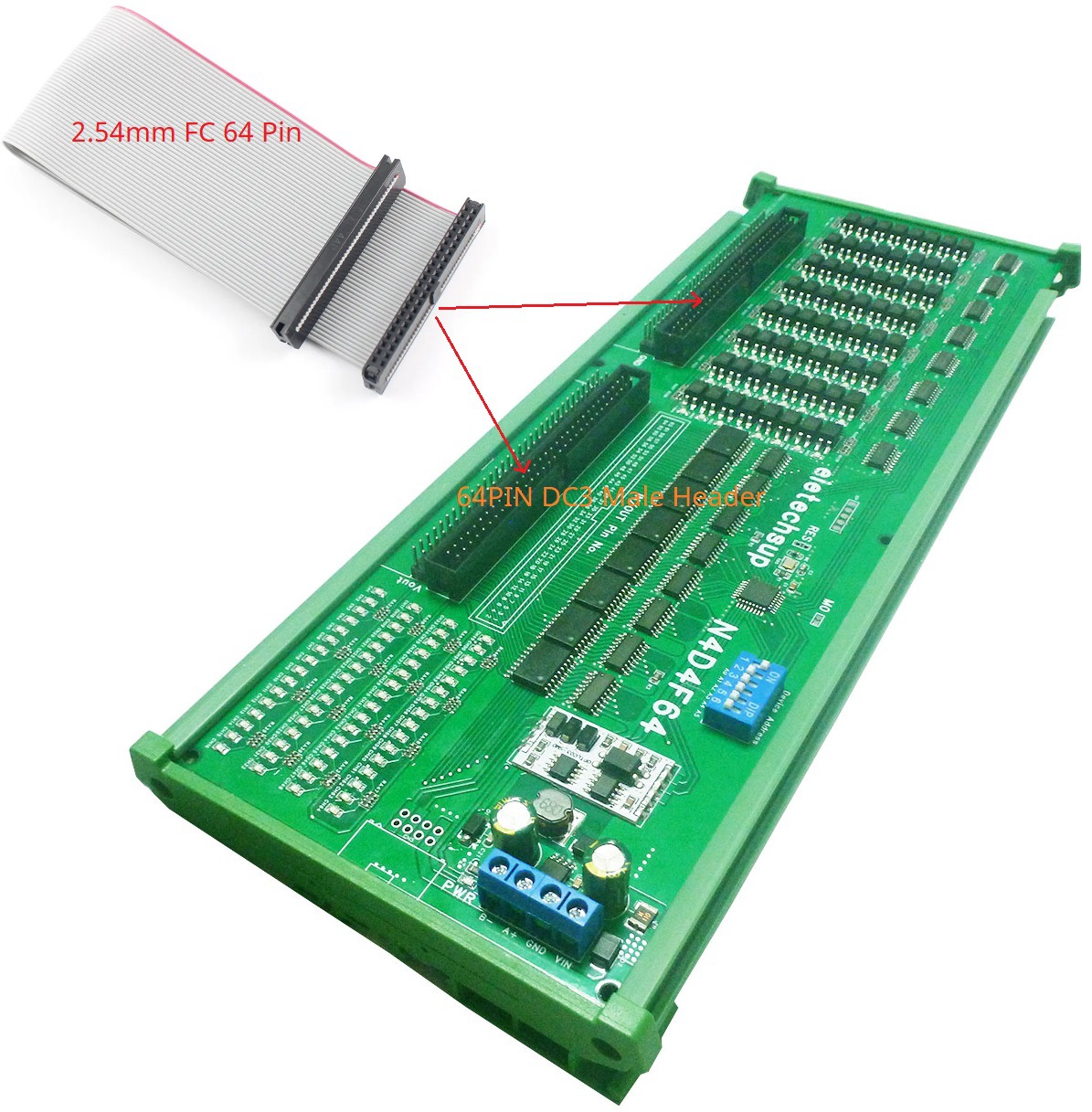

    10 Input and output two terminal blocks:64P DC3 2.54MM Socket/66P 2.54MM PIN
    10 The default baud rate is 9600BPS, you can choose the baud rate by jumper:
    1200/2400/4800/19200/38400/57600/115200BPS
    11 Sizes (with box):296*115*37MM
    12 Weight (with box): 390g
    13 Maximum load: The maximum load current of each channel is 300MA, the total maximum load current is 1A



    2. Glossary:
    Vo: equal to the working voltage DC 7-27V
    O1/2/3…64: Output ports, low-level output
    ''Open'': the output port outputs low level
    ''Close'': The output port outputs high impedance (floating)
    Momentary : Enter the Momentary command, the Rreceiver Relay is Open, delay of 0.5 seconds after, Relay is Close;
    Toggle : Enter the Toggle command, the Rreceiver Relay is Open, Enter the Toggle command again, Relay is Close;
    Latched : Enter the Channel 1 Latched command, the receiver Channel 1 is Open, the Channel 2 is Close.
    Enter the Channel 2 Latched command the receiver Channel 2 is Open, the Channel 1 is Close.
    Enter the Channel 3 Latched command the receiver Channel 1 is Close, the Channel 2 is Close.
    Delay : Enter the Delay command, the Rreceiver Relay is Open, delay of 0-9999 seconds(MODBUS command is 0-255 seconds )after, Relay is Close;
    During the delay, Eter the Close command, immediately close the relay



    Application

    PLC IO expansion board
    Smart Home,Home Automation ,Wiser Home;
    PTZ Camera
    Security Monitoring
    Identification system;
    IP Camera
    LED Lamp Drivers
    Automatic curtain control
    IC tester
    Digital switch input and output detection

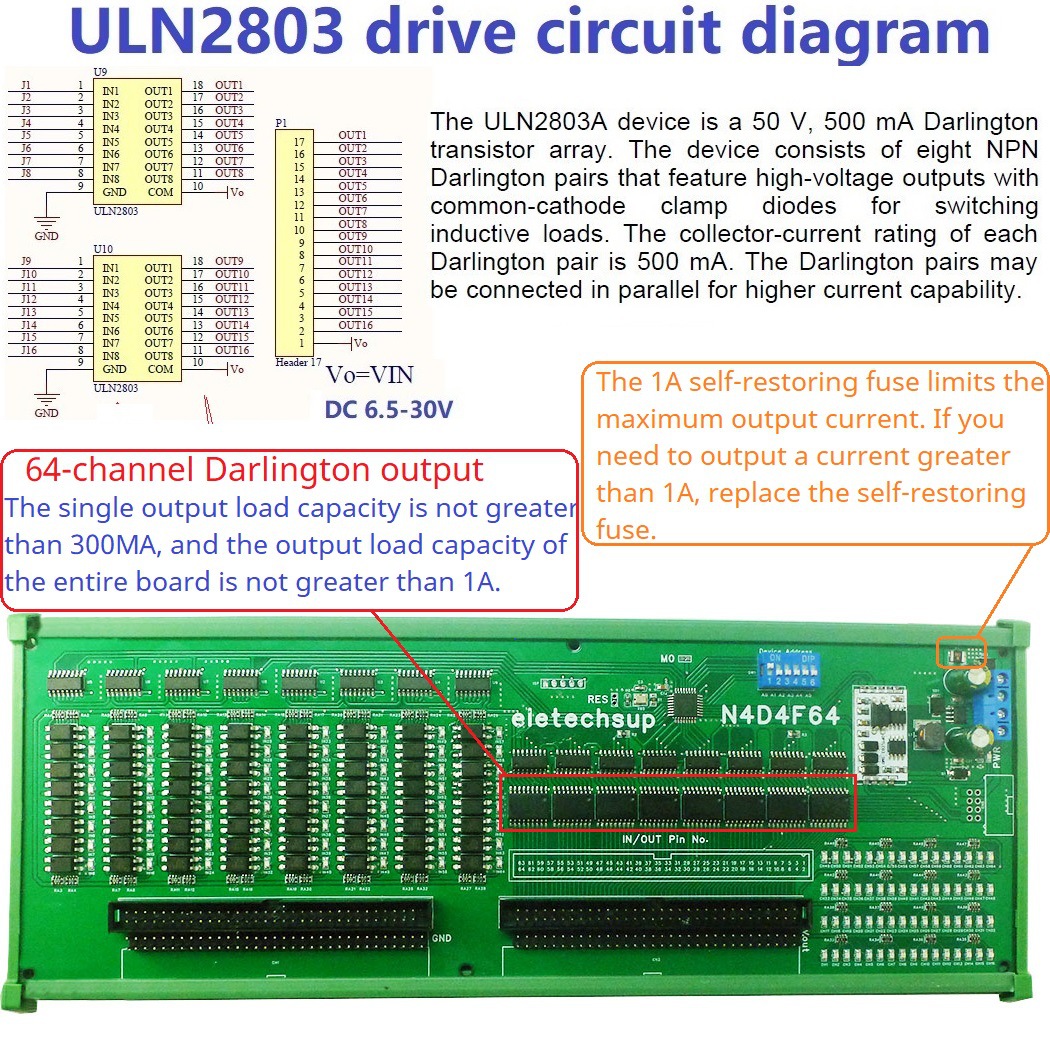

    Output description

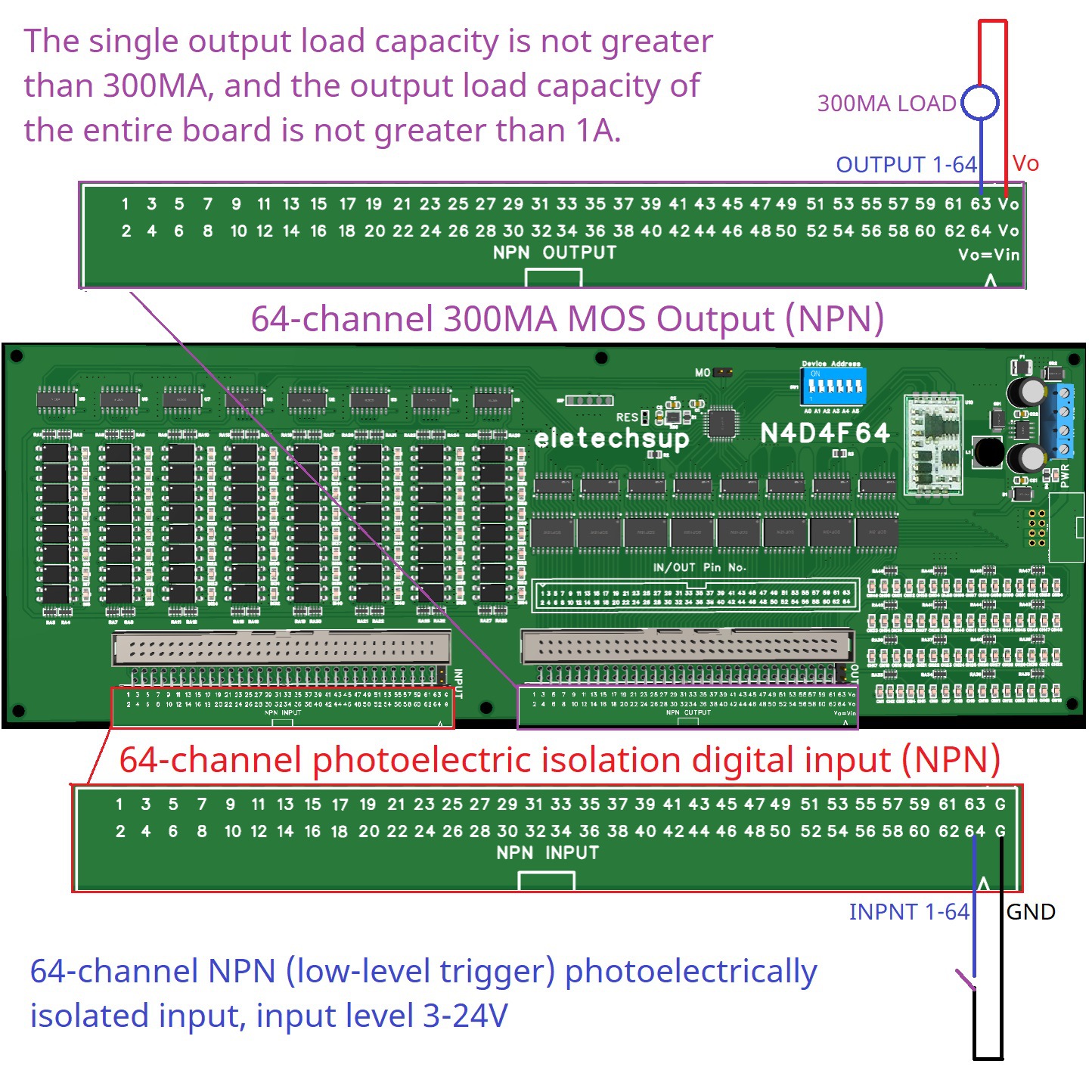

    The single output load capacity is not greater than 300MA, and the output load capacity of the entire board is not greater than 1A.
    1A resettable fuse limits the maximum output current. If you need the total output load to be greater than 1A, please replace the fuse.

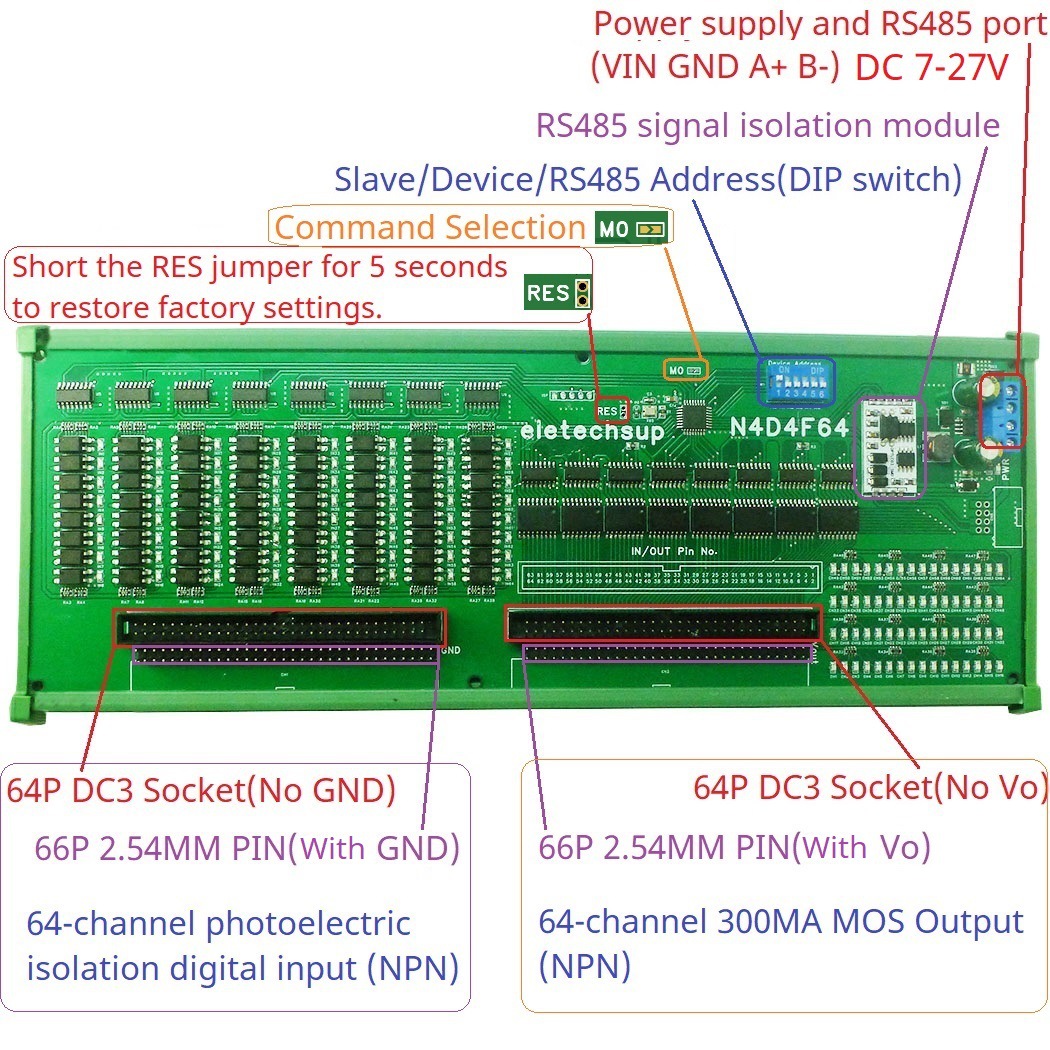

    There are two types of terminal blocks for input and output
    INPUT:
    64P DC3 Socket(No GND)
    66P 2.54MM PIN(With GND)

    OUTPUT:
    64P DC3 Socket(No Vo)
    66P 2.54MM PIN(With Vo)
