Item

Description

Packing

Product size

112*112*22 mm

Packaged weight

 0.4kg

Loading for 20HQ

43.5*30*30.5 cm

Product Color

Black

 Hardware configuration

CPU

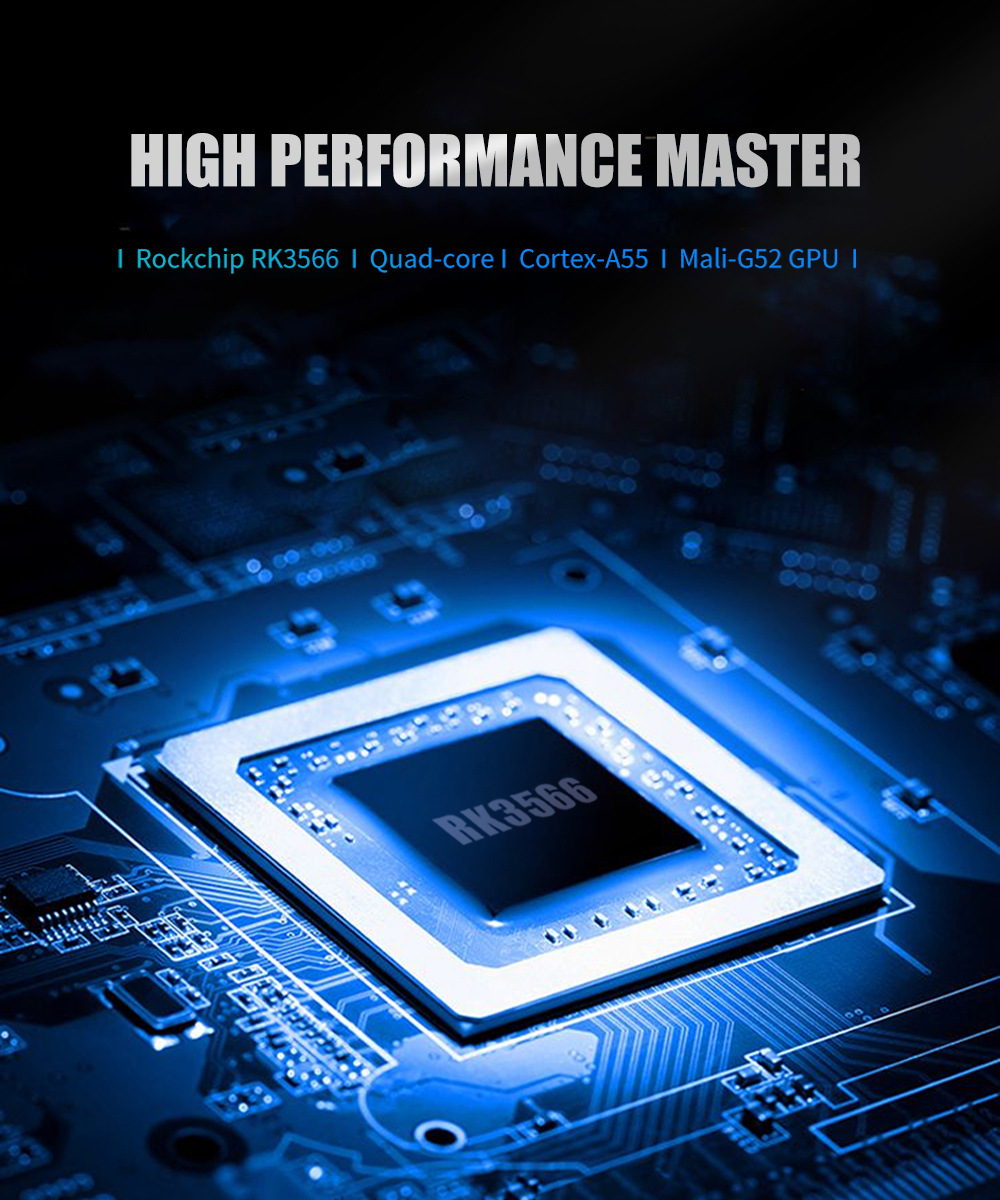

RK3566 Quad core 64-bit Cortex-A55 Frequency:1.8GHZ

GPU

Mali-G52-2EE,Supports OpenGL ES 3.2/2.0/1.0

FLASH

32GB/64GB

SDRAM

4GB/8GB

WIFI/BT

2.4GHZ&5GHZ WIFI, Bluetooth 4.0

ETHERNET

Standard 10/100/1000M  RJ-45

HDMI

HDMI 2.0 , 4Kx2K@60fps max resolution output

USB host

Universal Serial Bus 2.0 *1,   High speed USB3.0 *1

SPDIF

Audio Digital Interface

Card reader

TF card

Power Supply

Power Supply

DC 5V/2A

CPU Engine

2D

Hardware 2D graphics acceleration

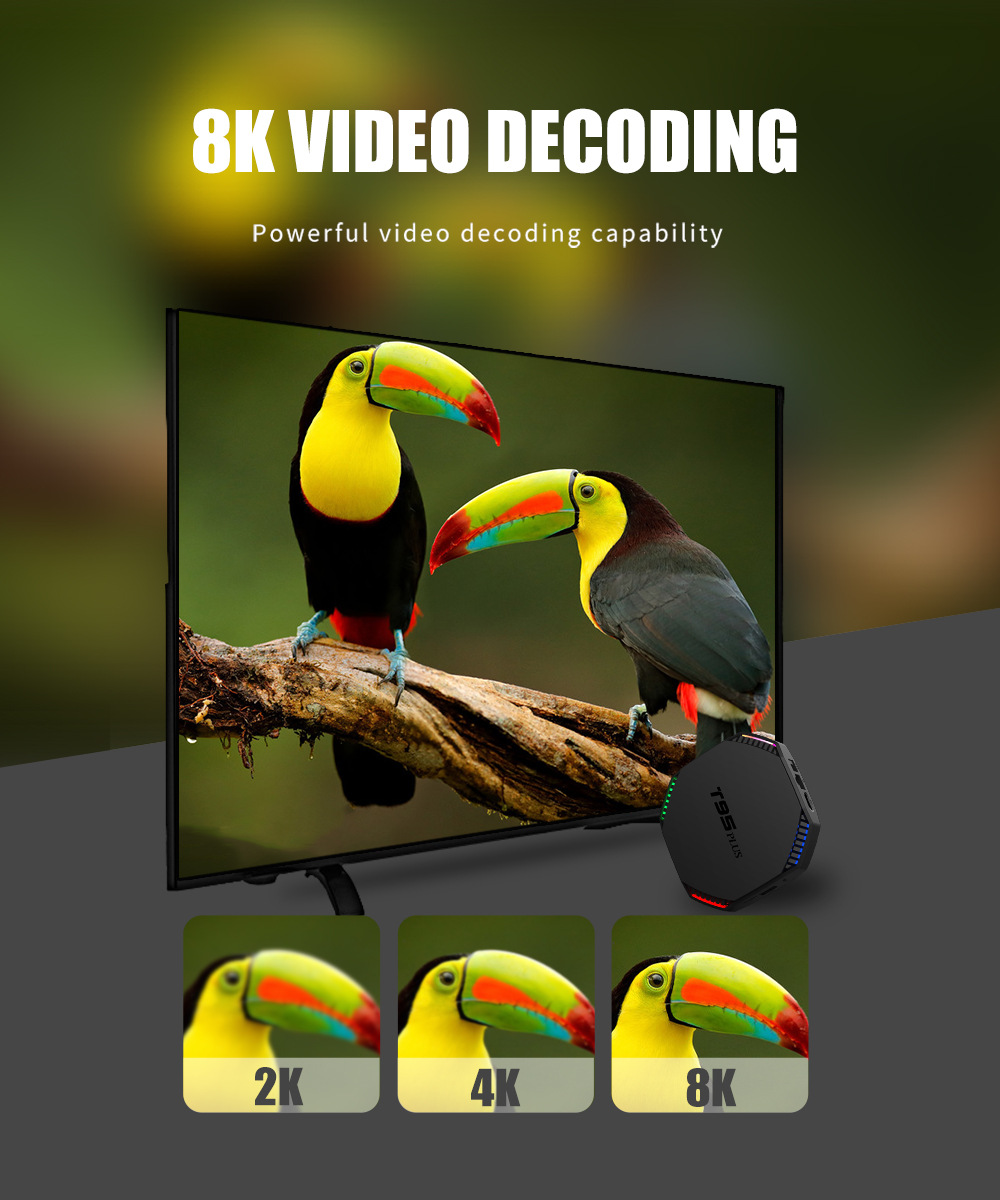

Video Decoder

•H.265 HEVC/MVC Main10 Profile yuv420@L5.1 up to 4096x2304@60fps

•H.264 AVC/MVC Main10 Profile yuv400/yuv420/yuv422/@L5.1 up to 4096x2304@60fps

•VP9 Profile0/2 yuv420@L5.1 up to 4096x2304@60fps

•VP8 verision2,up to 1920x1088@60fps

•VC1 Simple Profile@low, medium, high levels, Main Profile@low, medium, high levels, Advanced Profile@level0~3,up to 1920x1088@60fps

•MPEG-4 Simple Profile@L0~6,Advanced Simple Profile@L0~5,up to 1920x1088@60fps

•H.263 Profile0,levels 10-70,up to 720x576@60fps

Video Encoder

•H.264/AVC BP/MP/HP@level4.2，up to 1920x1080@100fps

•H.265/HEVC MP@level4.1, up to 1920x1080@100fps (4096x4096@10fps with TILE)

•Support YUV/RGB video source with rotation and mirror

JPEG decoder

•Decoder size is from 48x48 to 65536x65536

•Support YUV400/YUV411/YUV420/YUV422/YUV440/YUV444

•Support 1920x1080@120fps

•Support MJPEG

Software Specifications

OS

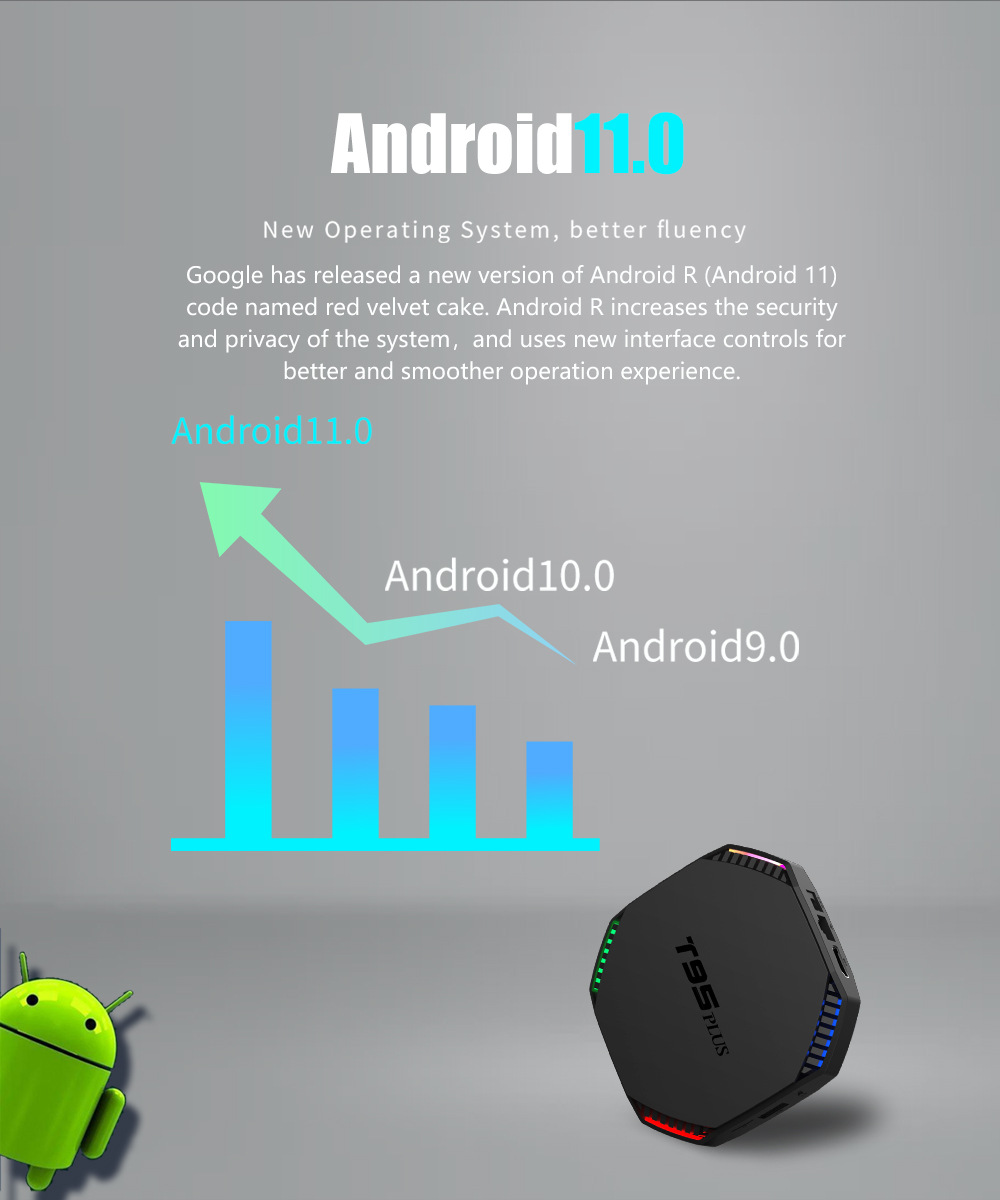

Android 11.0

Preinstalled

Preinstalled KDplayer, Youtube, Google play store, Chrome

HDD file system

FAT16/FAT32/NTFS

Languages

English/French/German/Spanish/Italian/ etc multilateral languages
