Item

Description

Packing

Product size

105x105x 20mm

Packaged weight

0.45kg

Loading for 20HQ

435 x305x 300mm

Product Color

Black

System Config

CPU

RK3318    Quadcore  cortex-A53       frequency ：1.2G

GPU

 Mali-450MP2

FLASH

16GB/32GB/64GB

SDRAM

 2G/4GB

Power Supply

Power Supply

DC 5V/2A

Main Features

Case

Plastic material  (Private model )

OS

Android  9.0

KODI

18.0

WIFI

2.4G+5G+Bluetooth4.0

3D

Hardward 3D graphics acceleration

Support Decoder format

VP9-10 Profile-2 up to 4Kx2K@60fps

H.265 HEVC MP-10@L5.1 up to 4Kx2K@60fps

H.264 AVC HP@L5.1 up to 4Kx2K@30fps

H.264 MVC up to 1080P @60fps

MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496)

WMV/VC-1 SP/MP/AP up to 1080P@60fps

AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps

MPEG-2 MP/HL up to 1080P@60fps (ISO-13818)

MPEG-1 MP/HL up to 1080P@60fps (ISO-11172)

RealVideo 8/9/10 up to 1080P@60fps

WebM up to VGA

Multiple language and multiple format sub-title video support

MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918)

Supports JPEG thumbnail, scaling, rotation and transition effects

Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file

HD MPEG1/2/4,H.264, HD AVC/VC-1,RM/RMVB,Xvid/DivX3/4/5/6 ,RealVideo8/9/10

Support Media format

Avi/Rm/Rmvb/Ts/Vob/Mkv/Mov/ISO/wmv/asf/flv/dat/mpg/mpeg

Support Music format

MP3/WMA/AAC/WAV/OGG/AC3/DDP/TrueHD/DTS/DTS/HD/FLAC/APE

Support Photo format

HD JPEG/BMP/GIF/PNG/TIFF

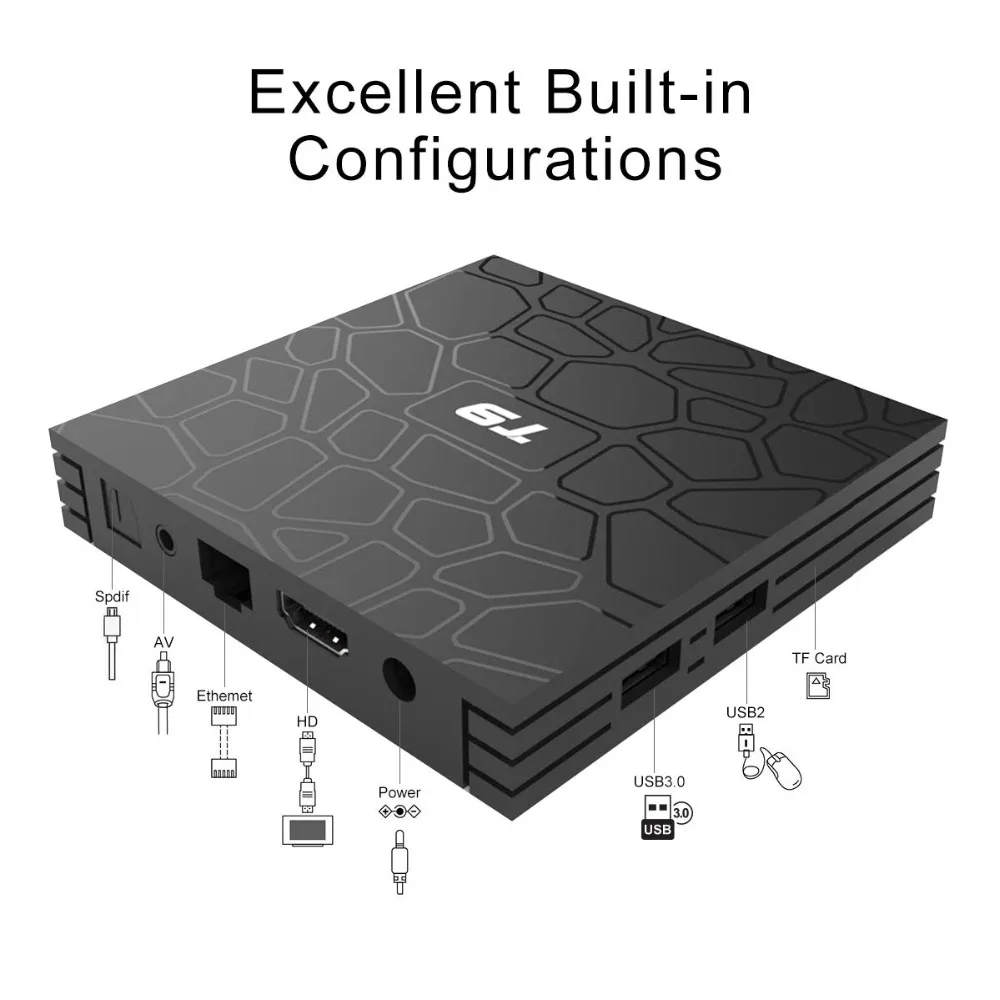

USB host

1 High speed USB 3.0 and1 High speed USB 2.0

Card reader

SD/SDHC/MMC cards

HDD file system

FAT16/FAT32/NTFS

Support Subtitle

SRT/SMI/SUB/SSA/IDX+USB

High Difinition video output

SD/HD max.1920x1080 pixel

OSD type of languages

English/French/German/Spanish/Italian/ etc multilateral languages

LAN

Ethernet:Standard 10/100M  RJ-45

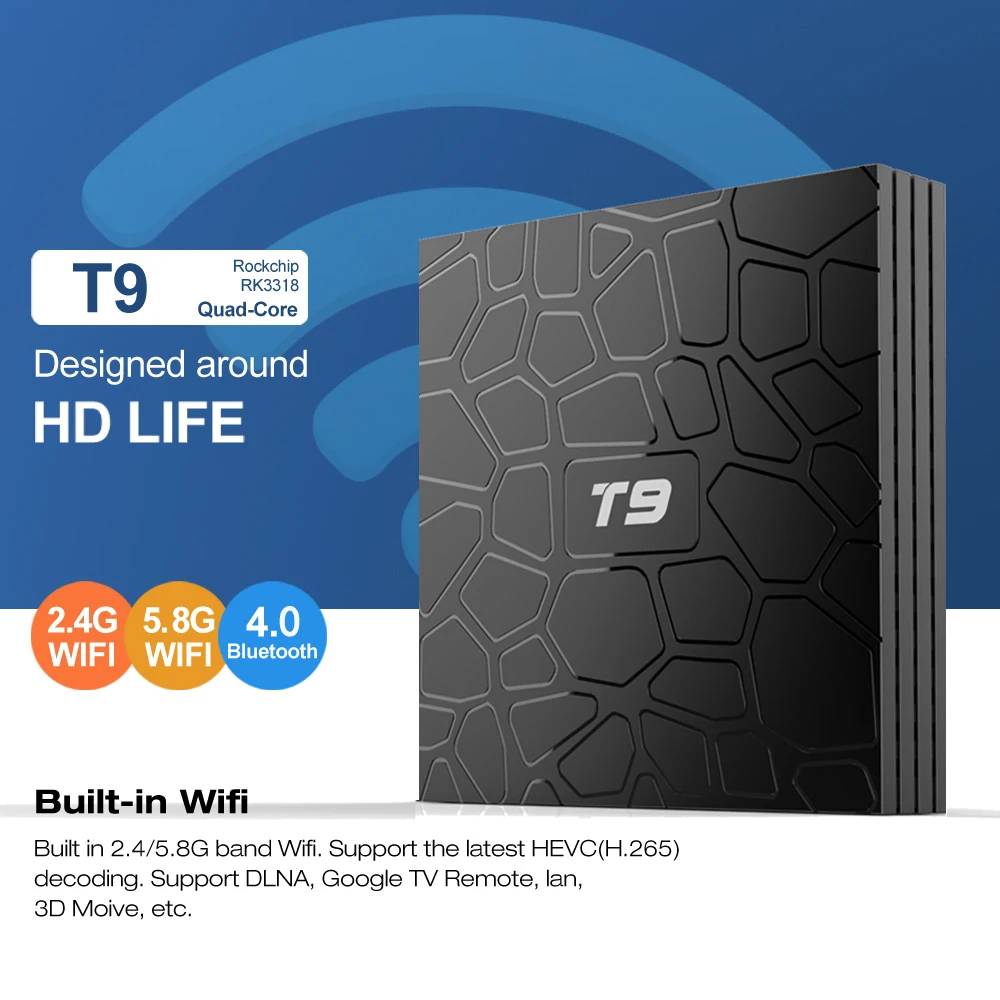

Wireless

Built in Dual-band WiFi

Mouse/ Keyboard

Support mouse and keyboard via USB;Support 2.4GHz wireless mouse and keyboard via 2.4GHz USB dongle

HDMI

HDMI 2.0 up to 4k2k Output with HDR, CEC and HDCP 2,2, 4Kx2K@60 max

resolution output

4K2k hd decoding

4k2k H.265 Hardware Video Decode and 4k2k Output

1080P/AV/3G

Support

Dolby

Support

Software Specifications

Network Function

Skype chatting,Picasa,Youtube,Flicker,Facebook,Online movies,etc

Other feature

Free Internet searching,thousands of android applications,many kinds of games,etc.
