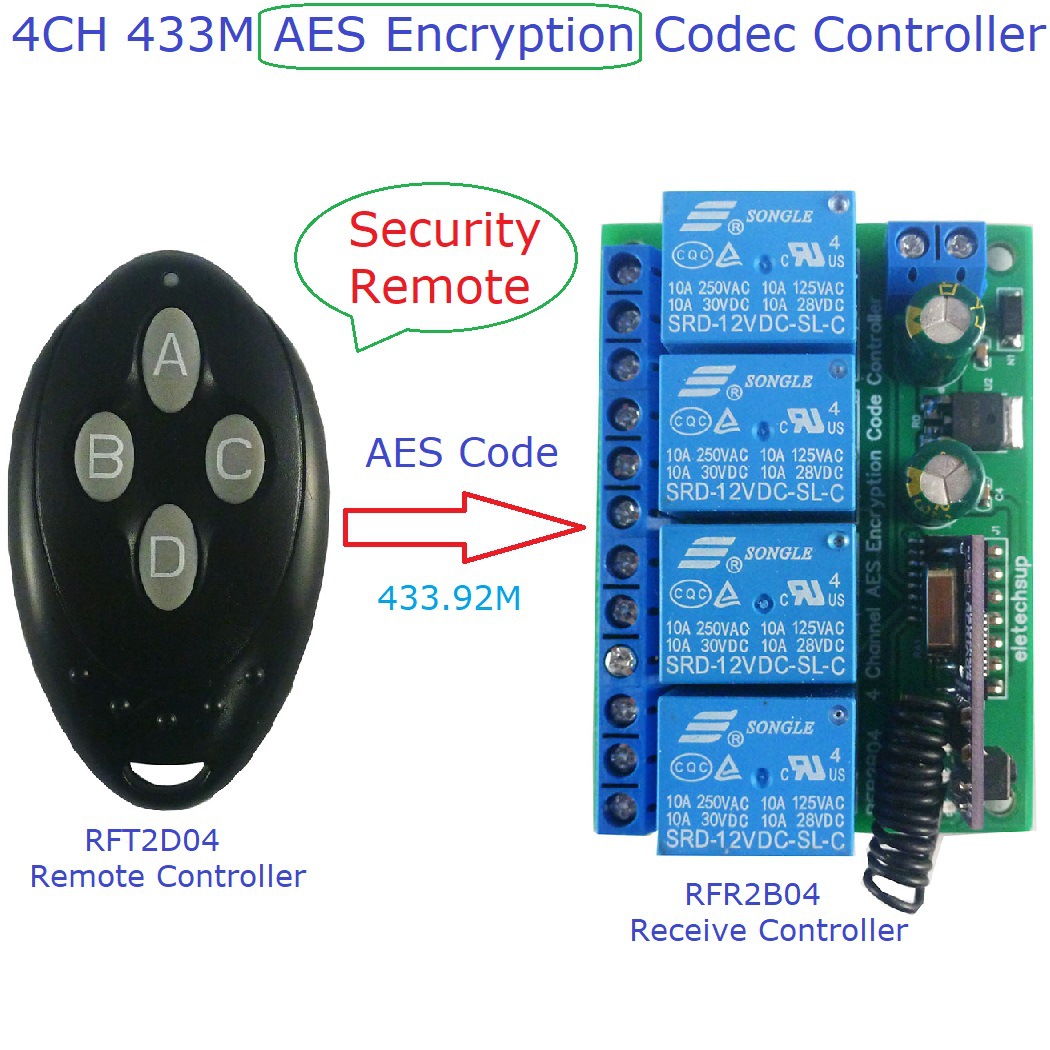

Product Name: 433M DC12V 4CH AES Encryption Controller AES128 Remote Control Keyfob Transmitter Board replace HCS301 Rolling Code 2262 EV1527
Package inlcuded:(It is recommended to choose to buy a transceiver kit):

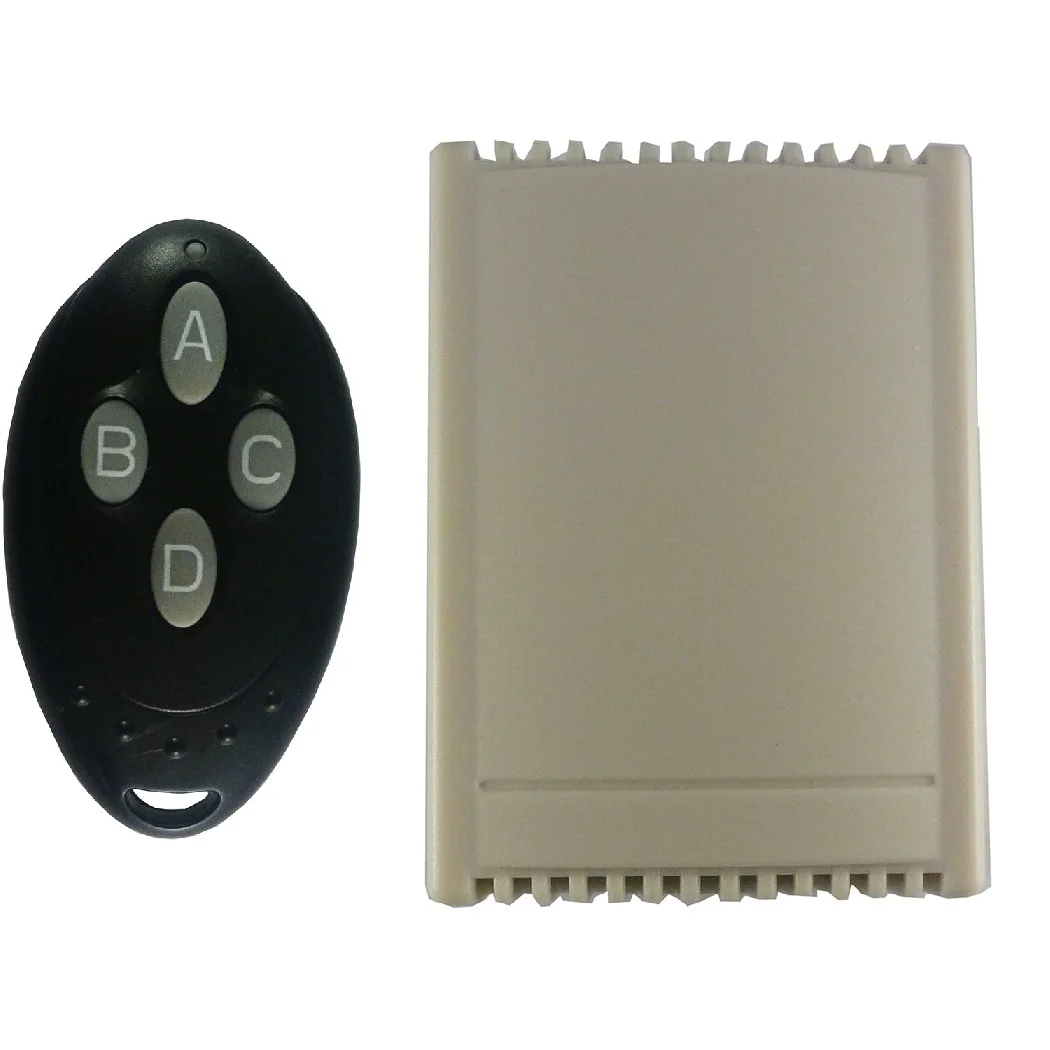

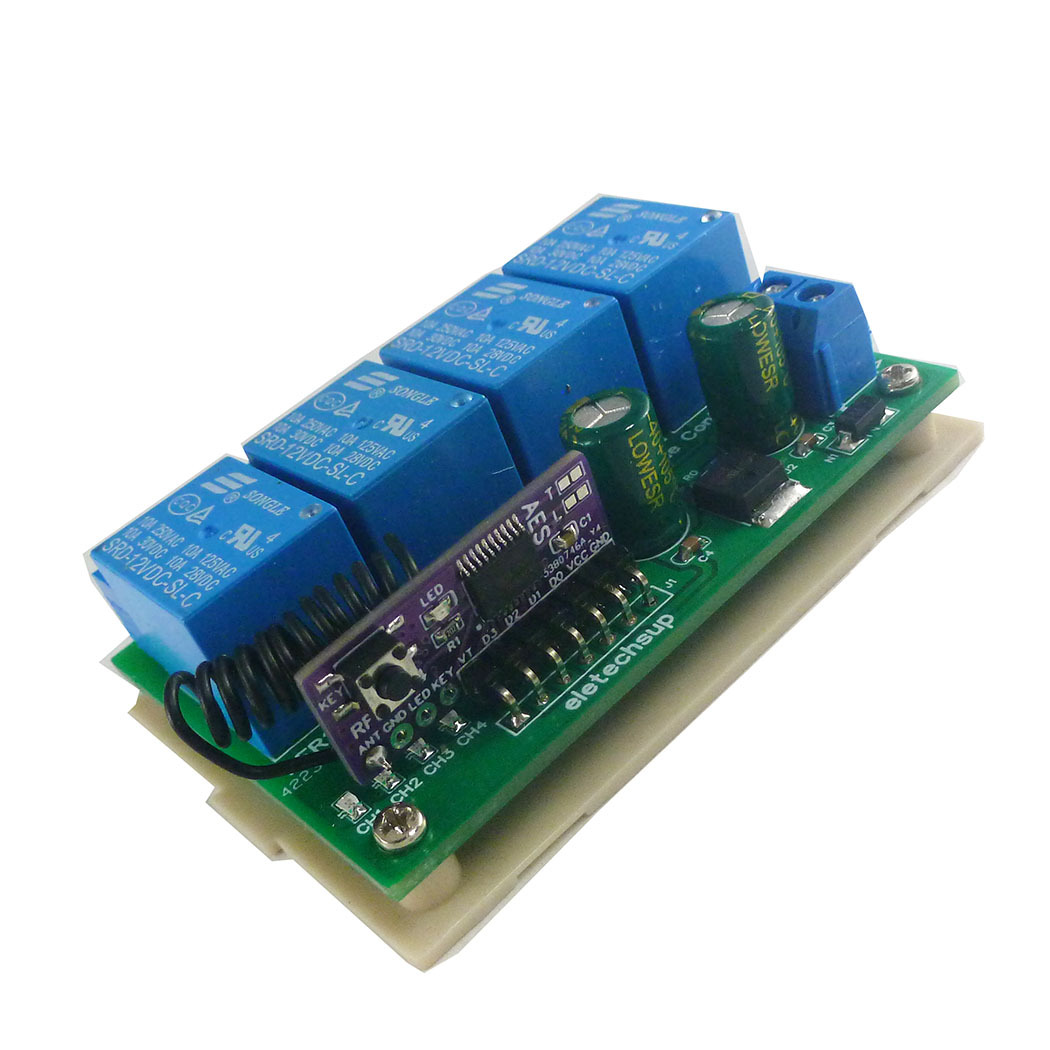

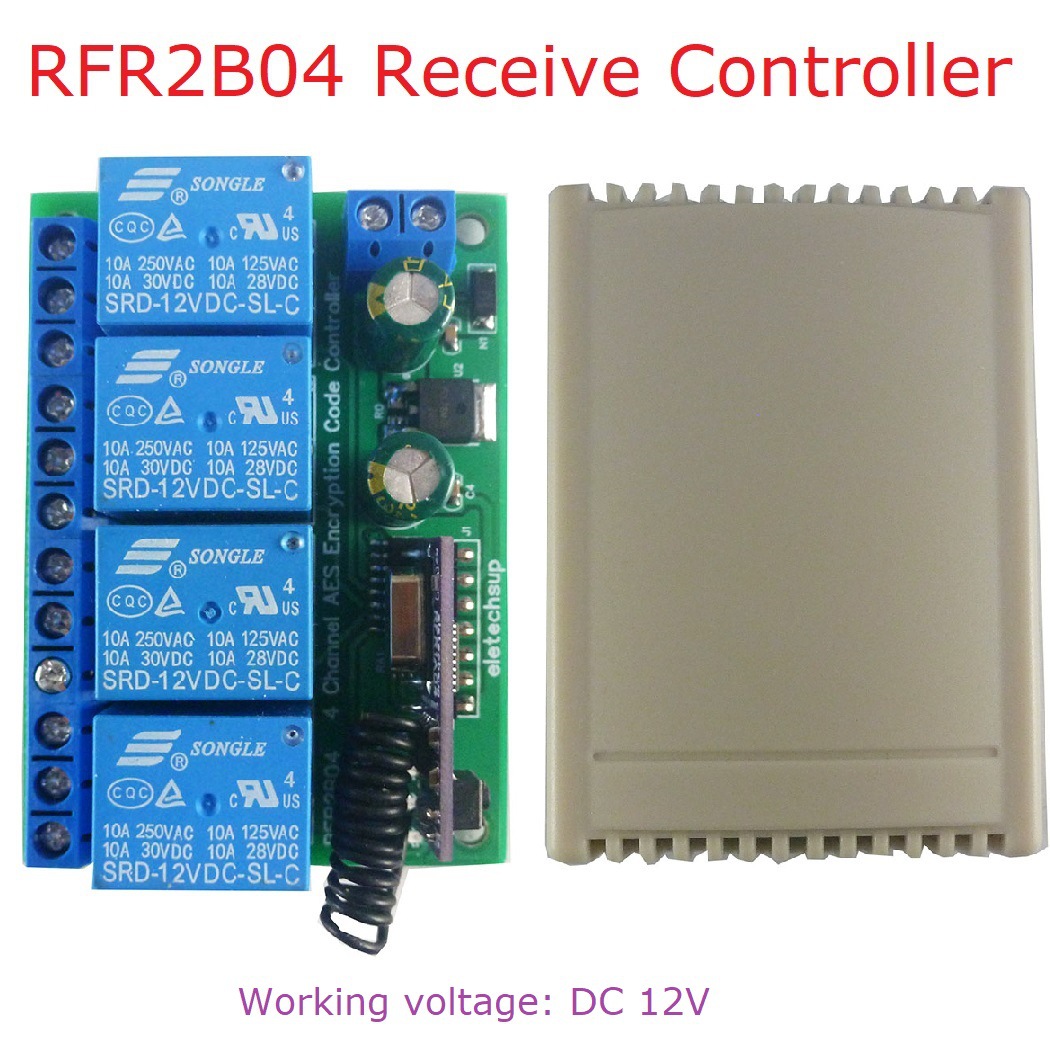

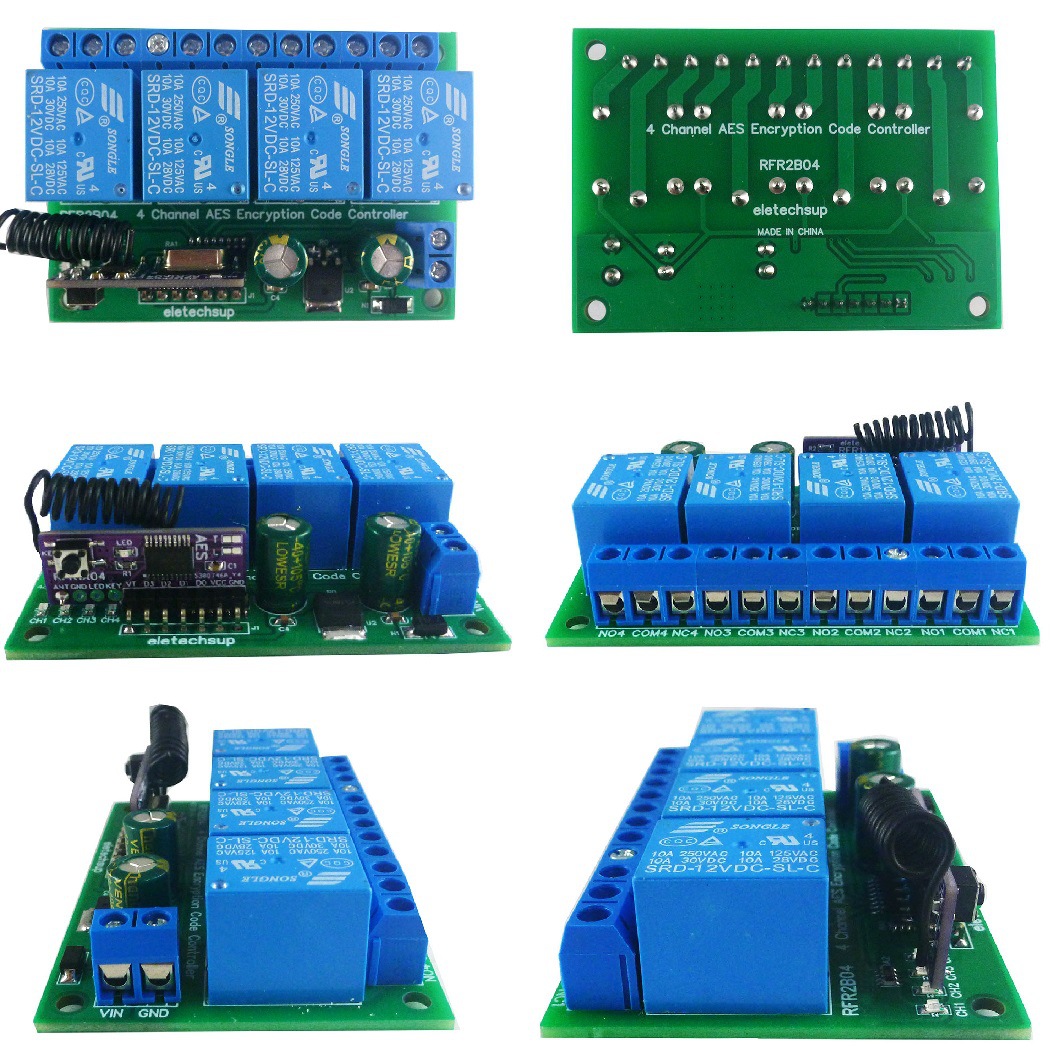

1 PCS 433M DC 12V 4CH AES Encryption Relay Module
1 PCS 433M AES Encryption Remote Control
(Does not include CR2032 battery)
Description:
1. Operating voltage: 12V DC;
2. Operating current: 13MA for all relays off, 40MA for 1 relay on, 66MA for 2 relays on at the same time, 93MA for 3 relays on at the same time, 119MA for 4 relays on at the same time;
3. Decoding method: AES-128 decoding;
4. Receiving mode: OOK/ASK;
5. wireless reception frequency: 433.92M;
6. wireless reception sensitivity: -108dBm;
7. Decoding type: AES password, can be adapted to RFT1C04, RFT2D04 remote control, up to 32 remote controls can be stored;
8. working mode: Non-locking, Self-locking,Interlocking, 10 seconds delay;
9.Remote control distance: 30-40 meters (Stretch the antenna,Transmitter is RFT1C04/RFT2D04)
10.Size (including shell) 75*54*28
11. Weight:85.3g
12. Maximum load:10A/250VAC ,10A/125VAC,10A /30VDC, 10A /28VDC ,10A/12VDC
It is recommended to buy multiple remote controllers as a spare
For more information, please contact me
Application
Remote control, remote measurement system;
DC 12V Home lighting system
Garage Door /Security Door/ Security Door
Elevators/Encryption Lock

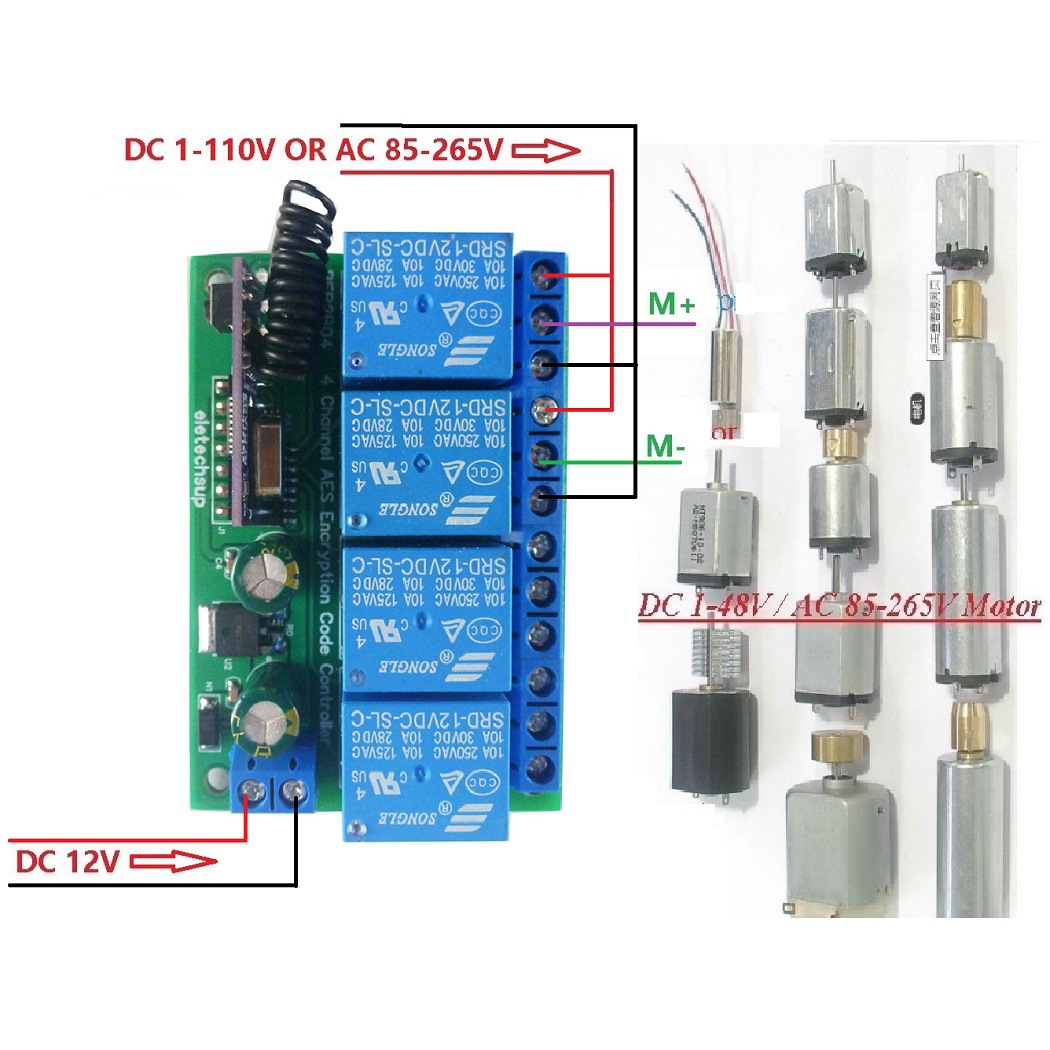

Motor reversing control
Remote control switch
Smart Home / Home Automation
LED lighting
Fluorescent lamp
DC 12 DC Motor,RS360
PTZ Camera

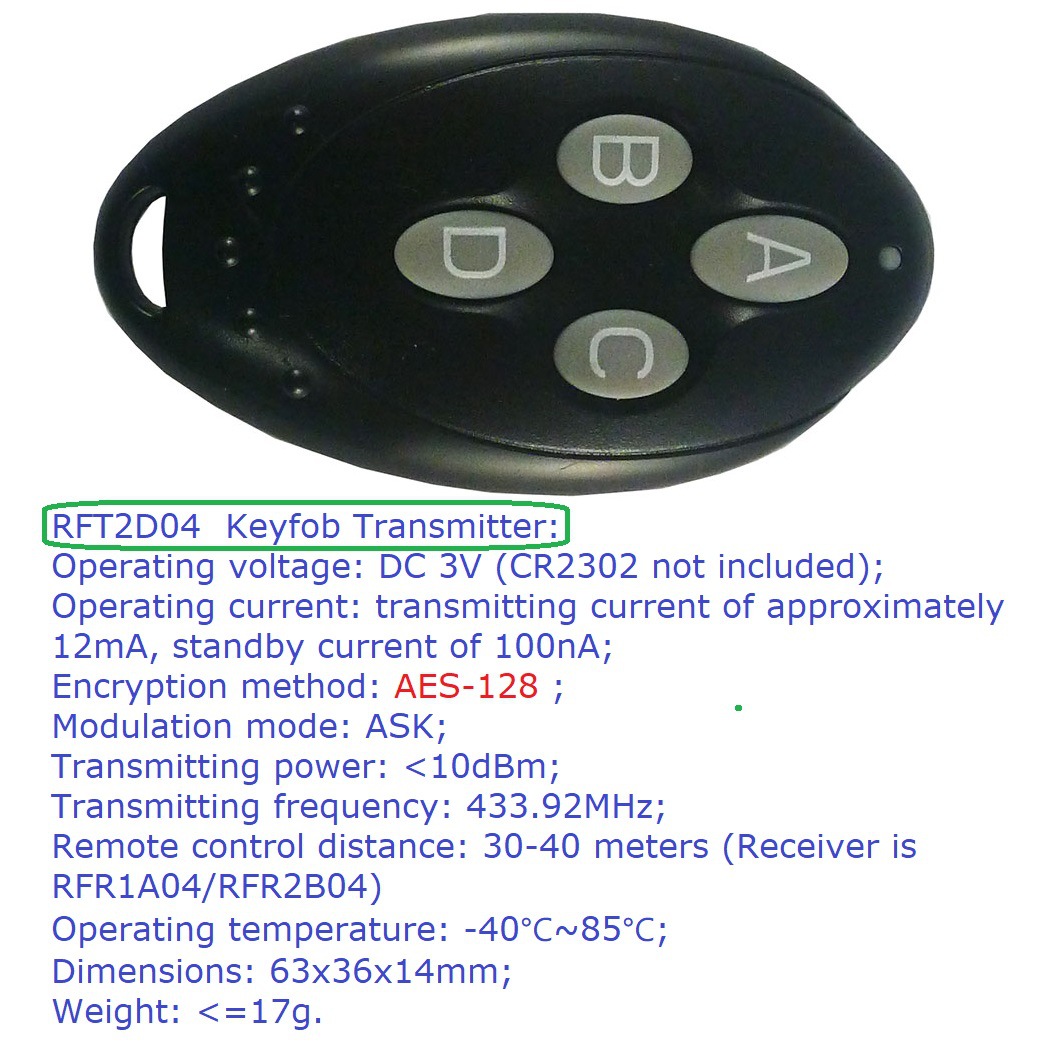

Remote Control Description:

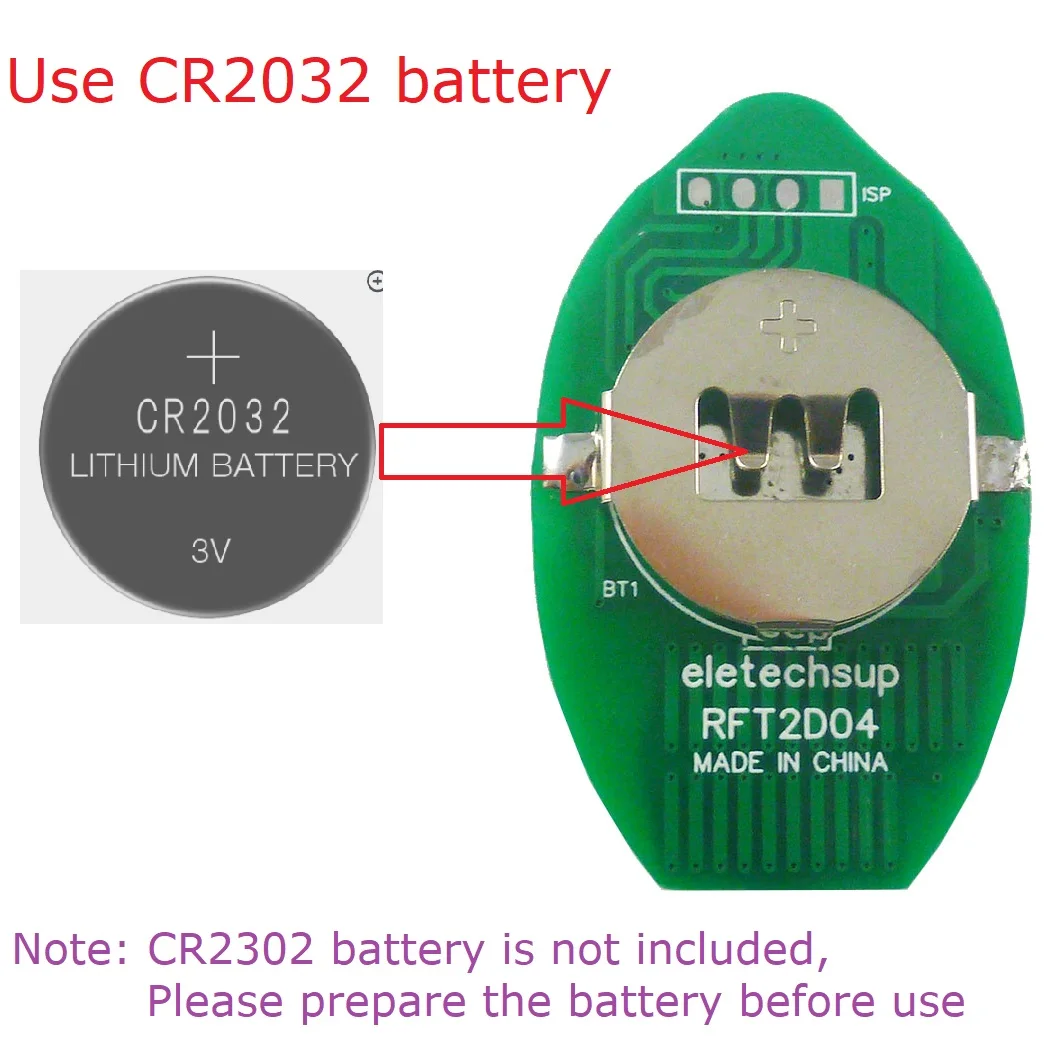

Operating voltage: DC 3V (CR2302 button battery, battery not included);
Operating current: transmitting current of approximately 12mA, standby current of 100nA;
Encryption method: AES-128 ;
Modulation mode: ASK;
Transmitting power: <10dBm;
Transmitting frequency: 433.92MHz;
Remote control distance: 30-40 meters (Receiver is RFR1A04/RFR2B04)
Operating temperature: -40℃~85℃;
Dimensions: 63x36x14mm;
Weight: <=17g.
It is a remote control based on AES encryption algorithm, which adopts 128-bit AES encryption algorithm to ensure the communication security between the remote control and the controlled device, and has better security than 1527, 226X and other remote controls. Users can use the remote control to perform various operations on the controlled device, such as switching, adjusting, etc. It is used with RFR1A04 and RFR2B04 receiver modules. When the remote control is pressed, the LED at the top of the remote control lights up, indicating that it is now sending; when the remote control is released, the LED goes off, indicating that the remote control has entered standby mode. To ensure the remote control can send a frame of data, the time of pressing the remote control button each time should be no less than 200ms.
