    widget2.png?t=AEO9LPV Product Name: 6ch 4-20MA 0-10V Current Voltage Analog Input & 4ch NPN DI-DO RS485 Modbus Rtu PLC HMI PC Text Editor IO Expansion Board


    Package inlcuded:

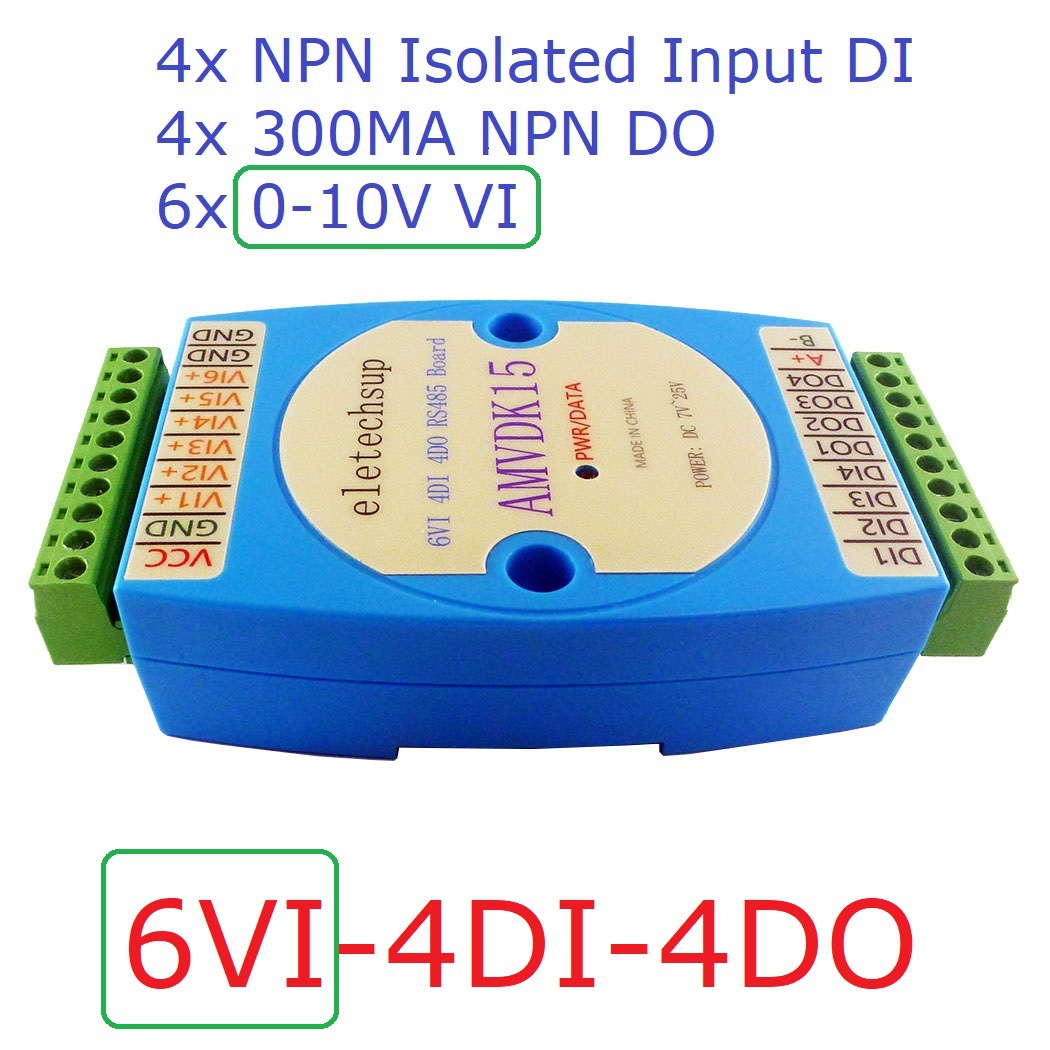

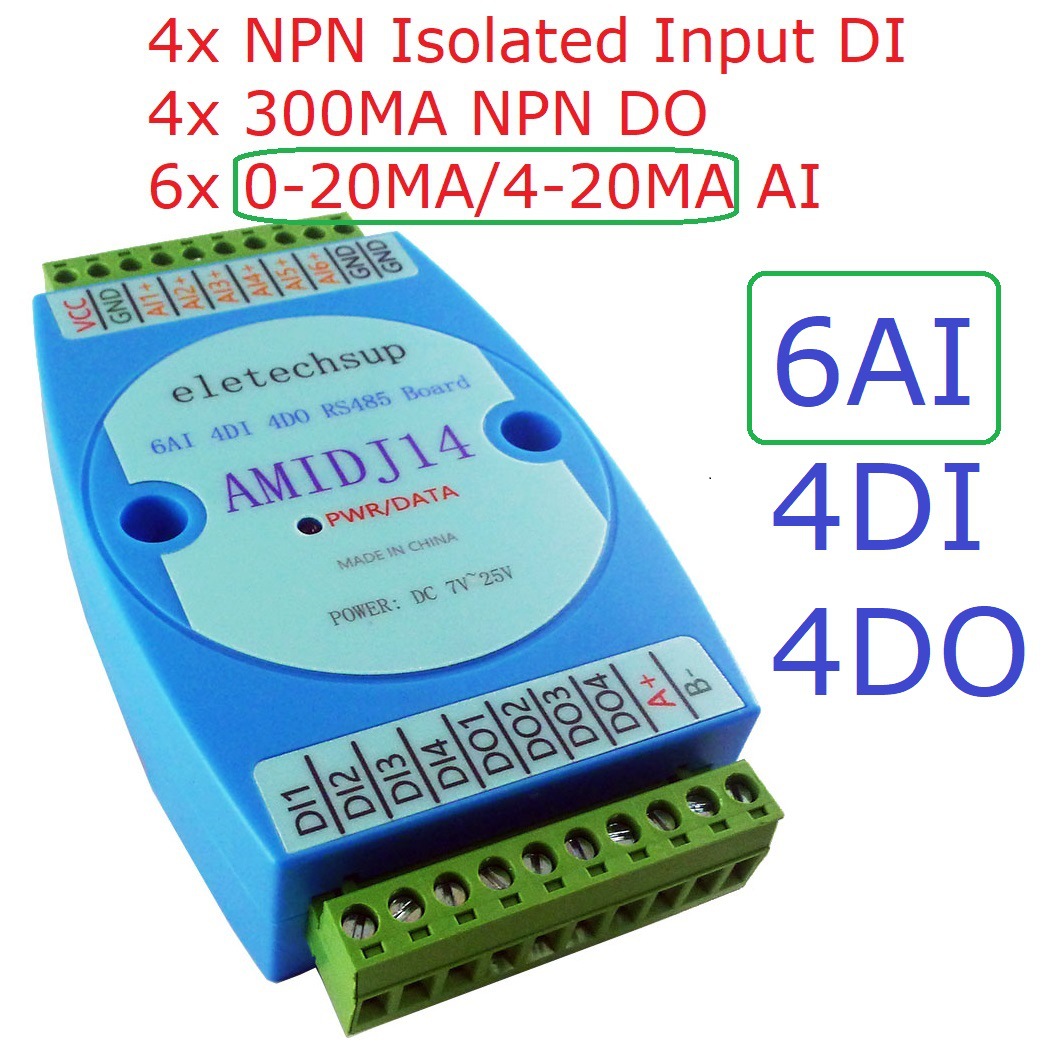

    1 PCS  DC 12V 24V 6AI-4DI-4DO/6VI-4DI-4DO RS485 Analog Digital Multi-function IO Collector Module

    (Specific according to the version and quantity you choose)



    1 Product description

    4ch optoelectronic isolation digital input channel (NPN Low level input)
    4ch Darlington tube digital output channel (ULN2803 NPN output)
    6ch 4-20MA/0-10V Current/Voltage Analog Input
    RS485 MODBUS RTU standard communication protocol

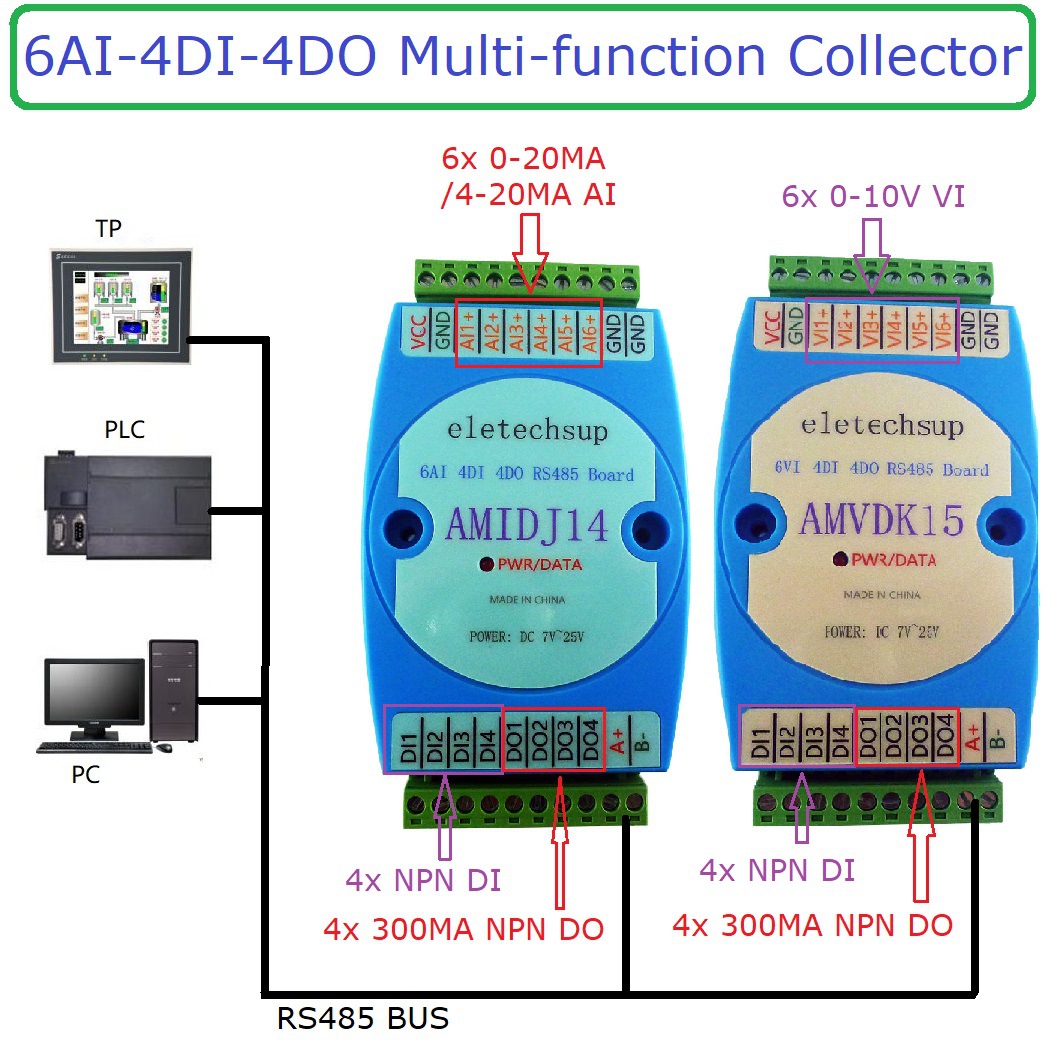

    Netted with configuration software, PLC or industry touch panel
    Communication circuit designed for thunder protection and interference immunity
    Used for signal collection and control in industrial field


    2 Specification
    1 Working voltage: DC 7-25V (9V 12V 24V)
    2 Working current: 8-50MA
    3 4x optically isolated input ports (NPN active low)
    4 4x Darlington tube outputs (ULN2803 NPN output), the maximum load current of each channel is 300MA
    5 6x 4-20MA/0-10V Current/VoltageAnalog Input
    6 RS485 communication isolation protection 3000VDC, DI digital input port isolation protection 3000VDC
    7 Standard MODBUS RTU command (function code, 05/06/15/16 Write, 01/02/03 Read )
    8 Baud rates: 1200 2400 4800 9600 (default) 19200 38400 57600 115200
    9 Parity bits: None (default) /Even /Odd

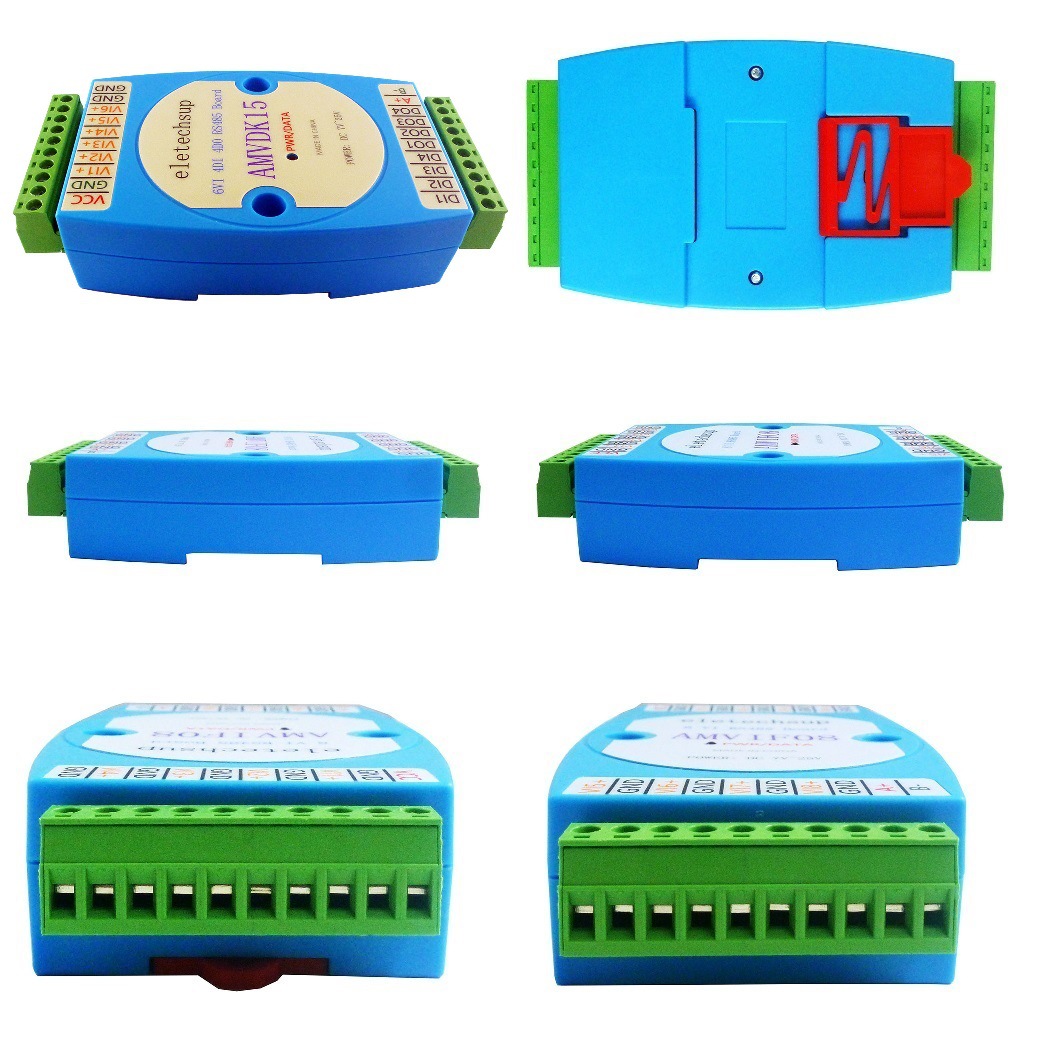

    10 Installation method Standard DIN rail installation
    11 Dimensions 125×70×30mm
    12 Weight: 116 grams



    3 Interface definition:
    VCC : Power input+
    GND: Power input-
    AI1+/VI1+: Current/Voltage input channel 1
    AI2+/VI2+: Current/Voltage input channel 2
    AI3+/VI3+: Current/Voltage input channel 3
    AI4+/VI4+: Current/Voltage input channel 4
    AI5+/VI5+: Current/Voltage input channel 5
    AI6+/VI6+: Current/Voltage input channel 6
    DI1 : Digital input channel 1
    DI2 : Digital input channel 2
    DI3 : Digital input channel 3
    DI4 : Digital input channel 4
    DO1: digital output channel 1
    DO2: digital output channel 2
    DO3: digital output channel 3
    DO4: digital output channel 4
    A+: RS485 signal A+
    B-: RS485 signal B-


    For more information, please contact me

    Application
    PLC Output expansion board
    0-20MA/4-20MA/0-5V/0-10V Temperature and humidity sensor
    Smart Home,Home Automation ,Wiser Home;
    PTZ CCTV Camera
    Security Monitoring
    Identification system;
    PLC HMI PC Configuration Software
    Automatic curtain control

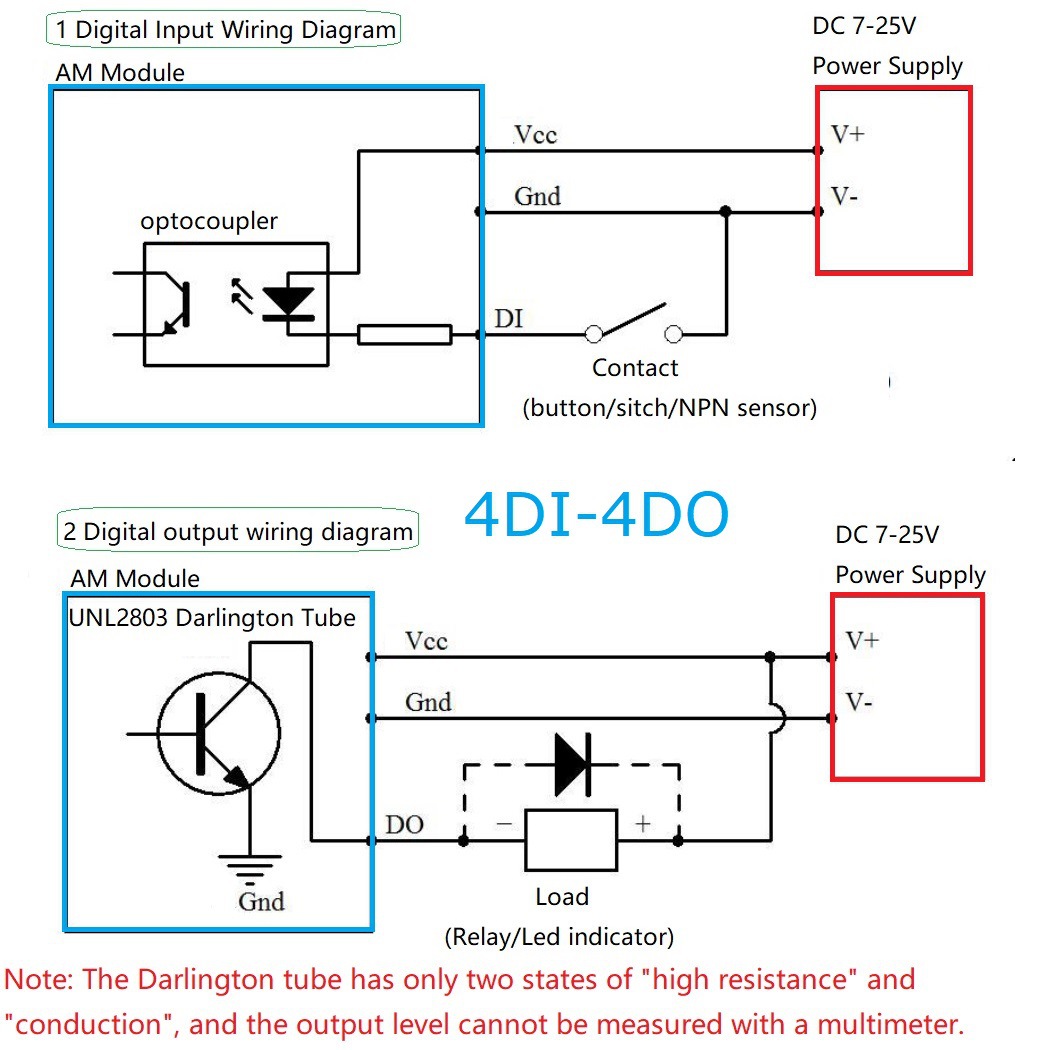

    1 Digital Input Wiring Diagram
    2 Digital output wiring diagram
    Note: The Darlington tube has only two states of ''high resistance'' and ''conduction'', and the output level cannot be measured with a multimeter.

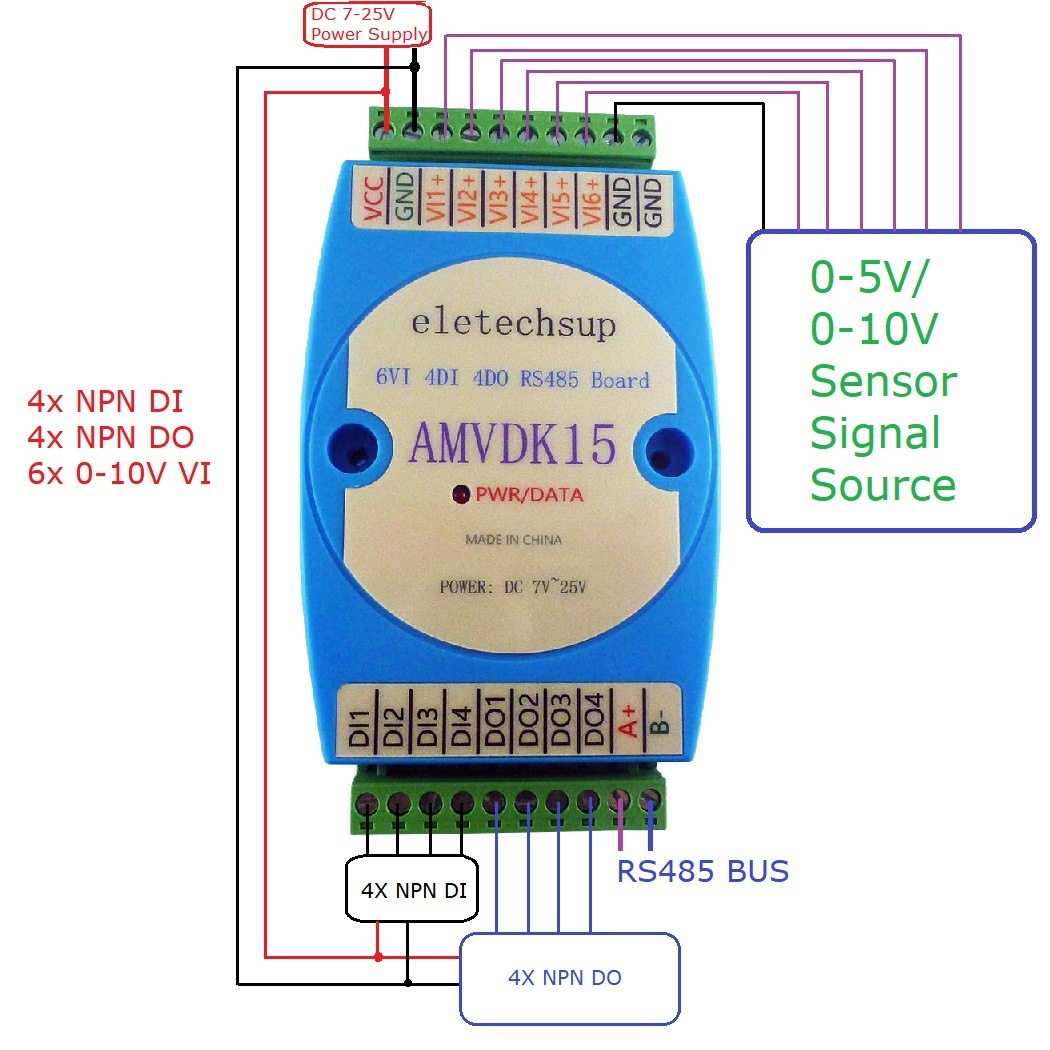

    3 Current/Voltage sensor wiring diagram:



    상품정보 제공고시

    브랜드 Eletechsup
    메인 다운스트림 플랫폼 기타
    주된 판매 지역 기타
    국경 간 내보내기 소스가 배타적인지 여부 예
    사양 6VI-4DI-4DO
