    Product Name: RS485 Modbus RTU PLC IO Expanding Board 8DO-4DI-8AI 4DO-2DI-3AI 4-20MA 0-10V Analog Current Voltage Collector NPN/PNP DIO


    Package inlcuded:
    1PCS DC 12V/24V 8CH Multi-function PLC IO expansion board


    Description:

    8DO Version :

    1:DC 12V (12V Version),DC 24V (24V Version)

    2.Standby current (all relays closed) 12MA, 1 relay open 40MA, 2 relays open 69MA, 3 relays open 95MA,4 relays open 122MA

    3:4-channel 0-20MA current analog input, 2-channel 0-10V voltage analog input, 2-channel 0-30V voltage analog input, 4-channel photoelectric isolation switch input (compatible with NPN/PNP), 8-channel 10A relay switch output

    4: Support standard Modbus RTU command, function code:
    write 05/06/15/16 read 01/02/03/04

    5: With hardware Reset function, with TVS anti-surge protection

    6 Under the MODBUS command mode, it can support up to 64 devices in parallel

    7 The default baud rate is 9600BPS. The baud rate can be selected by Conmand 2400 4800 9600 19200 38400 57600 115200BPS

    8 The parity can be none parity, even parity and odd parity

    9 The data sending and returning time can be set,with a maximum value of 1000ms

    10 Size: 168* 72 * 12mm(Only PCB Board);174* 82*40mm(with Din Rail Box)
    11 Weight: 165g(Only PCB Board);285g(with Din Rail Box)

    12 Maximum load: 10A / 250VAC, 10A / 125VAC, 10A / 30VDC, 10A / 28VDC, 10A / 12VDC



    Upgraded Features:
    Supports 01 02 03 04 05 06 16 function code
    Support more baud rates, can modify the parity bit
    Hardware reset to factory settings (RESET jumper)
    Upgraded relays (more durable)
    TVS anti-surge protection

    For more information, please contact me

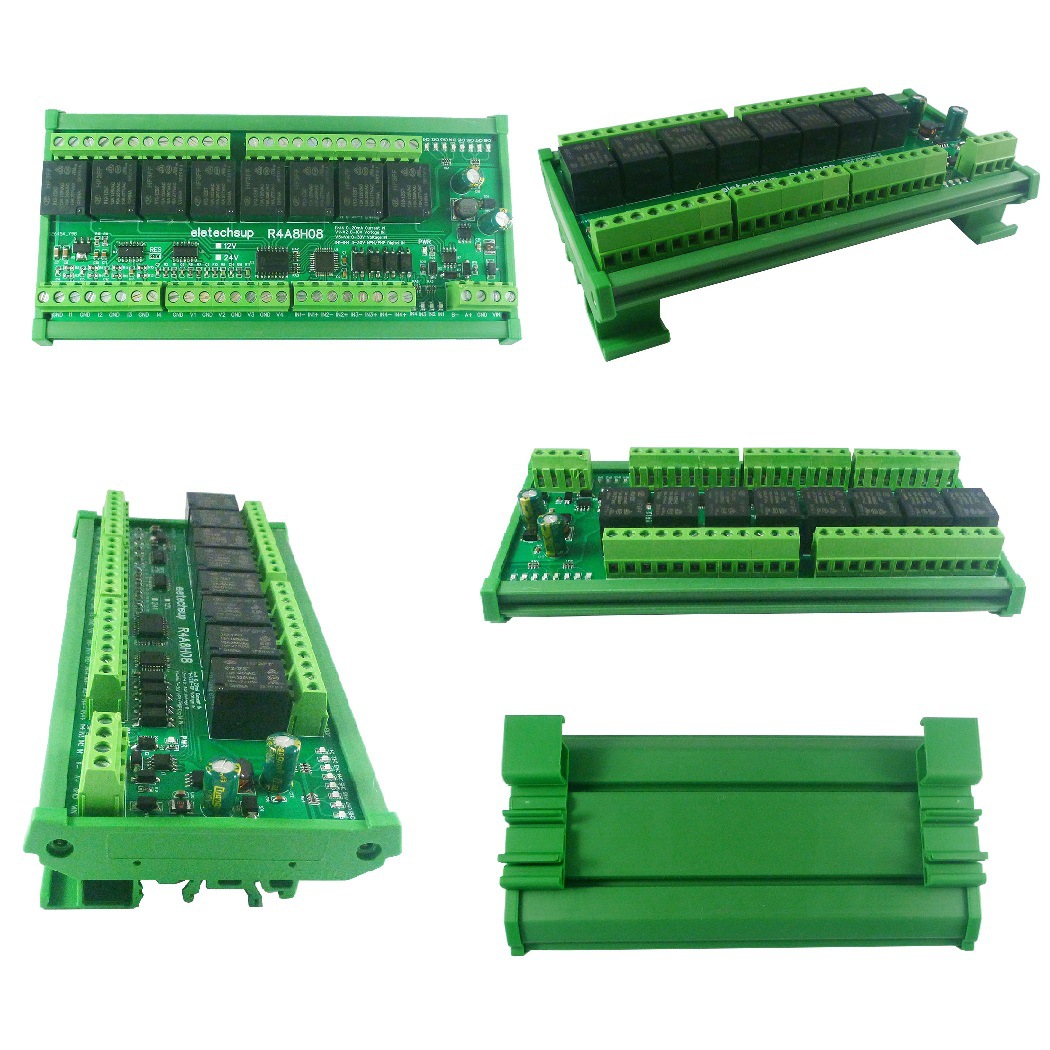

    DIN rail Box parameters:

    Product model: UM72
    Color:     Green
    Width: suitable for PCB board width UM72(72mm)
    Insulation grade: flame-retardant VO grade
    Backplane length: suitable for 168mm PCB boards
    Net weight: 120g
    Installation: DIN35 and C45 rail


    Application

    PLC IO expansion board
    Smart Home,Home Automation ,Wiser Home;
    PTC Camera
    Security Monitoring
    Identification system;
    IP Camera
    LED Lamp Drivers
    Automatic curtain control

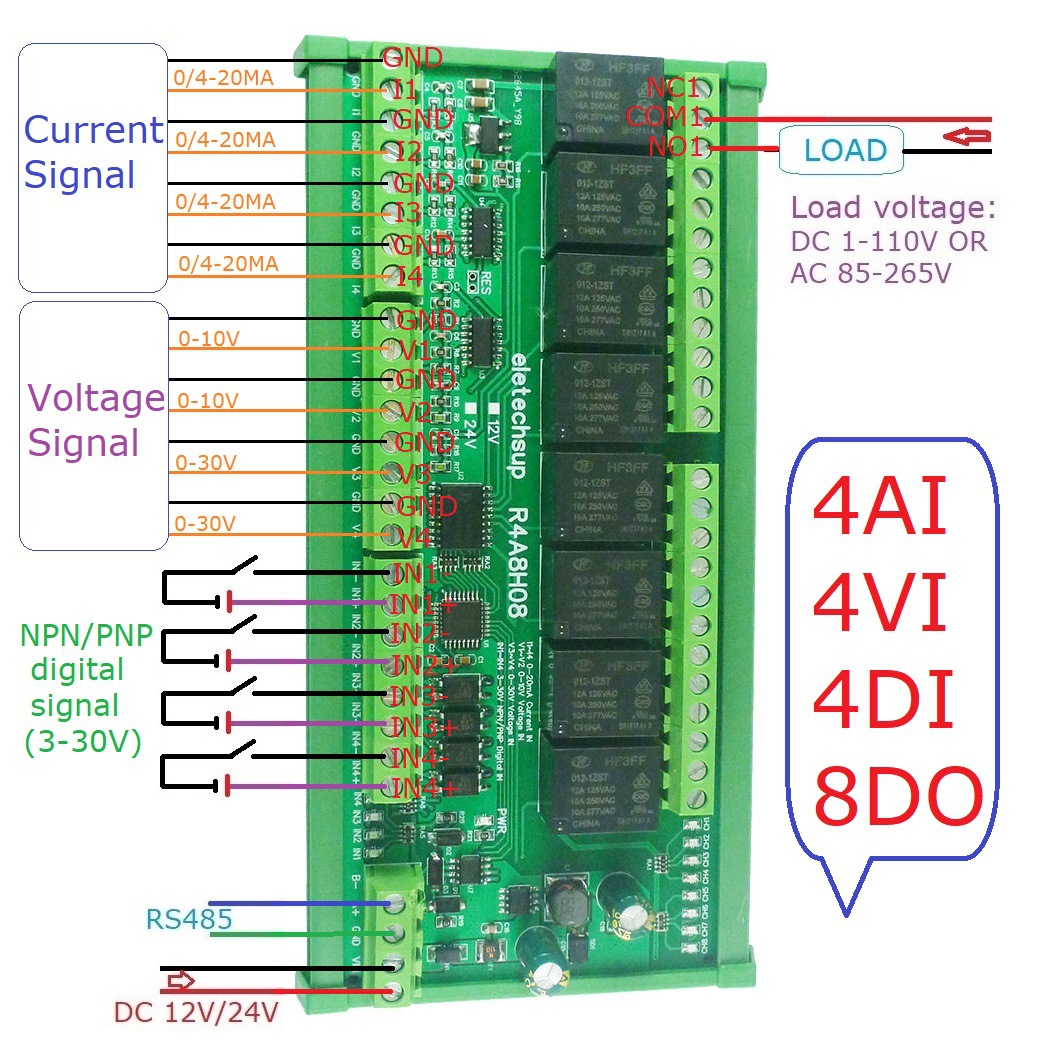

    Wiring Diagram:
    8DO Version :
    4-channel 0-20MA current analog input
    2-channel 0-10V voltage analog input
    2-channel 0-30V voltage analog input
    4-channel NPN/PNP Digital Input
    8-channel 10A relay switch output






    Typical applications:

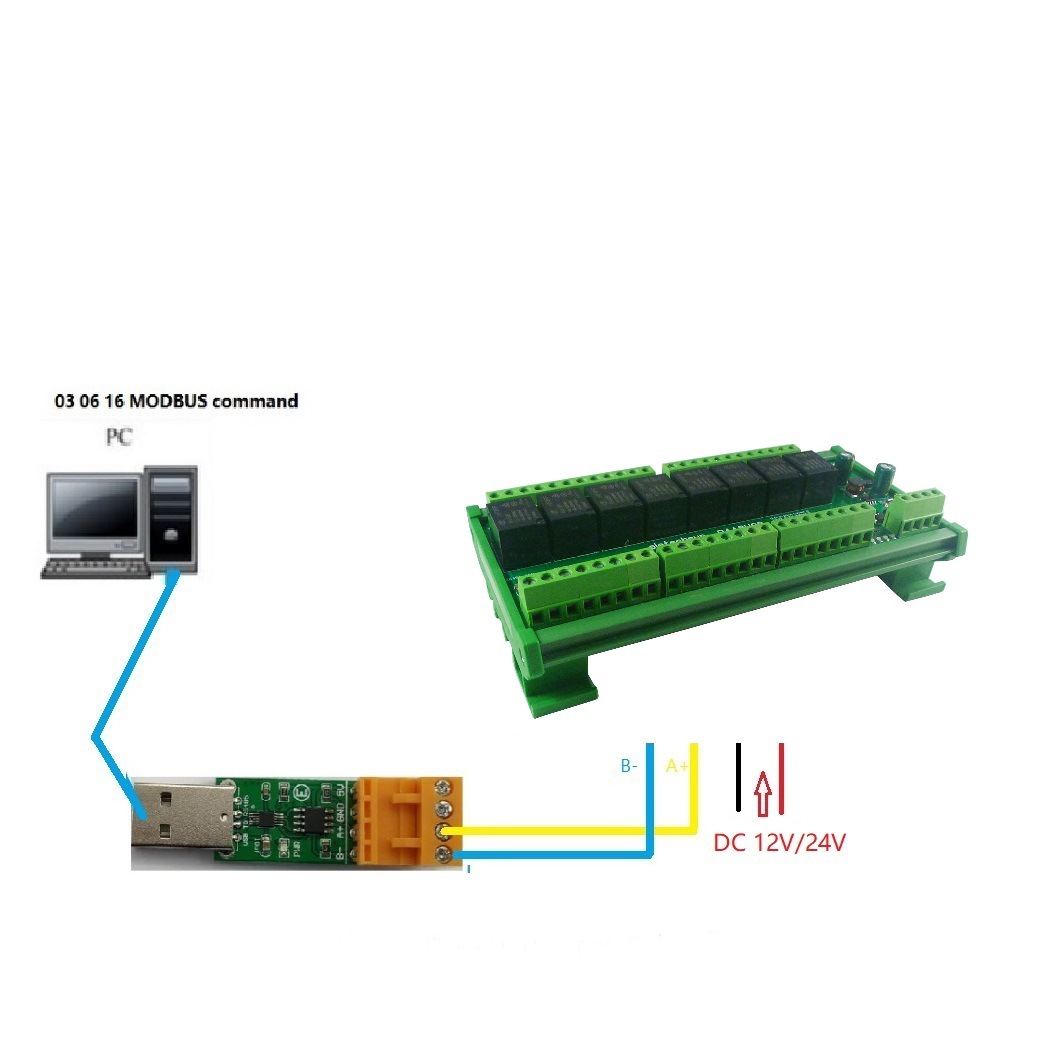

    1 Control a single module

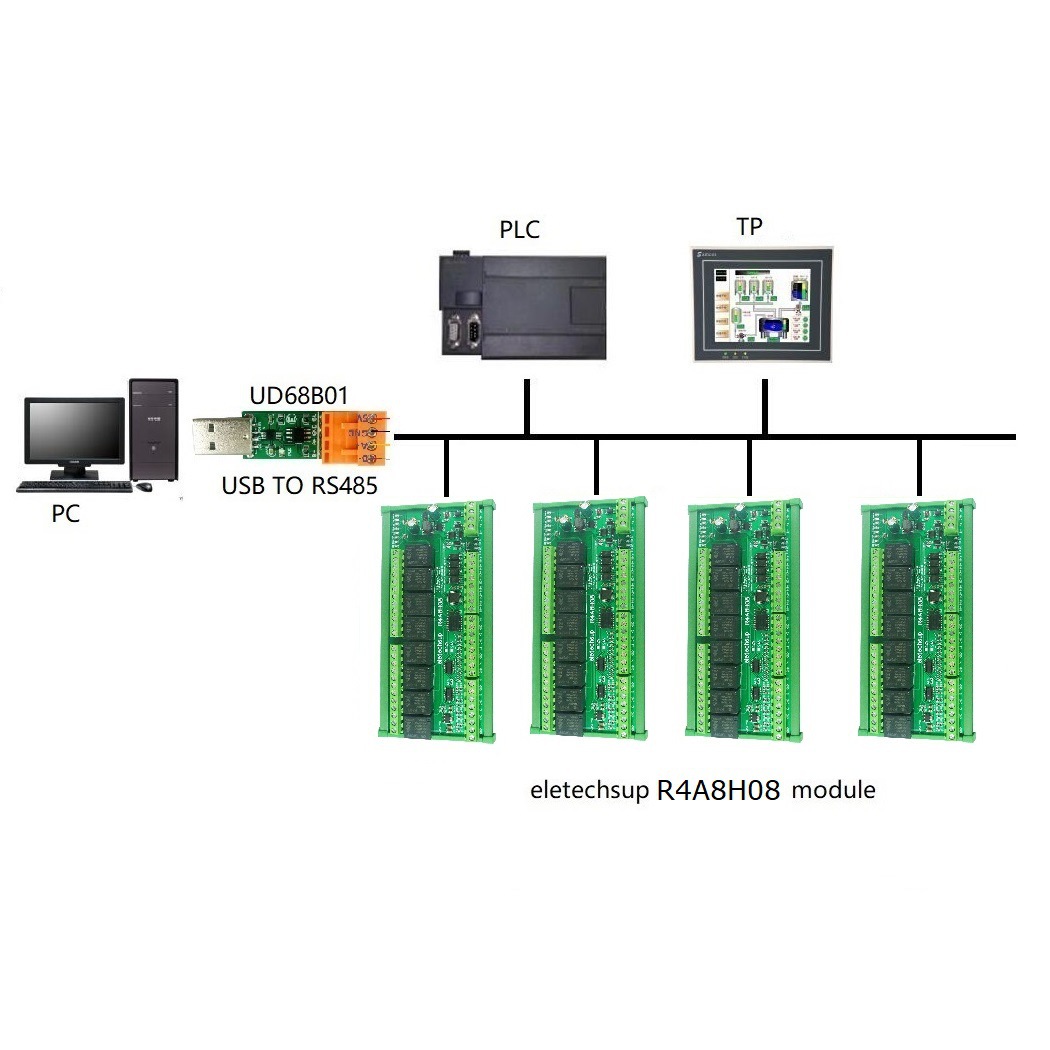

    2 Control multiple modules
