  • 상품 상세설명

    Product Name: 20DO 2DI 2AI RS485 Modbus RTU Relay Multifunction Module PLC IO Expanding Board 4-20MA 0-10V Current and voltage acquisition


    Package inlcuded:

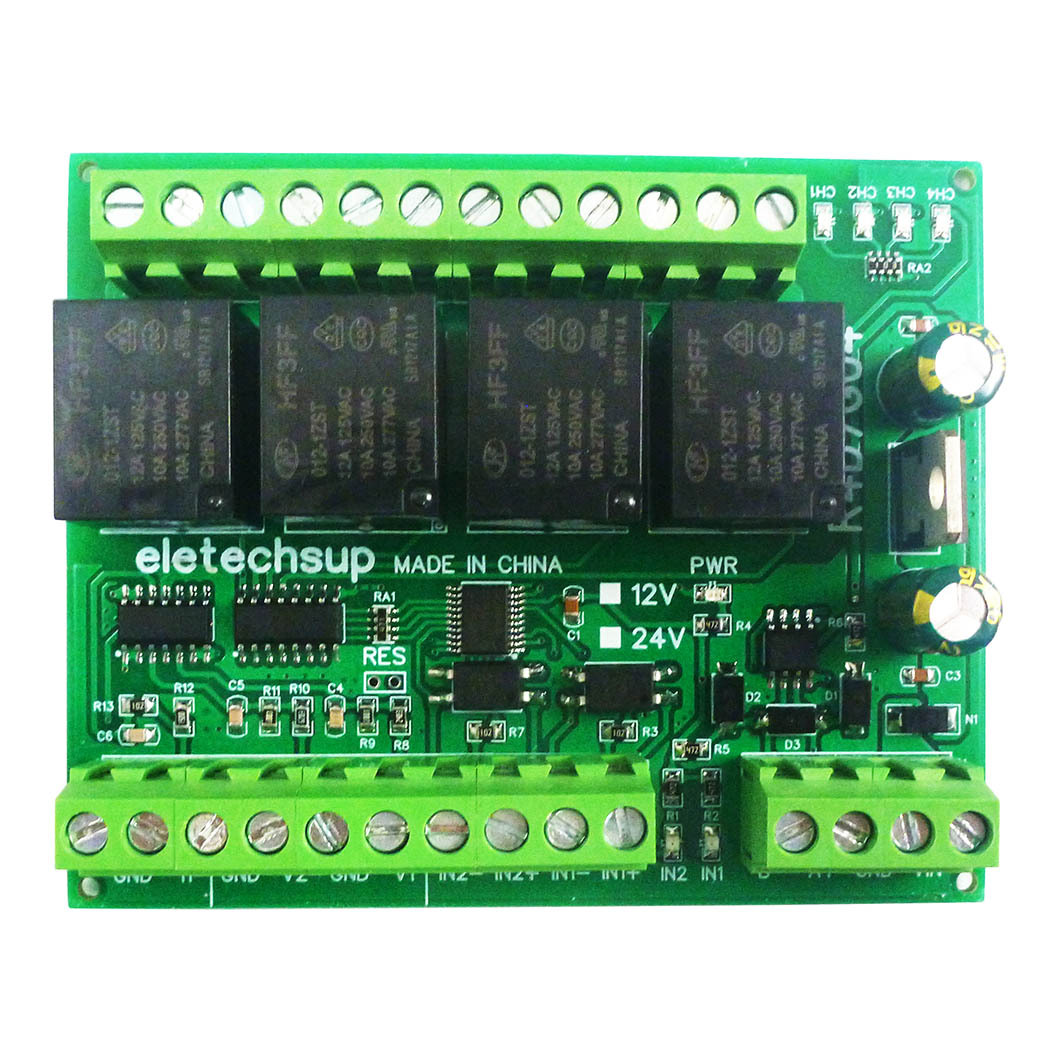

    1PCS DC 12V/24V 4Ch Multi-function PLC IO expansion board


    Description:

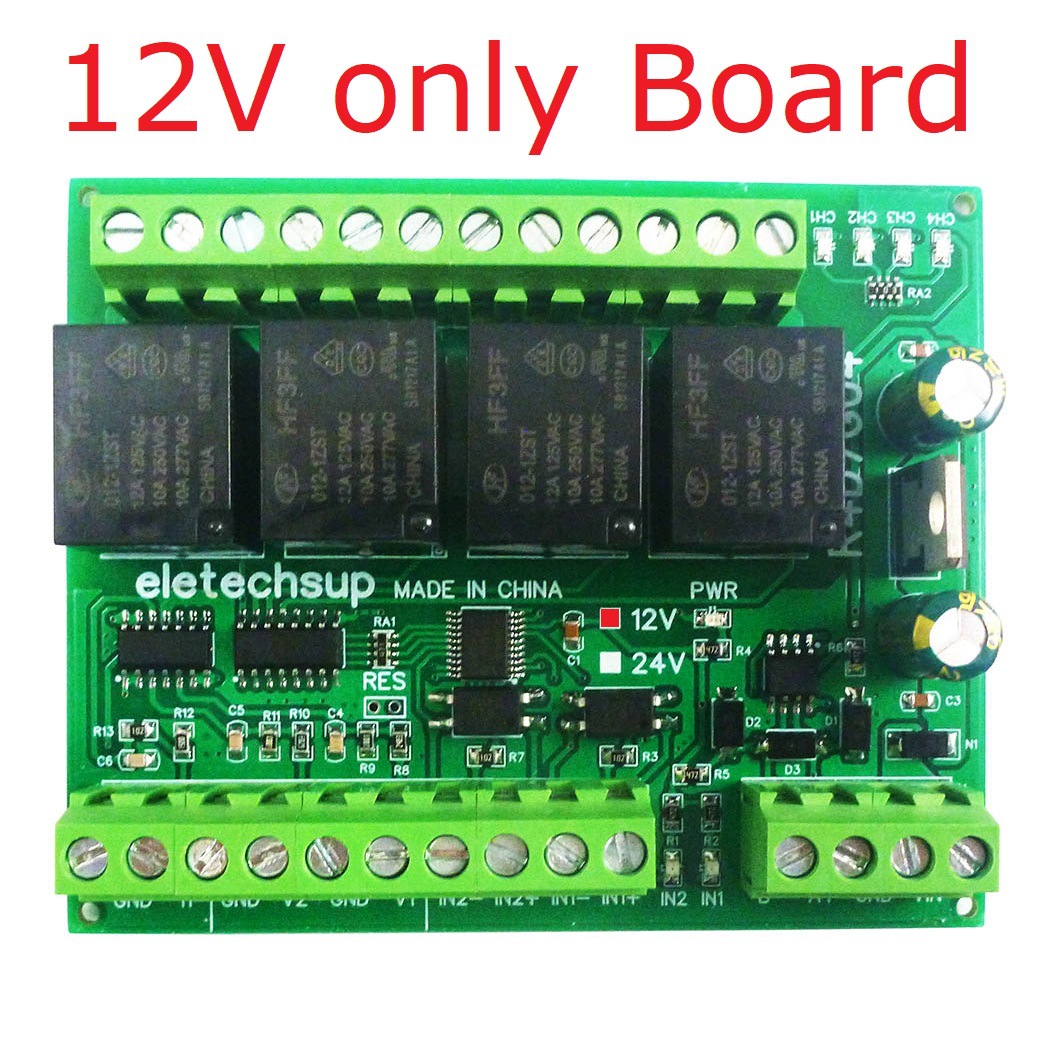

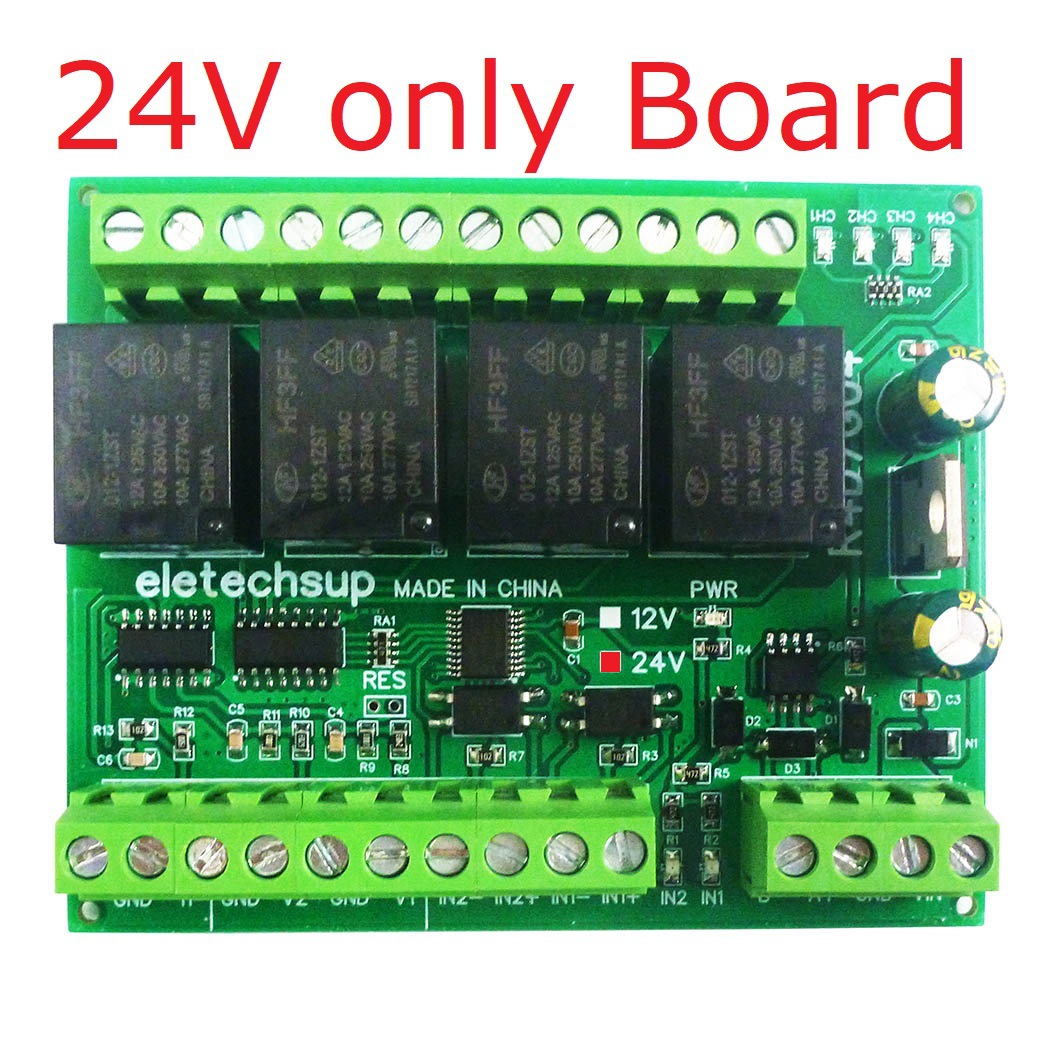

    1:DC 12V (12V Version),DC 24V (24V Version)

    2.Standby current (all relays closed) 12MA, 1 relay open 40MA, 2 relays open 69MA, 3 relays open 95MA,4 relays open 122MA

    3:1-channel 0-20MA current analog input, 1-channel 0-10V voltage analog input, 1-channel 0-24V voltage analog input, 2-channel photoelectric isolation switch input (compatible with NPN/PNP), 4-channel 10A relay switch output

    4: Support standard Modbus RTU command, function code:
    write 05/06/15/16 read 01/02/03/04

    5: With hardware Reset function, with TVS anti-surge protection

    6 Under the MODBUS command mode, it can support up to 64 devices in parallel

    7 The default baud rate is 9600BPS. The baud rate can be selected by Conmand 2400 4800 9600 19200 38400 57600 115200BPS

    8 The parity can be none parity, even parity and odd parity

    9 The data sending and returning time can be set,with a maximum value of 1000ms

    10 Size: 88* 72 * 12mm(Only PCB Board);95* 82*40mm(with Din Rail Box)
    11 Weight: 85g(Only PCB Board);160g(with Din Rail Box)

    12 Maximum load: 10A / 250VAC, 10A / 125VAC, 10A / 30VDC, 10A / 28VDC, 10A / 12VDC

    Upgraded Features:
    Supports 01 02 03 04 05 06 16 function code
    Support more baud rates, can modify the parity bit
    Hardware reset to factory settings (RESET jumper)
    Upgraded relays (more durable)
    TVS anti-surge protection

    For more information, please contact me

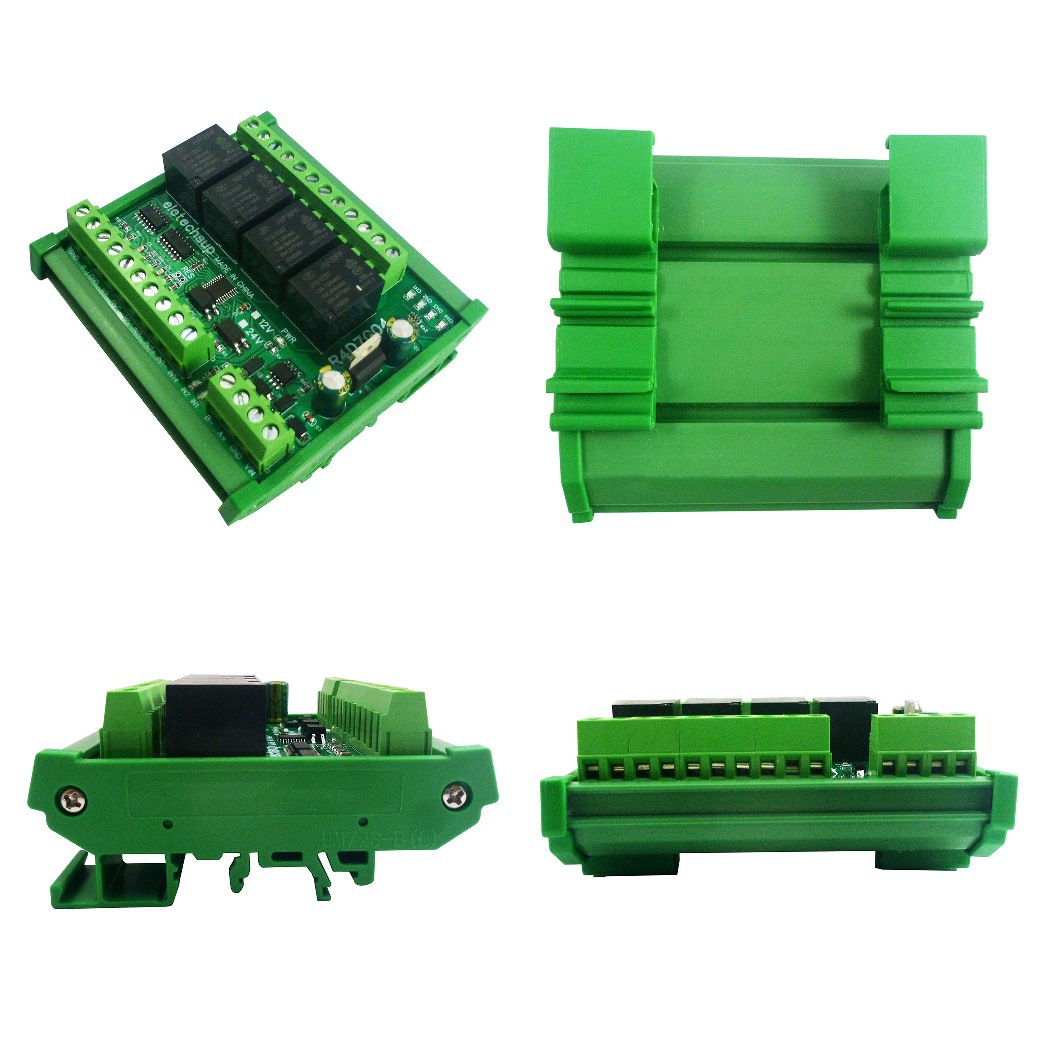

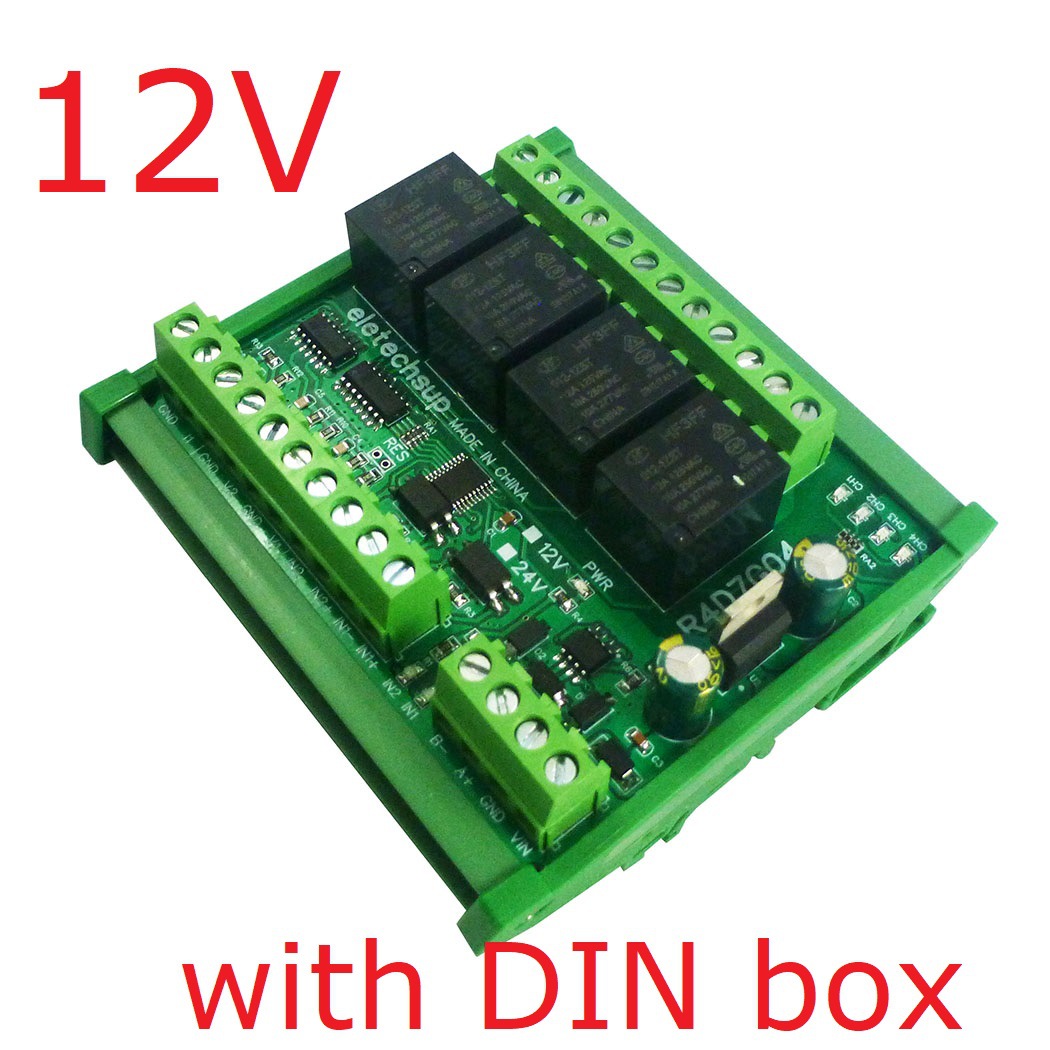

    DIN rail Box parameters:

    Product model: UM72
    Color:     Green
    Width: suitable for PCB board width UM72(72mm)
    Insulation grade: flame-retardant VO grade
    Backplane length: suitable for 88mm PCB boards
    Net weight: 80g
    Installation: DIN35 and C45 rail


    Application

    PLC IO expansion board
    Smart Home,Home Automation ,Wiser Home;
    PTC Camera
    Security Monitoring
    Identification system;
    IP Camera
    LED Lamp Drivers
    Automatic curtain control

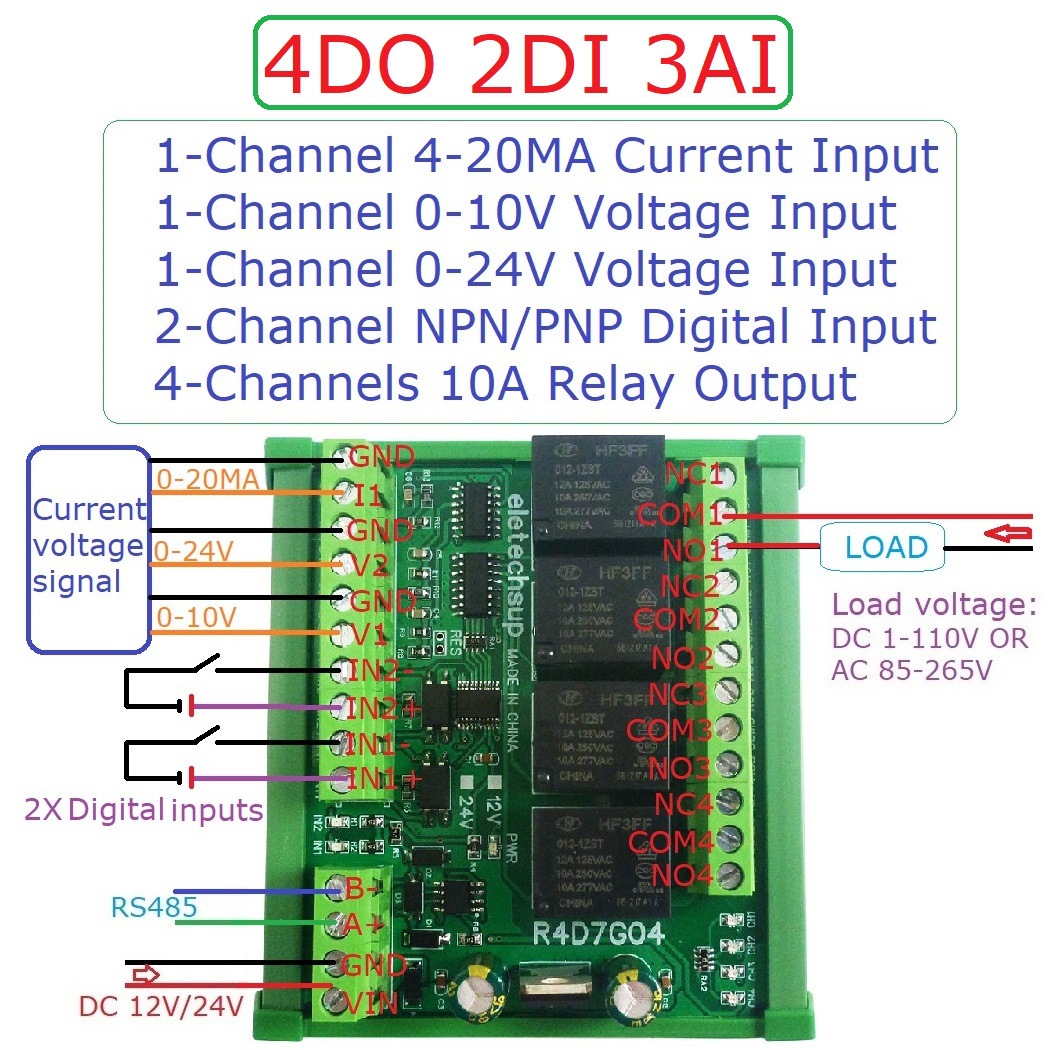

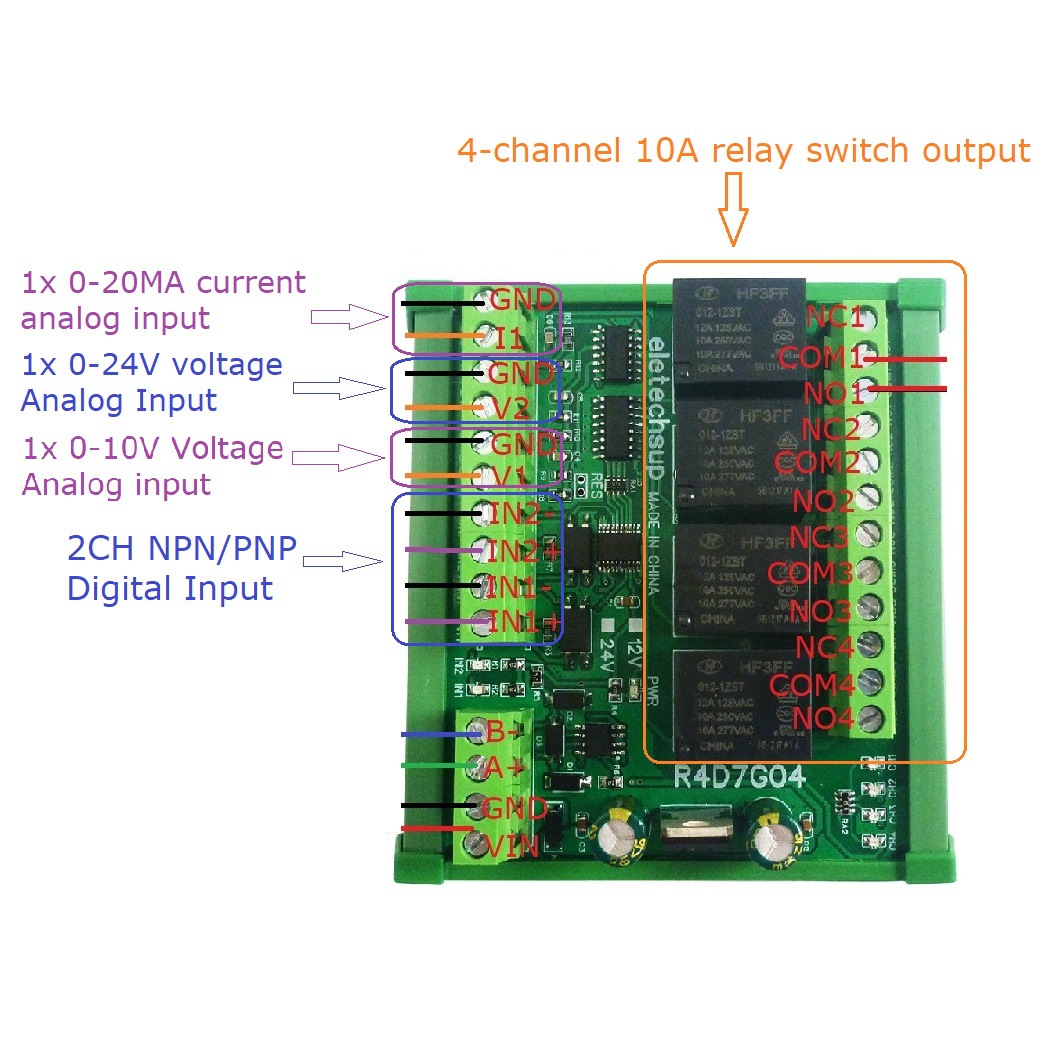

    Wiring Diagram:
    1-channel 0-20MA current analog input
    1-channel 0-10V voltage analog input
    1-channel 0-24V voltage analog input
    2-channel NPN/PNP Digital Input
    4-channel 10A relay switch output




    Typical applications:
    1 Control a single module
    2 Control multiple modules

    상품정보 제공고시

    브랜드 Eletechsup
    적용 범위 전압
    국경 간 내보내기 소스가 배타적인지 여부 예
    주된 판매 지역 기타
    메인 다운스트림 플랫폼 기타

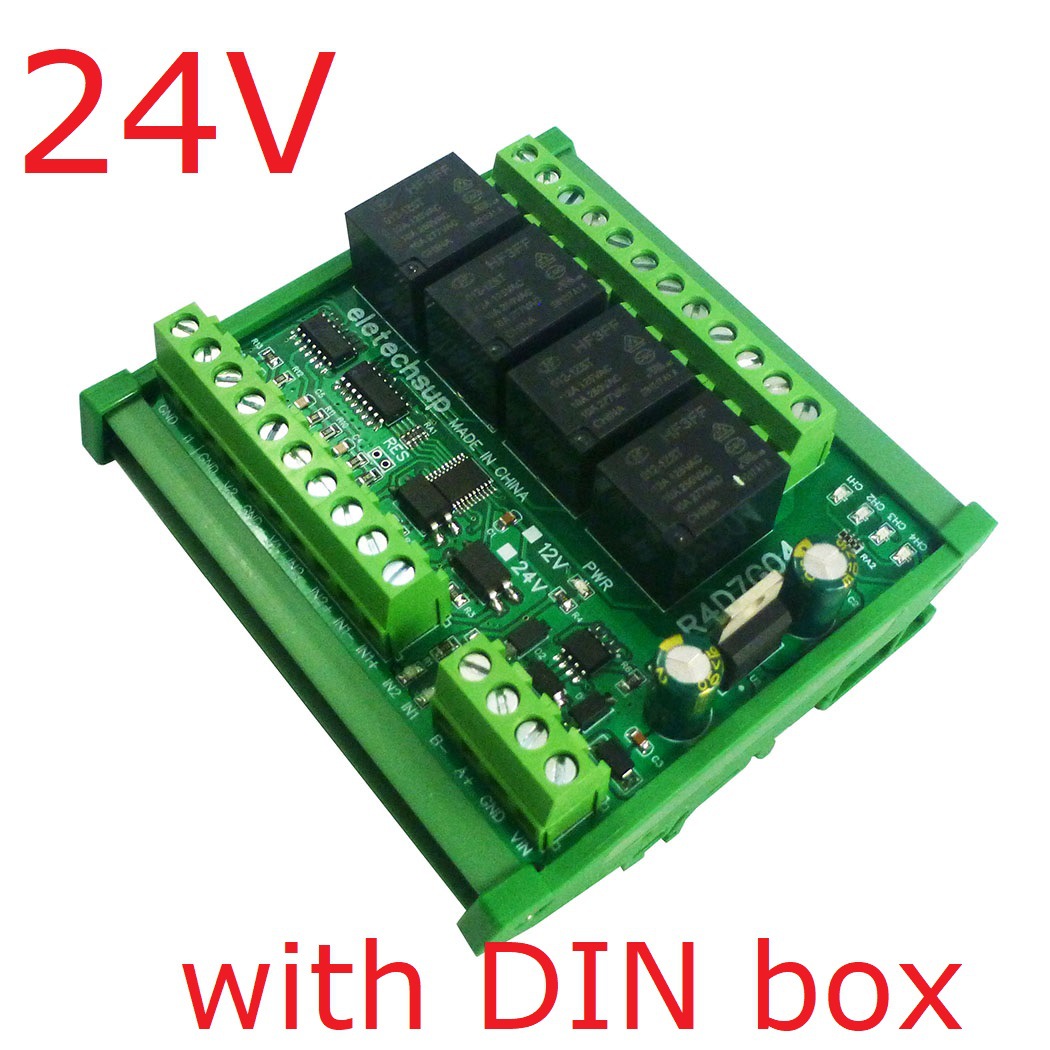

    사양 및 모델 24V with DIN box*12MA*R4D7G04
