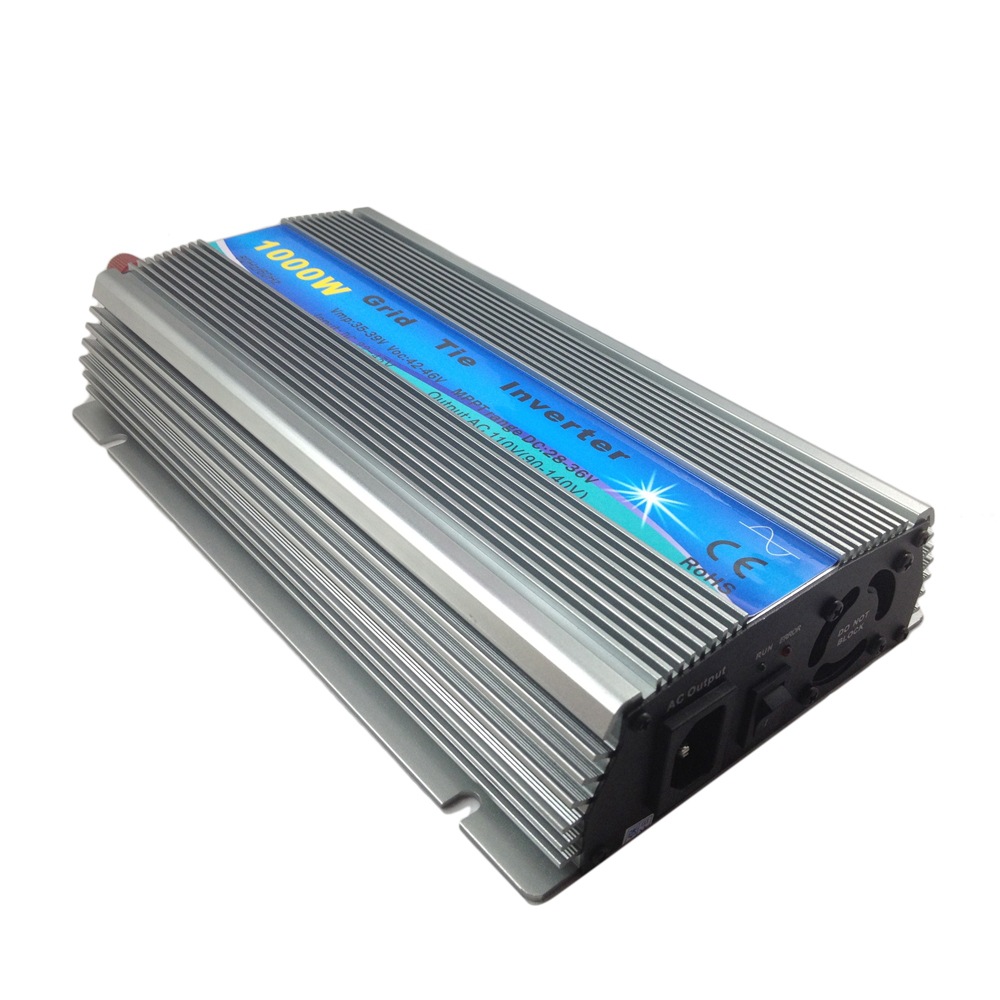

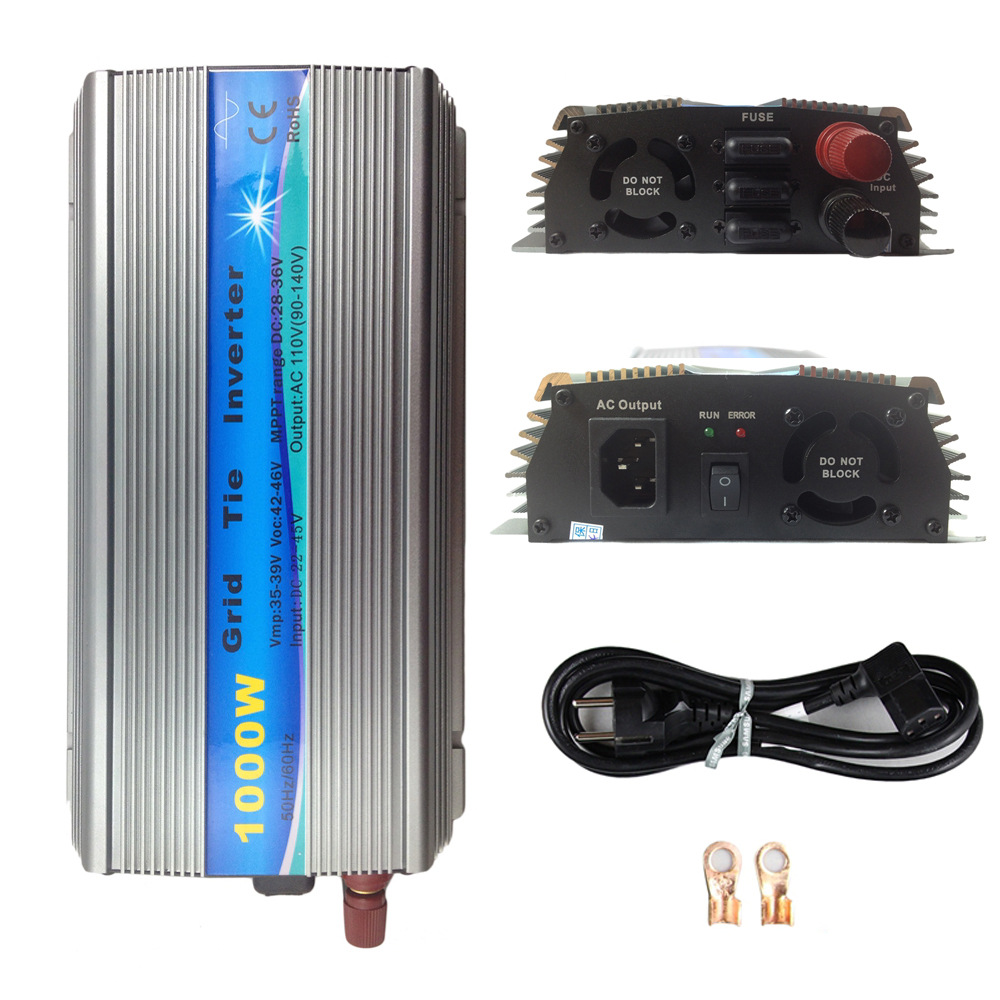

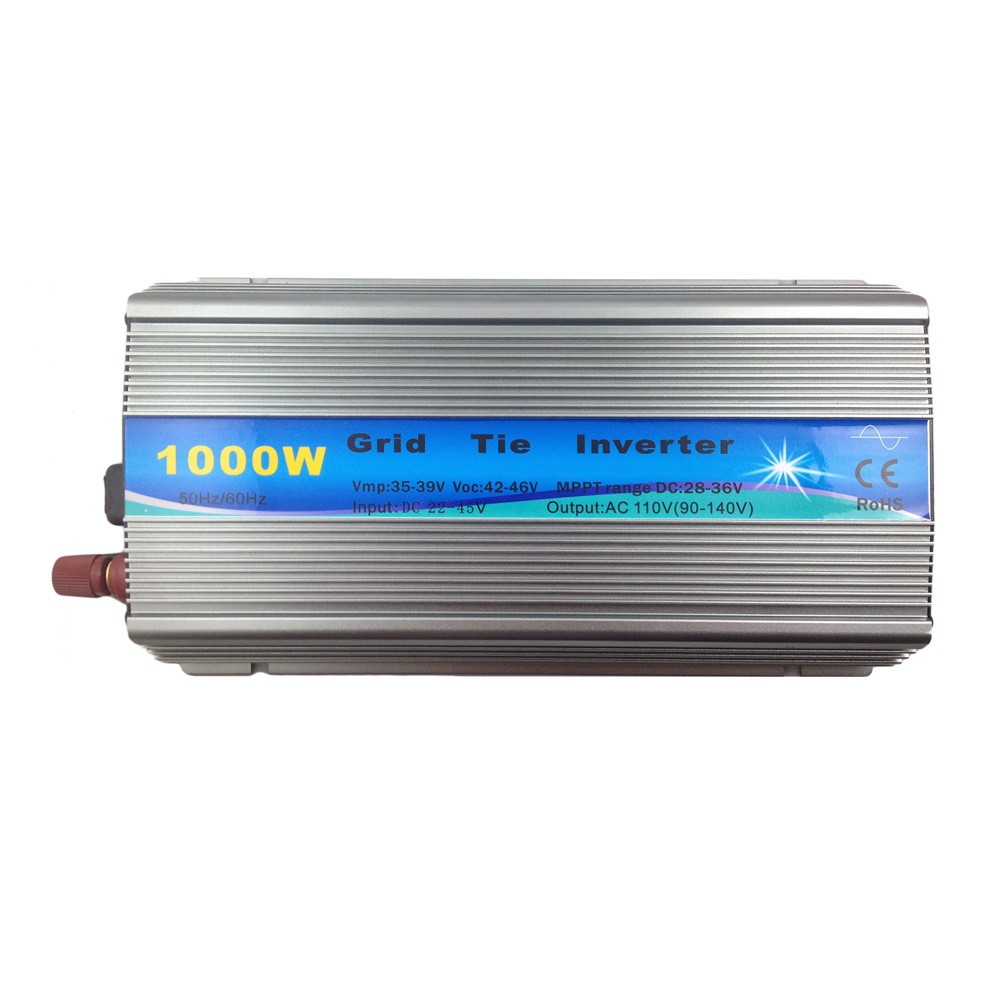

Mppt 태양 그리드 연결 인버터 110v220V 순수 사인파 인버터 태양 광 인버터 국경 폭발

가격

₩126,000

가격

¥420.00

구매수량별 가격

¥420.00

최소구매수량

4개

선택하세요.

跨境

跨境：亚马逊、速卖通、eBay、阿里、LAZADA

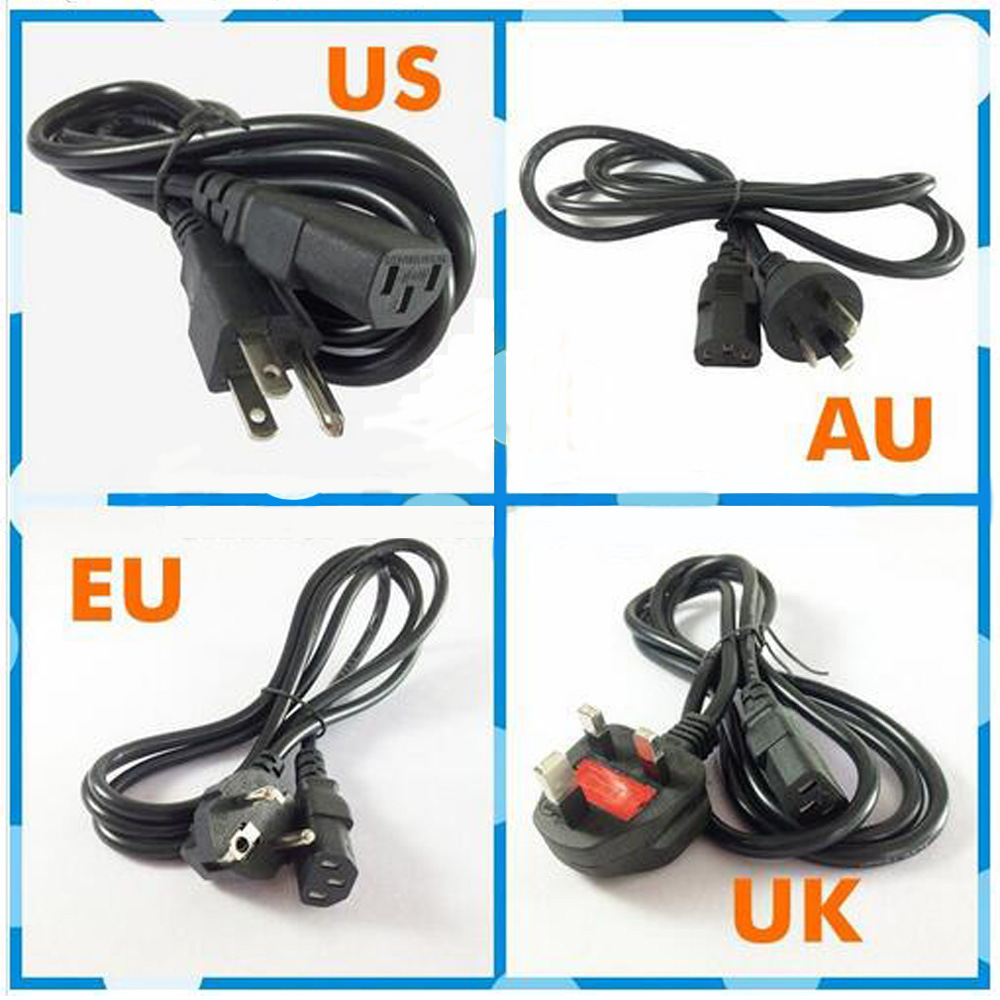

注意：下单备注需要哪种插头，默认220V的是EU插头,110V的是US插头（有EU,AU,US,UK 插头）

Parameter Table

Power	200W	300W	400W	500W	600W	800W	1000W
Solar panels	≥200W	≥300W	≥400W	≥500W	≥600W	≥800W	≥1000W
DC MAX input	240W	360W	480W	600W	720W	960W	1200W
DC input range	10.8-28V
MPPT Voltage	15.5-20VDC
DC MAX current	10A	20A	20A	30A	30A	40A	60A
AC MAX output	230W	330W	430W	550W	630W	830W	1100W
AC output range	120VAC(90-140VAC) or 230VAC(190-260VAC)
Frequency range	50Hz/60Hz(Auto control)
Power Factor	>97.5%
THD	<5%
Phase Shift	<2%
Efficiency	120VAC(90-140VAC)
Peak Efficiency	90%	90%	88%	87%	85%	83%	81%
Stable Efficiency	88%	87%	86%	84%	84%	81%	79%
Efficiency	230VAC(190-260VAC)
Peak Efficiency	91%	90%	88%	87%	85%	85%	82%
Stable Efficiency	89%	88%	87%	85%	85%	83%	80%
Protection	Islanding; Short-circuit; converse connection; Low Voltage; Over Voltage; Over temperature Protection
Work Temperature	‘-25℃-65℃
Work Humidity	0%~90%RH non-condensing
Grade of Waterproof	Indoor design
Show	1 Red and 1 Green
Cooling	Fan
Stand-by Power	2-3W
EMC	EN61000-6-3:2007 EN61000-6-1:2007
Grid Disturbance	EN 50178+EN 62109-1+VDE0126-1-12
Grid Detection	DIN VDE 1026 UL1741
Certificate	CE
