Product model: 0-10M Step 0.1R Adjustable ProgrammableResistance Module C35 DIN Rail Shell for Arduino UNO MEGA PLC


Packing List:
1PCS 0.1R - 9999999R programmable potentiometer

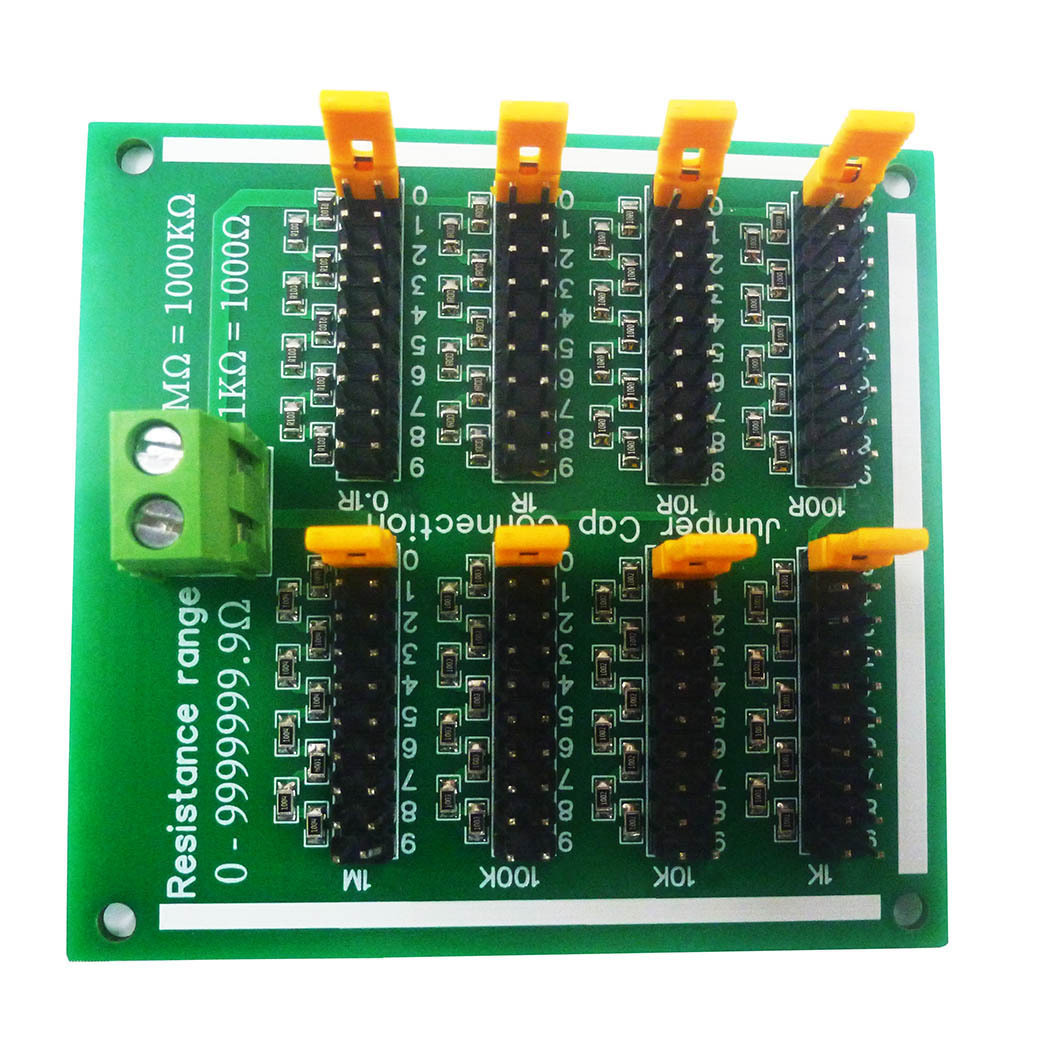

This is a low-cost and good alternative to ''resistor replacement box'', which can flexibly and quickly set the resistance range you need. This module has an adjustable resistance range of 0~9999999.9Ω, eight decimal programmable resistance modules, step 0.1R, resistance accuracy 1%, the resistance value of the resistor can be adjusted with a jumper cap. It can be used in education, experiment, testing, electronic engineering design and other fields.

Design principle: Design based on the ''resistance series'' theorem.

Product parameters:

Stepping : 0.1R

8 decimal modules

Resistance accuracy: 1%

Resistance tolerance: ±1%

Maximum working voltage: 220V

Adjustable resistance range: 0~9999999.9 Ω

Tolerance: 1/8 watt tolerance ±1% SMD resistor.

Resistance adjustment: You can use the jumper cap to adjust the resistance value you need
Terminals: screw terminals are used to connect wires quickly and easily

Weight with shell: 84.9g

Weight without shell: 27.5g

With shell size: 82*71*47mm

Size without shell: 72*68*18mm
