learning (adapting)

In learning mode, press different remote control buttons to adapt to different working modes
Note: If you want to change the working mode, please clear the receiver and then re-learn.

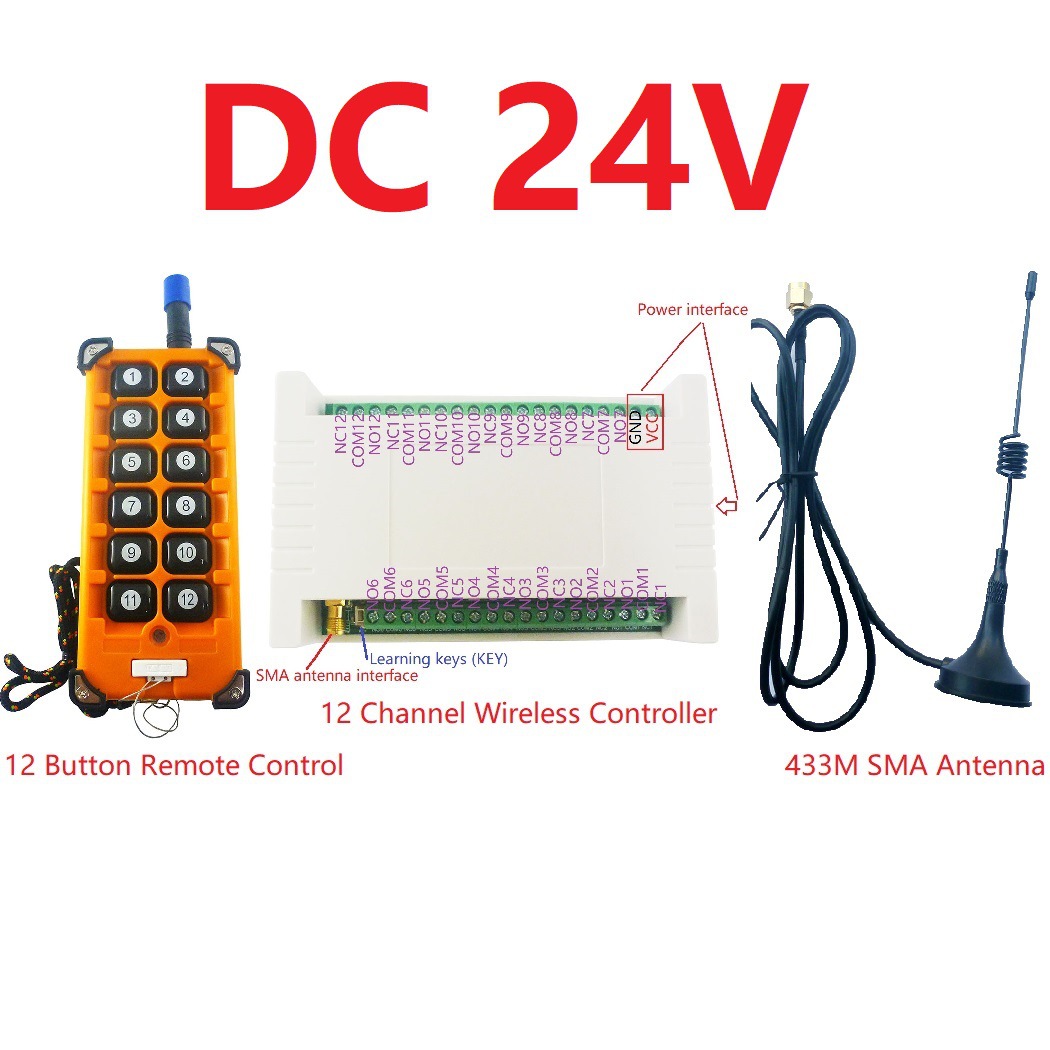

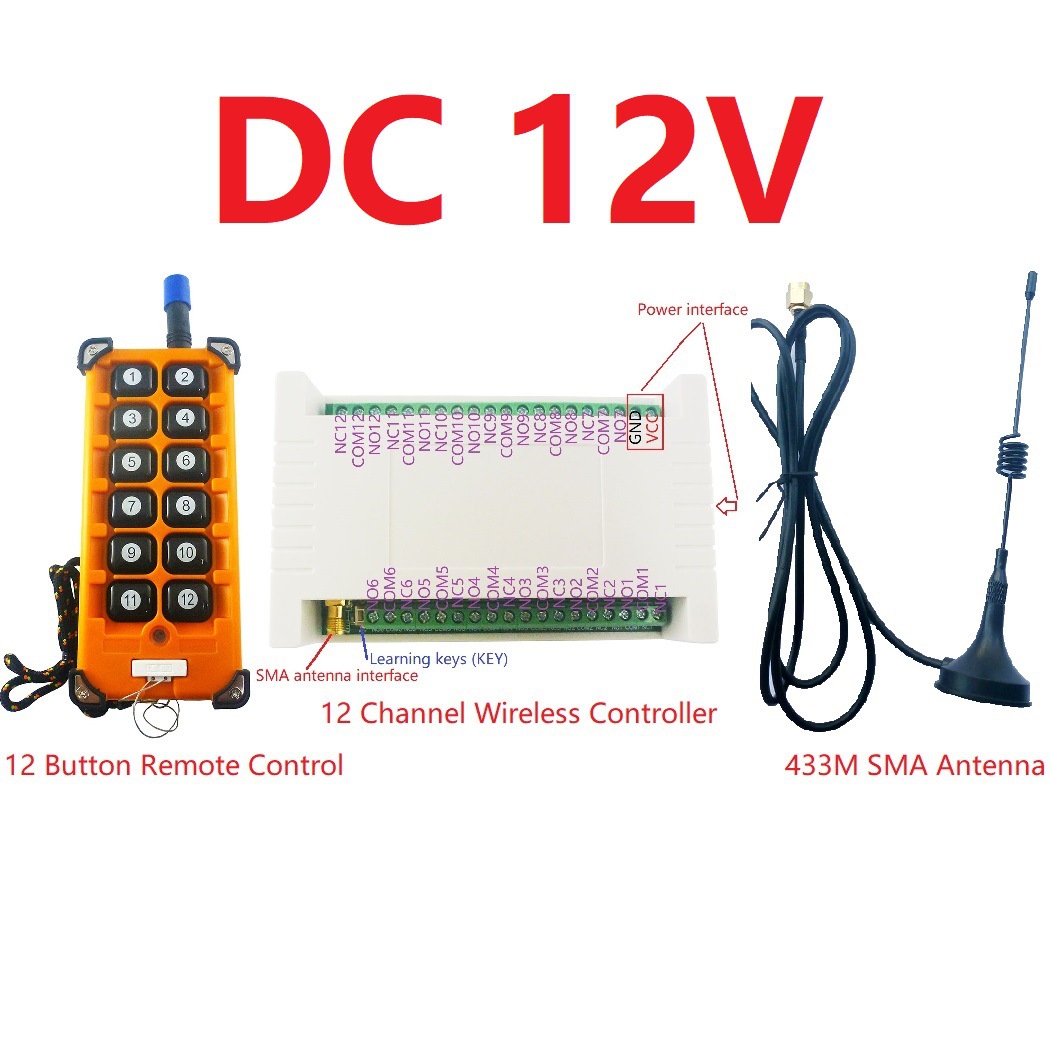

Clear code:

Press and hold the KEY button on the receiver for about 8 seconds until the indicator light goes out, indicating that it has been cleared successfully. The receiver can store 30 remote controls with different codes.

Learning (adapting):

1. Press the key button on the receiver, the LED light is on, and enter the learning state; according to the function you need, choose to press a key on the remote control to learn, and the indicator light flashes once after the receiver receives the signal, indicating that the learning is successful. If the learning fails, the indicator light will go out directly.

Working mode:

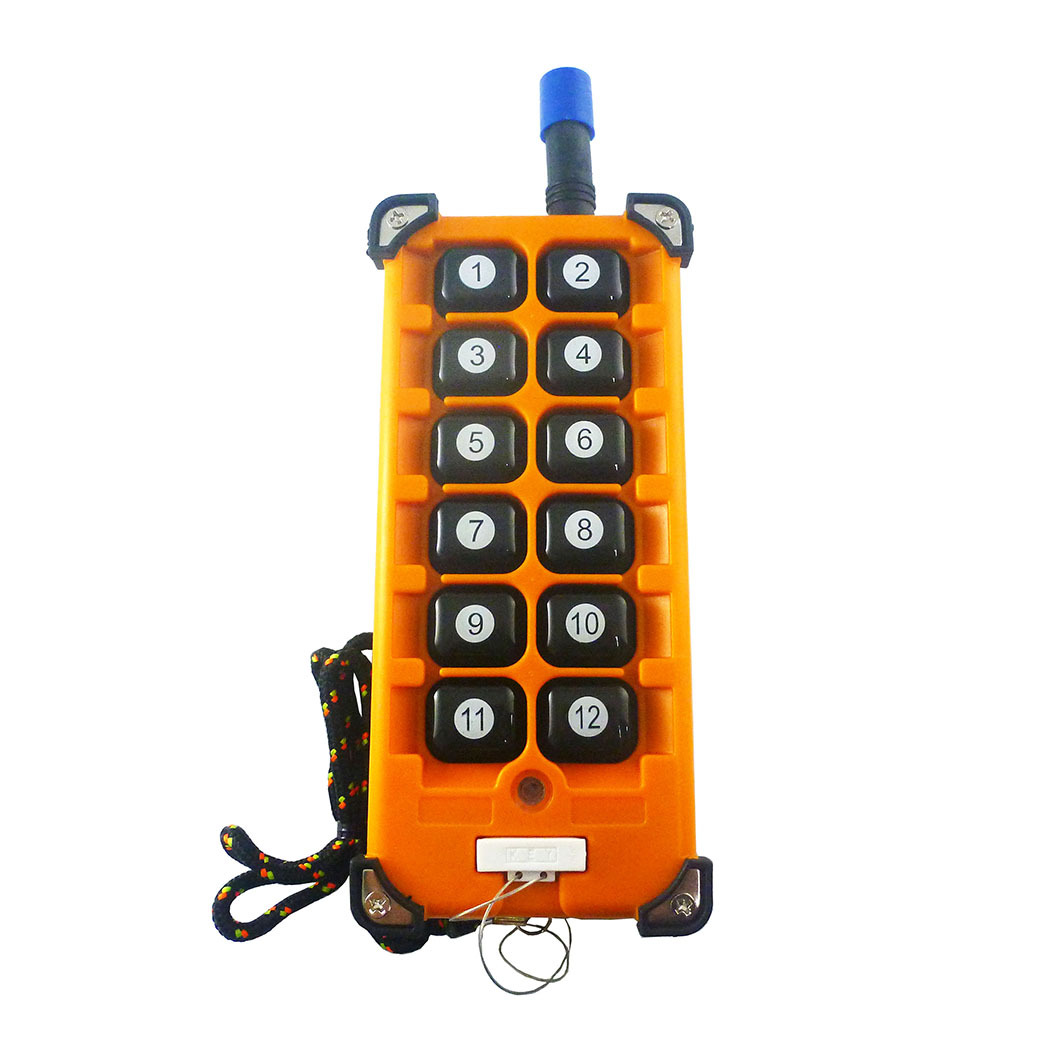

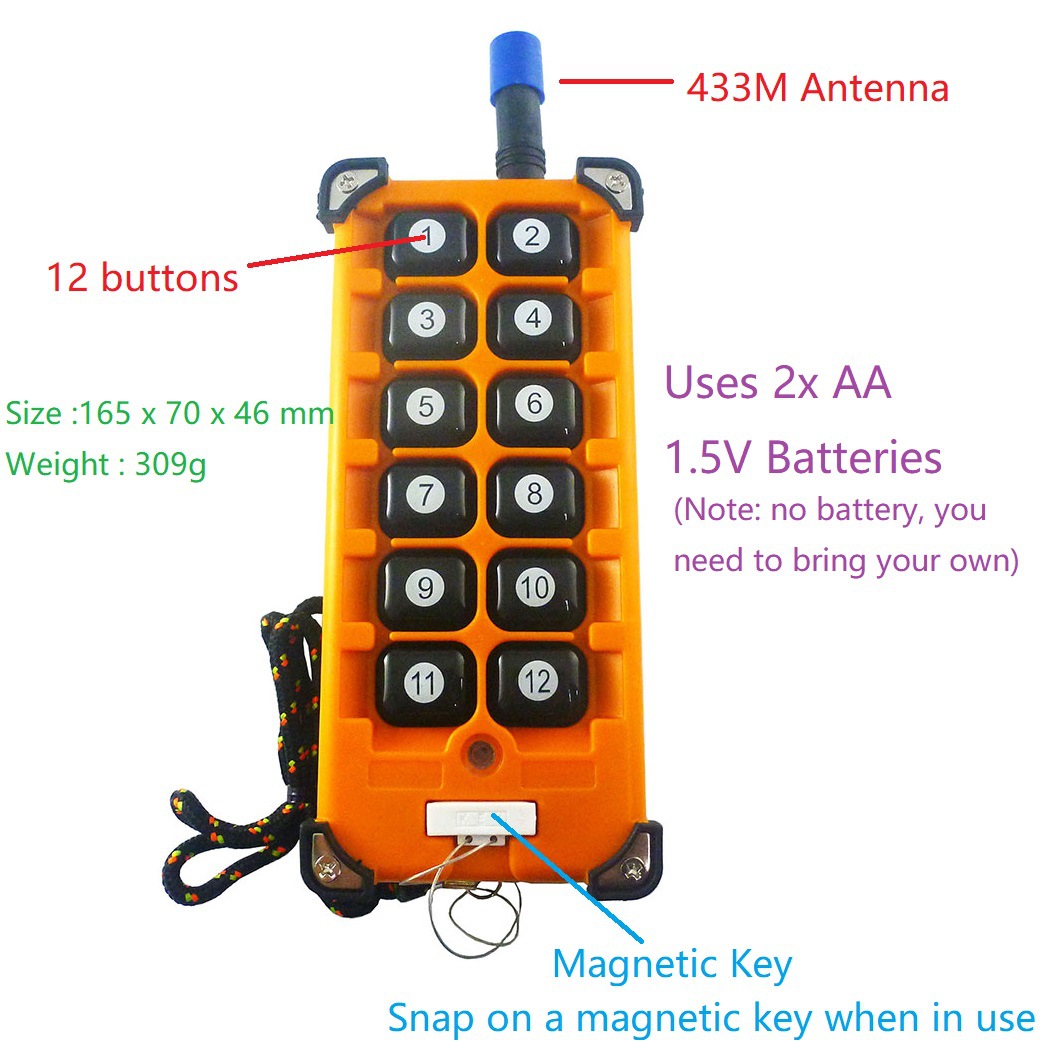

When learning, by pressing different remote control buttons, it can be set to 8 different working modes

Note: If you want to change the working mode, please clear the receiver and then re-learn.

1. Self-locking mode : Press the No. 1 button on the remote control to learn

2. Momentary mode : Press the No. 2 button of the remote control to learn
(when Momentary mode it can support multiple buttons to output at the same time, the relays are triggered independently, and do not affect each other)

3. Interlock mode : Press the No. 3 button on the remote control to learn

4. Relay 1~6 channels Self-locking and 7~12 channels Momentary coexist : Press the No. 4 button of the remote control to learn

5. Relay 1 channel Self-locking and 2~12 channels Momentary coexist : Press the No. 5 button of the remote control to learn

6. Relay 1 and 3 channel Self-locking, 2 4 5 6 7 8 9 10 11 12 channels Momentary coexist : Press the No. 7 button of the remote control to learn

7. Relay 1~10 channel Self-locking, No. 11 button Open 1~10 Relay,No. 12 button Close 1~10 Relay : Press the No. 8 button of the remote control to learn

8. Relay 1-2 channels Interlock , 3 4 5 6 7 8 9 10 channels Momentary,11-12 channels Self-locking : Press the No. 7 button of the remote control to learn

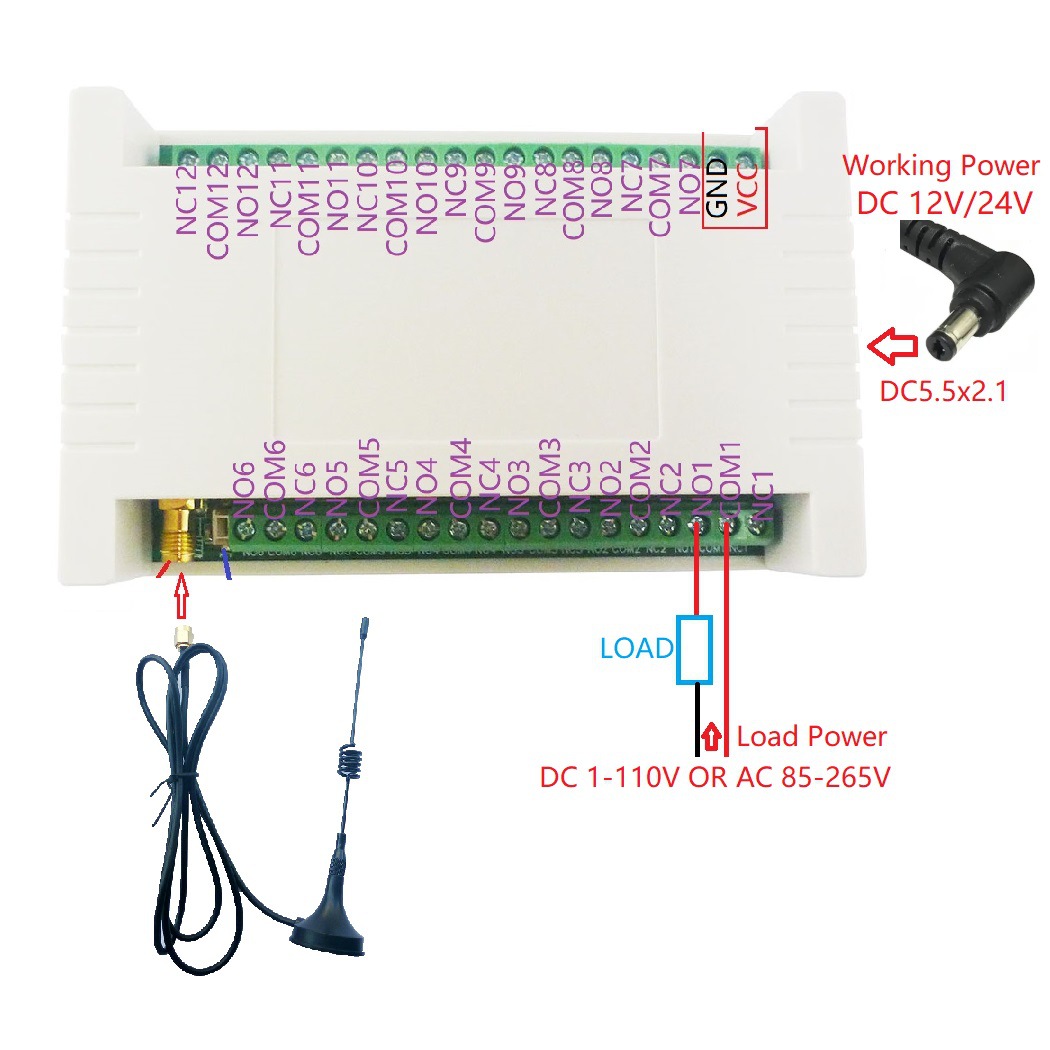

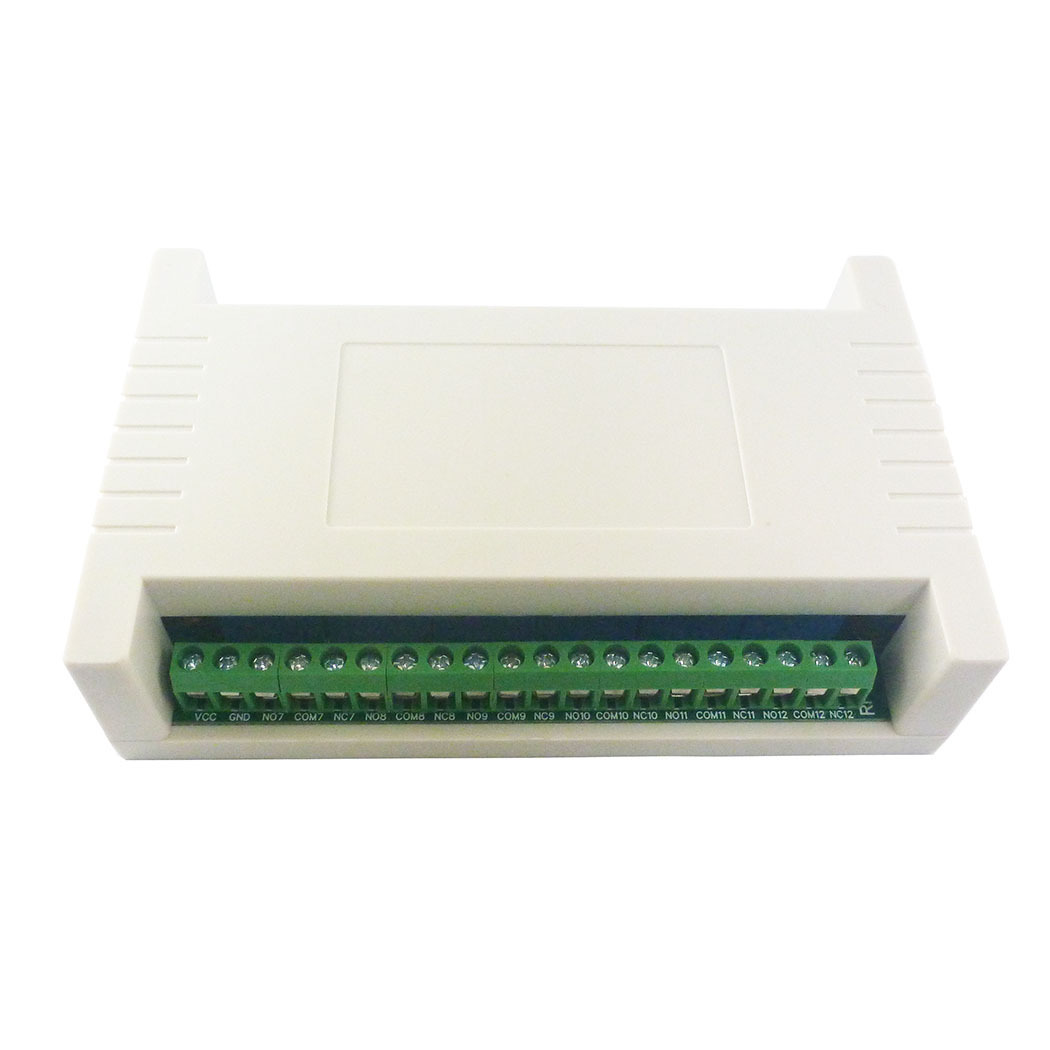

Wiring diagram:

DC 1-100V OR AC 85-265V control circuit,Wiring diagram below. ''LOAD'' may be LED lights, fans, motors and other DC AC equipment
