1 PCS DC 6V-60V UPS Power-OFF Protection Module Automatic Switching Module Emergency Cut-off Board for Lead-acid lithium iron Battery

Product parameters:
1. Brand: eletechsup
2. Model: CCUPS01
3. Maximum load current: 10A
4. Working temperature: -25℃~85℃
5. Working humidity: 5%~95%RH

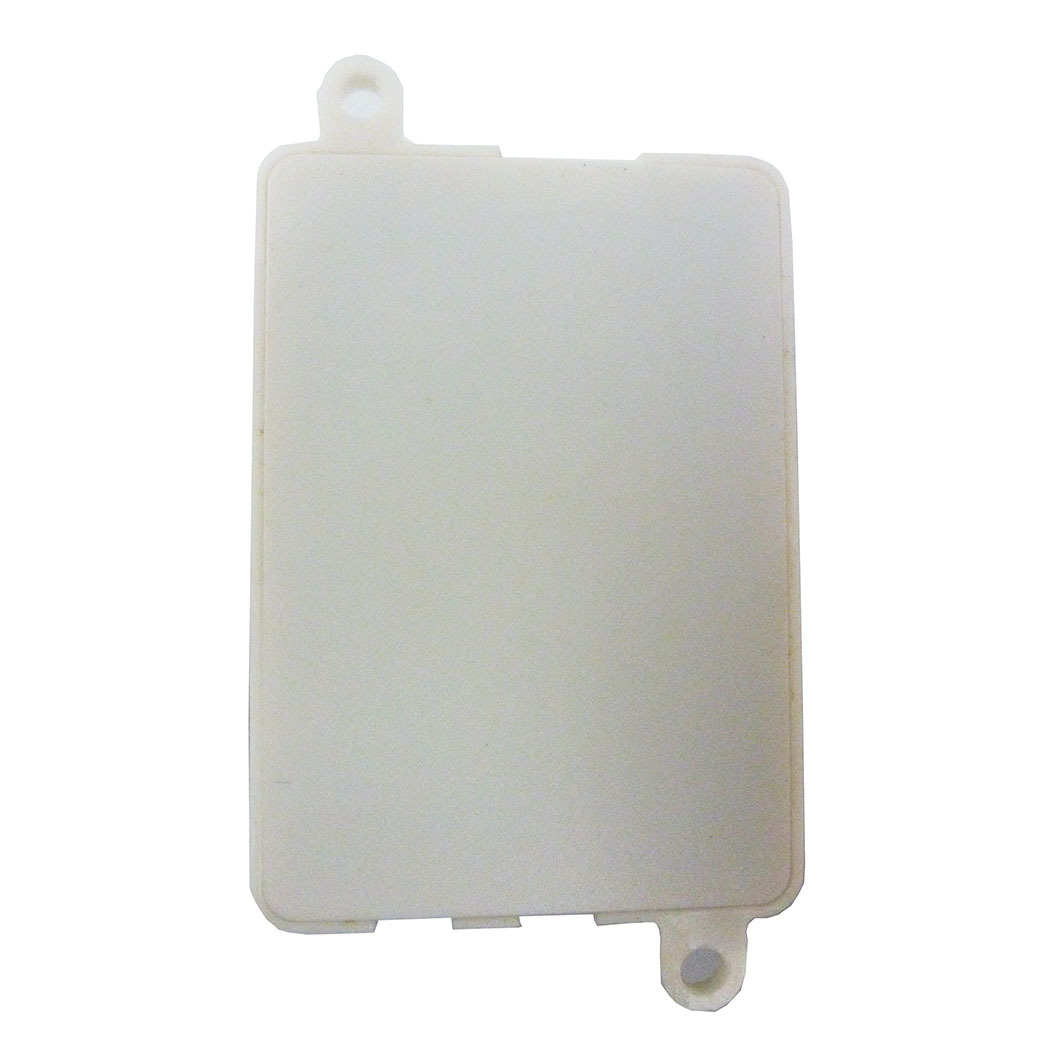

6. Weight with shell: 30.4 grams
7. Size with shell: 60*35*22mm

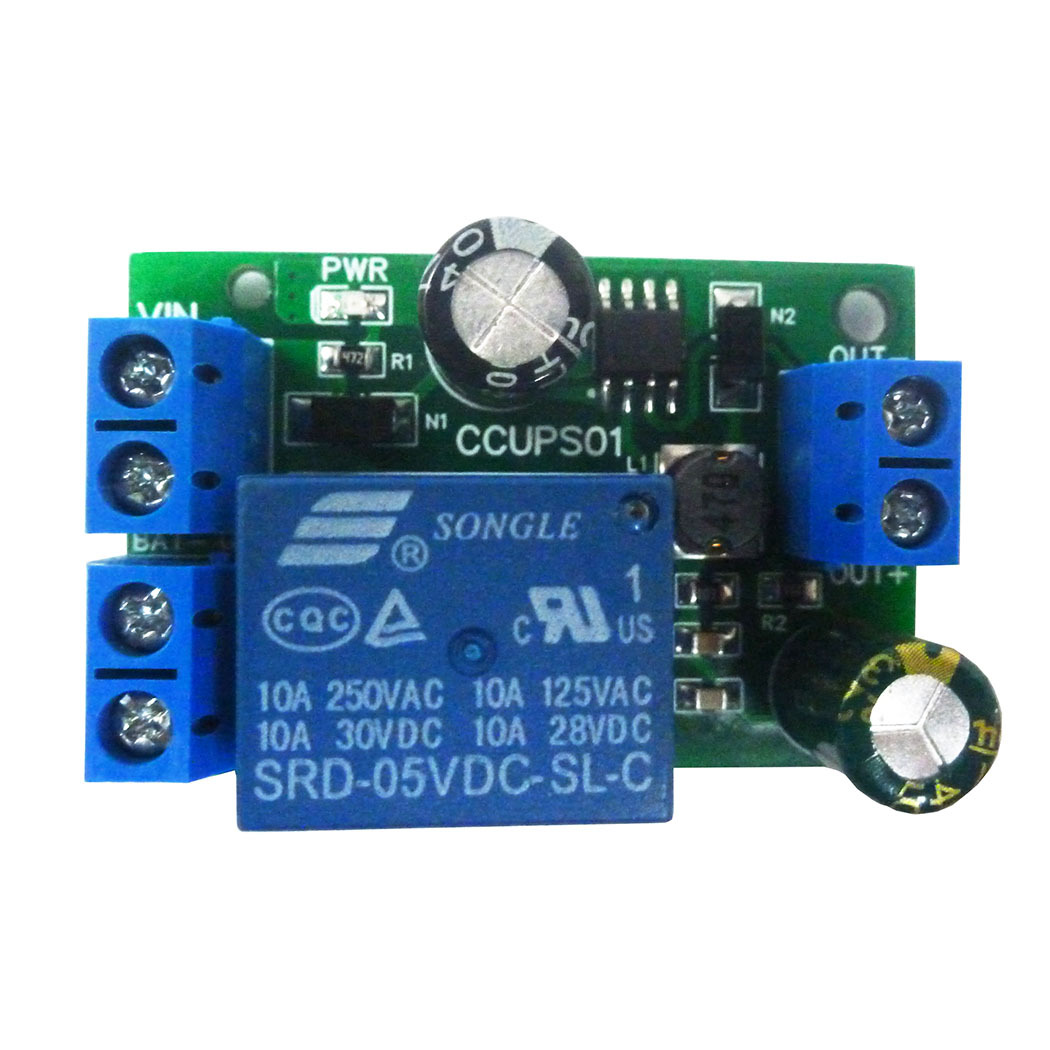

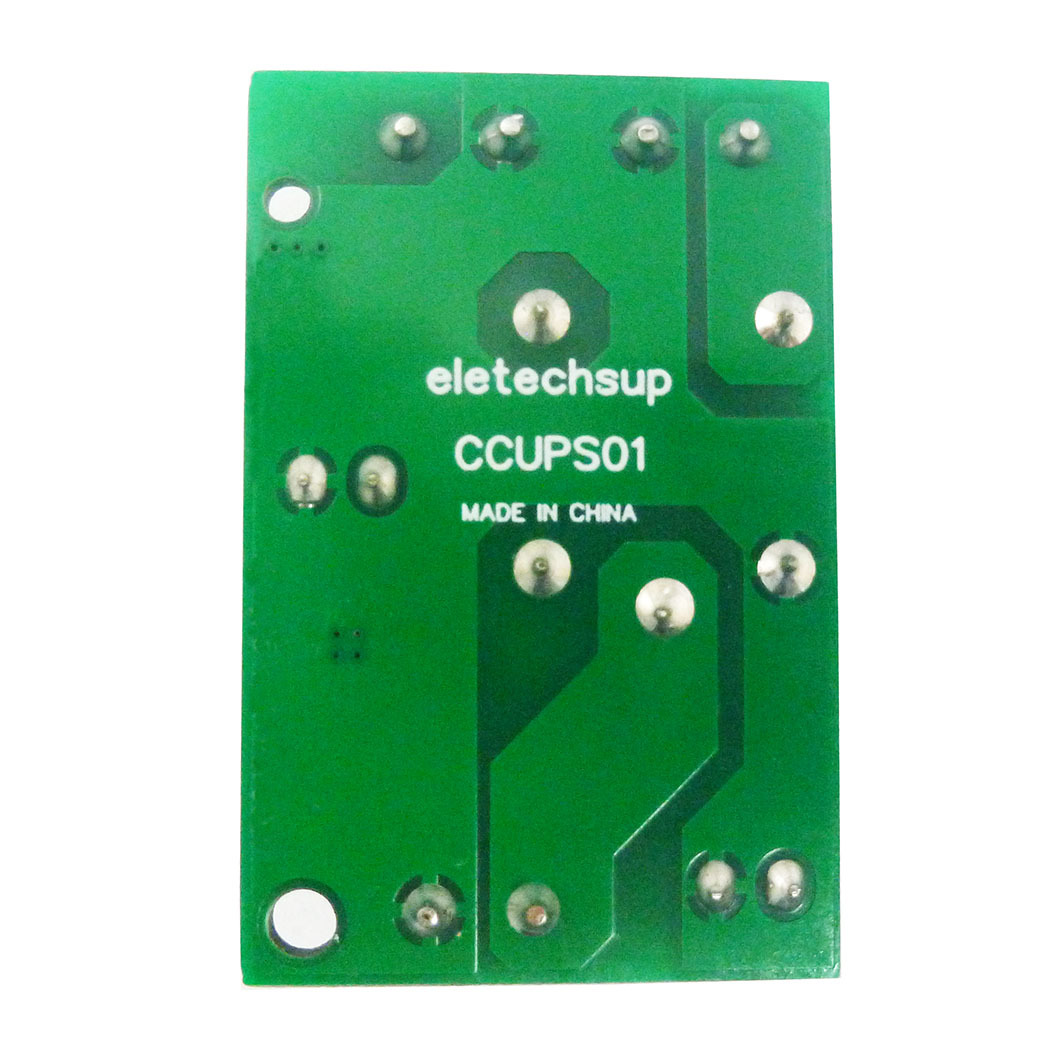

8. Weight without shell: 20.5 grams
9. Size without shell: 45*29*1.6mm
10. Applicable power supply voltage: 6V, 9V, 12V, 24V, 36V, 48V, 60V

illustrate:

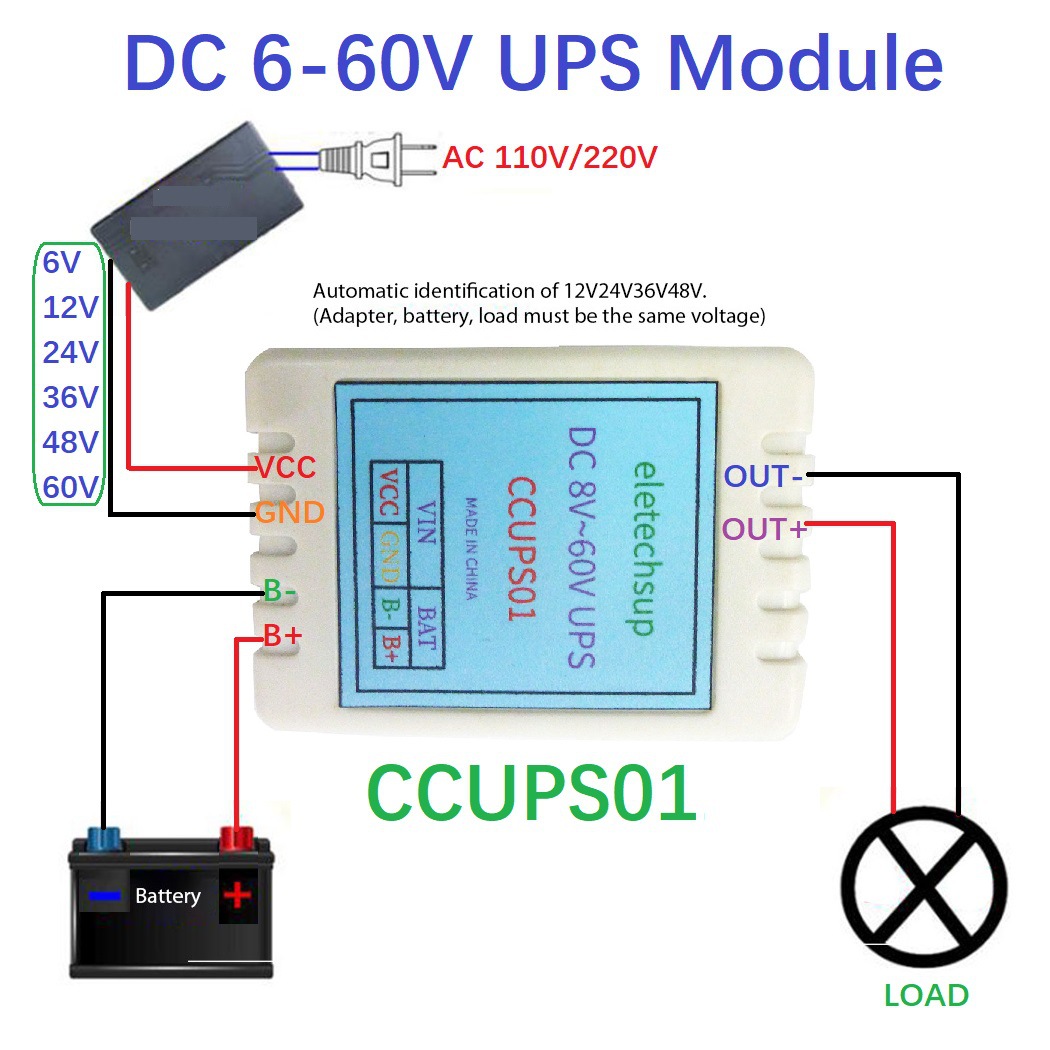

1. This module can only use one 6V~60V (6V, 9V, 12V, 24V, 36V, 48V, 60V) battery.

2. This module only has the power-off function but does not have the function of charging the battery and protecting it.

3. The DC, power and load voltages should remain the same.

4. When the DC terminal (power adapter or switching power supply, etc.) is powered, give power to the load first.

5. When the DC terminal (power adapter or switching power supply, etc.) has no electricity, it will automatically switch the battery to the load.

6. Power adapter indicator (the indicator light is on when the power adapter is turned on, and the indicator light is off when the battery is powered off)
