    Product Name: Multifunction USB Cable Tester USB A to Type-c Micro Lightning Short Circuit On-Off Data Cable Test Tool

    Packing list:

    1 pcs USB A Type-c Cable Tester


    Description:

    Working power: DC 5V(TYPE-C Input)
    Working current: 10-20MA

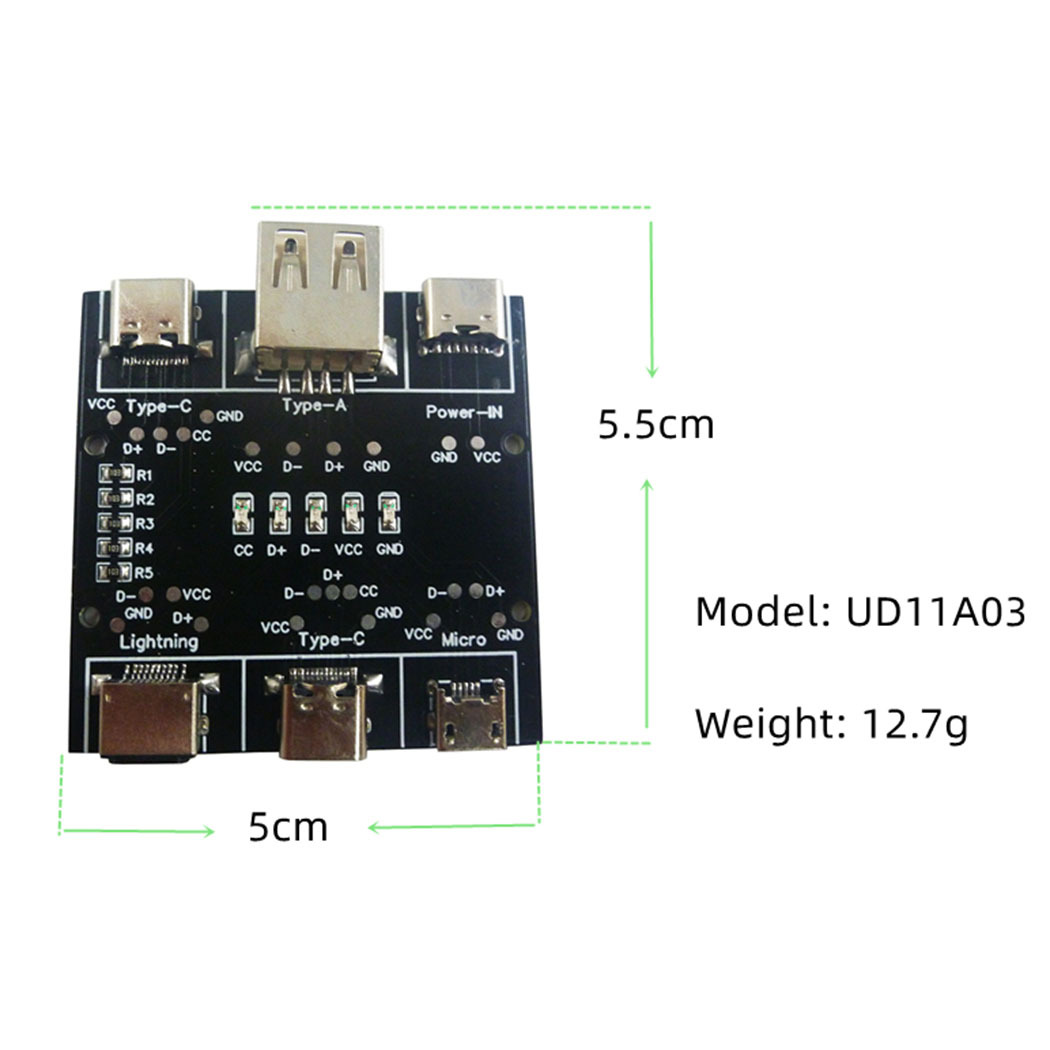

    Model : UD11A03 (compatible with DT3)
    Weight: 12.7g
    Size: 50*50*10MM

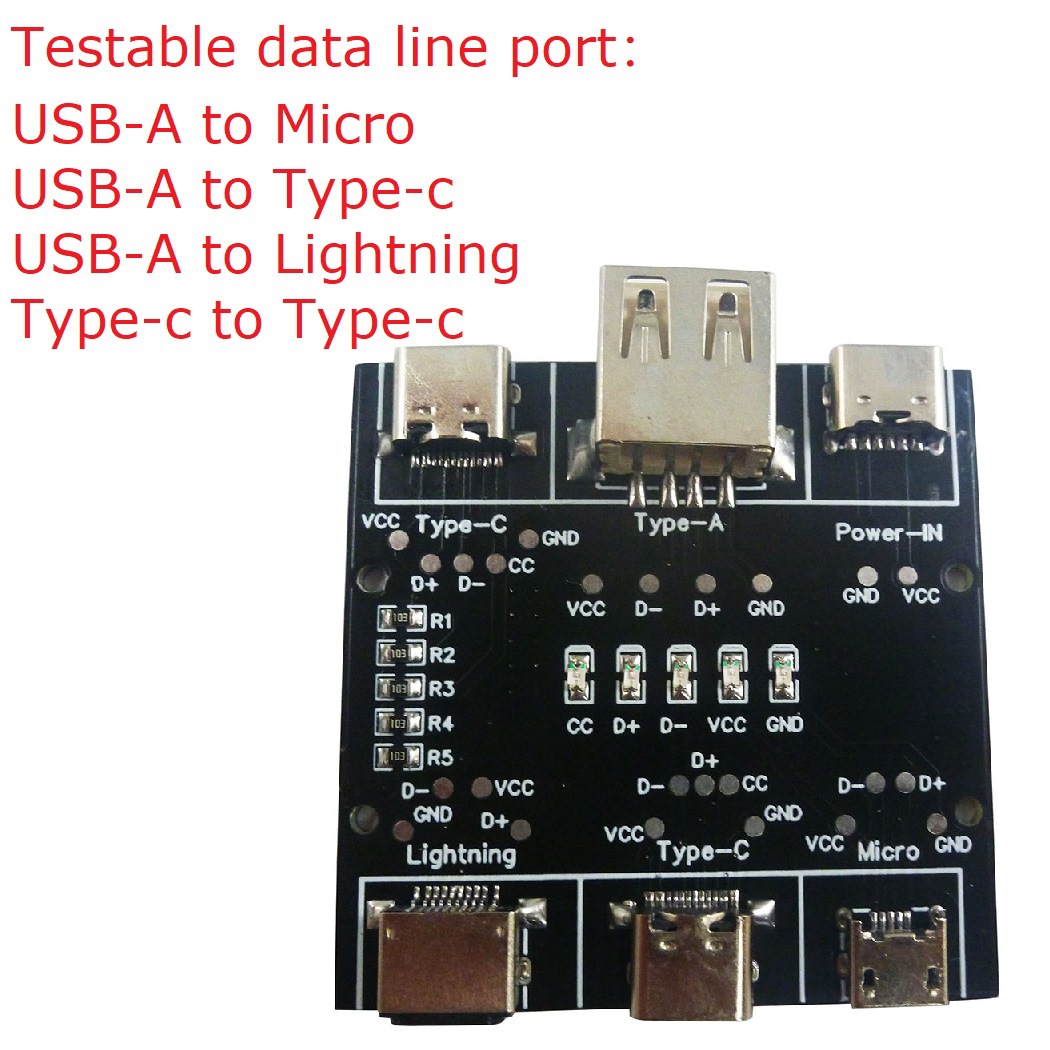

    Testable data line port:
    USB-A to Micro
    USB-A to Type-c
    USB-A to Lightning
    Type-c to Type-c
    Instruction of The Tester:
    1 Use the Type-c charging cable to plug into the Power-IN interface to supply power to the PCB board.
    2 Insert one end of the data cable to be tested into the corresponding input port, and the other end into the corresponding output port.
    3 Observe the indicator light.

    Indicator light description:
    1 D+, D-, VCC, GND indicator lights are on, indicating that the data line has data transmission function.S9e8e32a9a4664e37b88362fd74cc37f2Q.jpg
    2 The VCC and GND indicators are on, indicating that the data line does not have the function of data transmission.
    3 Type-c to Type-c data cable detection, CC, D+, D-, VCC, GND indicators are on. When testing other data cables, the CC indicator does not light up.

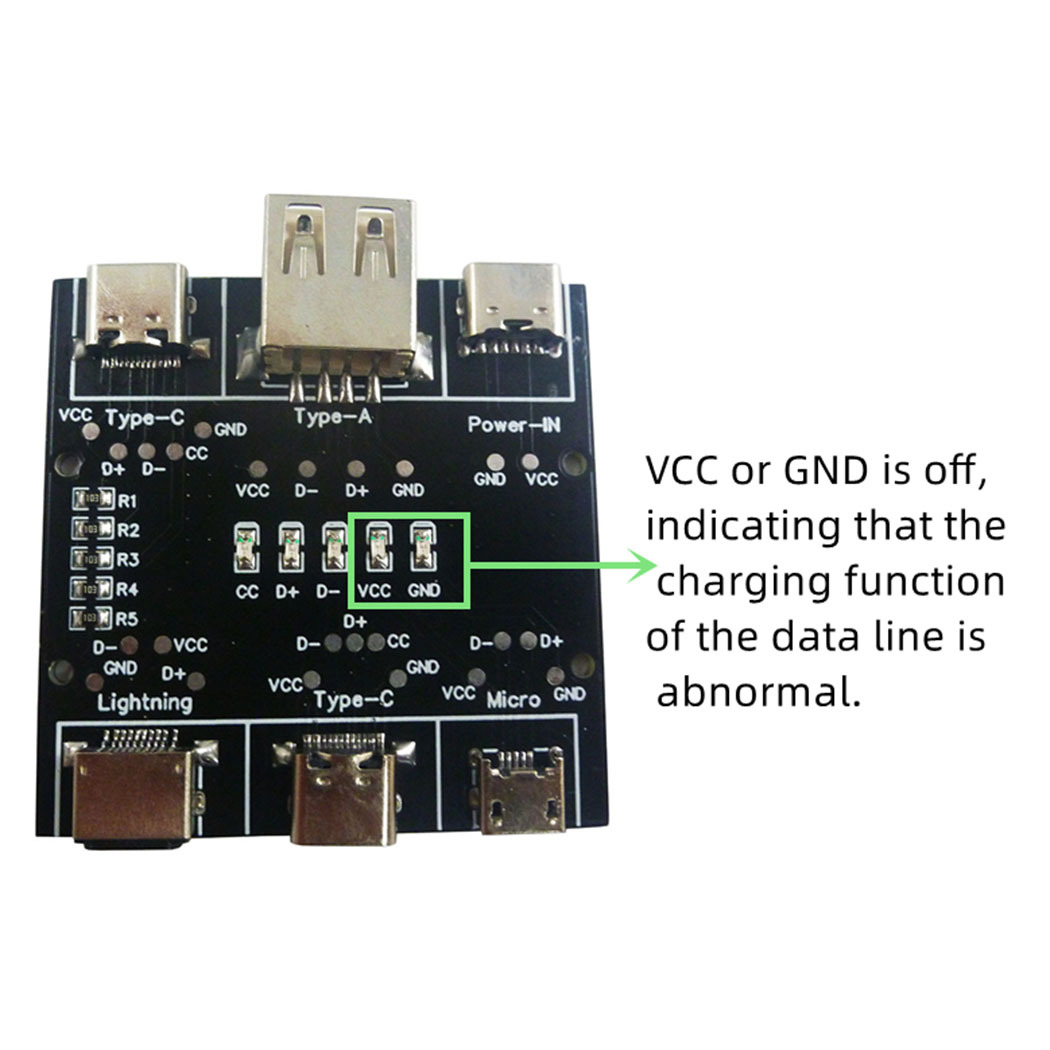

    4 VCC or GND is off, indicating that the charging function of the data line is abnormal.



    Notice:
    During the test, except for the Power-IN port, the input and output ports of the test data line, other ports cannot be connected to the data line, otherwise the test result will be affected.
