Description:

1: Working voltage DC 12V;

2: Standby current (all relays closed) 10MA, 1 relay open 38MA, 2 relays open 67MA

3: ''open'' ''close'' ''Momentary'' ''Self-locking'' ''Interlock'' ''Delay'' 6 Commands

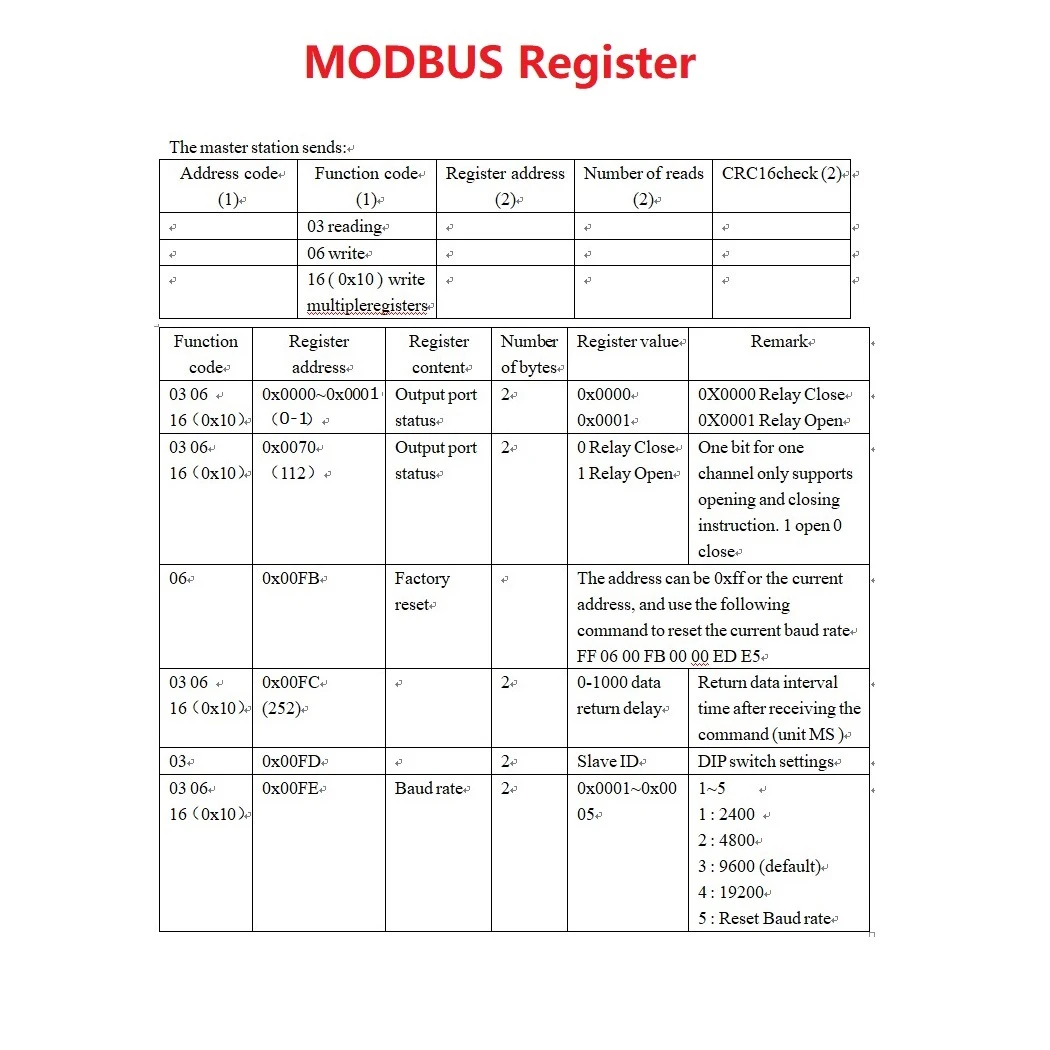

4: MODBUS RTU command, Support 03 06 16 function code

5: Under the ''Delay'' command ,the maximum delay is 255 seconds;

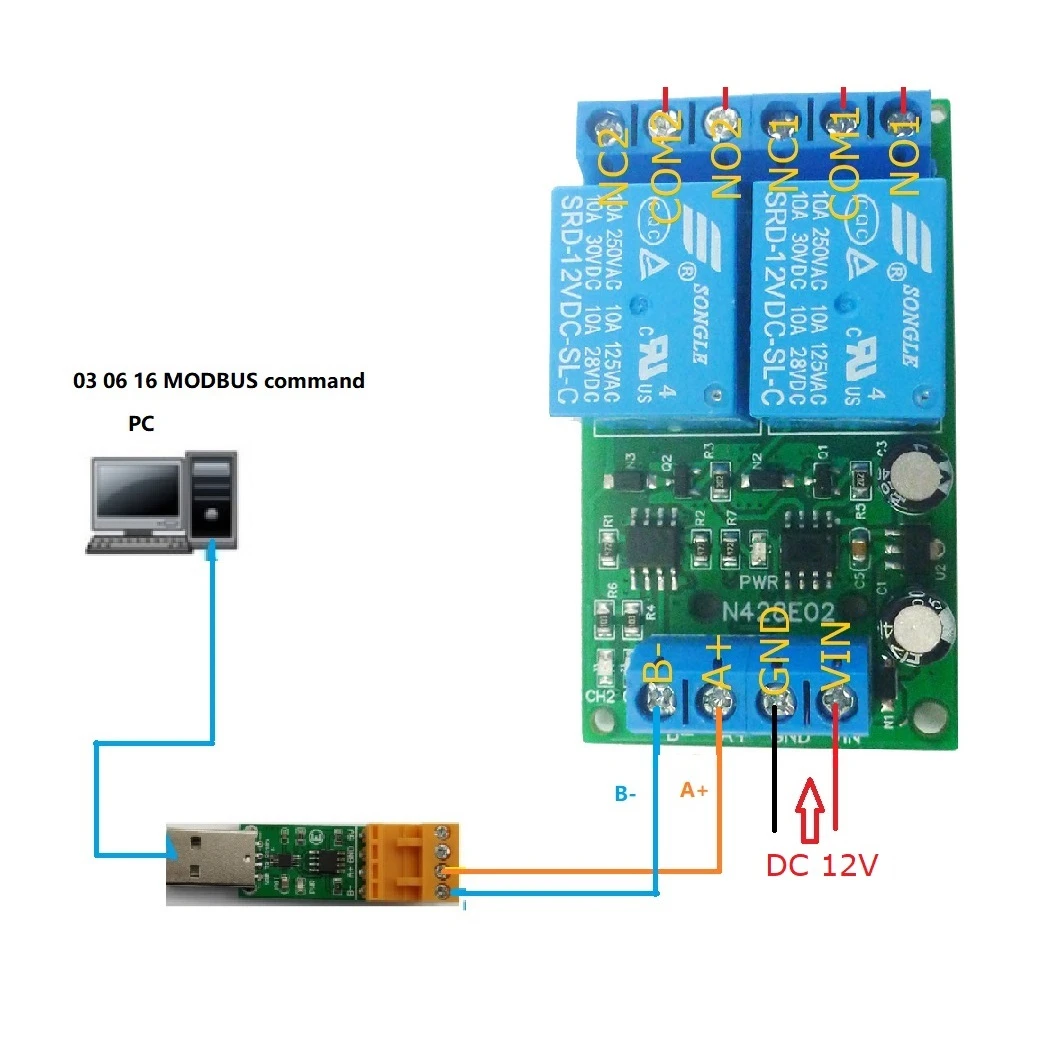

6 MODBUS commands can be made serial HyperTerminal (serial assistant) OR ''Modbus Poll'' Enter;

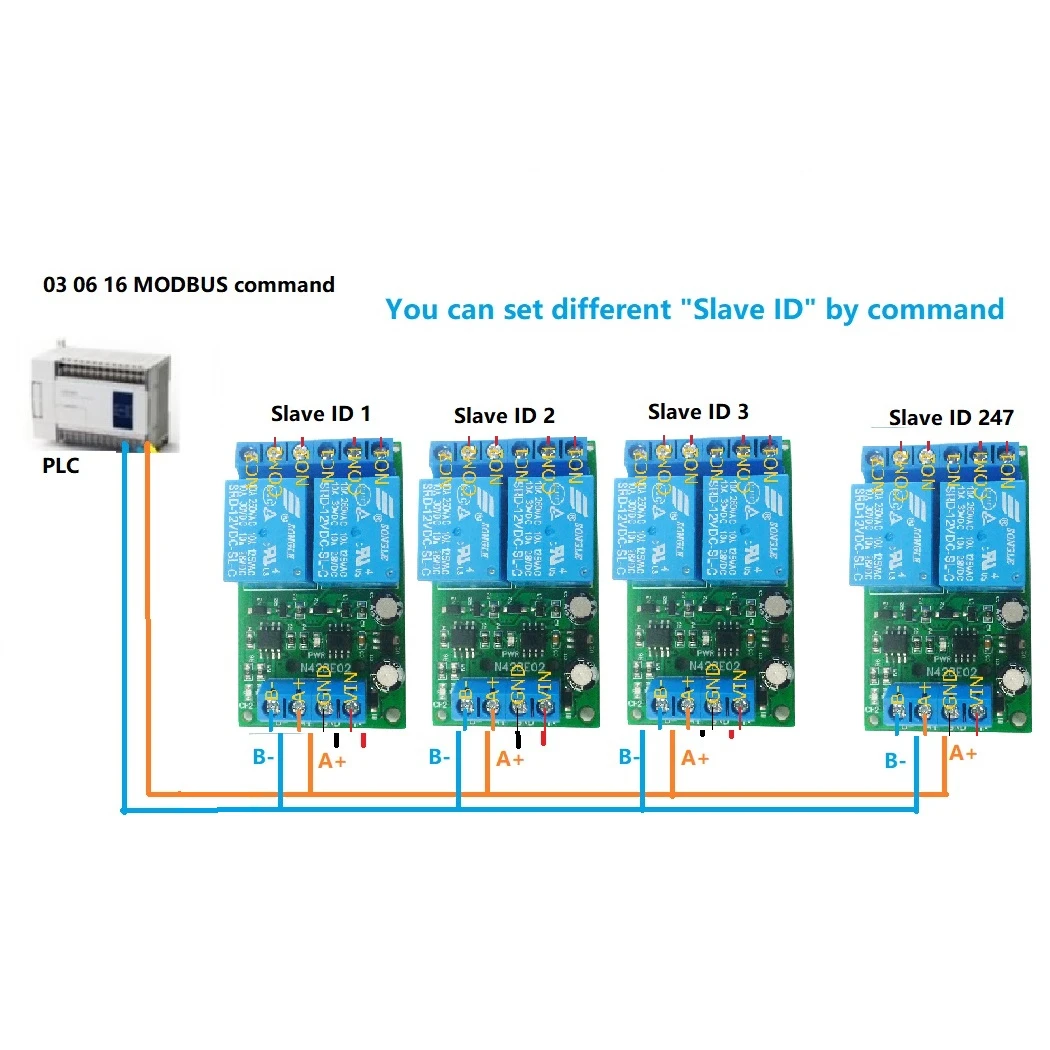

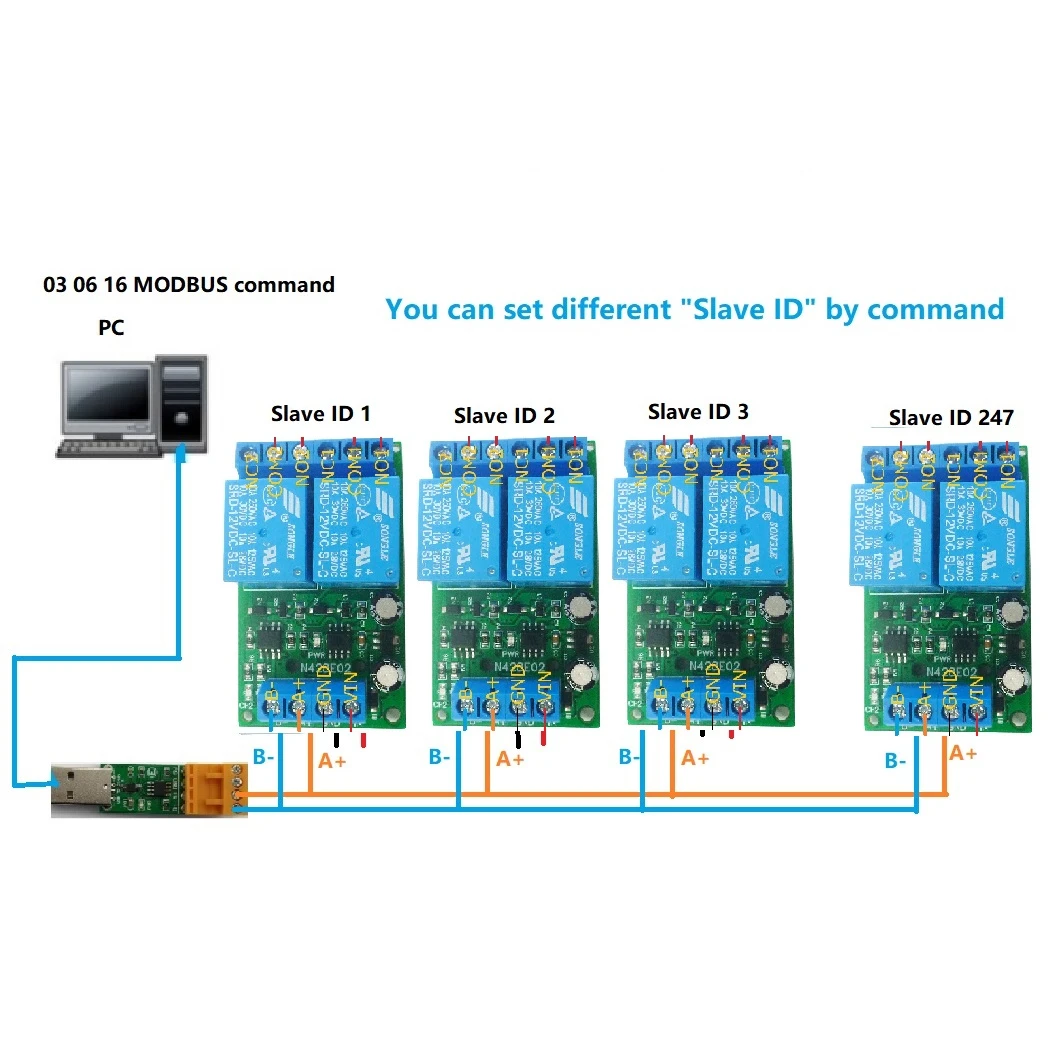

7 Under the MODBUS command mode, it can support up to 64 devices in parallel

8 The default baud rate is 9600BPS. The baud rate can be selected through jumpers: 2400 4800 9600 19200BPS

9 The parity can be none parity, even parity and odd parity

10 Size: 60*35*19mm

11 Weight: 32g

12 Maximum load: 10A / 250VAC, 10A / 125VAC, 10A / 30VDC, 10A / 28VDC, 10A / 12VDC





PLC Digital Output Expansion Board
Smart Home,Home Automation ,Wiser Home;
