  • 상품 상세설명

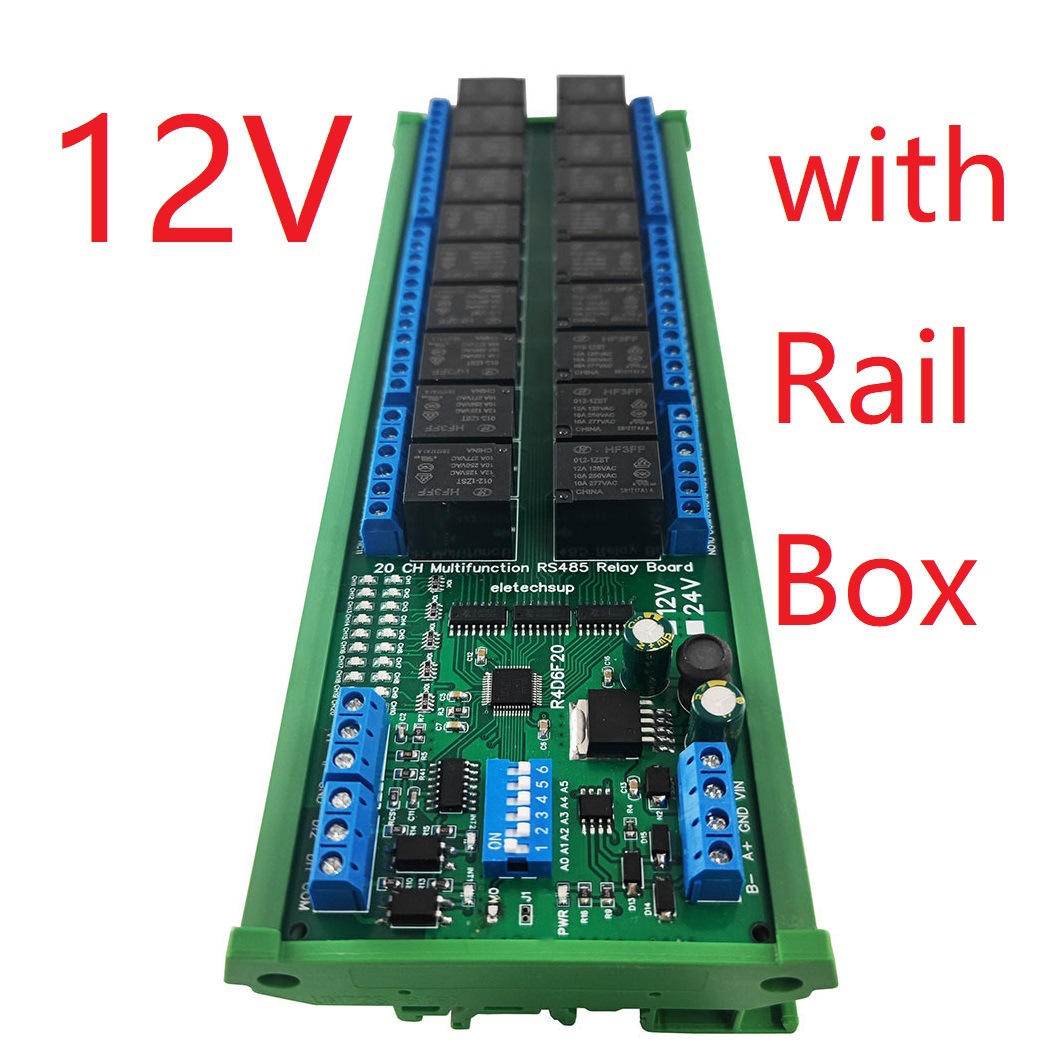

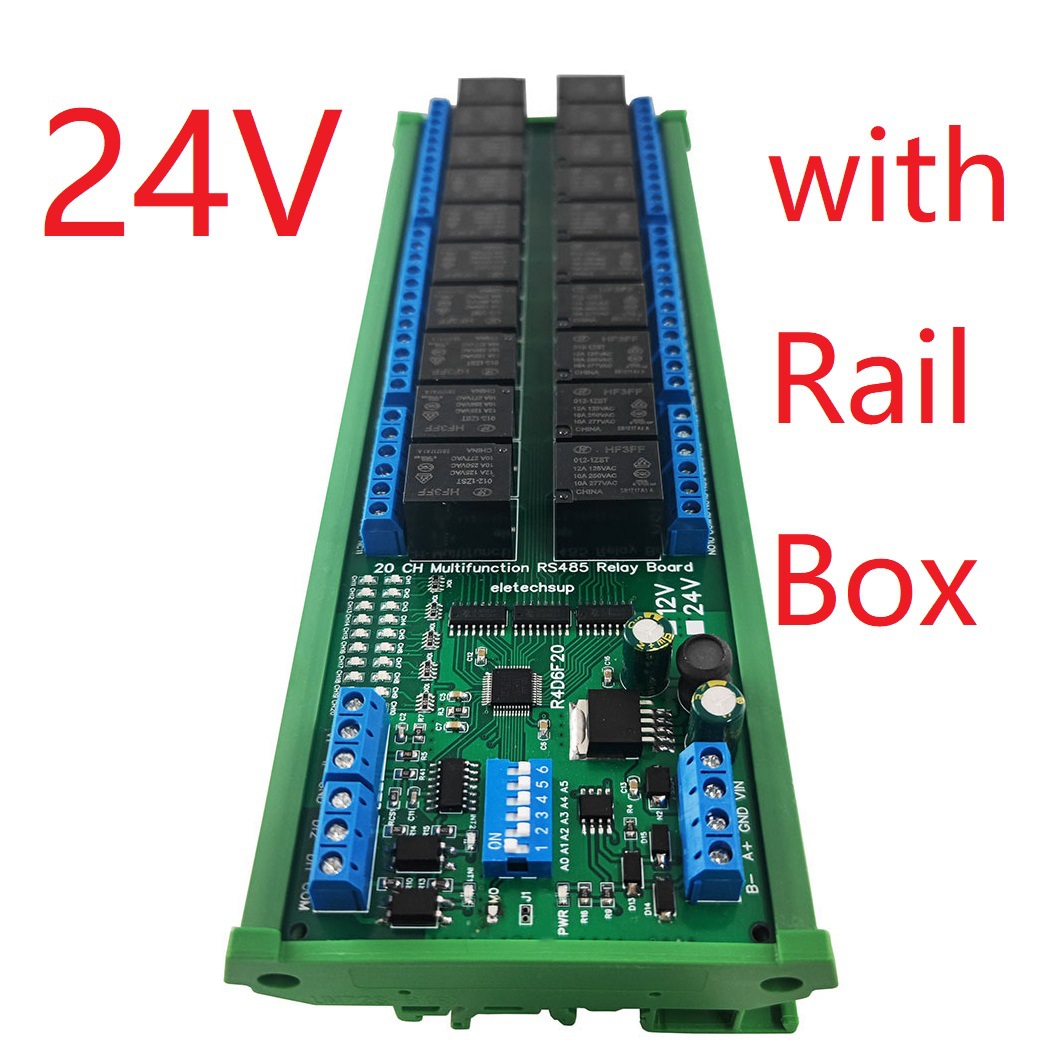

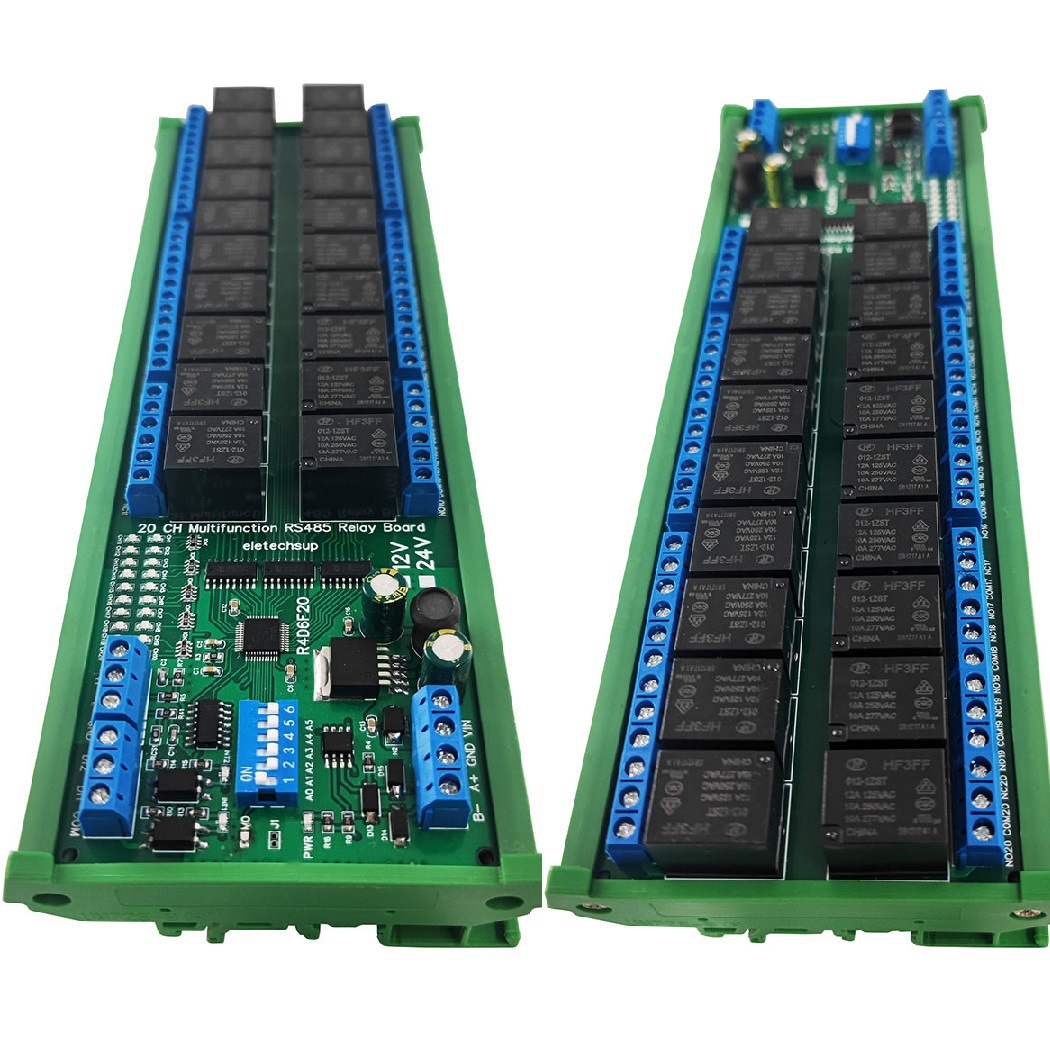

    Product Name: 20ch Multifunction RS485 Relay Board 20DO 2DI 2AI PLC IO Expanding Module Modbus RTU 4-20MA 0-10V Current Voltage Input


    Package inlcuded:

    1PCS DC 12V/24V 20Ch Multi-function PLC IO expansion Relay board


    Description:

    1:DC 12V (12V Version),DC 24V (24V Version)

    2.Standby current (all relays closed) 14MA, 1 relay open 40MA, 2 relays open 69MA, 3 relays open 95MA,4 relays open 122MA,5 relays open 149MA,6 relays open 174MA, 7 relays open 200MA,8 relays open 226MA,and so on

    3:2-channels digital input (PNP active high), 1-channel 0-20MA current analog input, 1-channel 0-10V voltage analog input, 20 channels 10A relay switch outputs

    4: Support standard Modbus RTU command, function code:
    Command 1 (default): write 06/16 read/03;
    Command 2 (solder M0 jumper): write 05/06/15/16 read 01/02/03/04

    5: With hardware Reset function, with TVS anti-surge protection

    6 Under the MODBUS command mode, it can support up to 64 devices in parallel

    7 The default baud rate is 9600BPS. The baud rate can be selected by Conmand 2400 4800 9600 19200 38400 57600 115200BPS

    8 The parity can be none parity, even parity and odd parity

    9 The data sending and returning time can be set,with a maximum value of 1000ms

    10 Size: 239 * 72 * 12mm(Only PCB Board);243 * 82*40mm(with Din Rail Box)
    11 Weight: 267g(Only PCB Board);272g(with Din Rail Box)

    12 Maximum load: 10A / 250VAC, 10A / 125VAC, 10A / 30VDC, 10A / 28VDC, 10A / 12VDC

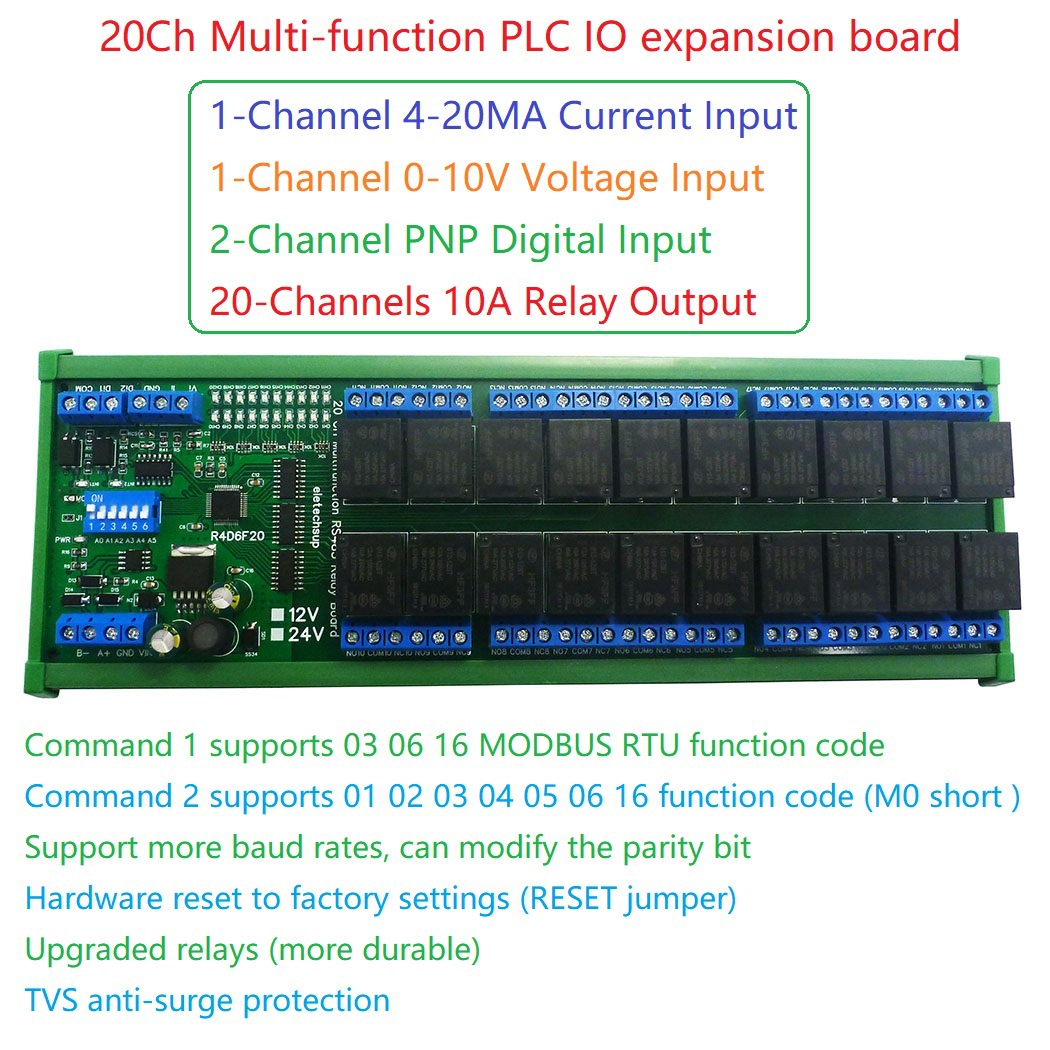

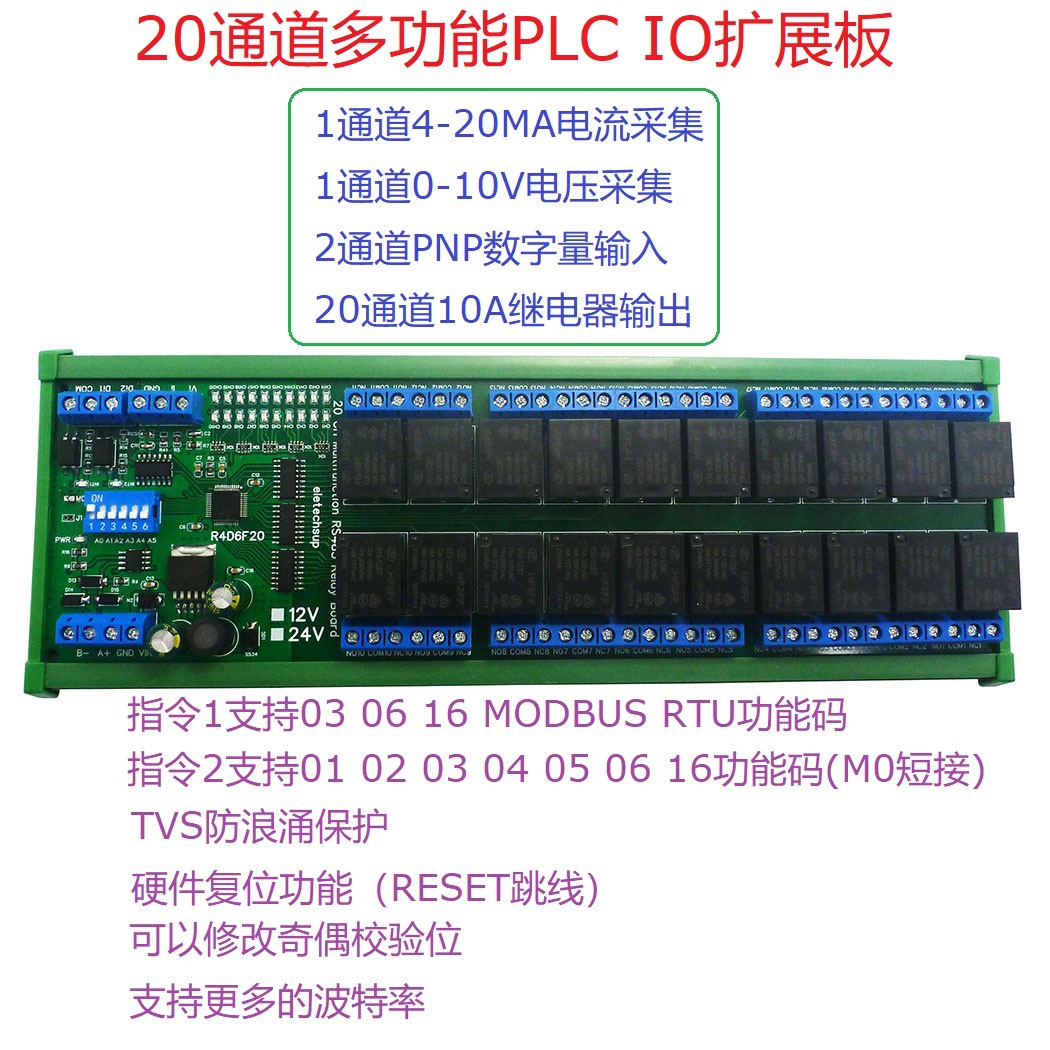

    Upgraded Features:
    Command 1 supports 03 06 16 MODBUS RTU function code
    Command 2 supports 01 02 03 04 05 06 16 function code (M0 short circuit)
    Support more baud rates, can modify the parity bit
    Hardware reset to factory settings (RESET jumper)
    Upgraded relays (more durable)
    TVS anti-surge protection

    For more information, please contact me

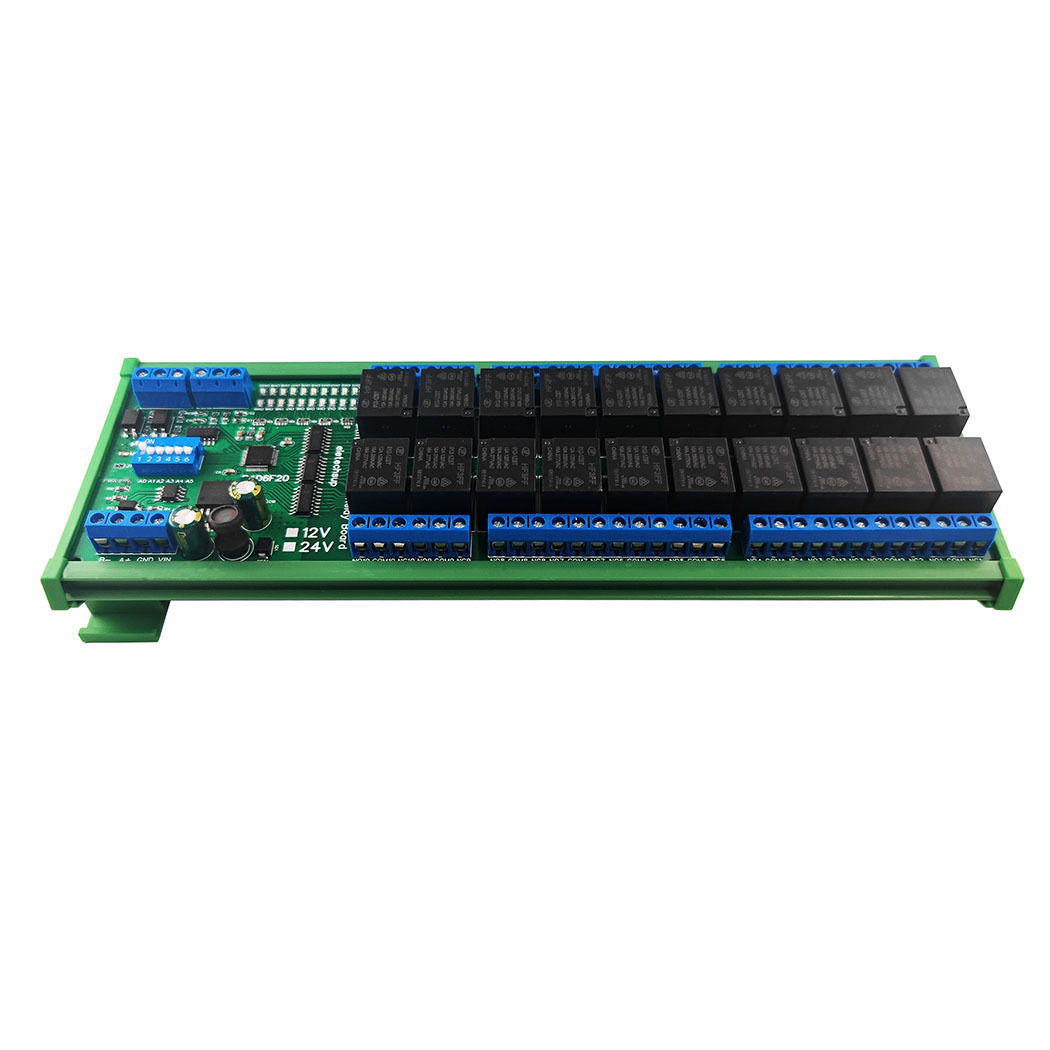

    DIN rail Box parameters:

    Product model: UM72
    Color:     Green
    Width: suitable for PCB board width UM72(72mm)
    Insulation grade: flame-retardant VO grade
    Backplane length: suitable for 239 mm PCB boards
    Net weight: 160g
    Installation: DIN35 and C45 rail


    Application

    PLC IO expansion board
    Smart Home,Home Automation ,Wiser Home;
    PTC Camera
    Security Monitoring
    Identification system;
    IP Camera
    LED Lamp Drivers
    Automatic curtain control

    Wiring Diagram:
    Ii : 1-Channel 4-20MA Current Input
    Vi : 1-Channel 0-10V Voltage Input
    Di1/Di2 : 2-Channel PNP Digital Input
    Relay: 20-Channels 10A Relay Output


    Typical applications:
    1 The dial switch (slave address) is invalid and can only control one module at a time.
    2.MODBUS command mode (HEX), you can control a variety of ways: Serial Hyper Terminal Control (need to manually add the CRC), Modbus Poll software control (software automatically add the CRC), PLC or MCU process control


    상품정보 제공고시

    브랜드 Eletechsup
    적용 범위 전압
    국경 간 내보내기 소스가 배타적인지 여부 예
    주된 판매 지역 아시아
    메인 다운스트림 플랫폼 라자다
    사양 및 모델 24V with Rail Box*12V*R4D6F20
