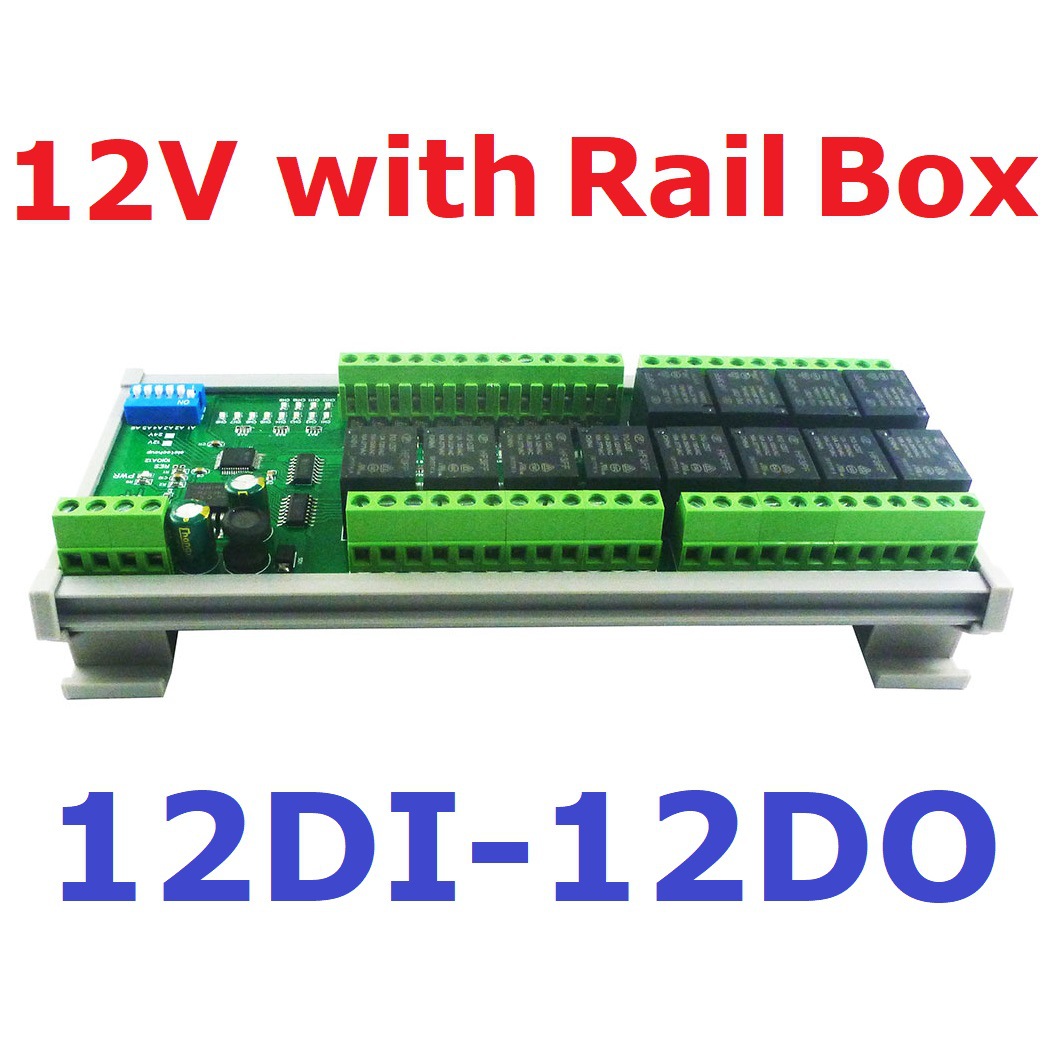

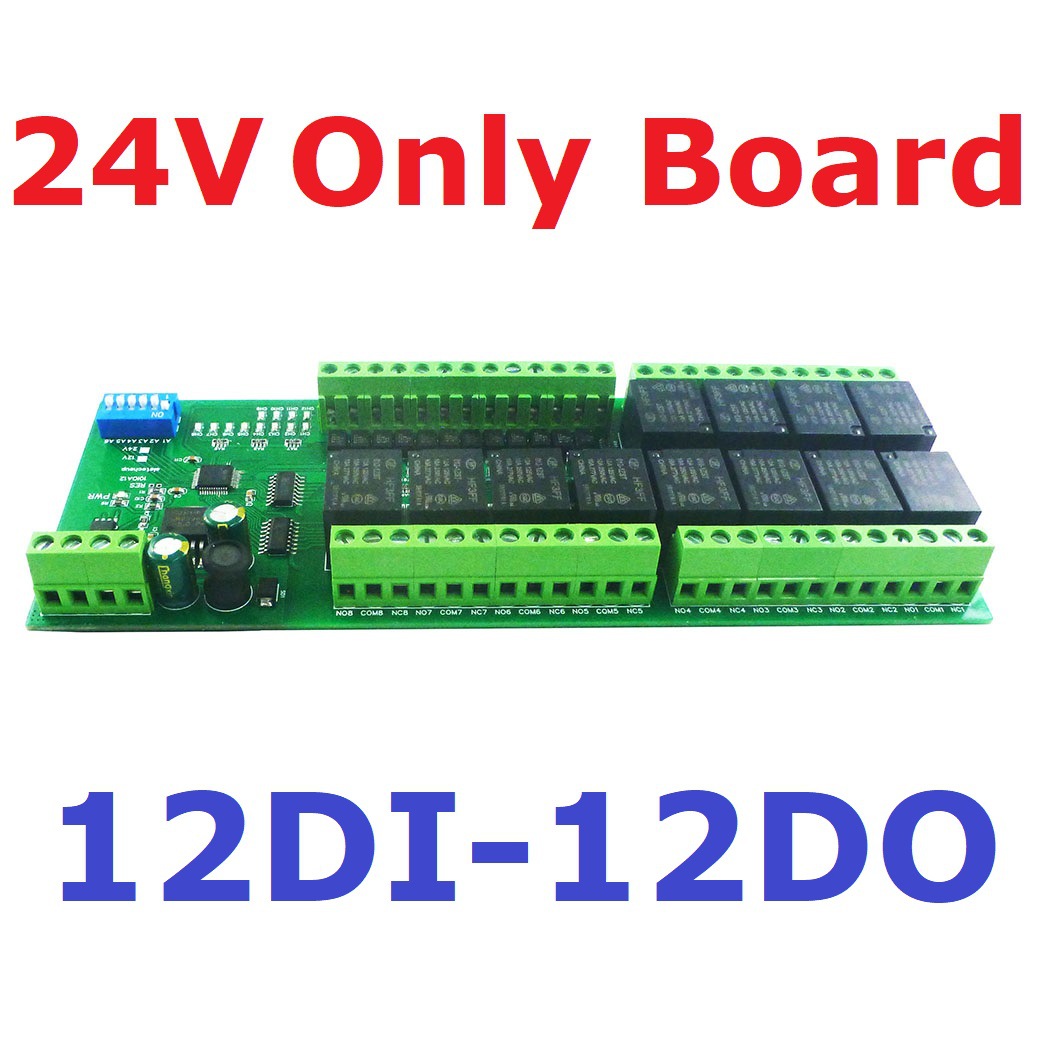

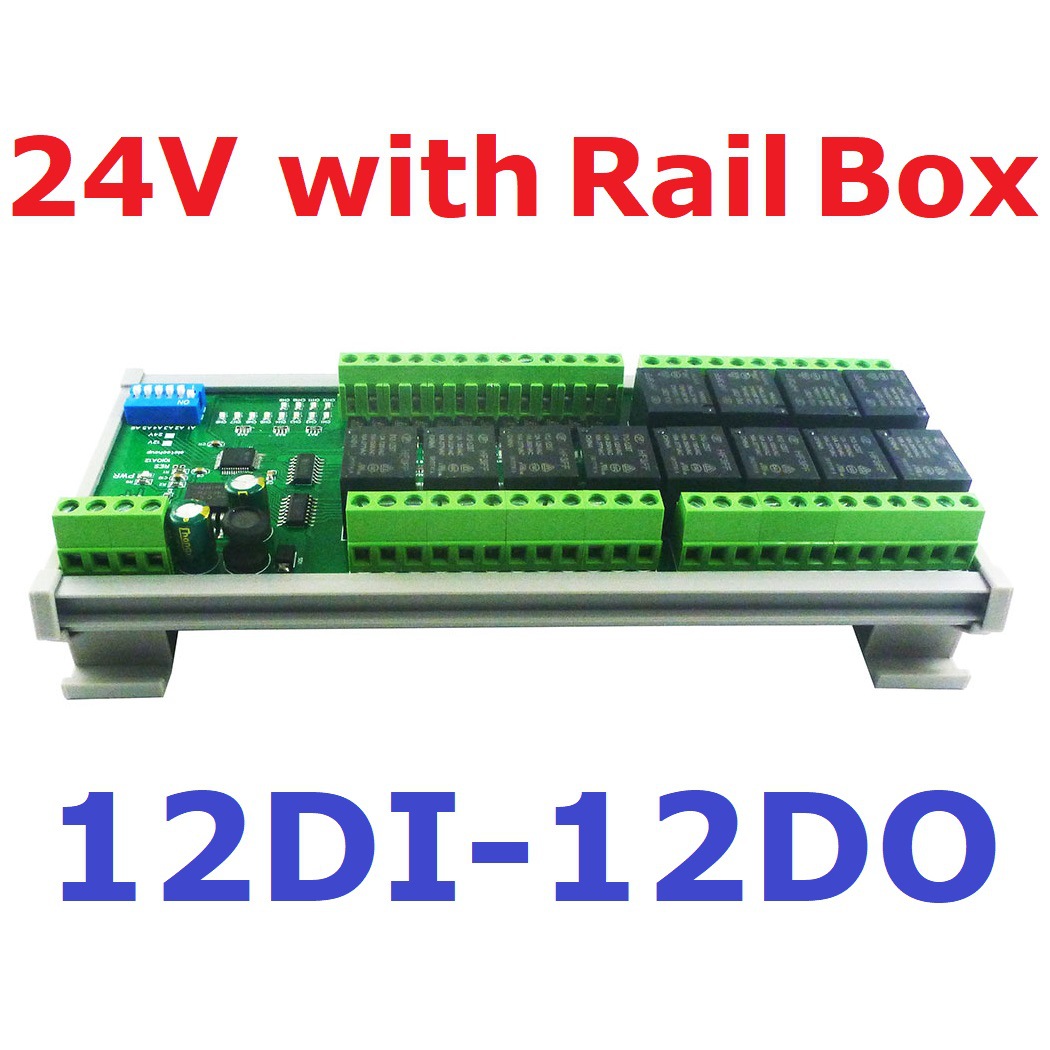

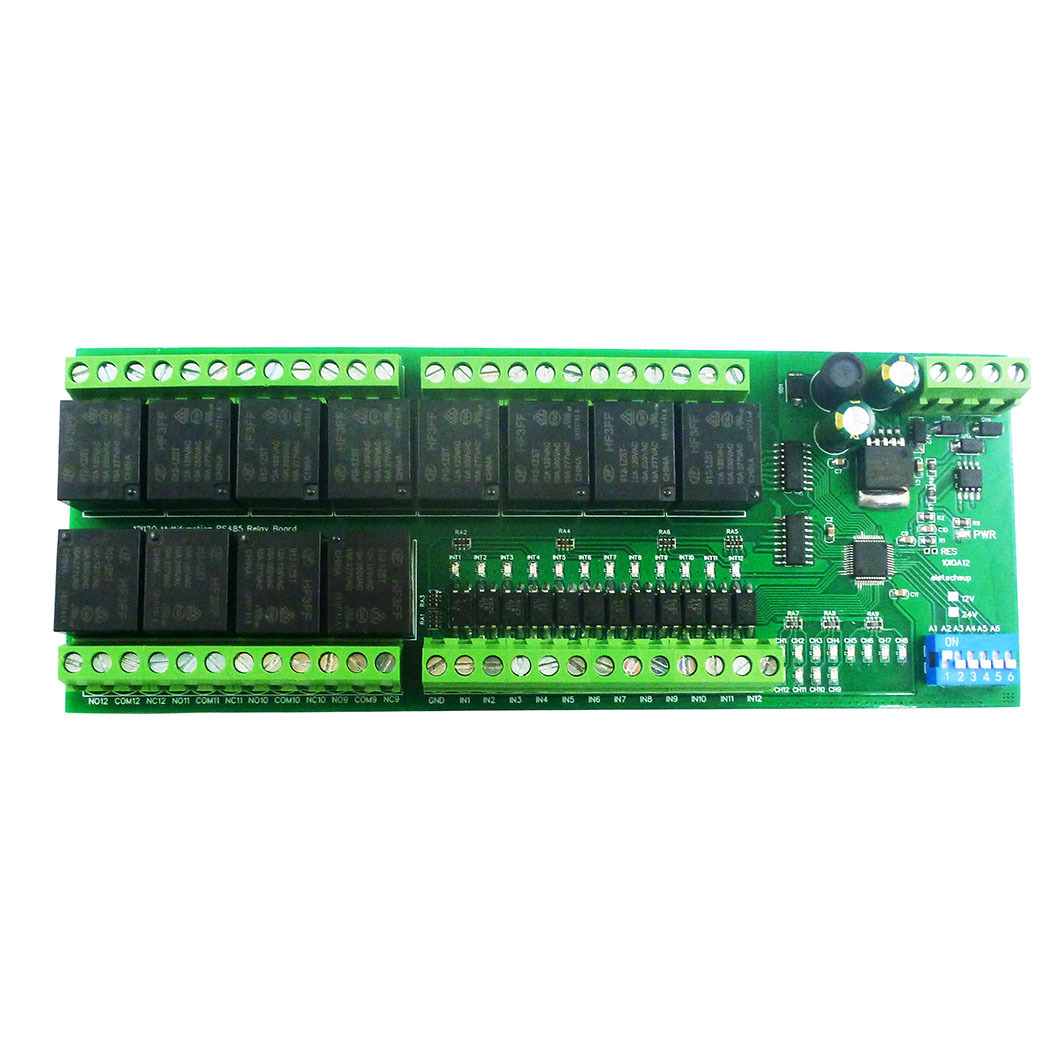

    Product Name: 12-DI 12-DO DC 12V 24V RS485 IO Board Optically Isolated NPN Input & 12 Relay Output Modbus RTU Module



    Package inlcuded:

    1PCS DC 12V/24V 12DI 12DO Modbus RTU RS485 Modbus RTU Relay Module



    Description:

    1:DC 12V (12V Version),DC 24V (24V Version)

    2.Standby current (all relays closed) 14MA, 1 relay open 40MA, 2 relays open 68MA, 3 relays open 96MA,4 relays open 122MA,5 relays open 149MA,6 relays open 177MA, 7 relays open 201MA,8 relays open 225MA

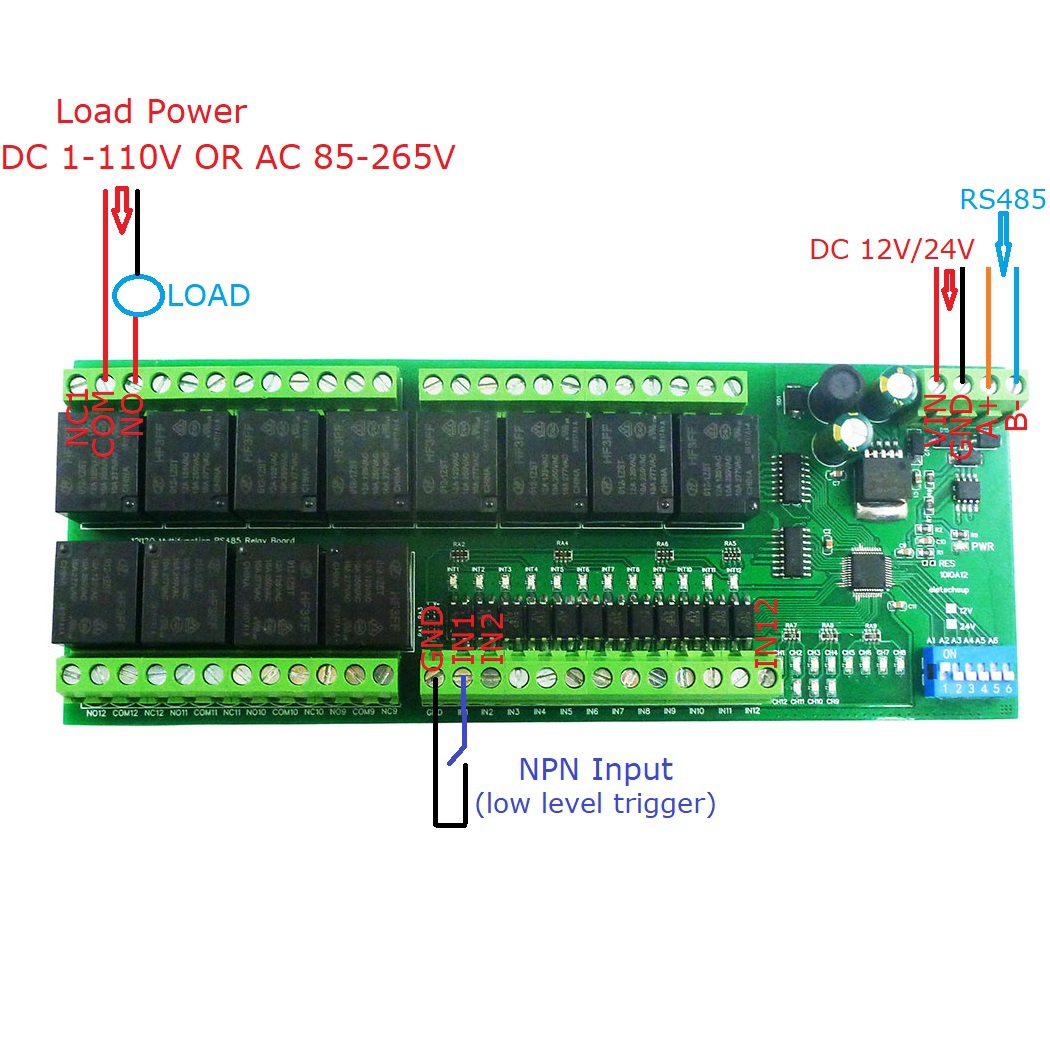

    3:12 photoelectric isolation Input ports (NPN low level active ).
    The input-output relationship can be set to various association modes through instructions(Self-lockingdefault)/Interlocking/Momentary/Interlocking/Output=Input)

    4: Support standard Modbus RTU command, function code, write 05/06/15/16 read 01/02/03

    5: With hardware reset function, with TVS anti-surge protection

    6 12 opto-isolated inputs (NPN), 12 relay outputs (upgraded relays, more durable)

    7 MODBUS commands can be made serial HyperTerminal (serial assistant) OR ''Modbus Poll''Enter;

    8 Under the MODBUS command mode, it can support up to 64 devices in parallel

    8 The default baud rate is 9600BPS. The baud rate can be selected by Conmand 2400 4800 9600 19200 38400 57600 115200BPS

    10 The parity can be none parity, even parity and odd parity

    11 The data sending and returning time can be set,with a maximum value of 1000ms

    12 Size: 188 * 72 * 12mm(Only PCB Board);190 * 82*40mm(with Din Rail Box)
    13 Weight: 206g(Only PCB Board);330g(with Din Rail Box)
    14 Maximum load: 10A / 250VAC, 10A / 125VAC, 10A / 30VDC, 10A / 28VDC, 10A / 12VDC

    Upgraded Features:

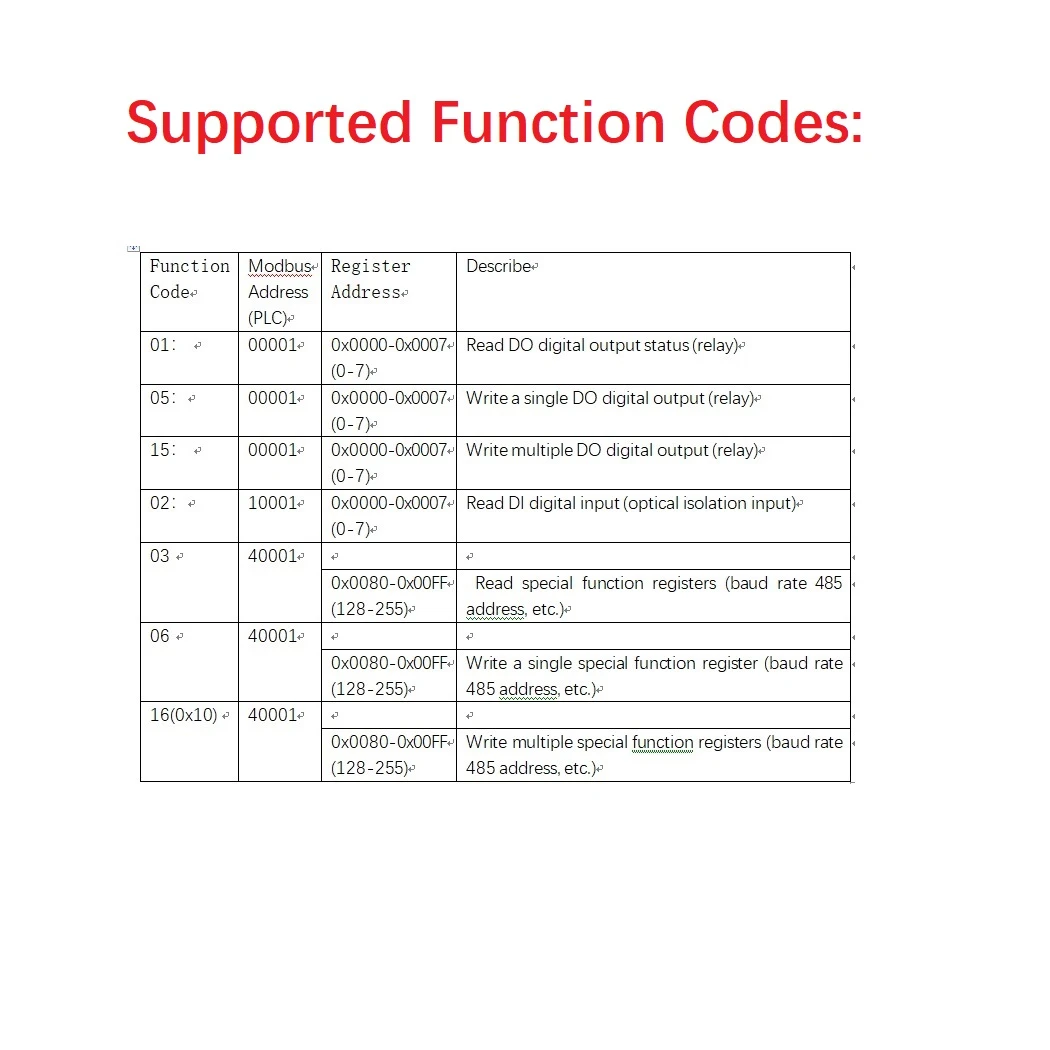

    MODBUS RTU Function Code 01 05 15 02 03 06 16
    Support more input-output relationships
    Support more baud rates, can modify the parity bit
    Hardware reset to factory settings (RESET jumper)
    Upgraded relays (more durable)
    TVS anti-surge protection

    For more information, please contact me

    Application

    PLC RS485 IO expansion board
    Smart Home,Home Automation ,Wiser Home;
    PTZ Camera
    Security Monitoring
    Identification system;
    LED Lamp Drivers
    Automatic curtain control
    Battery Test Detection System

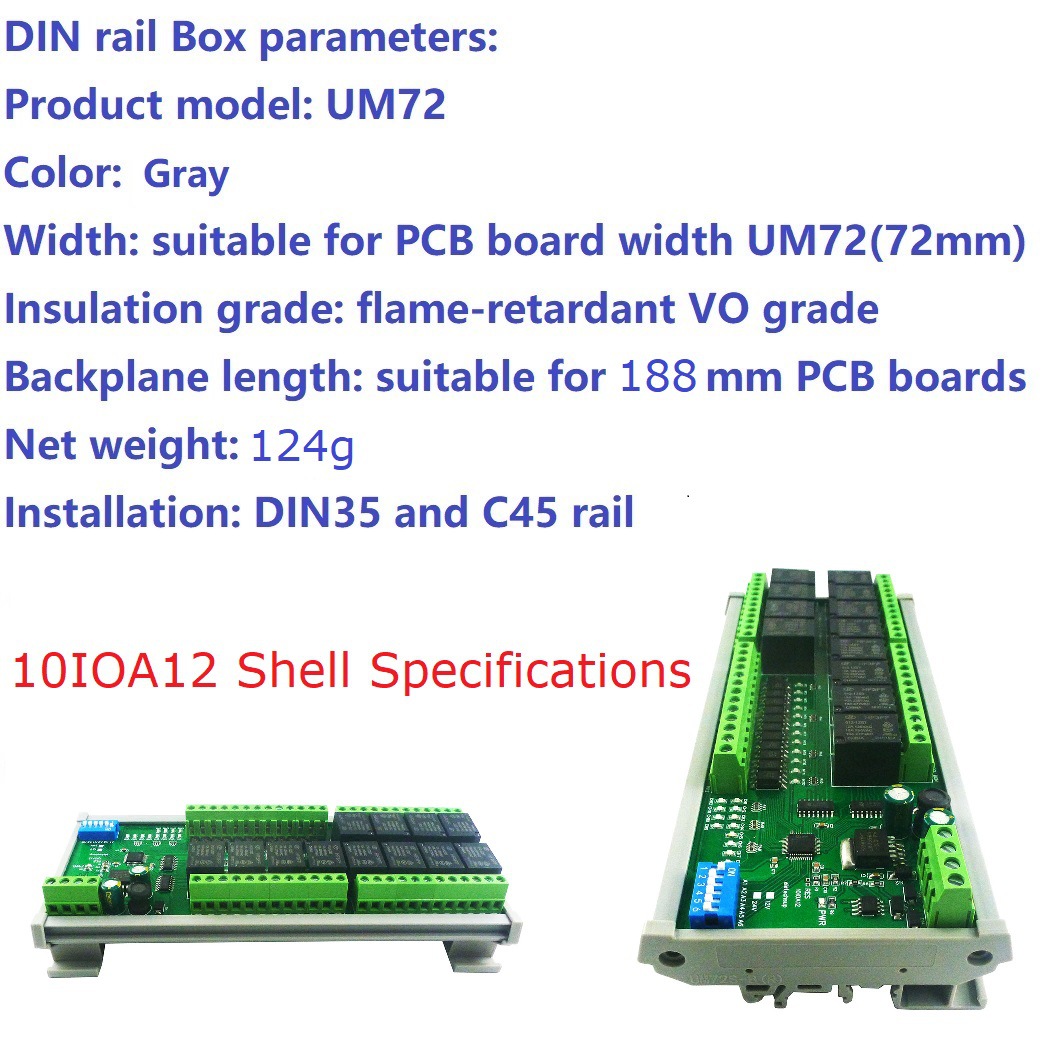

    DIN rail Box parameters:

    Product model: UM72
    Color:     Grey
    Width: suitable for PCB board width UM72(72mm)
    Insulation grade: flame-retardant VO grade
    Backplane length: suitable for 188 mm PCB boards
    Net weight: 124g
    Installation: DIN35 and C45 rail






    상품정보 제공고시

    적용 범위 지연
    항목 번호. 10IOA12
    브랜드 Eletechsup
    모델 10IOA12
    정격 전류 0.2W
    정격 전압 쉘이있는 24V
    대외 무역 전용인지 여부 아니오
    3C 정격 전압 범위 36V 이하
    메인 다운스트림 플랫폼 라자다
    주된 판매 지역 아시아
    국경 간 내보내기 소스가 배타적인지 여부 예
