Description

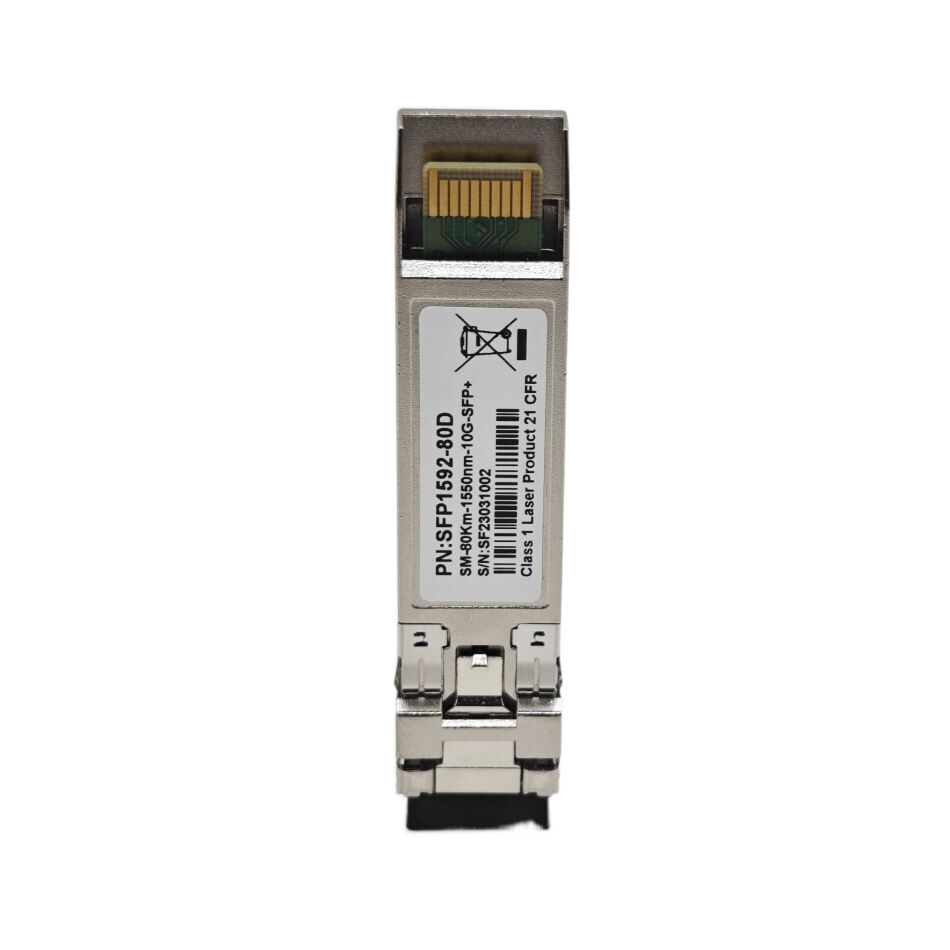

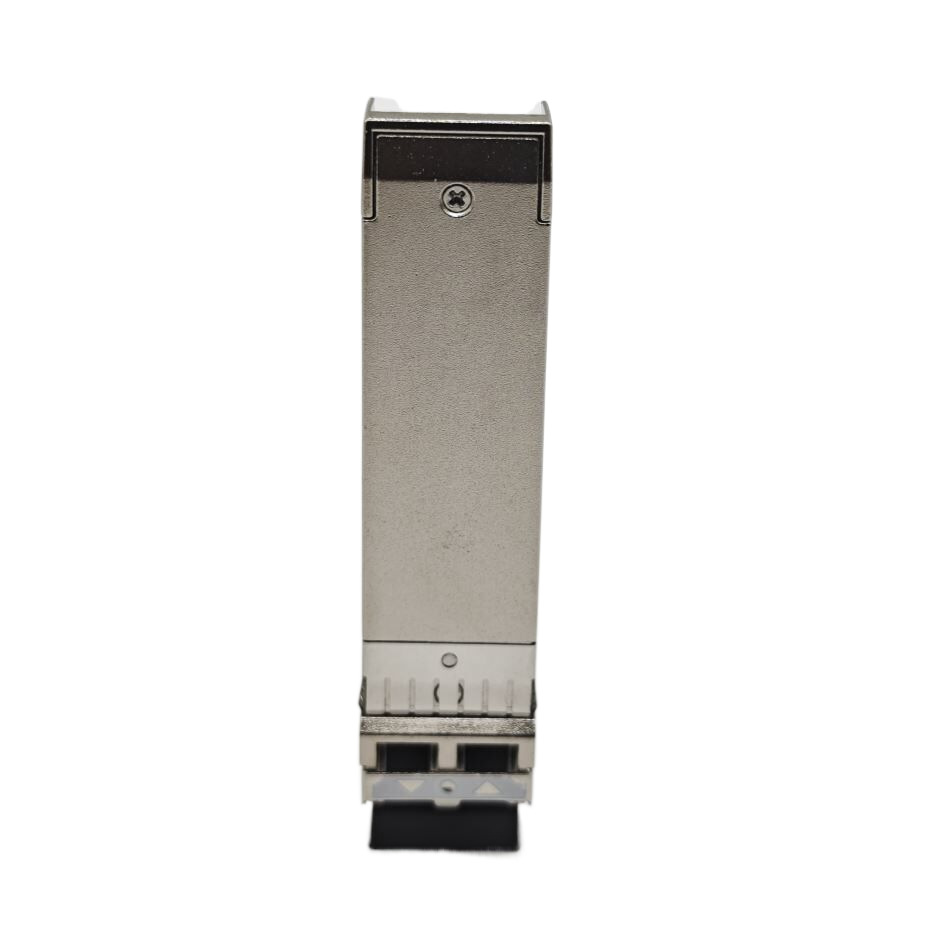

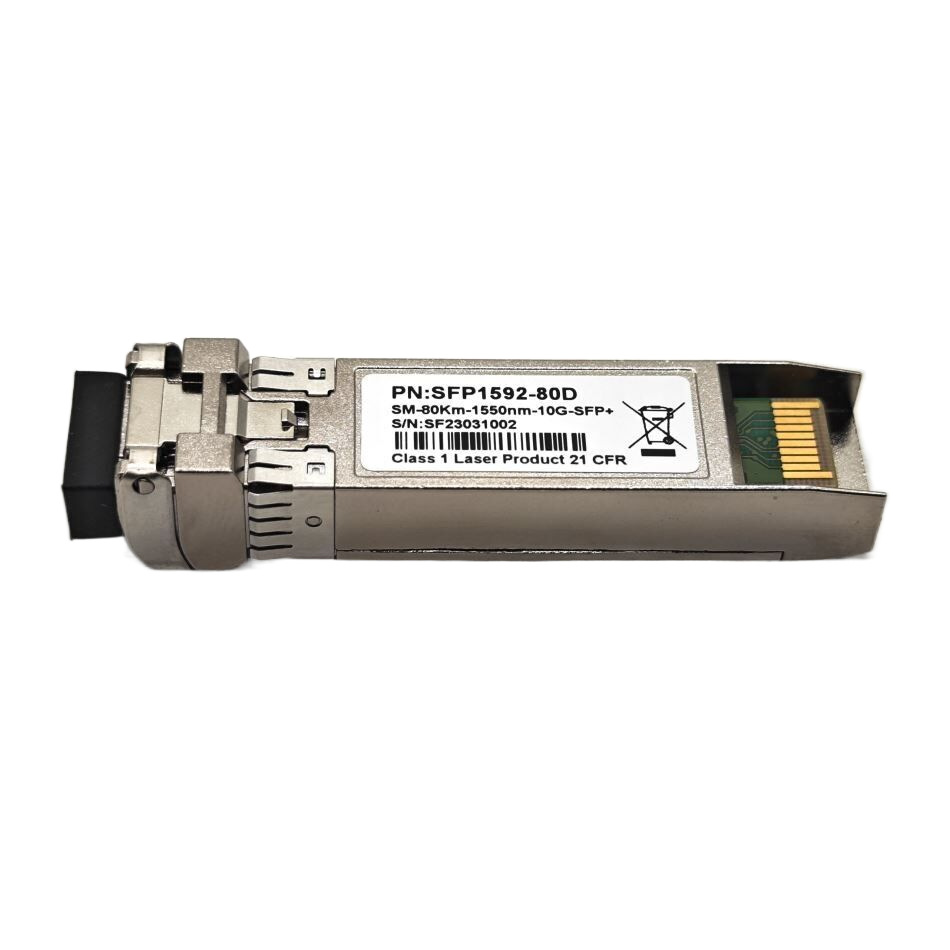

产品型号：SFP-1532-80D
产品描述：10GE/10GFC SFP+ ZR，10GBASE-ZR/ZW，1550nm EML APD，80km，SMF，双LC光口，2W
兼容品牌：思科/华为/华三/锐捷/英特尔/惠普/ARISATA......等模块类型 传输距离 传输波长 接口类型 传输速率 工作电压 数字诊断 SFP+ 80KM 1550nm 双LC 10Gb/s 3.3V 支持 产品特性 Features: 应用范围 Application: 采用可热插拔的SFP+封装
全双工收发一体模块
VSCEL/FP/DFB发射器和PIN/APD接收器
符合SFP+ MSA和10G以太网标准
最大速率高达10.3Gbps/10.5Gbps
通过传输距离最高可达300m-80km
双LC光口
内置数字诊断功能
商业级工作温度范围从0至70摄氏度或工业级工作温度范围从-40至+85摄氏度
电源电压3.3V
符合RoHS环保标准（无铅）
10G以太网
同步光网络（SONET OC-192 / SDH STM-64）
光传送网（OTN OTU2e）
移动前传CPRI
10G光纤通道
Part Number: SFP-1532-80D
Description: 10G SFP+, 1550nm, 80km, SMF, Dual LC
Compatible: CISCO / HUAWEI / H3C / ZTE / INTEL / ARISATA.........Features: Application: Hot-pluggable SFP+ form factor
VCSEL/FP/DML/EML laser and PIN/APD photo-detector
Up to 220~80km bidirectional transmission over dual fiber
Compliant to 10G Ethernet, 10G Fibre Channel and OTN OTU2e
Compliant to 10G CPRI and SONET OC-192 or SDH STM-64
Electrical interface compliant to SFF-8431
Power consumption < 1~2W
Operating case temperature range: 0°C to 70°C (C-Temp), -20°C to +85°C (E-Temp) or -40°C to +85°C (I-Temp)
RoHS-6 compliant (lead free)
10G Ethernet
10G Fibre Channel
CPRI Option 10
SONET OC-192 or SDH STM-64
OTN OTU2e
PackagePart NumberData RateReach(km)Wavelength(nm)TX output(dBm)RX Sensitivity(dBm)Power ConsumptionInterfaceTempSFP+ SFP-8592-02D 10G 0.3 850 -6 ～-1 -10 <1.0W LC C/I SFP+ SFP-1932-02D(A) 10G 2 1310 -6 ～-0.5 -14.4 <1.2W LC C/I SFP+ SFP-1932-10D(A) 10G 10 1310 -6 ～-0.5 -14.4 <1.2W LC C/I SFP+ RX SFP-1932-10D(A)-RX 10G 10 1310 - -14.4 <1.2W LC C/I SFP+ SFP-1932-40D(A) 10G 40 1310 -1 ～4 -15 <1.2W LC C/I SFP+ SFP-1592-40D(A) 10G 40 1550 -1 ～3 -16 <1.4W LC C/I SFP+ SFP-1592-80D(A) 10G 80 1550 -1 ～4 -23 <1.5W LC C/I SFP+ SFP-1592-A0D(A) 10G 100 1550 1 ～5 -25 <1.8W LC C/I SFP+ tunable SFP-DWT96-80D 10G 80 1568～1529 -1 ～3 -23 <1.65W LC C/I
