  • 상품 상세설명


    Product Name:8Ch 433.92M EV1527 Learning Code OOK ASK RC Multi-function Remote Control Module DC 5V 12V 24V


    Package inlcuded:​

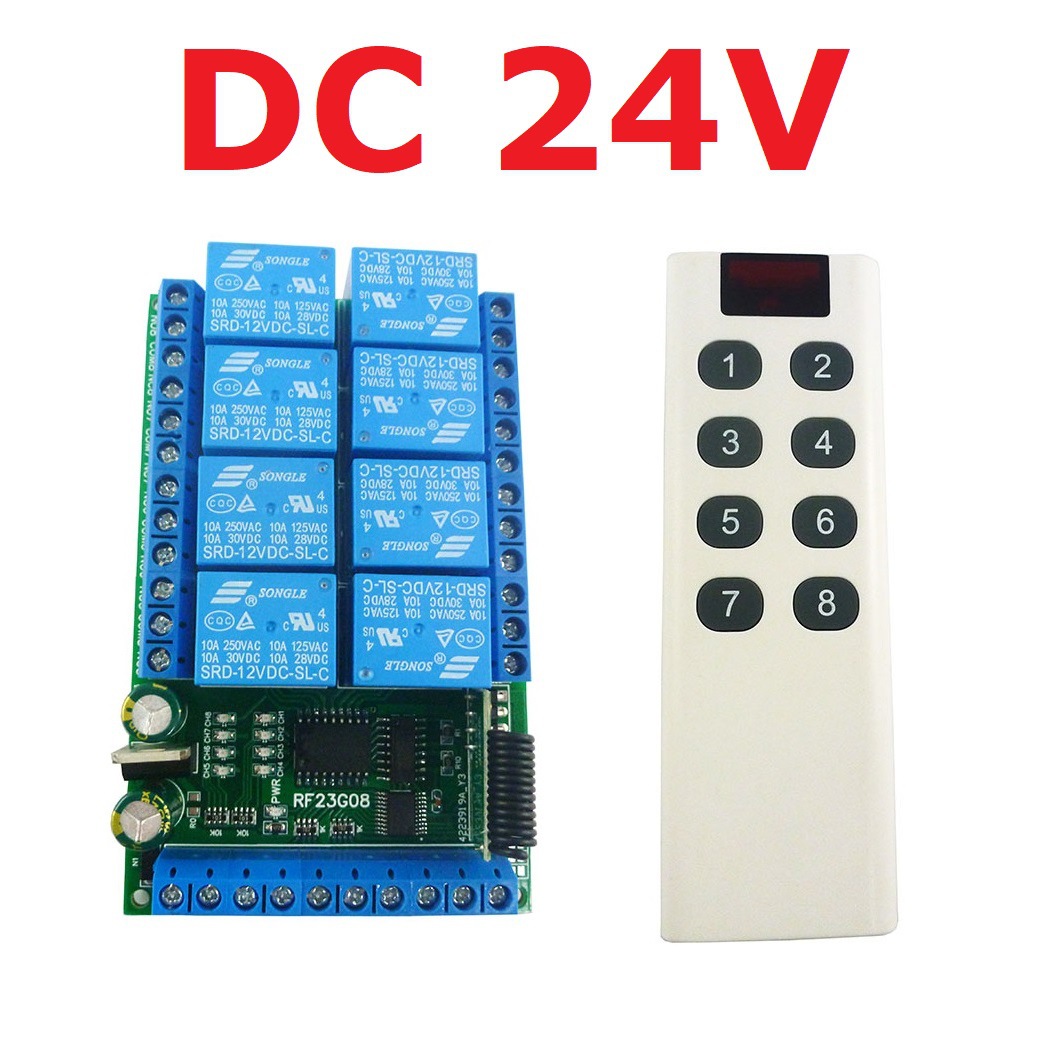

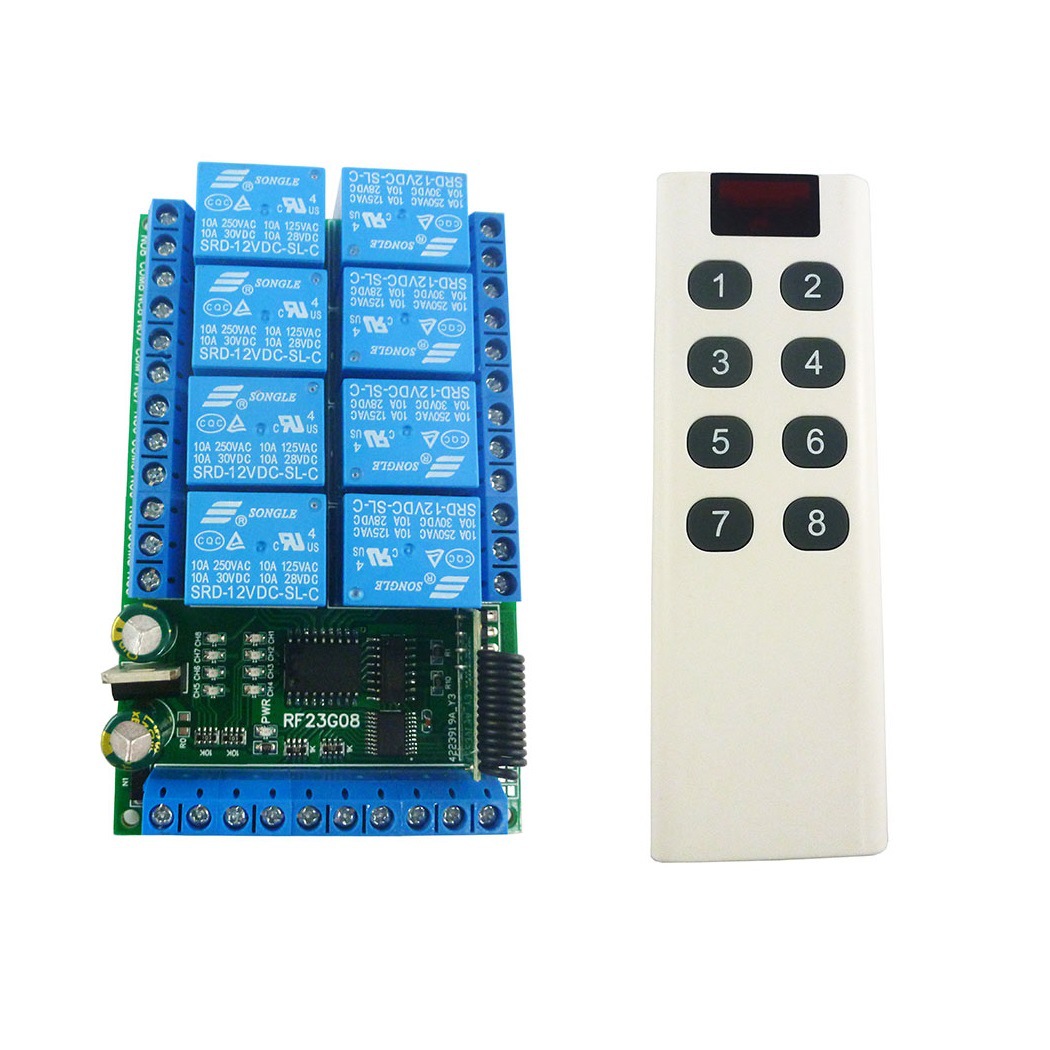

    1PCS DC 5V/12V/24V 8-channels 433M Multi-function EV1527 Wireless Controller Kit


    Description:

    Product Specifications:​1 Operating Voltage : DC 12V(5V optional) ​2 Operating Current(DC 12V) : Standby current 11MA, 1 relay open 37MA, 2 relays open 64MA, 3 relays open 88MA, 4 relays open 110MA, 5 relays open 131MA, 6 relays open 151MA, 7 relays open 170MA, 8 relays open 187MA ​3 ''Momentary'' ''Self-locking'' ''Interlock'' ''Delay'' Four functional modes ​4 Decoding type: fixed code, can be adapted to up to 32 remote controls ​5 Remote control type: EV1527compatible ​6 Working distance: 100 meters (Wireless reception sensitivity: -108dbm) ​7 Input control pins 8 ,5V TTL level ,NPN trigger, 0.2-2 second low pulse ​8 Size: 99 x 62 x 20 mm ​9 Weight : 118.6g ​10 Relay maximum load capacity: DC 1-110V/5A; AC 85-265V/6A ​ ​ ​Product Features:​8 channel Multi-function 433M Wireless controller, each channel independently triggered independent delay, do not interfere with each other. ​4 kinds of Functional mode: Non-locking (Momentary );Delay(2/10/60/600/3600seconds); Self-locking (Toggle); Inter-locking (Latch), The function mode and delay time are selected by the Solder pad. ​Low pulse trigger(Connect to the power supply GND via the trigger button or low level control via the MCU IO port)

    ​ ​For more information, please contact me​

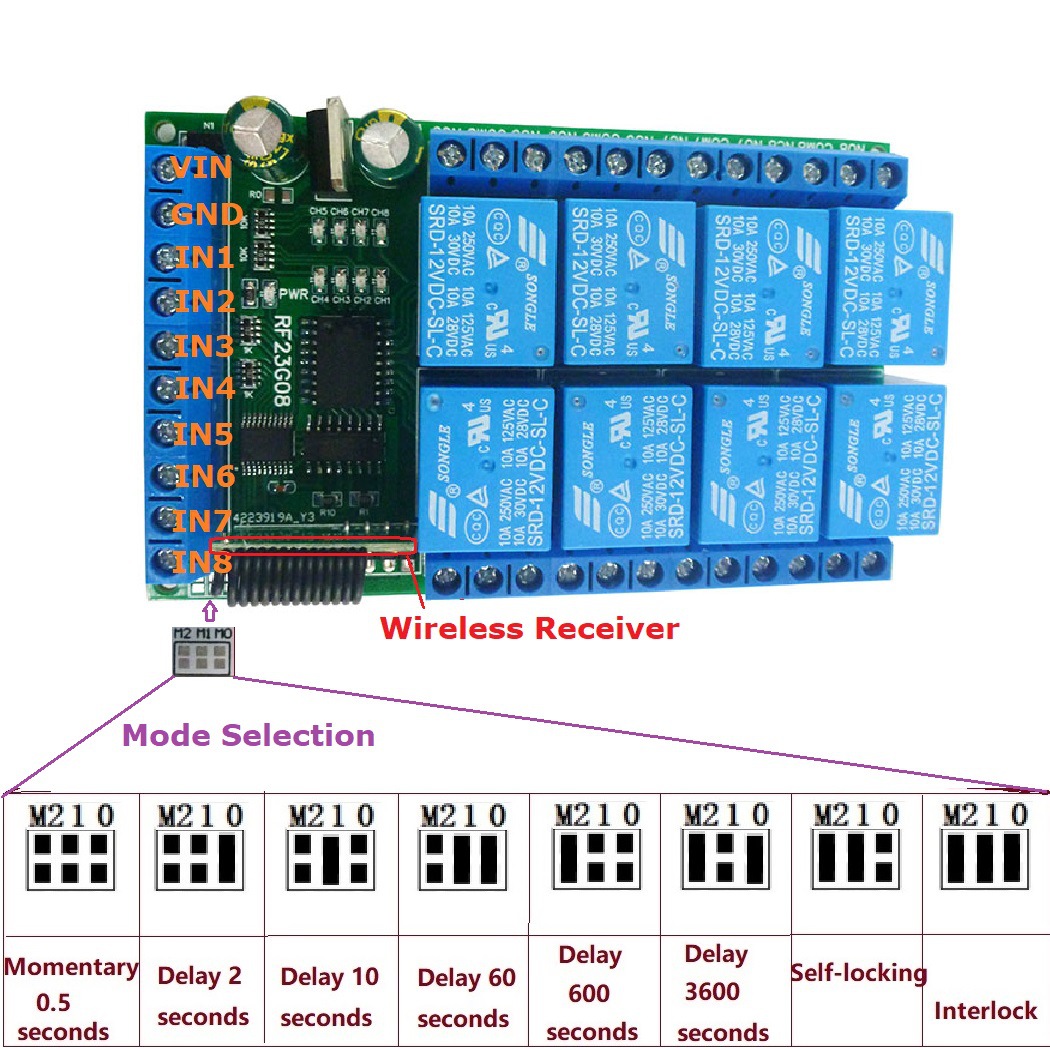

    Function mode selection by shorting three pads M2 1 0 ​Sf274418fc88b4033b669ffb5ec54d505N.jpg​ ​ ​ ​Adapter remote control (learning remote control):​In normal working mode, the LED will be always on, and when a valid remote control key value is received, the LED will flash. ​Clear code: Press and hold the button, and the LED will be off. After about 5 seconds, the LED will be on, and the code clearing is completed (Note: After the clear code is executed, the previously saved remote control does not exist. If you need to use the old remote control, please re-learn). ​ ​Adaptation (learning):​Step 1 (matching the remote control): Press any button on the remote control, if the LED light flashes quickly, it means it is a matching remote control, otherwise it is not a matching remote control. ​Step 2 (enter learning mode): touch the button, the LED light is off. ​Step 3 (Learning the remote control): Press any button on the remote control within 10 seconds, the LED light flashes 3 times and then turns on, then the learning is successful; if the LED light only flashes twice, the learning fails, indicating that the learning has been completed pass the remote control; learning is complete. ​Note: Please use the remote control we sell, otherwise it may not be compatible with the remote control. ​ ​ ​Wiring diagram:​1 DC 12V(5V/24V) control circuit,Wiring diagram below. ''LOAD'' may be LED lights, fans, toy car and other DC 12V(5V/24V) equipment ​S76f79503e09044c2a3cfe69b0e2ef8d5X.jpg​2 DC 1-100V OR AC 85-265V control circuit,Wiring diagram below. ''LOAD'' may be LED lights, fans, motors and other DC AC equipment ​See618851b8134feb9c21eee1fd3a73ddK.jpg​ ​ ​ ​ ​ ​ ​ ​ ​S8c142dd1fa20475bbd33f5e354a8600cD.jpg​433M 8 Button EV1527 Remote Control:​Power supply : 12V 23A battery replacable .(This remote doesnot have a battery , Please buy in your local market ) ​Operating current: ≤ 18mA ; ​Oscillation mode: SAW resonator ; ​Oscillation resistor : 270K ​Modulation mode: ASK OOK ; ​Operating frequency: 433.92MHz ; ​Frequency dev iation: ±0.2MHz ; ​Encoding format: Million Group Code ( EV1527 ) ; ​Transmit power: 15 mW. ​Data Rate : 50~60KHZ;



    상품정보 제공고시

    적용 범위 제어
    브랜드 Eletechsup
    정격 전압 원격 제어 전용
    메인 다운스트림 플랫폼 라자다
    주된 판매 지역 아시아
    국경 간 내보내기 소스가 배타적인지 여부 예
