기술 지원 전원 모듈을 제공하는 LC5BF08 공장 직접 대외 무역 핫 국경 간 공급 소스

가격
₩16,500~₩18,000
가격
¥55.00~¥60.00
구매수량별 가격
1~¥60.00
100~¥58.00
1,000~¥55.00
최소구매수량 1개

정격 전압

선택하세요.

선택한 옵션

예상 내륙운임비
/
총 상품금액(내륙운임 포함)
/
수입시 예상 금액
?

수입시 예상 금액이란?

물품대금 · 국제운임 · 검수 · 바코드 부착 · 관부가세까지 수입에 필요한 모든 비용이 포함되어 있습니다.

위시리스트

관련상품

  • 상품 상세설명

    widget1.png?t=AEO9LPV

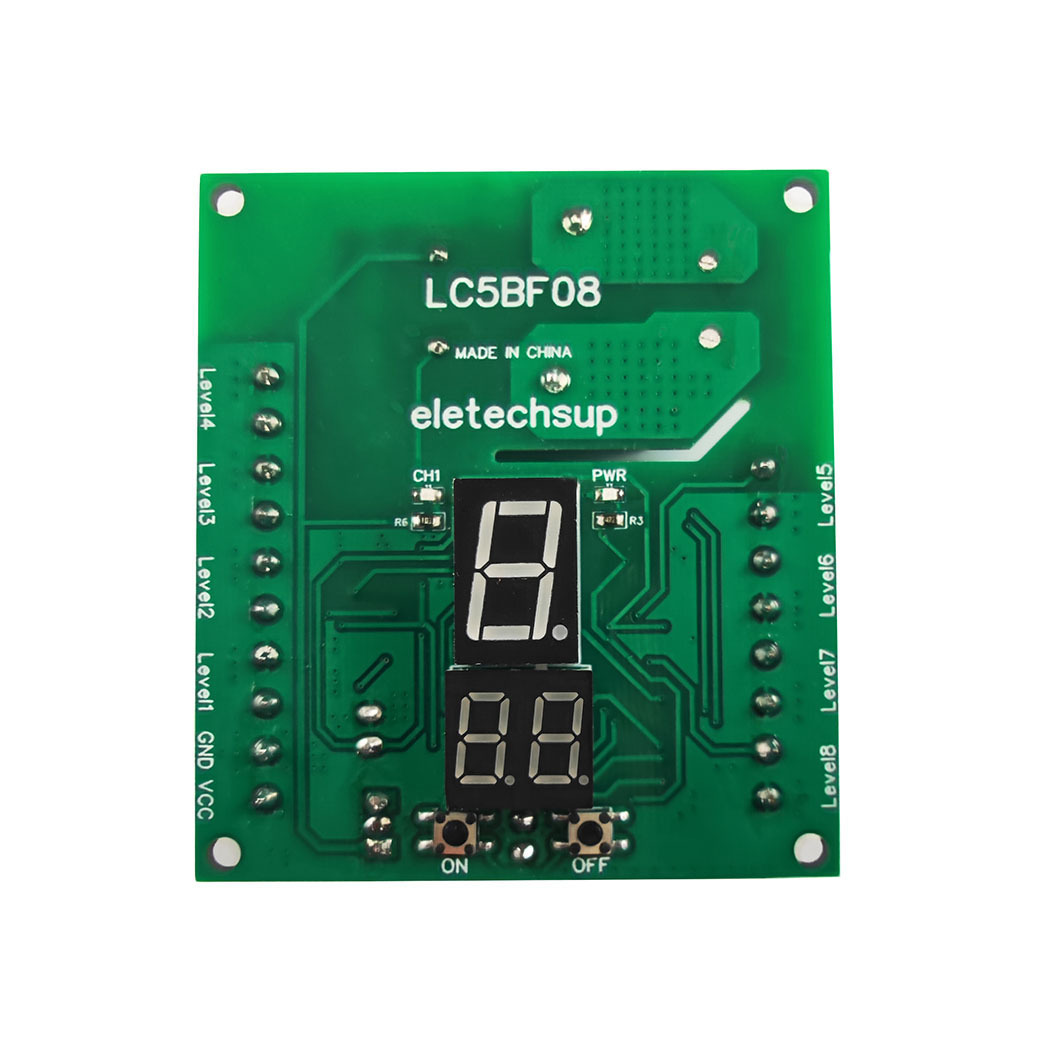

    Product Name:​DC 12V 8 Digital Water Level Indicator Board Liquid Sensor Automatic Water Supply Controller 30A Relay Module


    Package inlcuded:
    1x 8-channel DC 12V 30A multi-function water level controller

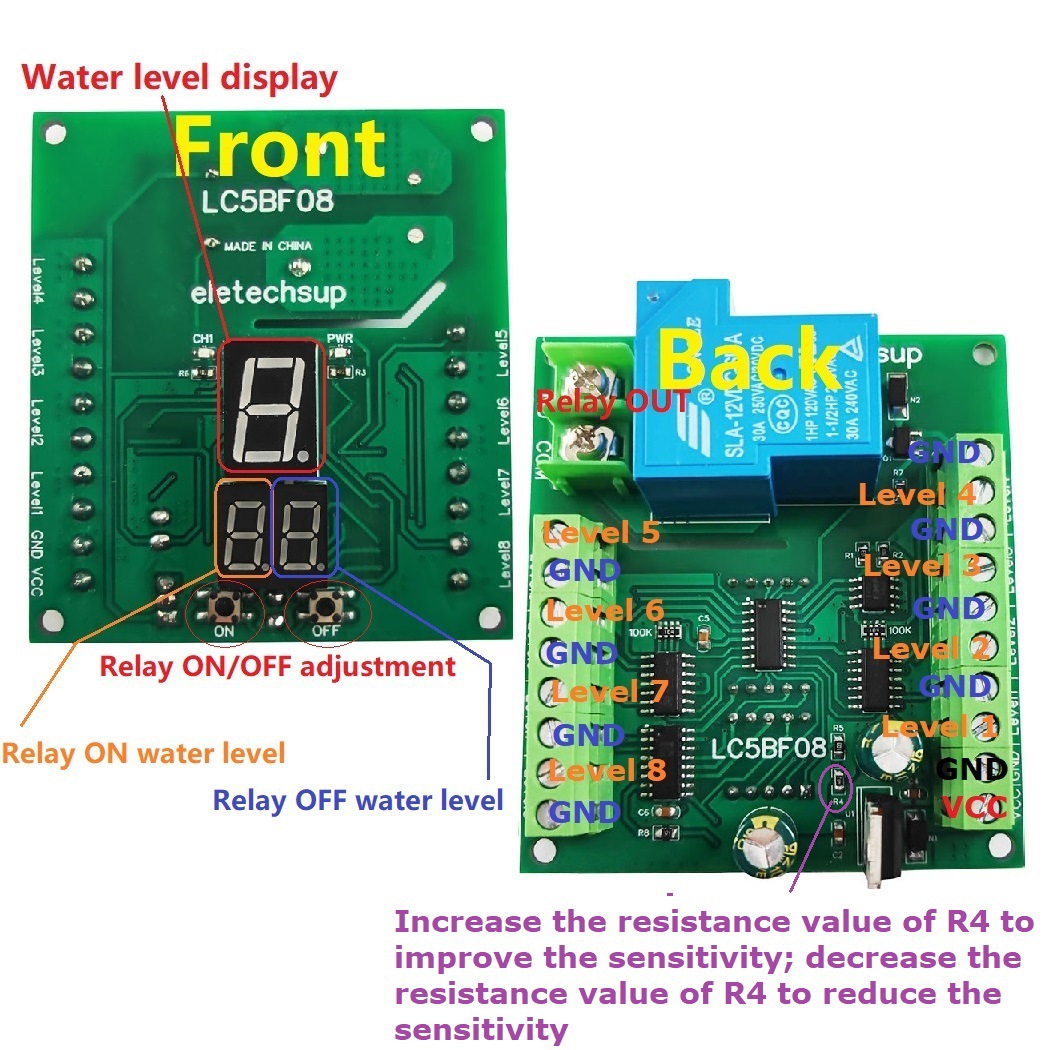

     Working principle:​1 ''Current'' digital tube: Display the current water level, display between 0-8, flash slowly ​2 ''ON'' digital tube, Relay ON water level. ​3 ''OFF'' digital tube, Relay OFF water level ​4 Press the ''ON'' button, the number of the ''ON'' digital tube is adjusted between 1-8 ​5 Press the ''OFF'' button, the number of the ''OFF'' digital tube is adjusted between 1-8 ​ ​''ON'' digital tube = ''OFF'' digital tube : Only water level display function (Relay does not work) ​''ON'' digital tube < ''OFF'' digital tube : Automatic water supply (pumping water from outside to water tower) ​''ON'' digital tube > ''OFF'' digital tube :Auto drain (drains water to the outside) ​ ​Example to illustrate how it works:​ ​Only water level display function (Relay does not work)​When the numbers of the two digital tubes ON/OFF are the same, the relay does not work (only the water level display function) ​ ​Example 1: ​Trigger the ''ON''button, set the ''ON''digital tube to 1; ​Trigger the ''OFF''button,set the ''OFF''digital tube to 1. ​ ​Example 2: ​Trigger the ''ON''button, set the ''ON''digital tube to 2; ​Trigger the ''OFF''button,set the ''OFF''digital tube to 2. ​ ​Automatic water supply (pumping water from outside to water tower)​Fill the water tower automatically​ ​Example 1: ​The water supply starts when the water level is lower than 1, and stops when the water level is higher (or equal to) 7. ​ ​Trigger the ''ON''button, set the ''ON''digital tube to 1; ​Trigger the ''OFF''button,set the ''OFF''digital tube to 7. ​ ​Example 2: ​The water supply starts when the water level is lower than 2, and stops when the water level is higher (or equal to) 6. ​ ​Trigger the ''ON''button, set the ''ON''digital tube to 2; ​Trigger the ''OFF''button,set the ''OFF''digital tube to 6. ​ ​Auto drain (drains water to the outside)​Automatic pumping from water tower​ ​Example 1: ​Draining starts when the water level is higher than (or equal to) 5, and stops when the water level is lower than 3. ​Trigger the ''ON''button, set the ''ON''digital tube to 5; ​Trigger the ''OFF''button,set the ''OFF''digital tube to 3. ​ ​Example 2: ​Draining starts when the water level is higher than (or equal to) 4, and stops when the water level is lower than 3. ​Trigger the ''ON''button, set the ''ON''digital tube to 4; ​Trigger the ''OFF''button,set the ''OFF''digital tube to 3. ​​Wiring diagram:

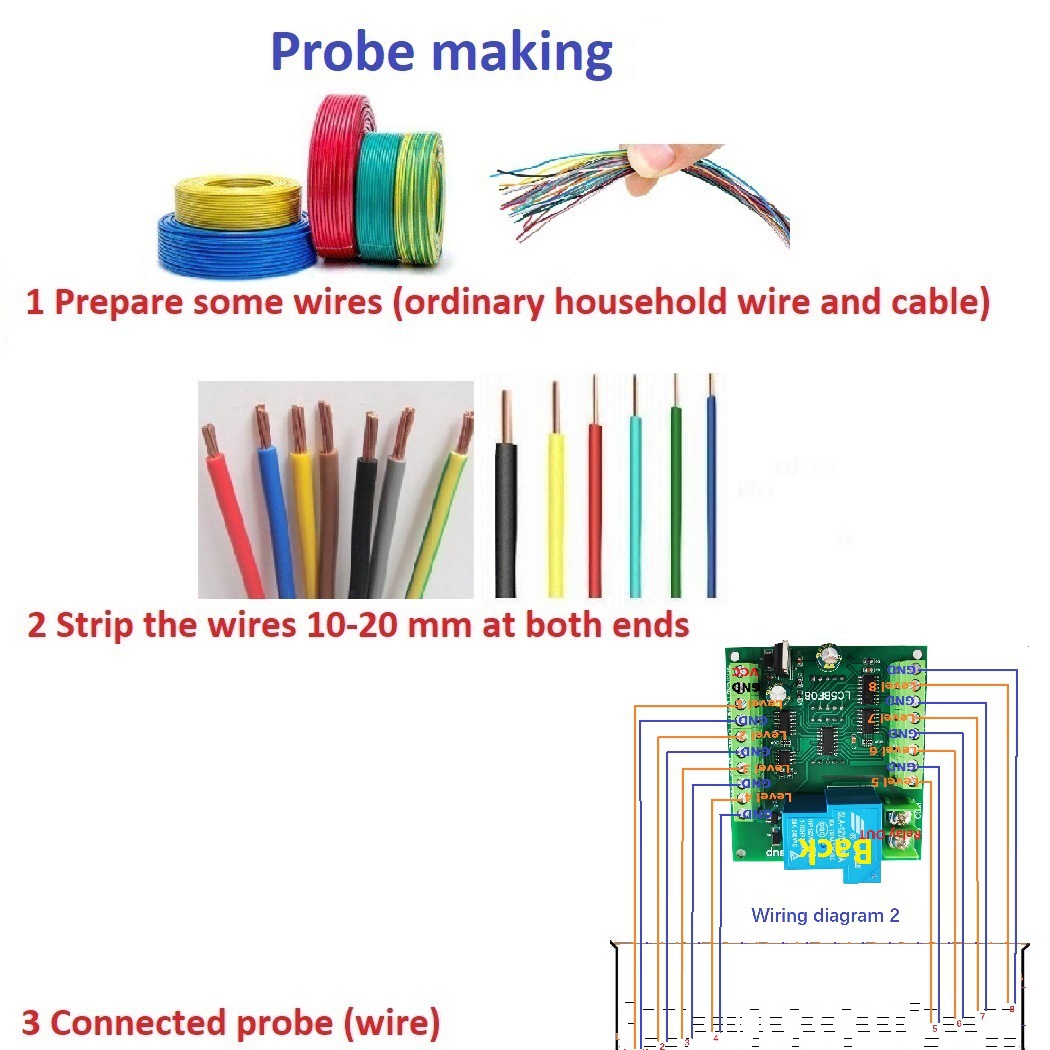

    S65f39b5b7aeb47faa374afcb9b07159cL.jpgSb0bbe5876bdc4f72a594f91f22c0a078G.jpg​Sd9dcf09c3ca34d09a59028a748df139eI.jpg​Sbeeae63f323741f68c7ee312f11e3ed30.jpg​ ​ ​ ​ ​Make the probe:​Sc3b1f9916c414dd2a063bbee940dfdd9r.jpg​




    상품정보 제공고시

    적용 범위 제어
    브랜드 Eletechsup
    정격 전압 LC5BF08
    메인 다운스트림 플랫폼 라자다
    주된 판매 지역 아시아
    국경 간 내보내기 소스가 배타적인지 여부 예
