기술 지원 전원 모듈을 제공하는 KC23C01 공장 직거래 핫 국경 간 공급 장치

가격
₩8,400~₩9,000
가격
¥28.00~¥30.00
구매수량별 가격
1~¥30.00
100~¥29.00
1,000~¥28.00
최소구매수량 1개

사양 및 모델

선택하세요.

선택한 옵션

예상 내륙운임비
/
총 상품금액(내륙운임 포함)
/
수입시 예상 금액
?

수입시 예상 금액이란?

물품대금 · 국제운임 · 검수 · 바코드 부착 · 관부가세까지 수입에 필요한 모든 비용이 포함되어 있습니다.

위시리스트

관련상품

  • 상품 상세설명

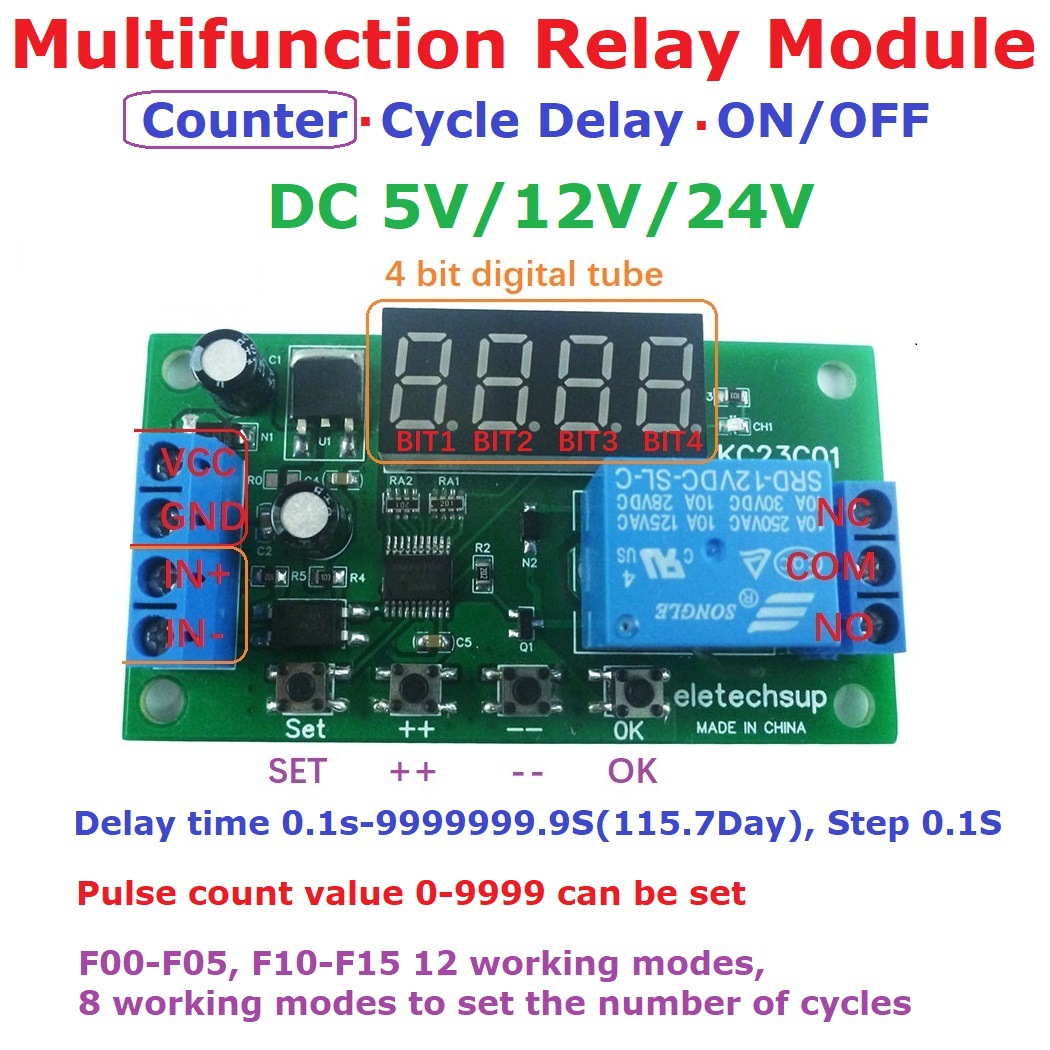

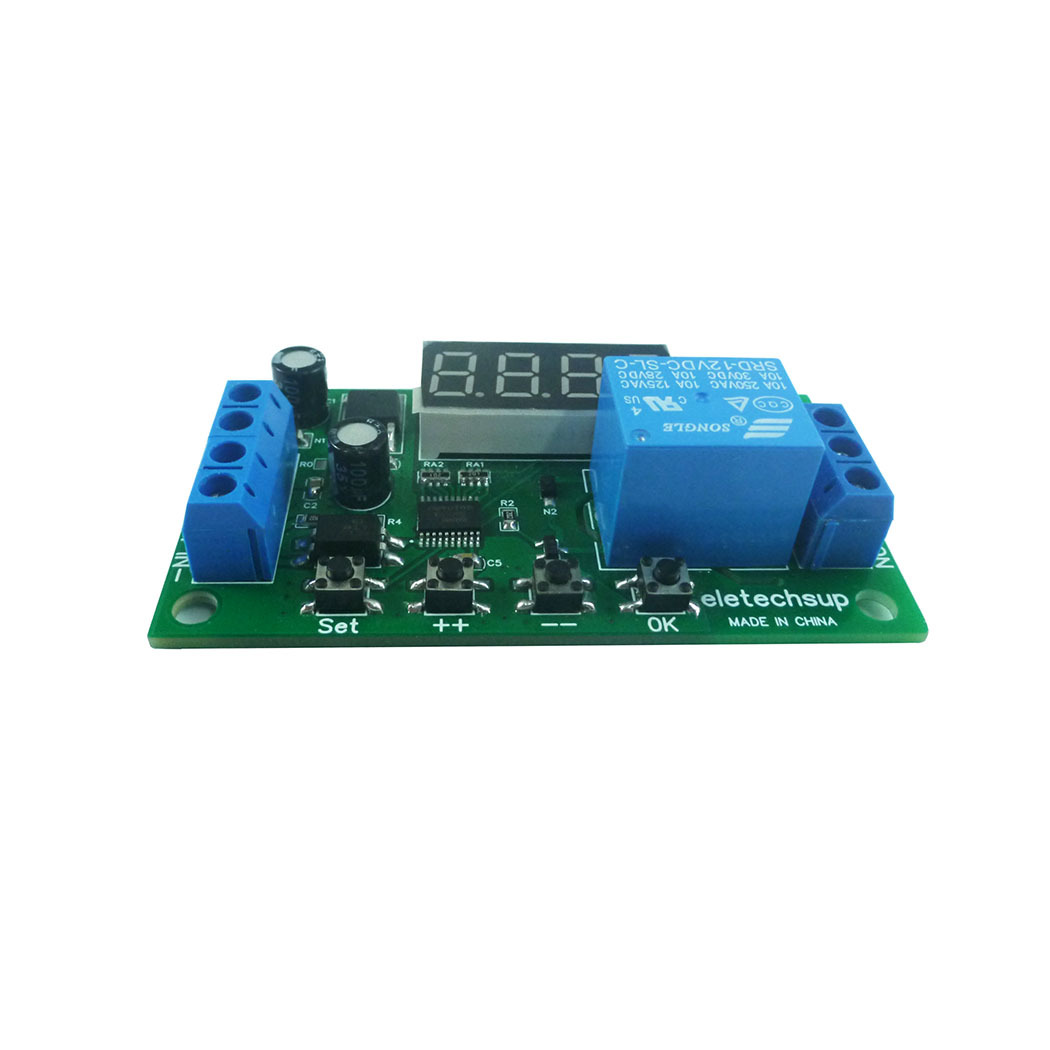

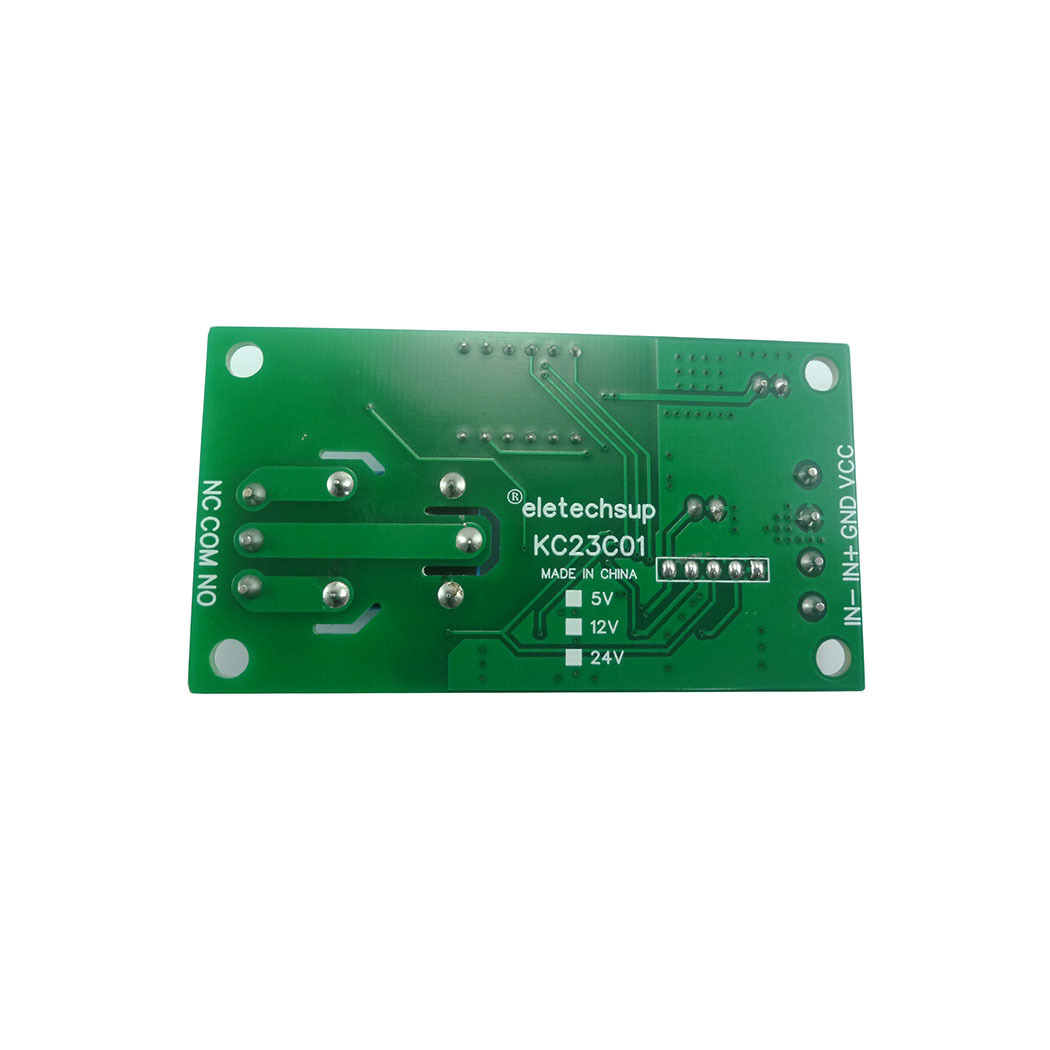

    Product Name:Multifunction Pulse Counter Switch Adjustable Timer Delay Turn On/Off Relay Module DC 5V 12V 24V


    Package inlcuded:

    1 PCSKC23C01DC 5V/12V/24V 1CHMultifunctionPulse CounterRelay Board


    Product Specifications: ​

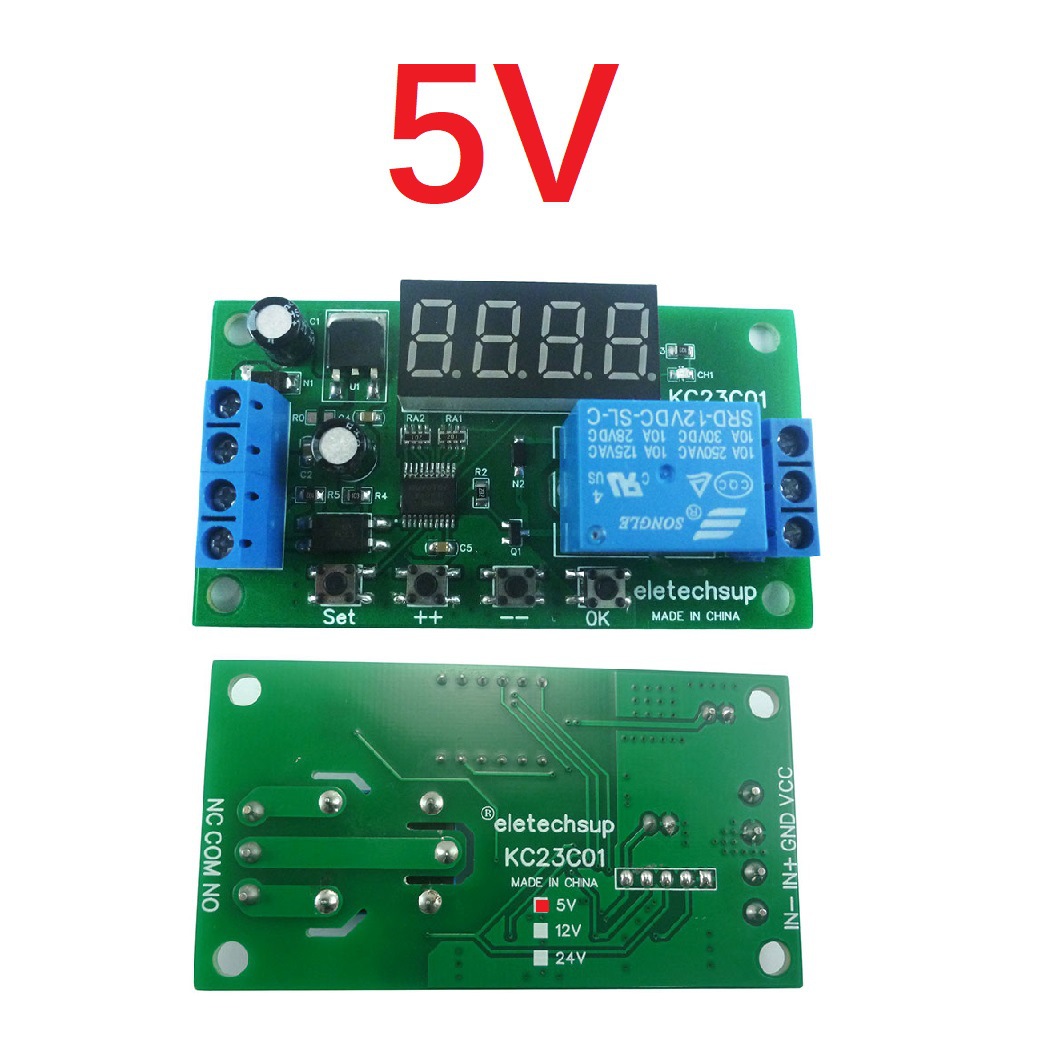

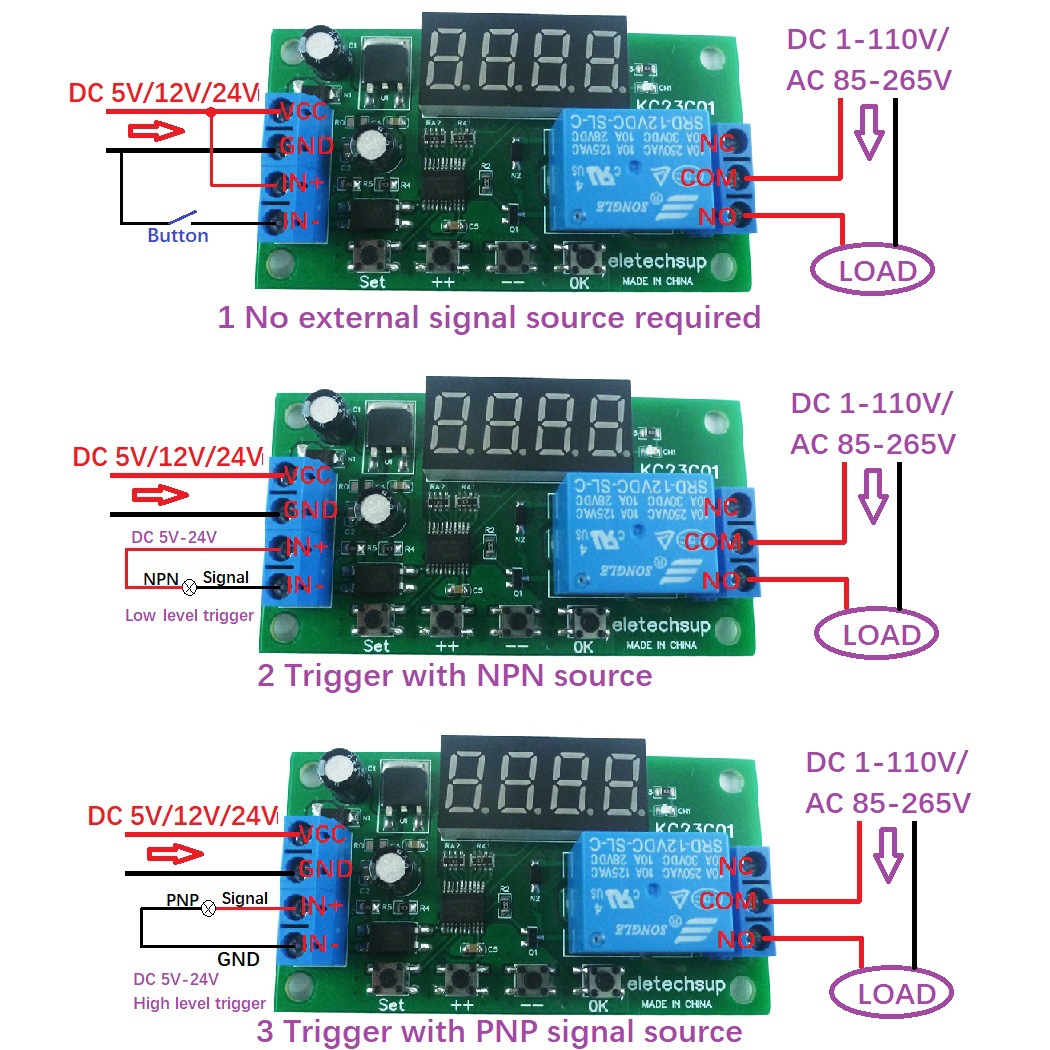

    Working voltage: DC 12V (DC 5V/ DC24V optional) ​Working current: Digital tube OFF (Power-Saving Status): Relay OFF 6MA, Relay ON 35MA ​Digital tube ON (Working Status): Relay OFF 29MA, Relay ON 56MA ​Three states : Working State, Power-Saving Status, Setting State ​Input port : Optocoupler isolation input, compatible with NPN/PNP input (5-24V switch signal) ​Output port : 10A relay NO COM NC three ports ​Working mode: F00-F05 single-shot pulse control mode, which is a general delay relaymode​F10-F15 pulse counting control mode, count control relay for input port ​ ​Size: 74.4*40.5*19.6MM ​Weight : 29.2g ​Relay load: 10A/250VAC; 10A/30VDC ​ ​Please contact me for detailed instructions !!!​ ​Product Features:​Delay time 0.1s-9999999.9S(115.7Day), Step 0.1S, Accuracy 0.01S ​Pulse count value 0-9999 can be set ​F00-F05, F10-F15 12 working modes, there are 8 working modes to set the number of cycles ​ ​There are three wiring methods for the trigger signal input terminal:​1 No external signal source required ​2 Trigger with NPN source ​3 Trigger with PNP signal source ​S03da83a30ded4aea8554f80ee4fd8a37r.jpg​ ​Setup Instructions:​Short press: Press key time is less than 2 seconds; ​Long press: Press key time more than 2 seconds; ​Status : Working State, Power-Saving Status, Setting State ​ ​Working State: In working state when powered on, F00-F05 mode displays remaining time, F10-F15 mode displays remaining time and pulse count value. ​Note: When the remaining time is higher than four digits, short press the ''OK'' button to scroll to display the remaining time once.​ ​Setting Status: Short press the ''SET'' button to enter the Setting Status, then short press ''SET'' to switch parameters, short press ''++''/''--'' to modify parameters. Short press the ''OK'' button to save the parameters and exit the setting state. ​Note: After setting the parameters, it must be powered on again.​ ​Query Status: without modifying the parameter Setting Status, short press the ''SET'' button to enter the Query Status, then press ''SET'' to switch parameters, and short press the ''OK'' button to exit the Query Status ​ ​Power-Saving Status: The Working State of the digital tube is turned off. In this state, the digital tube does not display and other functions work normally. Press and hold the ''OK'' button for 5 seconds to enter the Power-Saving Status, and press and hold the ''OK'' button again for 5 seconds to exit the Power-Saving Status. ​Notice: ​1 In the Power-Saving Status, you can still enter the setting and query state, and it will automatically enter the Power-Saving Status state after 20 seconds of no key operation. ​2 After the power is turned on again, the Digital Tube displays for 20 seconds, how to turn off the Digital Tube.​ ​Factory Setting:Press and hold the ''++'' and ''--'' buttons simultaneously for 3 seconds to restore the Factory Settings and turn off the display of the digital tube. Run the default parameters after power cycle. ​Note: After setting the parameters, it must be powered on again. ​ ​Exception handling:​1 If you encounter inexplicable problems, please power on again (this is because there is no restart after setting parameters) ​2 If the problem still cannot be solved after powering on again, please press and hold the ''++'' and ''--'' buttons simultaneously for 3 seconds to restore the factory settings. then power on again​ ​ ​ ​Please contact me for detailed instructions !!!







    상품정보 제공고시

    브랜드 Eletechsup
    적용 범위 지연
    국경 간 내보내기 소스가 배타적인지 여부 예
    주된 판매 지역 아시아
    메인 다운스트림 플랫폼 라자다

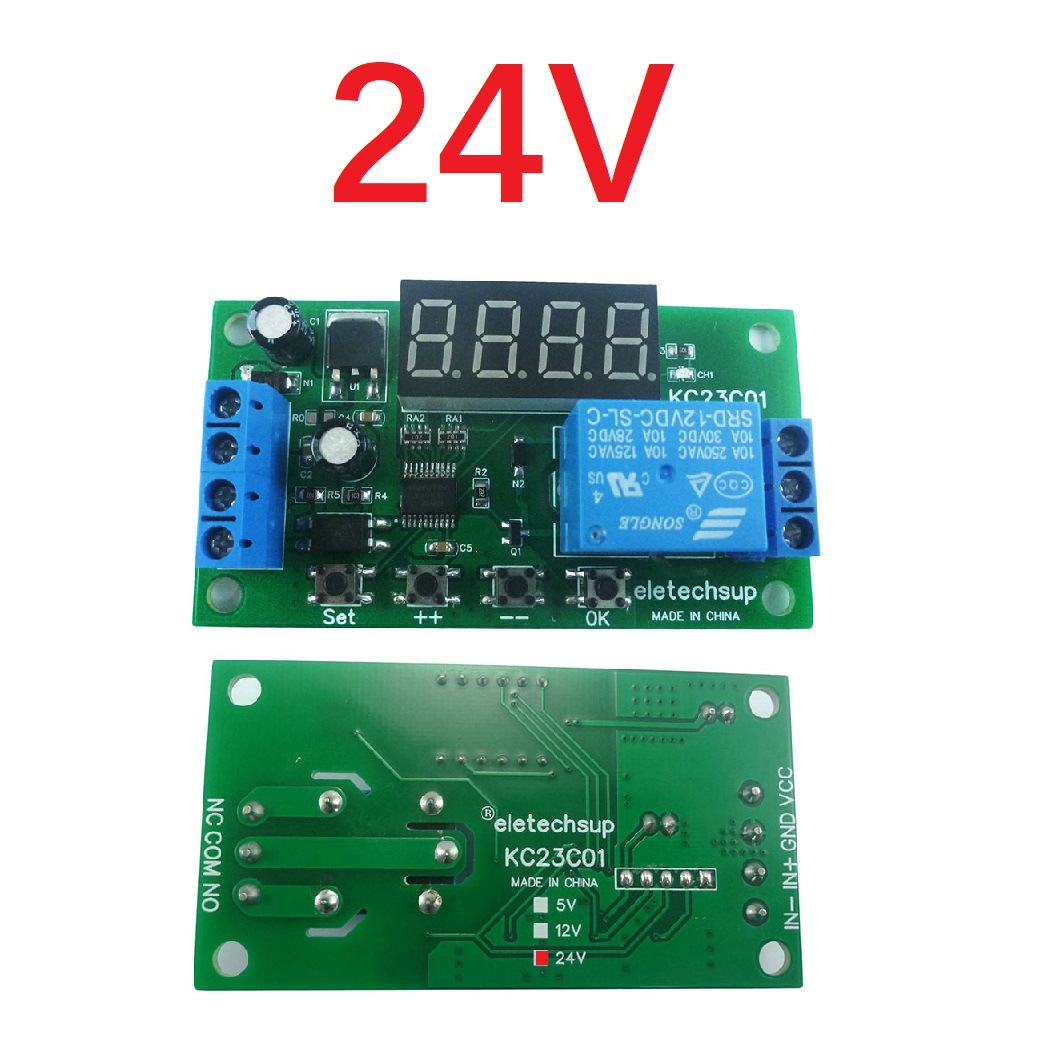

    사양 및 모델 24V*0.1W*KC23C01
