10IOA01_24V 공장 직접 대외 무역 핫 국경 간 공급 소스 기술 지원 전원 모듈 제공

가격
₩11,400~₩22,500
가격
¥38.00~¥75.00
구매수량별 가격
1~¥38.00
최소구매수량 1개

사양 및 모델

선택하세요.

선택한 옵션

예상 내륙운임비
/
총 상품금액(내륙운임 포함)
/
수입시 예상 금액
?

수입시 예상 금액이란?

물품대금 · 국제운임 · 검수 · 바코드 부착 · 관부가세까지 수입에 필요한 모든 비용이 포함되어 있습니다.

위시리스트

관련상품

  • 상품 상세설명

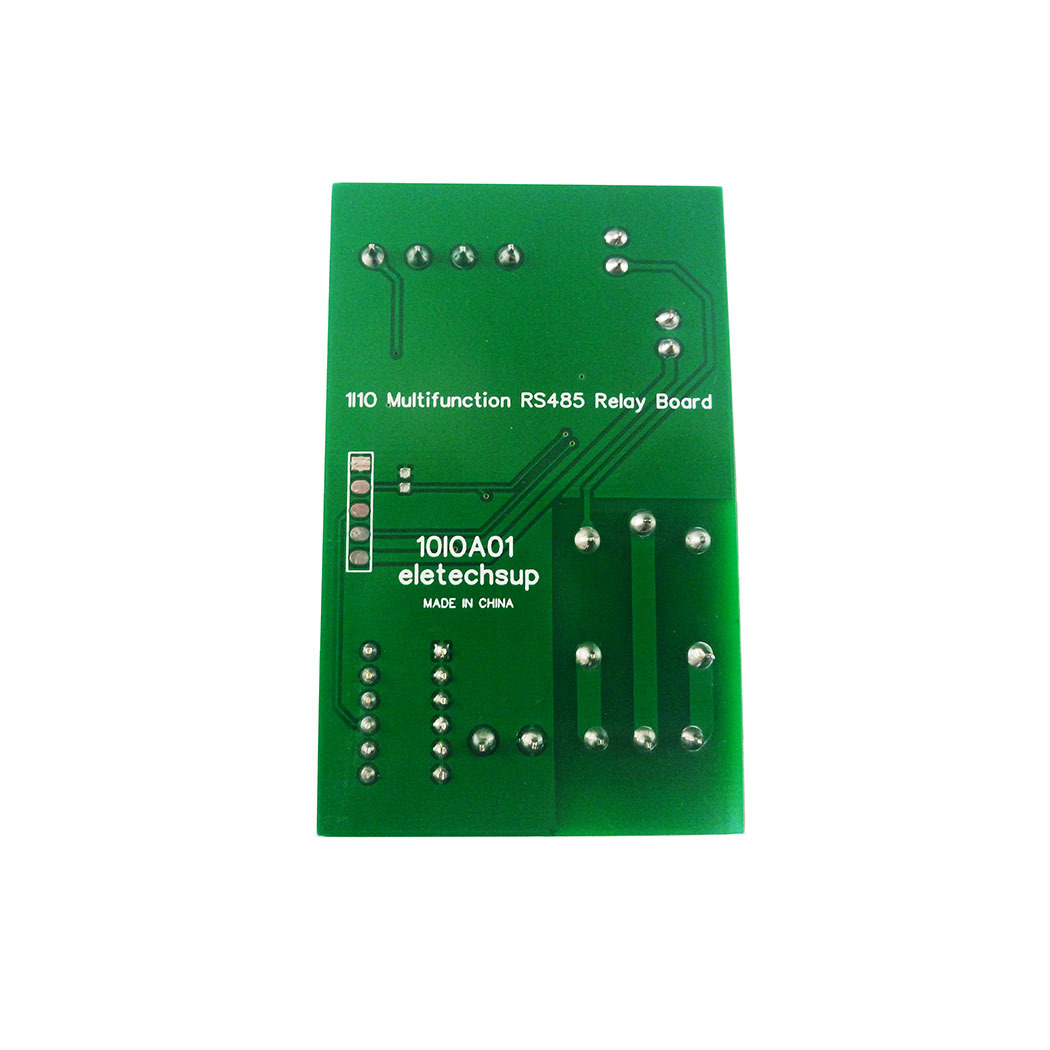

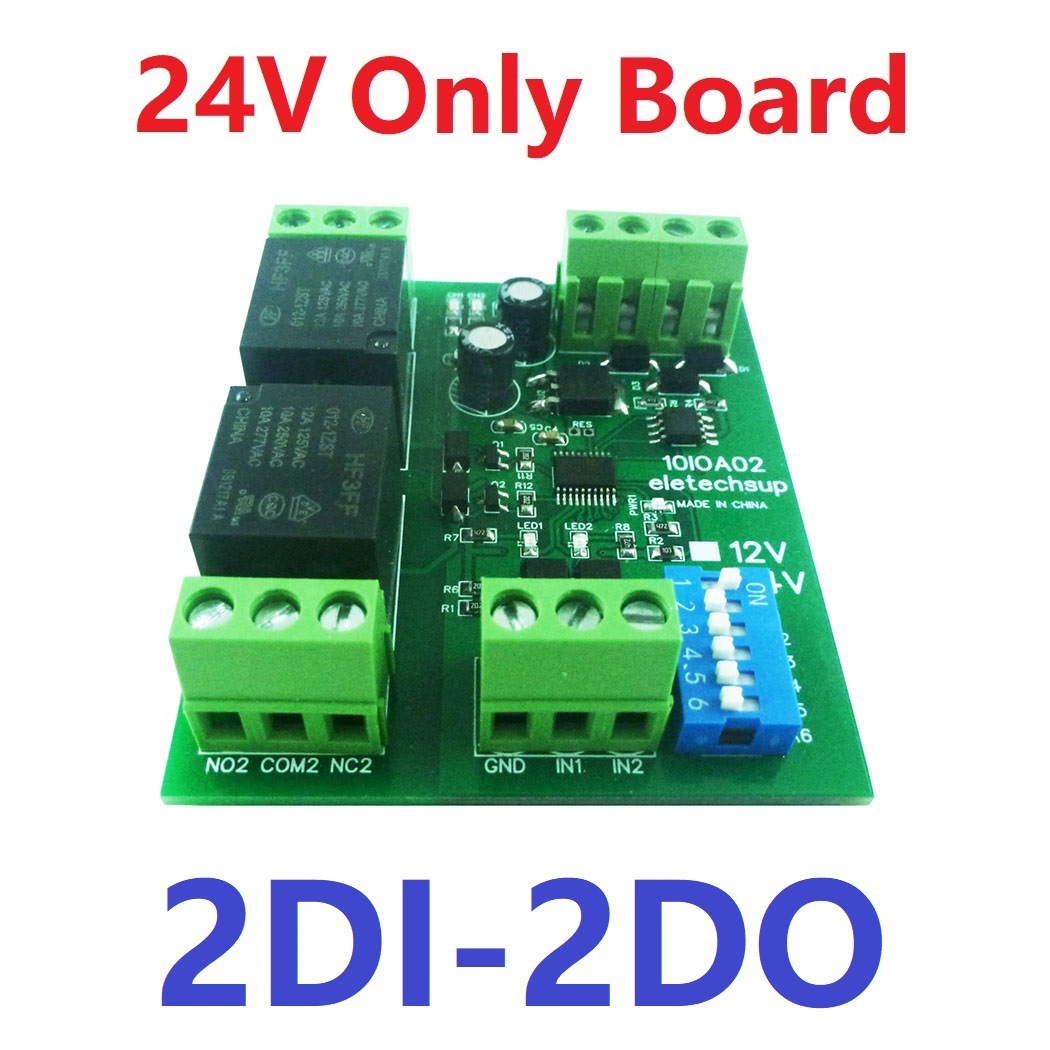

     ​Product Name: DC 24V 1-8Ch Digital Switch DiDo Multifunction RS485 PLC IO Expanding Board Standard Modbus RTU Relay Module

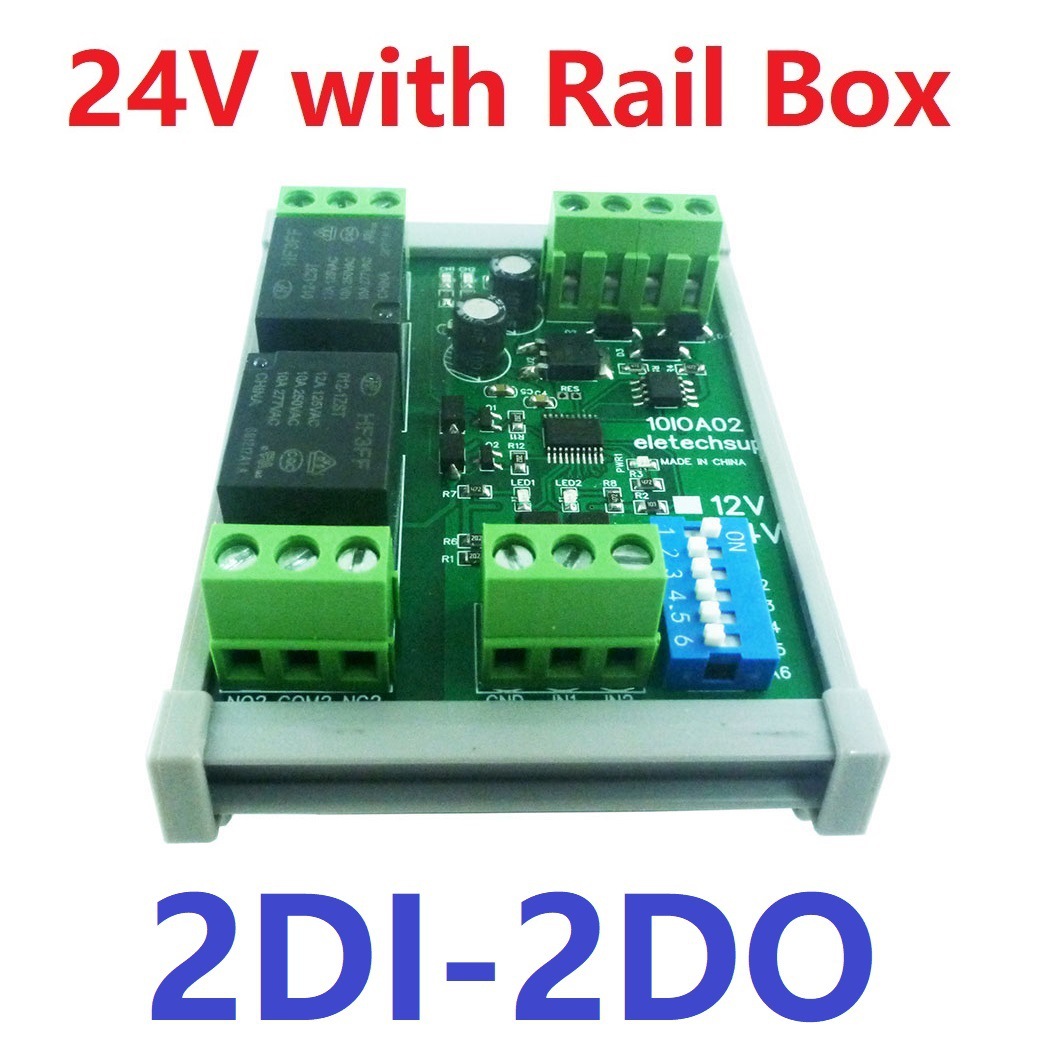

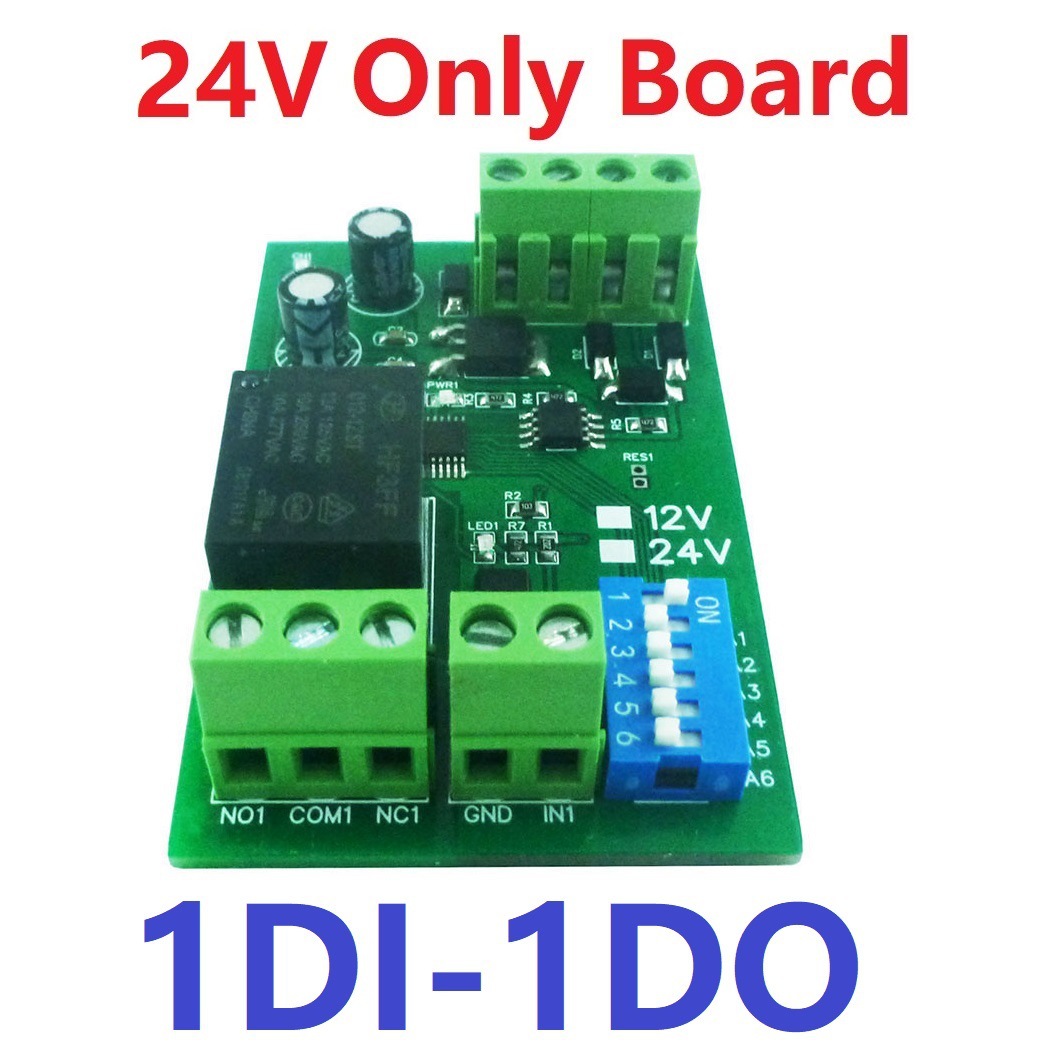

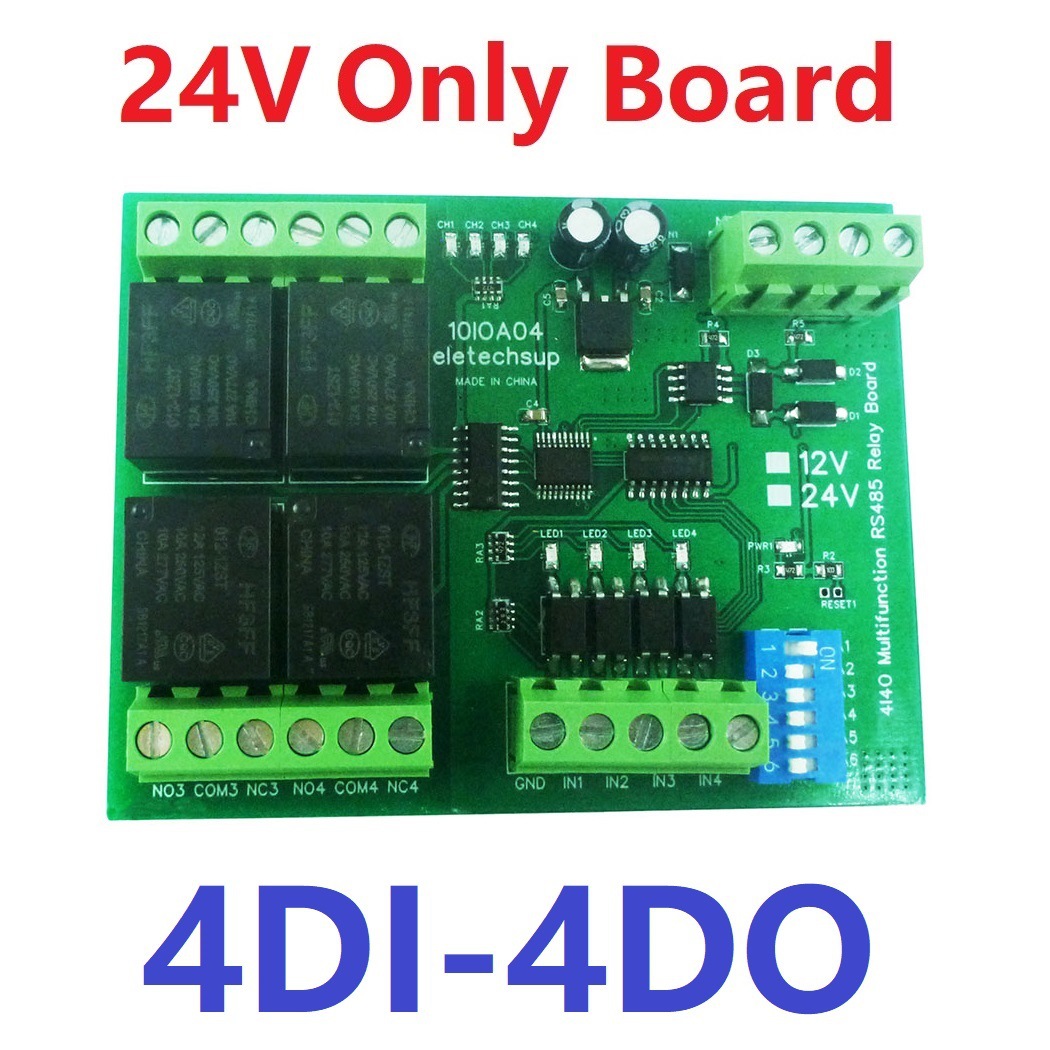

    ​Package inlcuded: ​1PCS 24V DC 1/2/4/8 Channel DI-DO Modbus RTU RS485 Relay Board（Choose the version you need）
    ​
    ​
    ​Description:
    1:DC 24V (12V Version Click here: ​Click here) ​ ​2.Standby current (all relays closed) 11MA, 1 relay open 30MA, 2 relays open 49MA, 3 relays open 65MA,4 relays open 82MA,5 relays open 101MA,6 relays open 120MA, 7 relays open 138MA,8 relays open 156MA ​ ​3:1/2/4/8 photoelectric isolation Input ports (NPN low level active ). ​ ​The input-output relationship can be set to various association modes through instructions(Self-lockingdefault)/Interlocking/Momentary/Interlocking/Output=Input) ​ ​4: Support standard Modbus RTU command, function code, write 05/06/15/16 read 01/02/03 ​ ​5: With hardware reset function, with TVS anti-surge protection ​ ​6 ​1/2/4/8 opto-isolated inputs (NPN), ​1/2/4/8 relay outputs (upgraded relays, more durable) ​ ​7 MODBUS commands can be made serial HyperTerminal (serial assistant) OR ''Modbus Poll''Enter; ​ ​8 Under the MODBUS command mode, it can support up to 64 devices in parallel ​ ​9 The default baud rate is 9600BPS. The baud rate can be selected by Conmand 2400 4800 9600 19200 38400 57600 115200BPS ​ ​10 The parity can be none parity, even parity and odd parity ​ ​11 The data sending and returning time can be set,with a maximum value of 1000ms ​ ​12 Maximum load: 10A / 250VAC, 10A / 125VAC, 10A / 30VDC, 10A / 24VDC, 10A / 12VDC ​ ​1 Channel ​Size: 45 * 72 * 19mm(Only PCB Board);47 * 82*40mm(with Din Rail Box) ​Weight: 33g(Only PCB Board);75g(with Din Rail Box) ​ ​ ​2 Channels ​Size: 60 * 72 * 19mm(Only PCB Board);62 * 82*40mm(with Din Rail Box) ​Weight: 48.5g(Only PCB Board);100g(with Din Rail Box) ​ ​4 Channels ​Size: 93 * 72 * 19mm(Only PCB Board);95 * 82*40mm(with Din Rail Box) ​Weight: 80.6g(Only PCB Board);150.7g(with Din Rail Box) ​ ​8 Channels ​Size: 136 * 72 * 12mm(Only PCB Board);138 * 82*40mm(with Din Rail Box) ​Weight: 143g(Only PCB Board);239g(with Din Rail Box)

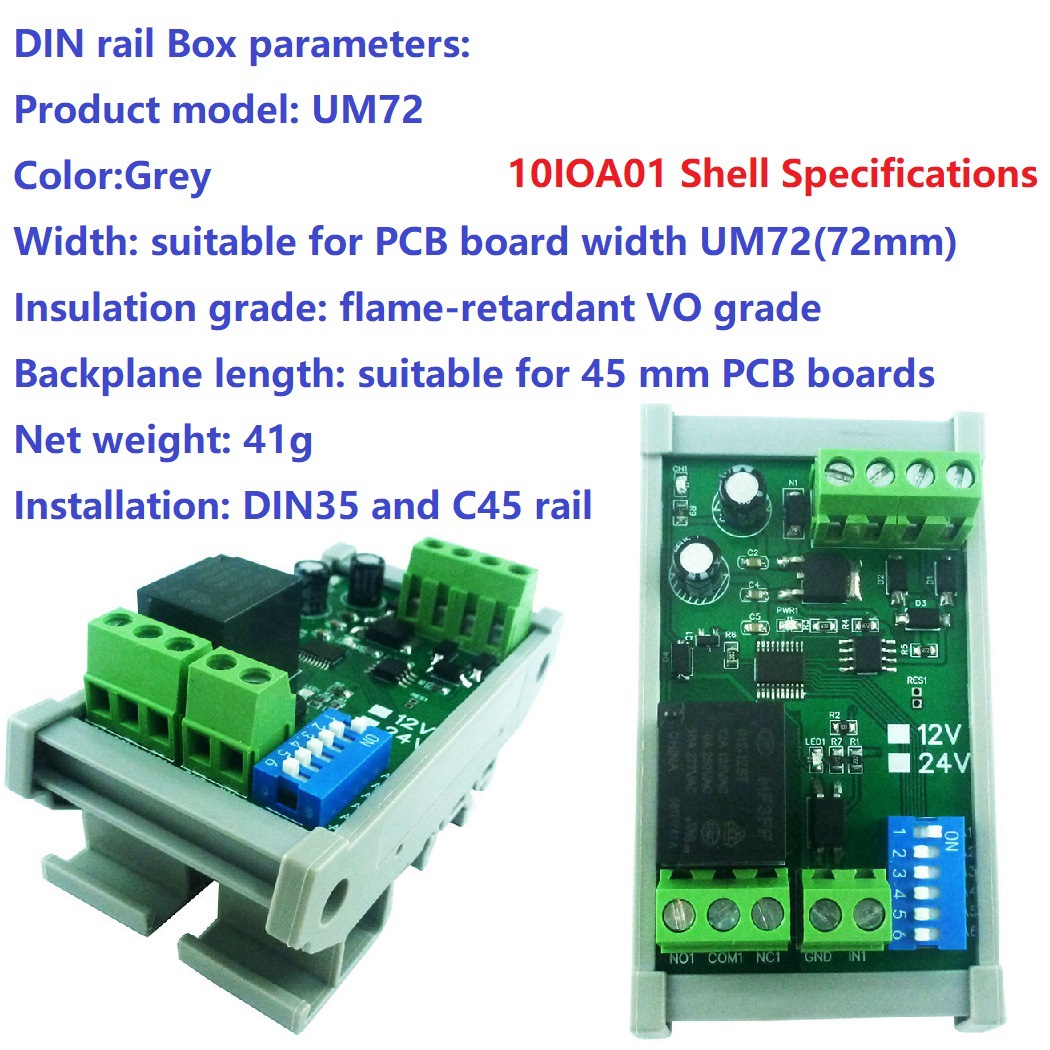

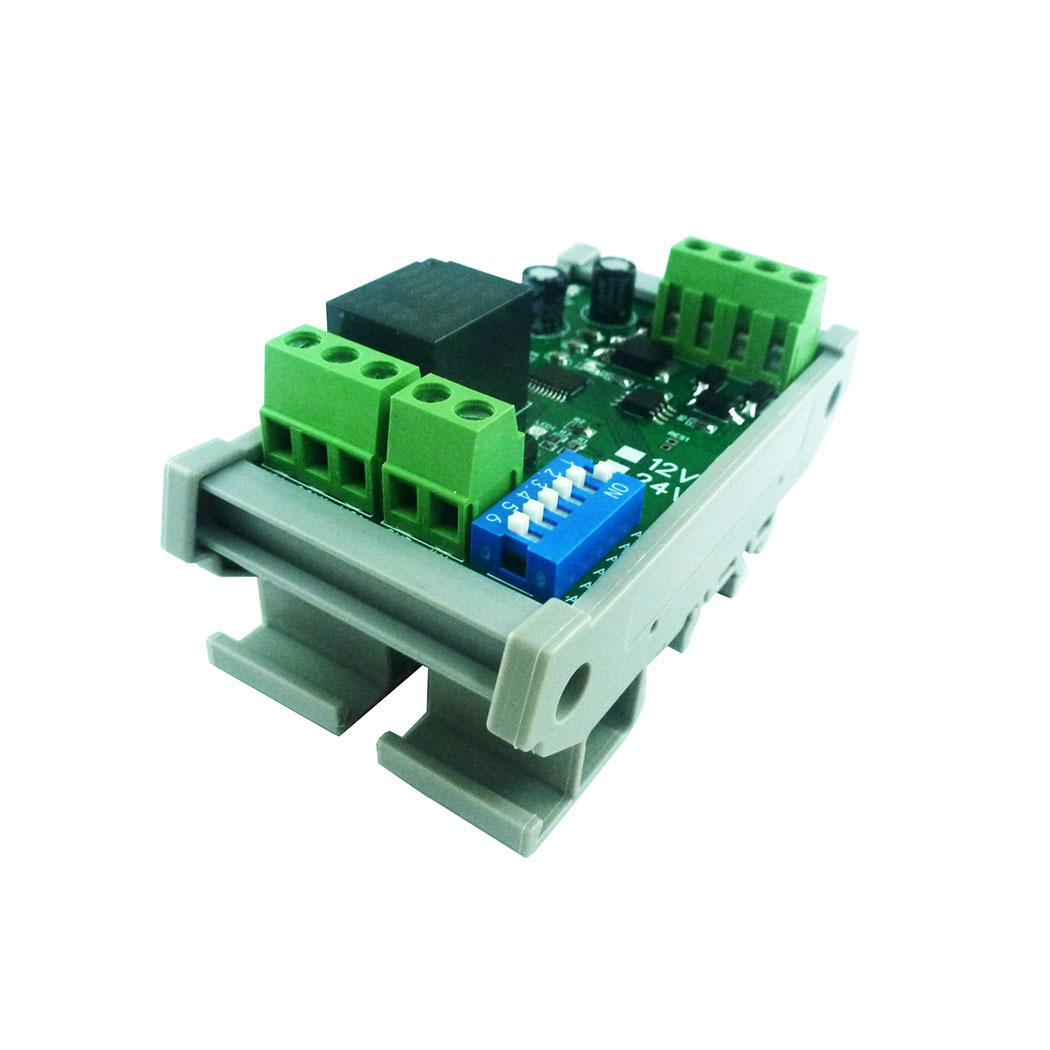

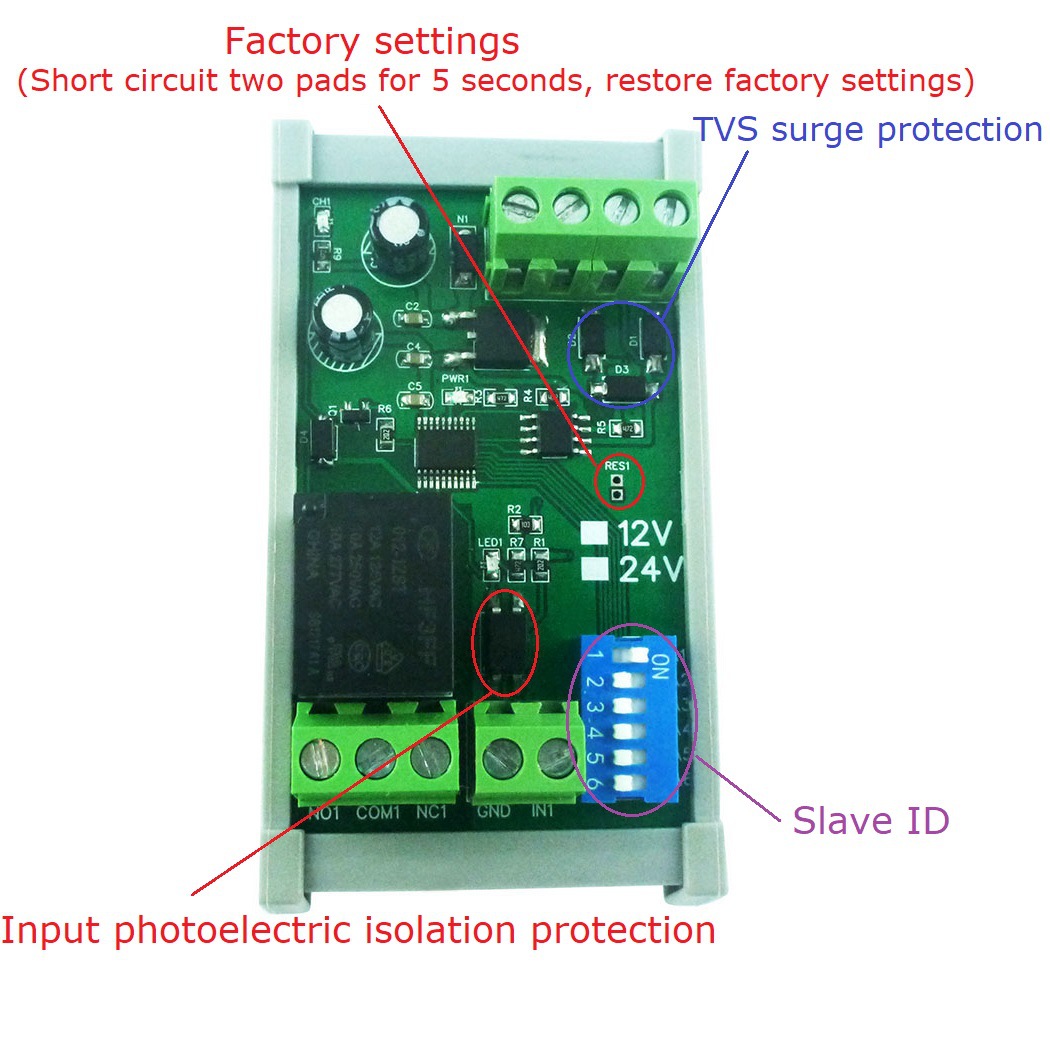

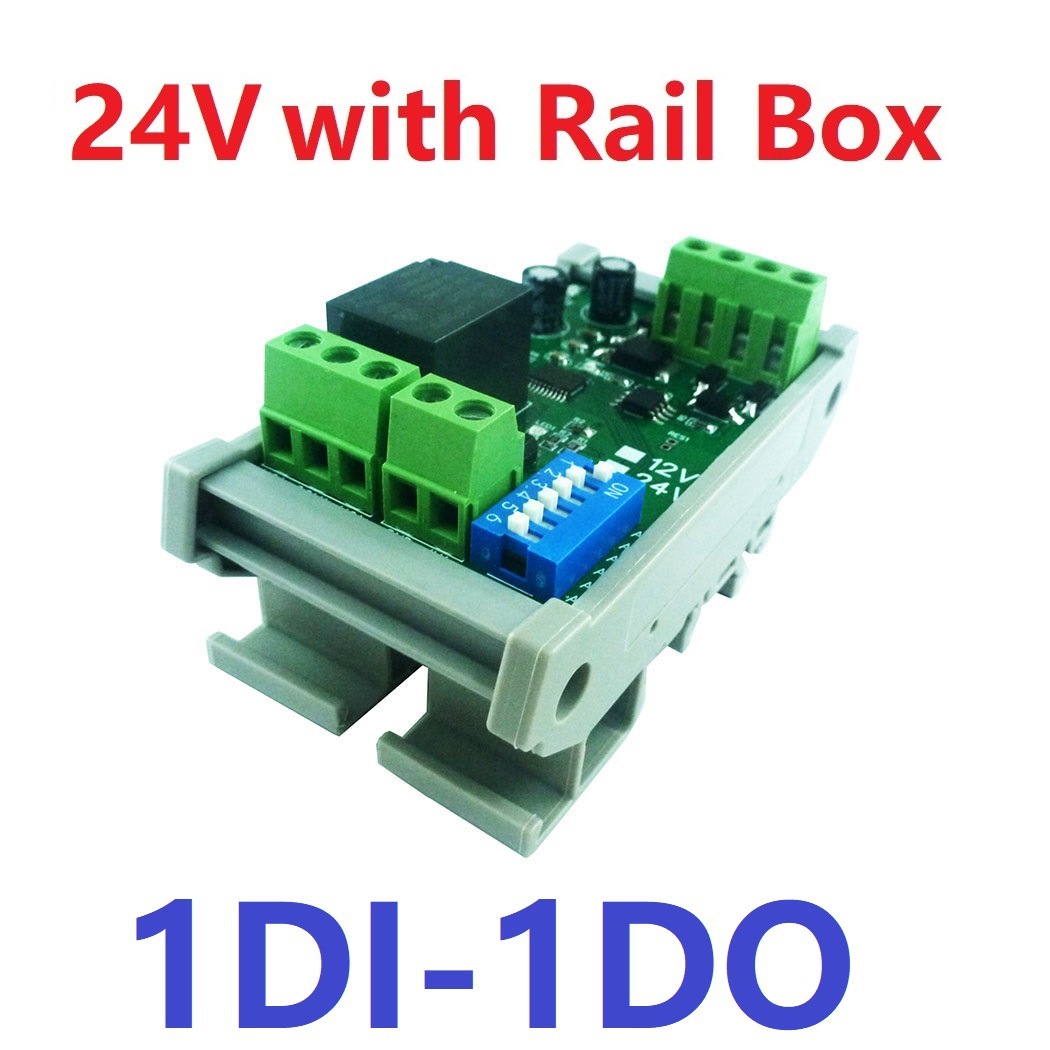

    ​ ​ ​Upgraded Features: ​ ​MODBUS RTU Function Code 01 05 15 02 03 06 16 ​ ​Support more input-output relationships ​ ​Support more baud rates, can modify the parity bit ​ ​Hardware reset to factory settings (RESET jumper) ​ ​Upgraded relays (more durable) ​ ​TVS anti-surge protection ​ ​ ​For more information, please contact me ​ ​ ​DIN rail Box parameters: ​Product model: UM72 ​Color: ​Grey ​ ​ ​Width: suitable for PCB board width UM72(72mm) ​Insulation grade: flame-retardant VO grade ​Backplane length: suitable for 45/60/93/136 mm PCB boards ​Net weight: 41/51/71/99g ​Installation: DIN35 and C45 rail
    ​
    ​
    ​Application
    PLC IO expansion board ​Smart Home,Home Automation ,Wiser Home; ​PTC Camera ​Security Monitoring ​Identification system; ​IP Camera ​LED Lamp Drivers ​Automatic curtain control ​Sc6bccde96d8b4fb08cf9766c97e6defdA.jpg



    상품정보 제공고시

    브랜드 Eletechsup
    적용 범위 전압
    국경 간 내보내기 소스가 배타적인지 여부 예
    주된 판매 지역 아시아
    메인 다운스트림 플랫폼 라자다

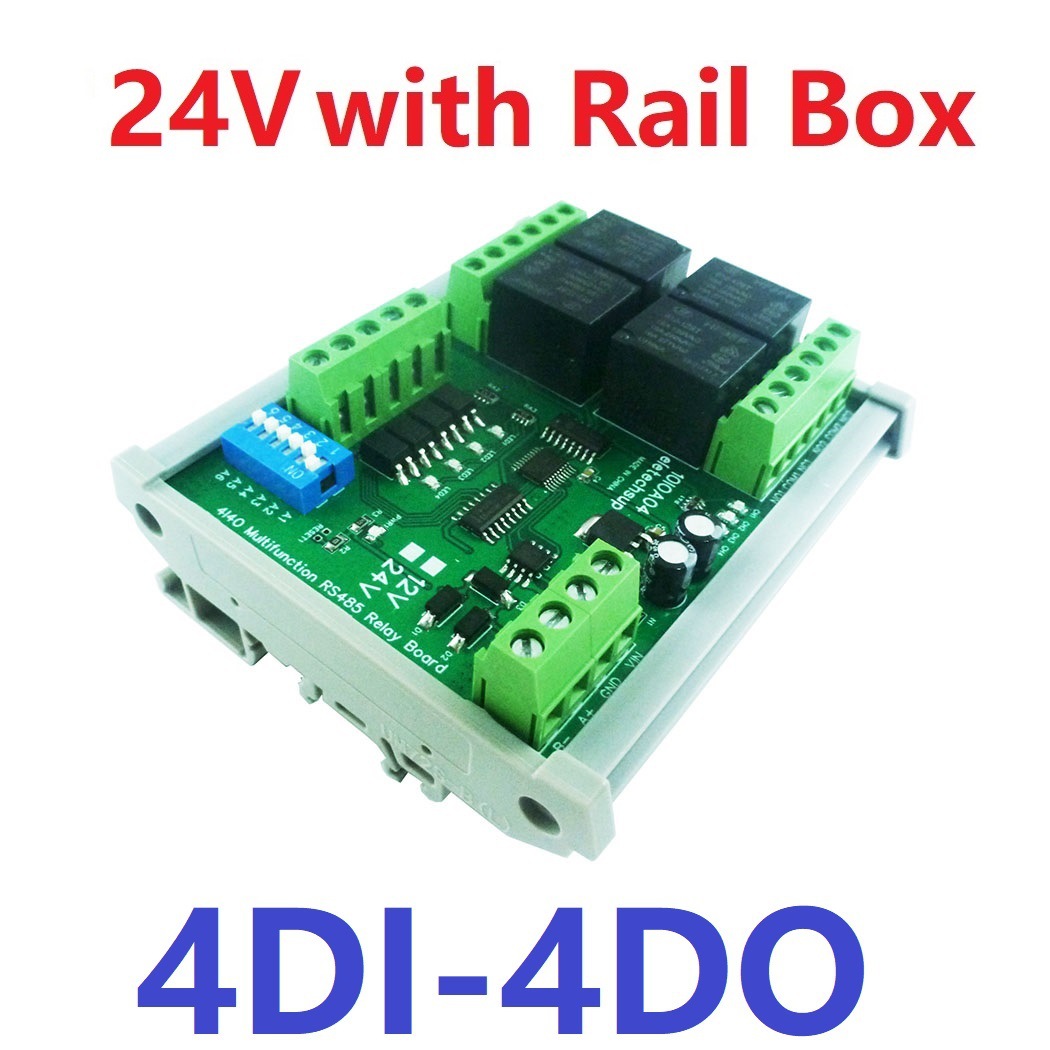

    사양 및 모델 4CH with Rail Box*10A*10IOA01_24V
