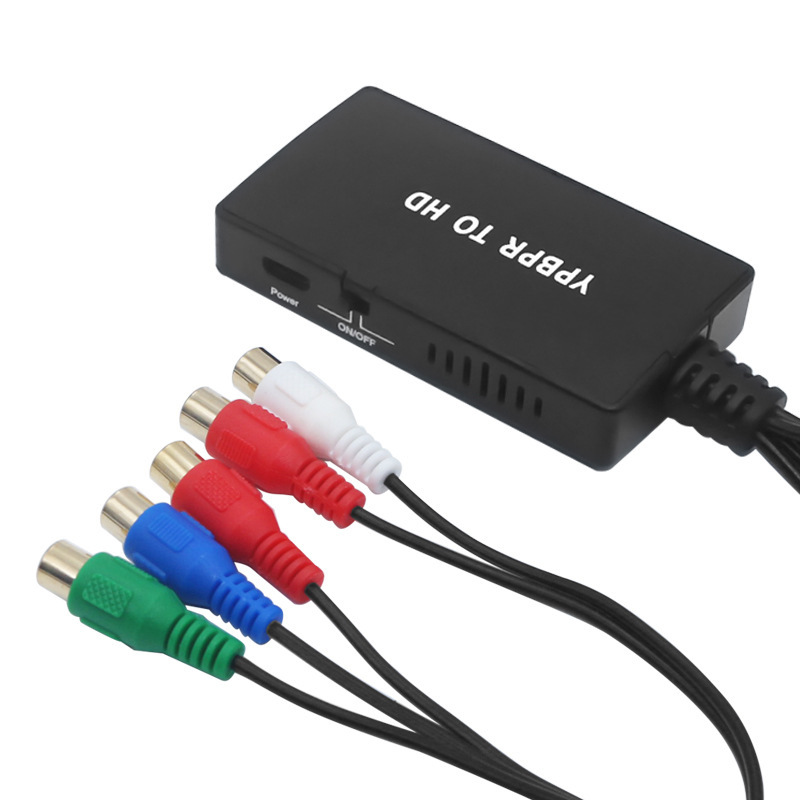

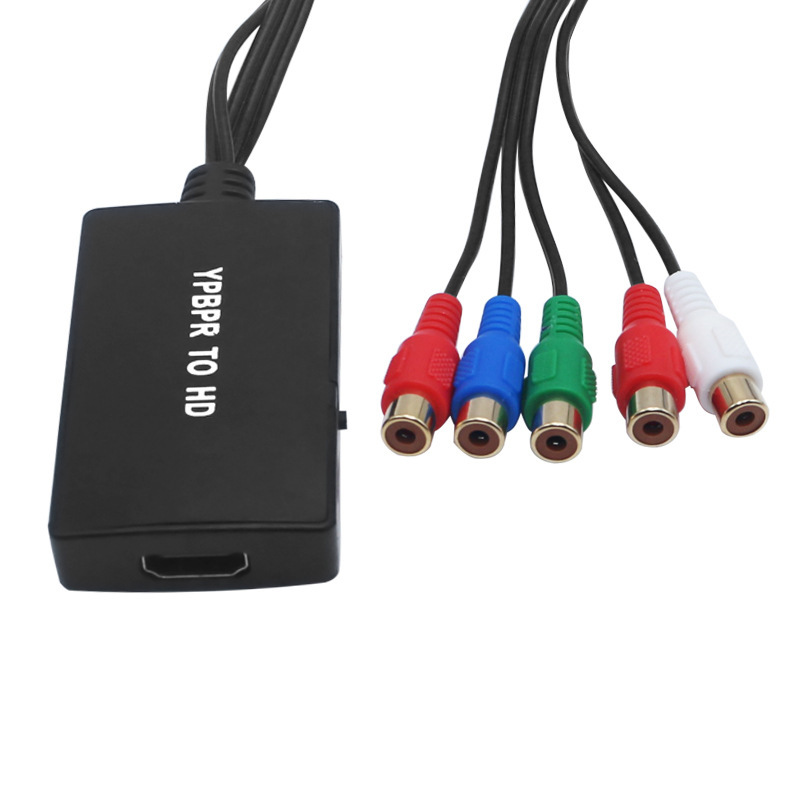

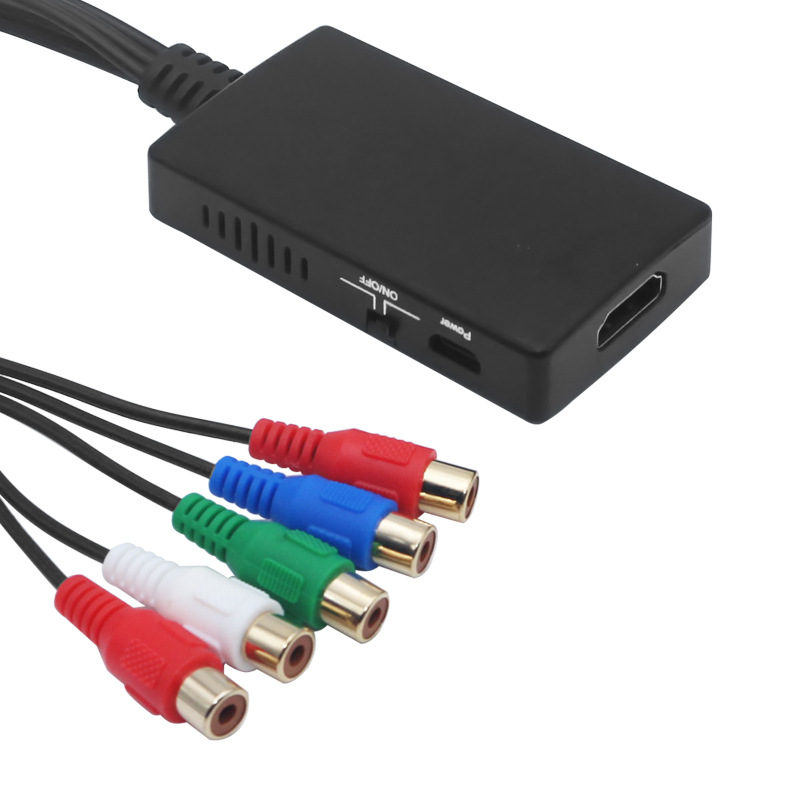

工厂新款私模爆款：长壳色差转HDMI带线款
高清色差分量（YPbPr）转HD高清视频转换器，是一款可以将YPbPr（色差）信号，AUDIO（L/R）立体声信号通过数字处理转换成高清HD音视频信号输出，采用同三维直通技术将清晰生动的画面栩栩如生地展现在您的面前，可以将YPbPr信号提升为1080P的逐行型号，图像更为清晰稳定。可以使只有YPbPr输出的设备，例如普通摄像机、PS2、XBOX、机顶盒、DVD、播放机等，连接至全高清（1080P）大屏幕电视机的HDMI通道，可以让你很轻松的在全高清电视机上欣赏高清影片、玩游戏。
Factory new private model explosion: long shell color difference to HD belt line
The high-definition color difference component (YPbPr) to HD high-definition video converter is a line by line model that can convert YPbPr (color difference) signal and audio (L / R) stereo signal into high-definition HD audio and video signal output through digital processing. It uses the same three-dimensional straight through technology to display clear and vivid pictures vividly in front of you, and can improve YPbPr signal to 1080p, The image is clearer and more stable. Devices with only YPbPr output, such as ordinary camera, PS2, Xbox, set-top box, DVD, player, etc., can be connected to the HD channel of Full HD (1080p) large screen TV, so that you can easily enjoy HD movies and play games on Full HD TV.

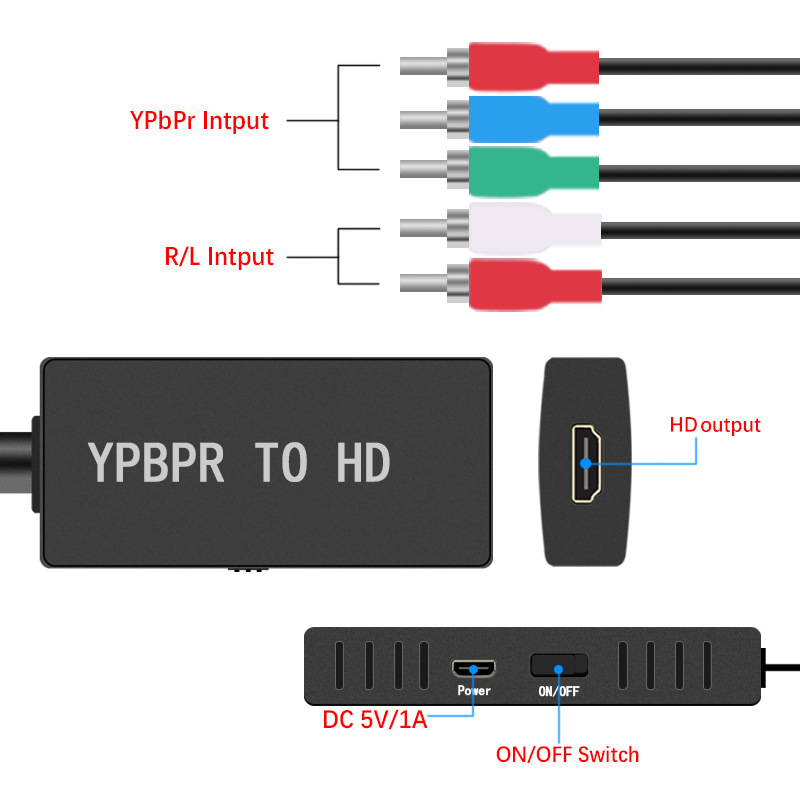

1、输入接口：YPbPr、AUDIO-IN

2、输出接口：HD

功能与特点：

1、将高清晰度色差分量信号通过模拟信号-数字信号的转换芯片，变为标准高清HD输出模式。

2、模拟stereo(R/L)信号无损转换成数字HD音频信号。

3、轻松地连接到HD高清接收设备

4、安装简单，操作简单。

5、产品尺寸：

色差分量YPbPr转HD转换器特性

1、YPbPr转HD转换器随插即用，无需安装任何软件，使用方便。

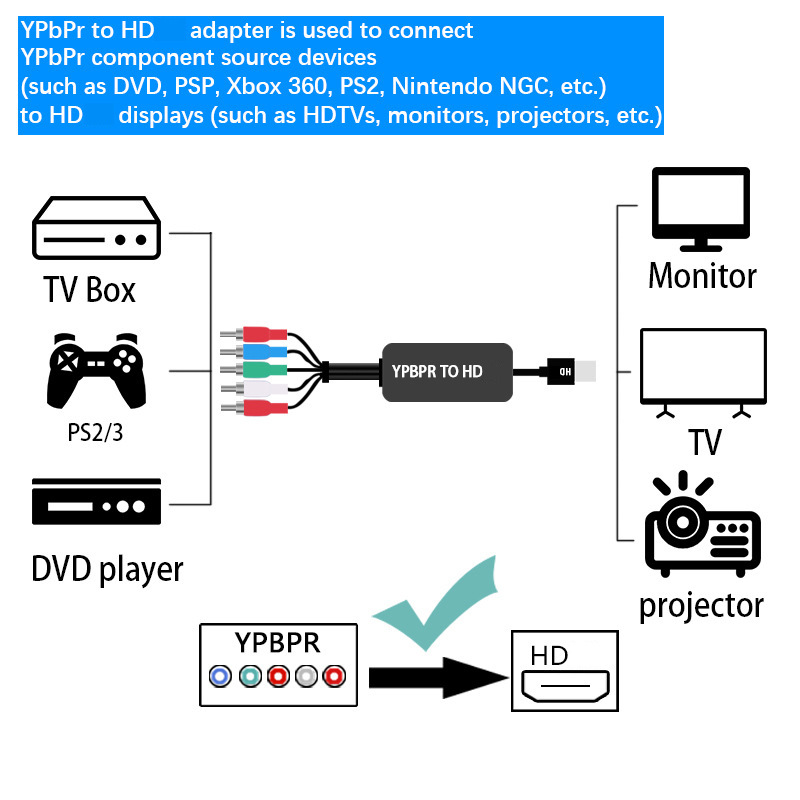

2、支持PS2、XBOX、机顶盒、DVD、播放器等

3、色差输入支持：567i、576@50、480@60、480@59、720@50、720@59、720@60、1080i@24、1080i@25、1080i@29、1080i@30、1080P@59、1080P@60等众多格式YPbPr信号输入

4、音频输入：支持一路立体声输入

5、HDMI输出:采用视频直通技术，直接把图像转换成高清HD输出。支持高达1080P分辨率，将清晰生动的画面栩栩如生的展现在您面前。内置音频转换功能同步视频HD输出，视听精彩呈现。

6、支持亮度、色度、对比度调节功能，可简单方便自由切换清晰度。

7、可以将前端送来的高速模拟信号编码成高清晰的HD信号输出，支持1080P/1.3版，符合HD1.3标准，兼容HDCP协议

注：色差转HD转换器采用视频直通技术，部分PS2游戏输出480i，有部分电视HD无法兼容此分辨率造成无法显示

1. Input interface: YPbPr, audio-in
2. Output interface: HD
Functions and features:
1. The high-definition color difference component signal is changed into standard HD HD output mode through the analog signal digital signal conversion chip.
2. Analog stereo (R / L) signals are losslessly converted into digital HD audio signals.
3. Easily connect to HD HD receiving devices
4. Simple installation and operation.
5. Product size:
Characteristics of color difference component YPbPr to HD converter
1. YPbPr to HD converter plug and play, no need to install any software, easy to use.
2. Support PS2, Xbox, set-top box, DVD, player, etc
3. Color difference input support: 567i 576@50 、 480@60 、 480@59 、 720@50 、 720@59 、 720@60 、 1080i@24 、 1080i@25 、 1080i@29 、 1080i@30 、 1080P@59 、 1080P@60 And many other formats YPbPr signal input
4. Audio input: support one-way stereo input
5. HD output: directly convert the image into high-definition HD output by using video through technology. It supports up to 1080p resolution and vividly displays the clear and vivid picture in front of you. Built in audio conversion function, synchronous video HD output, audio-visual wonderful presentation.
6. Support brightness, chroma and contrast adjustment functions, and can easily and freely switch definition.
7. It can encode the high-speed analog signal sent by the front end into high-definition HDMI signal output. It supports 1080p / 1.3 at most and complies with hdmi1 3 standard, compatible with HDCP protocol
Note: the color difference to HDMI converter adopts direct video technology. Some PS2 games output 480i. Some TV HD is not compatible with this resolution, resulting in failure to display

该产品采用3D补偿专利技术将清晰生动的画面栩栩如生的展现在你面前，将红、绿、蓝三原色完美还原

纸盒尺寸：18.2x8.6x2.5cm
主机尺寸：7x4x1.3cm
色差线长:43cm/USB线长:97cm

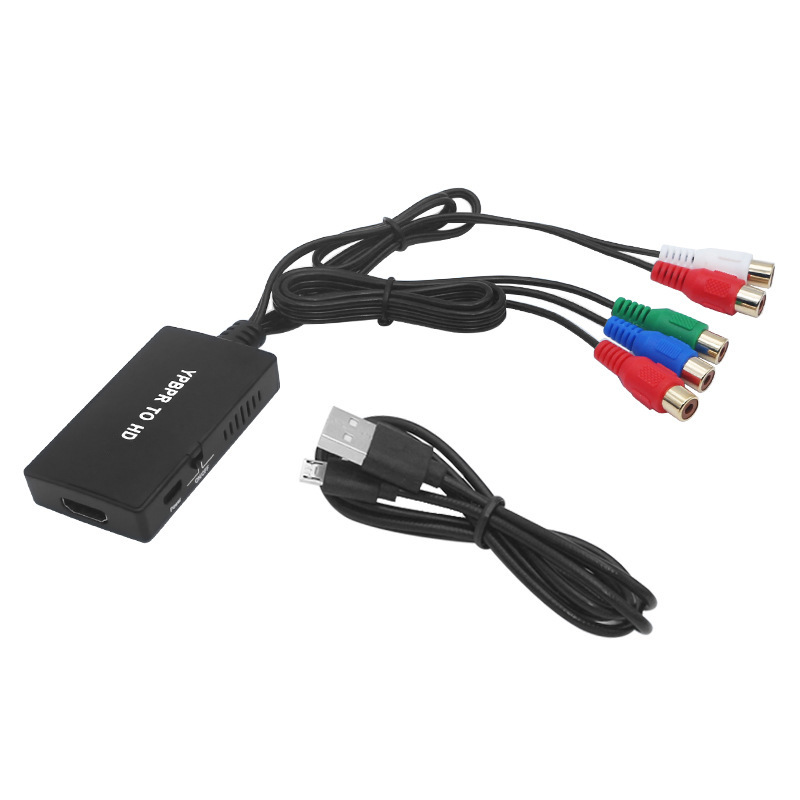

出货配件：主机+USB供电线+说明书

The product adopts 3D compensation patented technology to vividly display the clear and vivid picture in front of you, and perfectly restore the three primary colors of red, green and blue.

Carton size: 18.2x8 6x2. 5cm
Host size: 7x4x1 3cm
N64 cable length: 52cm / USB cable length: 97cm
Shipping accessories: host + USB power cord + Manual
