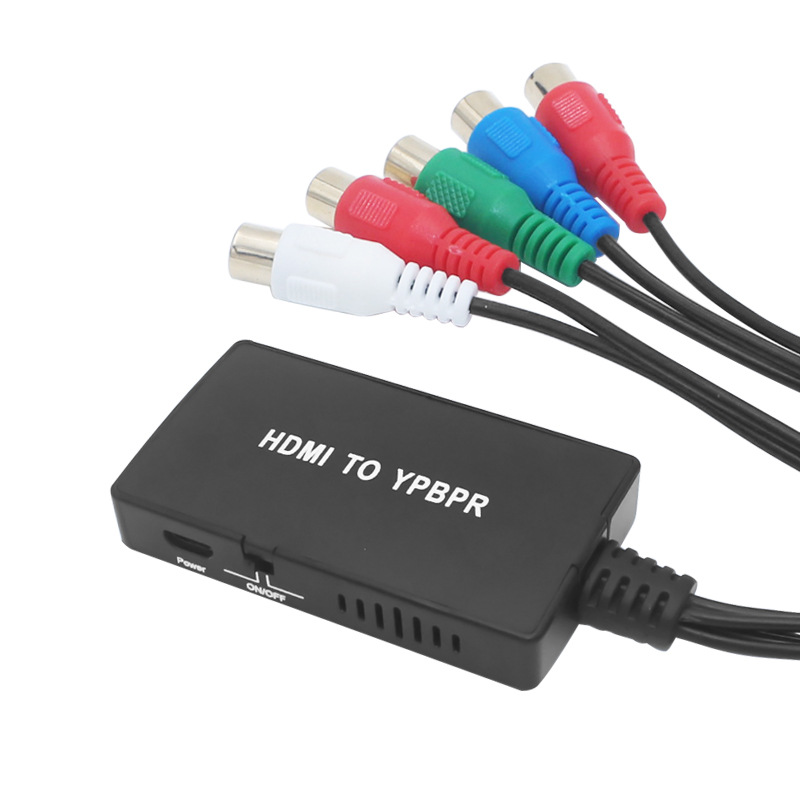

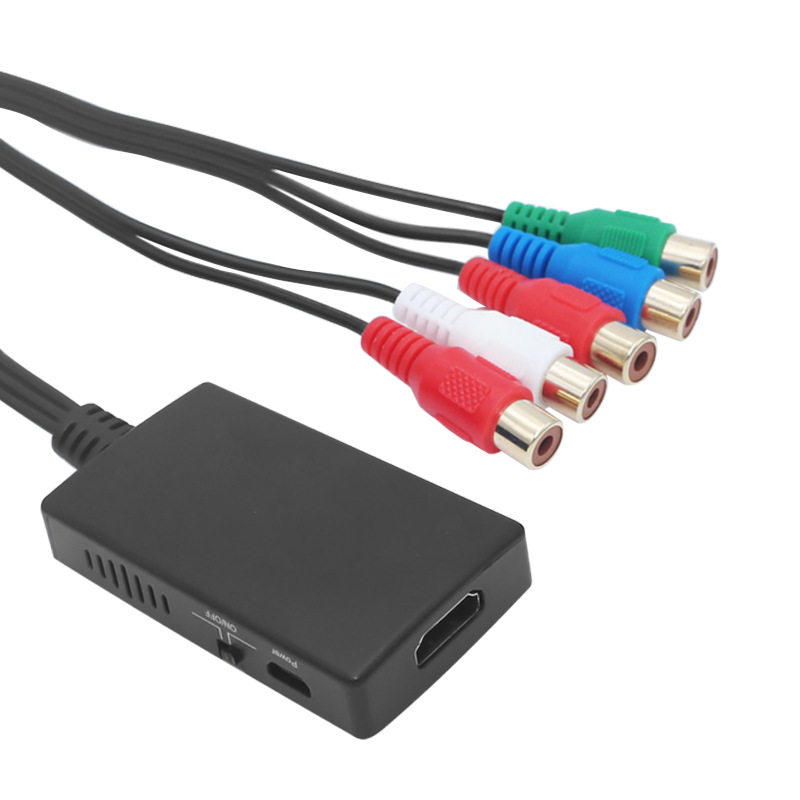

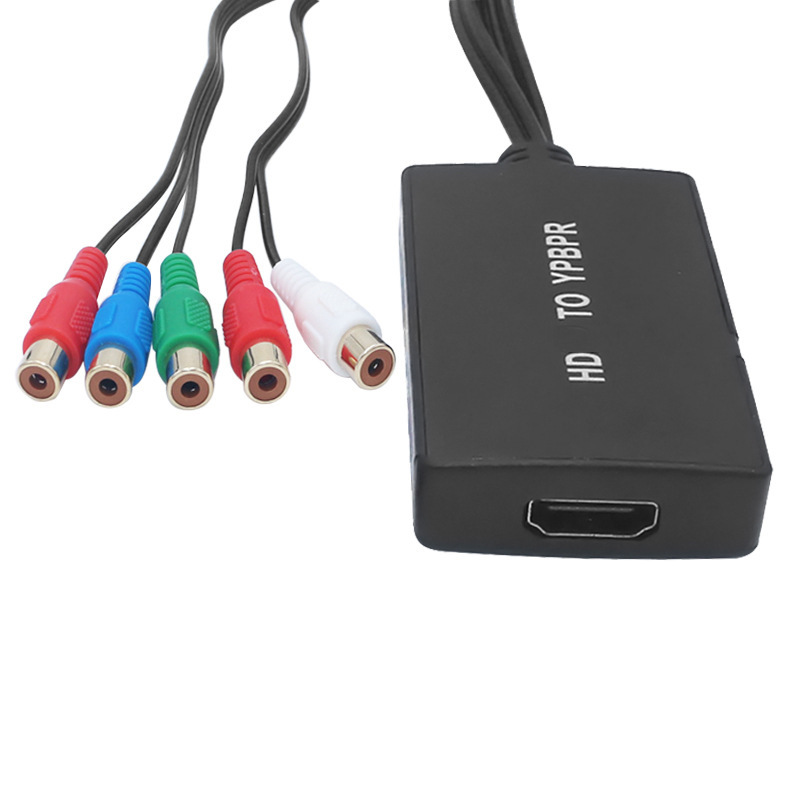

工厂直销私模爆款，HDMI到YPBPR高清视频转换器
工作原理：
HDMI至YPbPr高清视频转换器将HDMI信号转换为YPbPr信号，同时输出左声道和右声道。
产品手册：
基本参数：
功率：5V1A
输入：HDMI信号，带宽165M，HDMI1。3兼容
输出：YPBPY信号输出，分辨率与输入HDMI信号相同，立体声信号输出
YPBPR信号阻抗匹配：75Ω
支持HDMI输入格式如下：
480P（60Hz）、576P（50Hz）、720P（50/60Hz）、1080i（50/60Hz）
支持YPbPr输出格式如下：
480P（60Hz）、576P（50Hz）、720P（50/60Hz）、1080i（50/60Hz）
注：YPbPr格式对应于HDMI输入格式

HDMI to YPbPr HD Video Converter
working principle:
HDMI to YPbPr HD video converter converts HDMI signal into YPbPr signal and outputs left channel and right channel at the same time.
Product manual:
Basic parameters:
Power: 5v1a
Input: HDMI signal, bandwidth 165m, hdmi1. 3 compatible
Output: ypbpy signal output, the resolution is the same as the input HDMI signal, and stereo signal output
YPbPr signal impedance matching: 75 Ω
HDMI input formats supported are as follows:
480P（60Hz）、576P（50Hz）、720P（50/60Hz）、1080i（50/60Hz）
The supported YPbPr output formats are as follows:
480P（60Hz）、576P（50Hz）、720P（50/60Hz）、1080i（50/60Hz）
Note: YPbPr format corresponds to HDMI input format

HDMI TO YPBPR的转换器可以把一个HDMI信号源连接到单个的YPBPR显示终端上。它可以很容易的将一路HDMI信号源转换成一路一路色差（YPBPR）输出，然后在支持色差输出的显示设备（如电视、投影仪）上播放。
产品特点
一路HDMI信号输入，转换成一路色差信号输出

The HDMI to YPbPr converter can connect an HDMI signal source to a single YPbPr display terminal. It can easily convert one channel of HDMI signal source into one channel of color difference (YPbPr) output, and then play it on display devices (such as TV and projector) supporting color difference output.
Product features

One channel of HDMI signal input is converted into one channel of color difference signal output

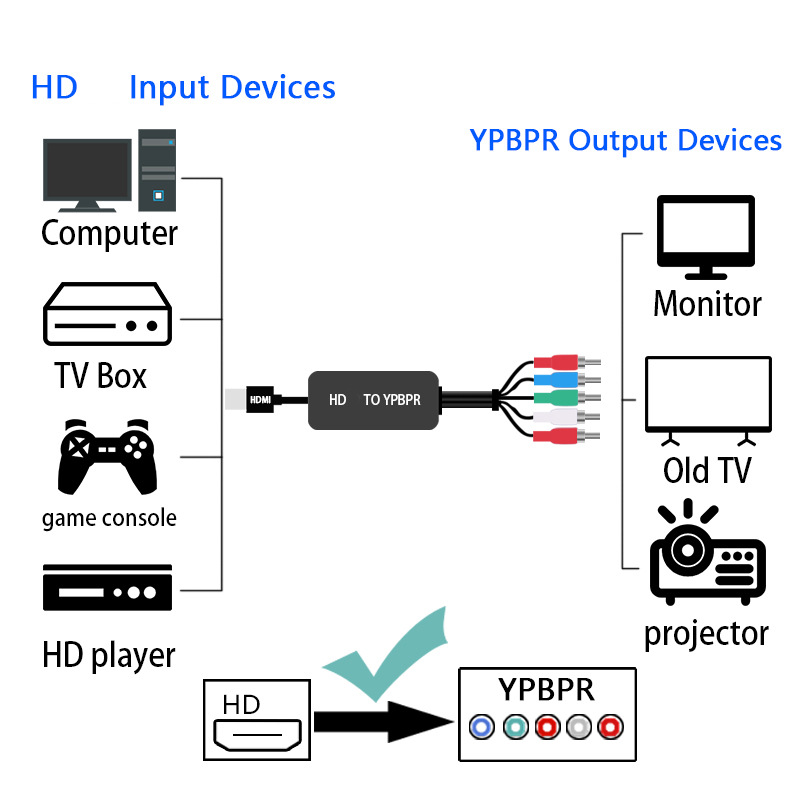

广泛应用于各种高清视频工程项目中，HDMI转YPbPr高清视频转换器可将全高清的HDMI信号转换成高清格式的YPbPr信号和立体声音频信号输出。可以是只接受YPbPr信号的设备，如LCDTV电视机、CRT电视机、三枪投影机、背投电视机、高清录放机等，连接至全数字高清HDMI设备，可以让您轻松在全数字高清设备上欣赏高清影片、玩游戏。

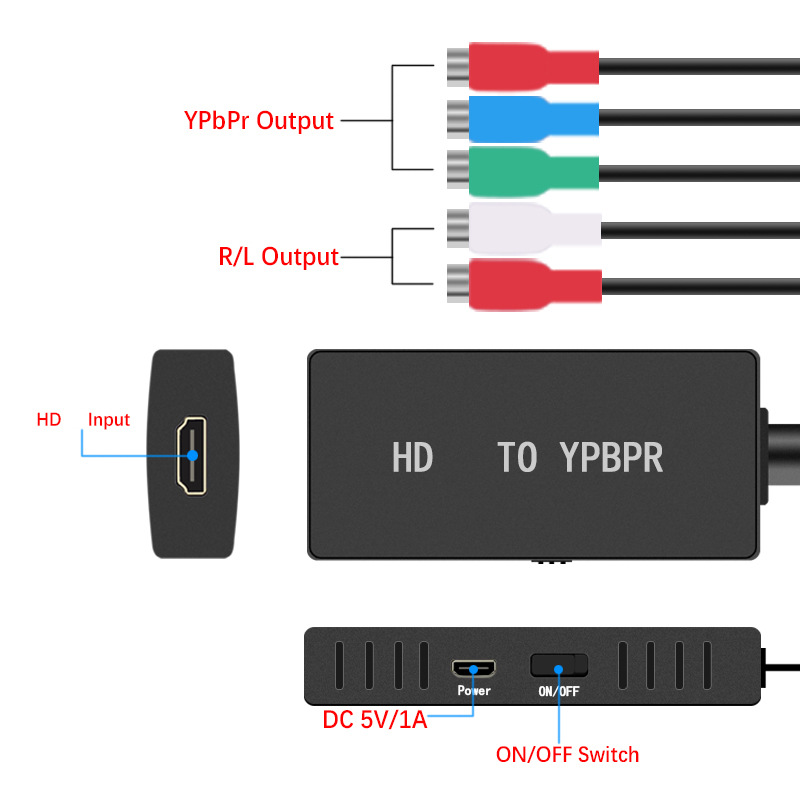

1、获取信号：将HDMI接口通过HDMI线连接到信号源，如电脑、DVD。
2、输出信号：将Pb/Pr/Y通过色差分量视频线（红绿蓝线）连接到电视、投影仪等；通过R/L接口连接音频线到电视、音像、功放。
3、USB连接电源：将USB供电线插入到DC5V1A电源头，开始为设备供电。

Widely used in various HD video engineering projects, HDMI to YPbPr HD video converter can convert Full HD HDMI signal into YPbPr signal in HD format and stereo audio signal for output. It can be a device that only accepts YPbPr signals, such as LCDTV TV, CRT TV, three gun projector, rear projection TV, HD recorder, etc. connected to the all digital HD HDMI device, you can easily enjoy HD movies and play games on the all digital HD device.
1. Get signal: connect the HDMI interface to the signal source through the HDMI cable, such as computer and DVD.
2. Output signal: connect Pb / PR / y to TV and projector through color difference component video line (red, green and blue line); Connect the audio cable to TV, audio-visual and power amplifier through R / L interface.
3. USB connection power supply: insert the USB power supply cable into the dc5v1a power head to start power supply for the equipment.

HDMI 转换器电缆包装清单:1 x RGB 转 HDMI 转换器;1 x 组件电缆;1 x USB 电源线;1 x 用户手册(不一定支持中文)。
【母头元件到 HDMI 电缆转换器】这款 YPbPr 转 HDMI 转换器可将 YPbPr 视频和模拟 R/L 音频信号转换成 HDMI 信号。 它用于将旧游戏控制台与公组件输出(如 PS2、Wii、NGC、Xbox..等)连接到 HDMI 显示器。 如果您与带有母头部件的 DVD/机顶盒一起使用,请购买我们的公头组件到 HDMI 转换器。
【全高清1080P】此组件至HDMI转换器的分辨率支持1920 x 1080P。 注意:分辨率直通转换器,无缩放。 它纯粹用于视频格式之间的转换，但不能转换输入/输出视频分辨率。
【先进的信号处理】这款分量 HDMI 转换器提供先进的信号处理,具有高精确度,颜色,分辨率和细节;使视频栩栩如生,逼真的高清视觉效果。
【易于使用和操作】无需设置和软件。 即插即用。

HDMI converter cable packing list: 1 x RGB to HDMI converter; 1 x component cable; 1 x USB power cable; 1 x user manual (not necessarily Chinese).
[female component to HDMI cable converter] this YPbPr to HDMI converter can convert YPbPr video and analog R / L audio signals into HDMI signals. It is used to connect the old game console and public component outputs (such as PS2, Wii, NGC, Xbox, etc.) to the HDMI display. If you are using with a DVD / set-top box with a female part, please purchase our male component to HDMI converter.
[Full Hd 1080p] the maximum resolution from this component to HDMI converter supports 1920 x 1080p. Note: resolution pass through converter, no scaling. It is purely used for the conversion between video formats, but it cannot convert the input / output video resolution.
[advanced signal processing] this component HDMI converter provides advanced signal processing with high accuracy, color, resolution and detail; Make the video lifelike and the most realistic HD visual effect.
[easy to use and operate] no setup and software required. Plug and play.
