Model No :AS-D3

With ALC AGC Function Can control gain automatically.Avoid base station interference

(Band 3) DCS1800MHz -- Uplink frequency: 1710-1785MHz/Downlink frequency : 1805-1880MHz

Network support : DCS 2G/4G

Gain :70±2dB

Power Supply :AC110V～220V;DC+5V/2A.

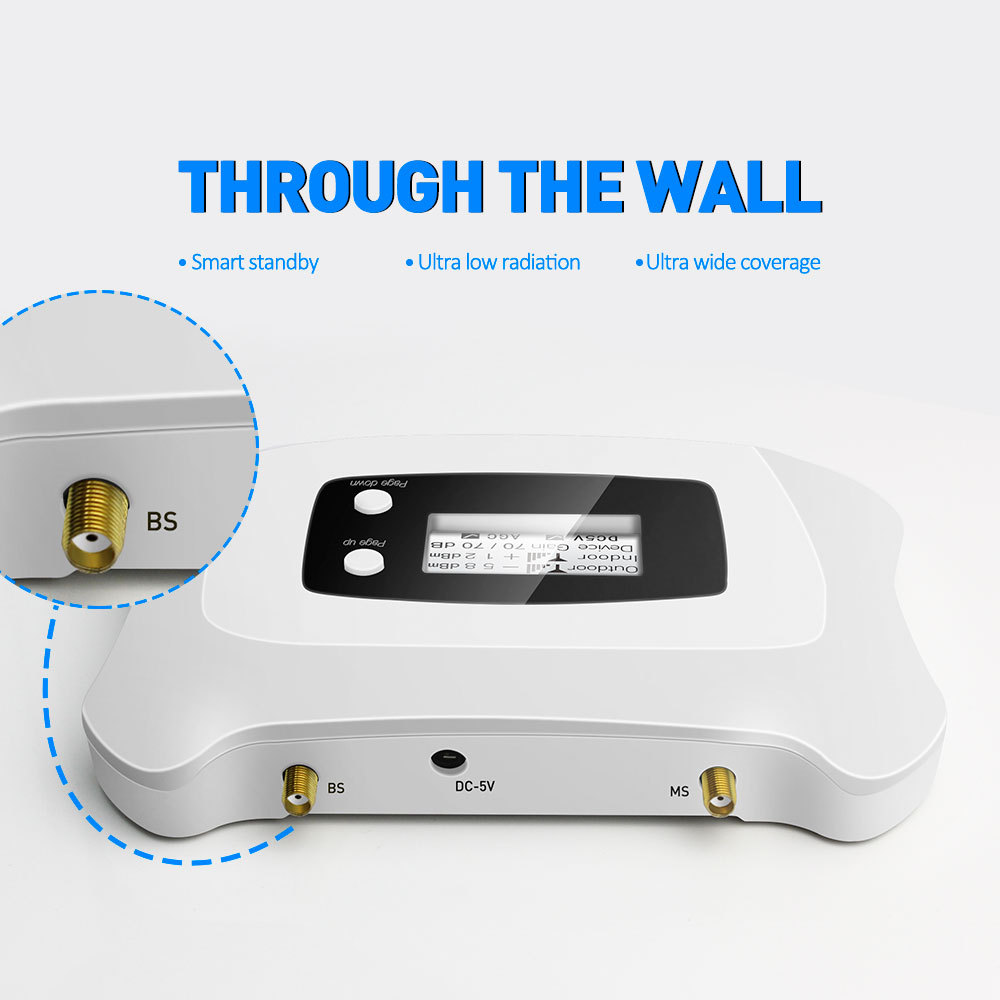

Connector Type: SMA-female connector

Selling Point

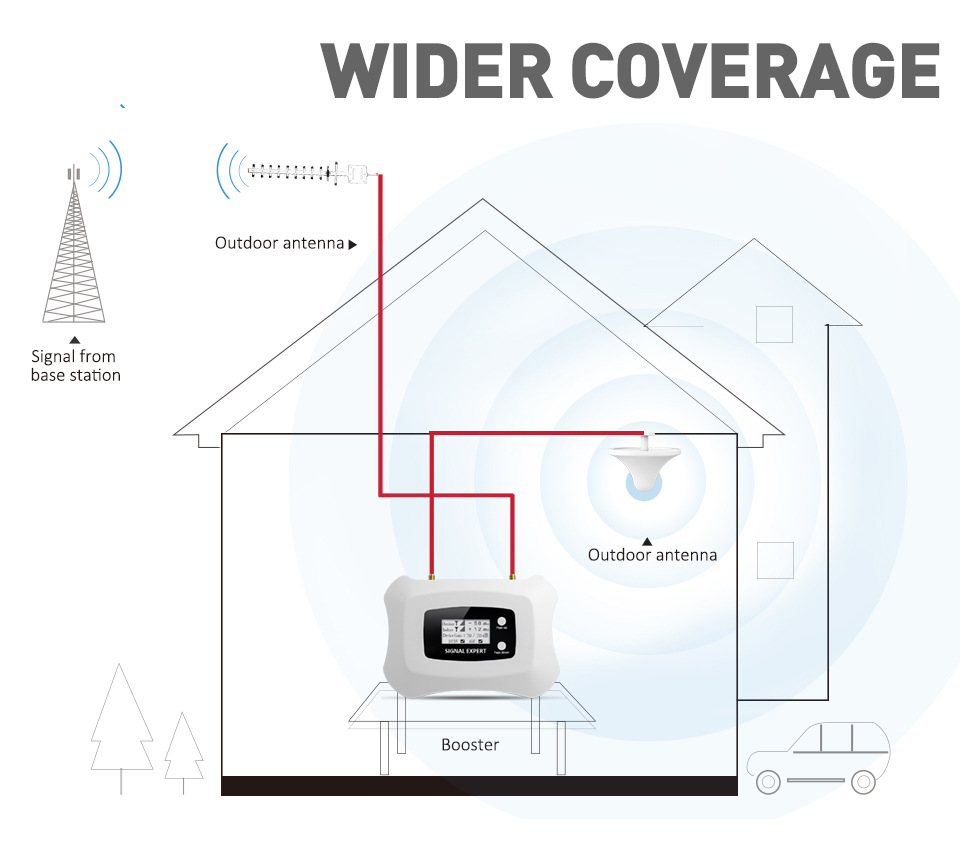

1,Intelligent to guide the installation with LCD.

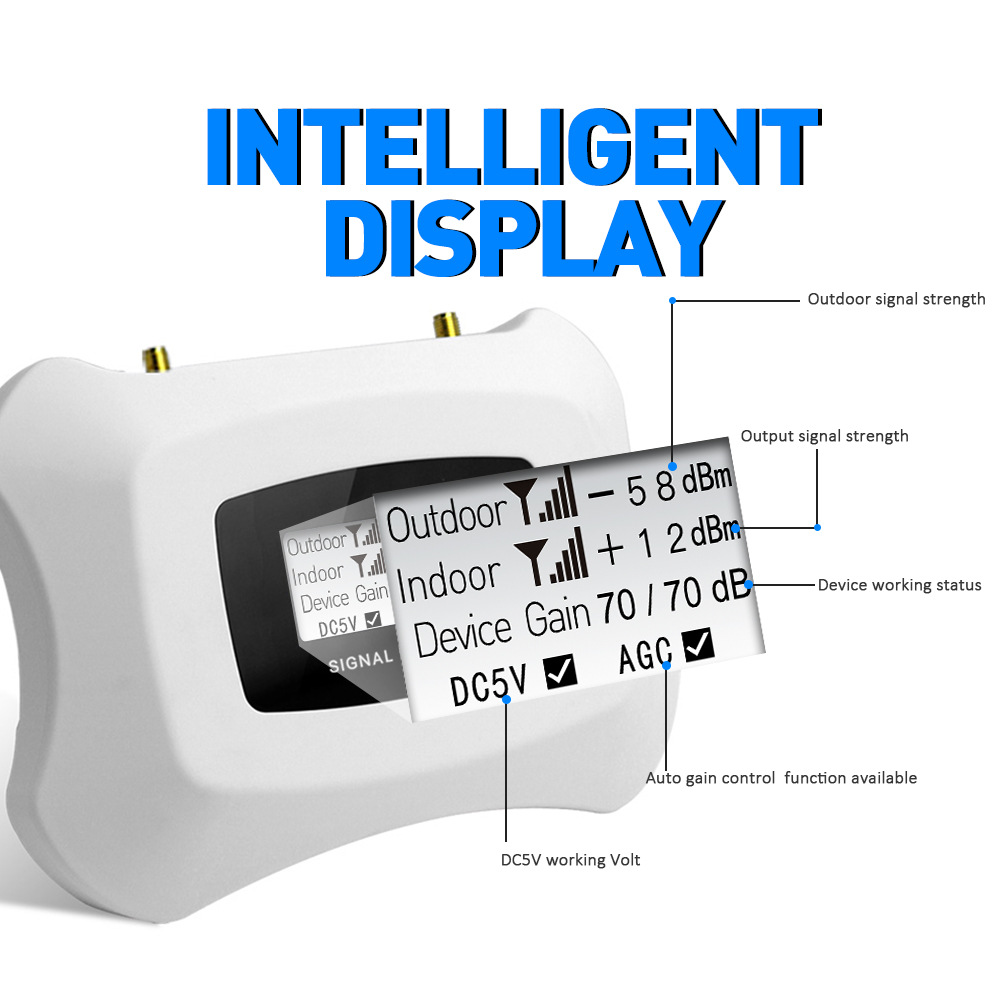

2,Real time display the signal strength.

3,Automatic dormancy when no user make the calling.

4,Automatic alarm when installation mistake and provide the according solution.

5,Automatic adjust the system gain to avoid the repeater self-excitation.

6,initiative reminding when the device was damaged.
