  • 상품 상세설명



    未命名_副本_副本_副本800

    本店快递默认发中通,如需更改物流服务请及时联系客服,谢谢



    此款为跨境货源专供产品,支持产品定制化,贴牌生产,有需要请咨询客服!

    undefined



     产品描述

     AWG美规铜鼻子接线端子环形圈状铜管端子蓄电池接线端子



    产品重量:285g

    盒子尺寸:14*10*2CM



    材料:T2紫铜

    产品规格数量说明:



    10PCS X 6AWG * 5/16";

    10PCS X 6AWG * 1/4"



    10PCS X 8AWG * 5/16";

    10PCS X 8AWG * 1/4"

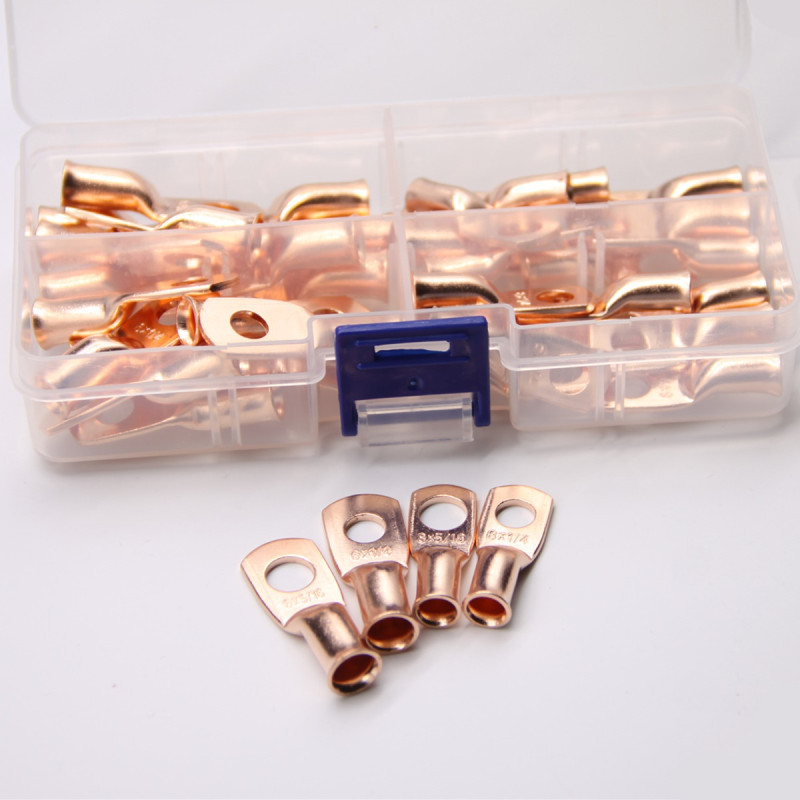

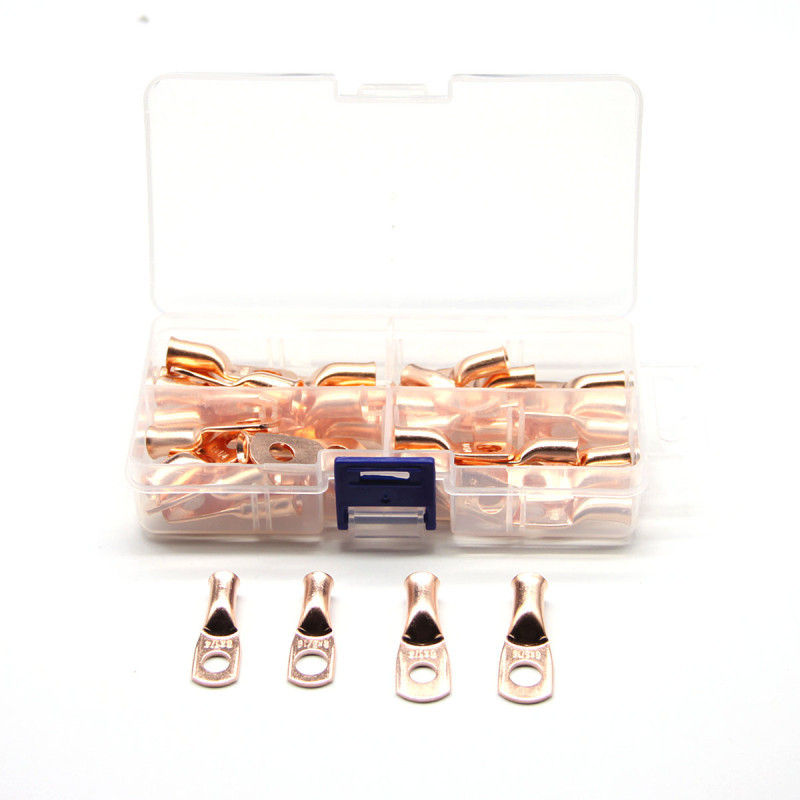

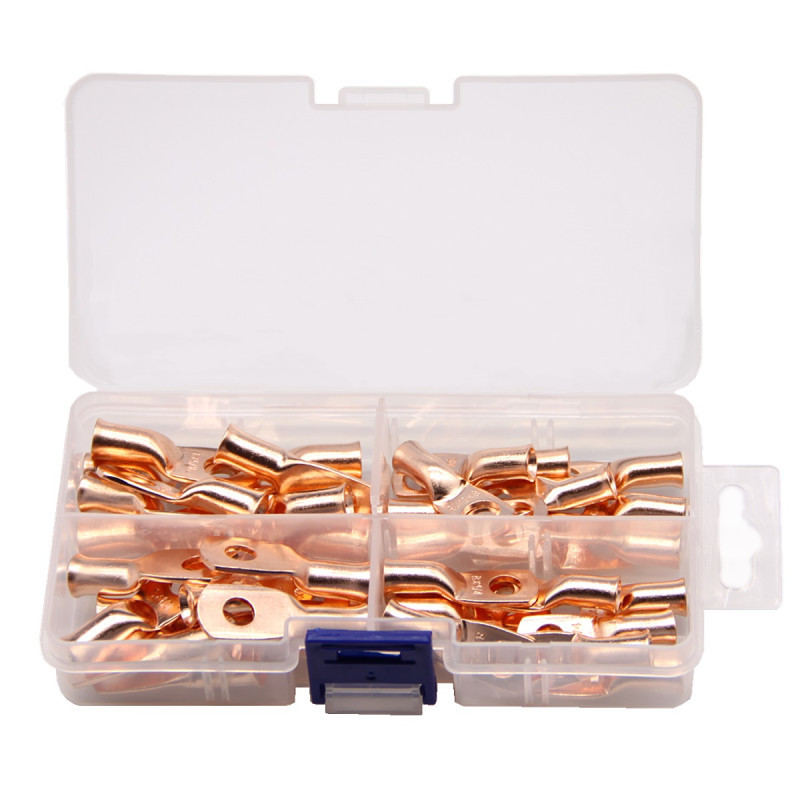

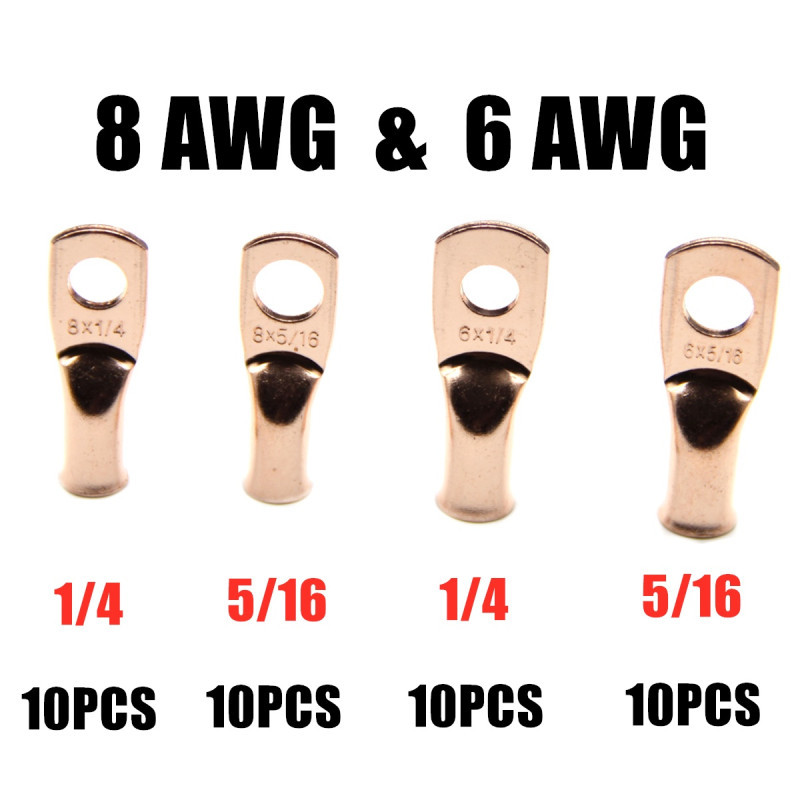

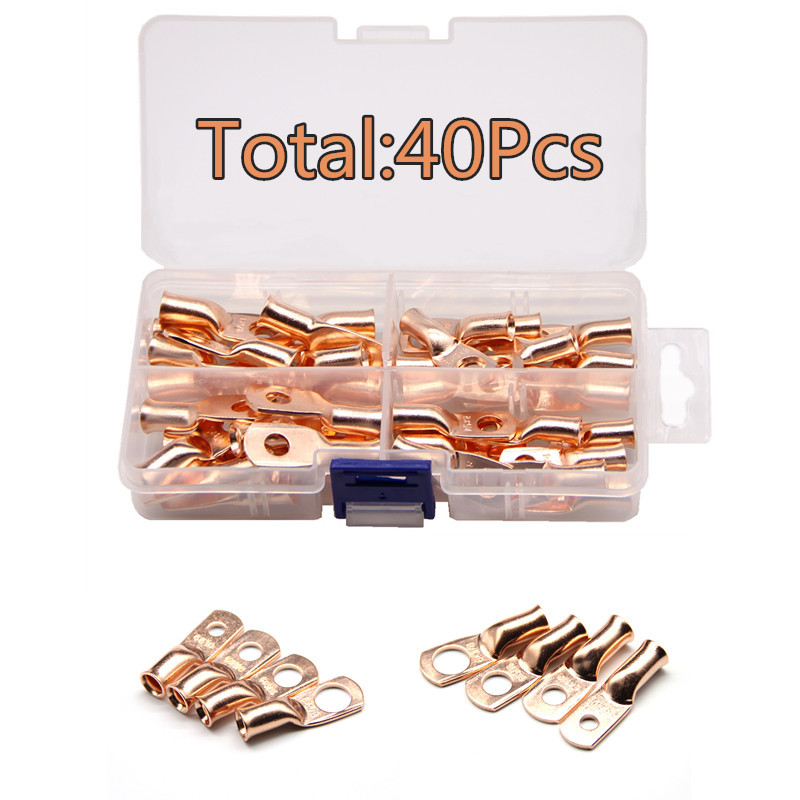

    Package Included:(Total:40pcs)
    10PCS:AWG 8*5/16
    10PCS:AWG 8*1/4
    10PCS:AWG 6*5/16
    10PCS:AWG 6*1/4

    Product features:
    -Fully annealed electrolytic copper construction provides excellent conductivity.100% tin plated copper resists corrosion from salt and moisture
    -Heavy Duty Construction for Enhanced High Temperature Durability
    -Seamless barrel design alloWA for maximum strength WAen crimped
    -Closed end design seals out moisture so cables stay dry and corrosion free
    -Wire gauge identification marked on lug barrels. Widely used in household appliances, automobiles, electrical industry, mechanical equipment, power distribution cabinets, etc



    Product description
    -Heavy duty Electrical Lugs are great for inverters, Battery and automotive applications.
    -These lugs can be connected to a cable such as a battery cable by simply stripping insulation from the end of your cable,
    -placing the lug over the exposed cable and crimping the barrel tightly and securely to the end of the cable.
    -They can also be soldered on if you prefer.
    -These lugs are made of tin plated copper WAich offers excellent conductivity for any application you my have.
    -Copper lugs feature a burr-free appearance for an aesthetically pleasing finish and seamless performance.



    AWG 外径 截面积 电阻值
    公制mm 英制inch (mm2) (W/km)
    4/0 11.68 0.46 107.22 0.17
    3/0 10.4 0.4096 85.01 0.21
    2/0 9.27 0.3648 67.43 0.26
    1/0 8.25 0.3249 53.49 0.33
    1 7.35 0.2893 42.41 0.42
    2 6.54 0.2576 33.62 0.53
    3 5.83 0.2294 26.67 0.66
    4 5.19 0.2043 21.15 0.84
    5 4.62 0.1819 16.77 1.06
    6 4.11 0.162 13.3 1.33
    7 3.67 0.1443 10.55 1.68
    8 3.26 0.1285 8.37 2.11



    undefined

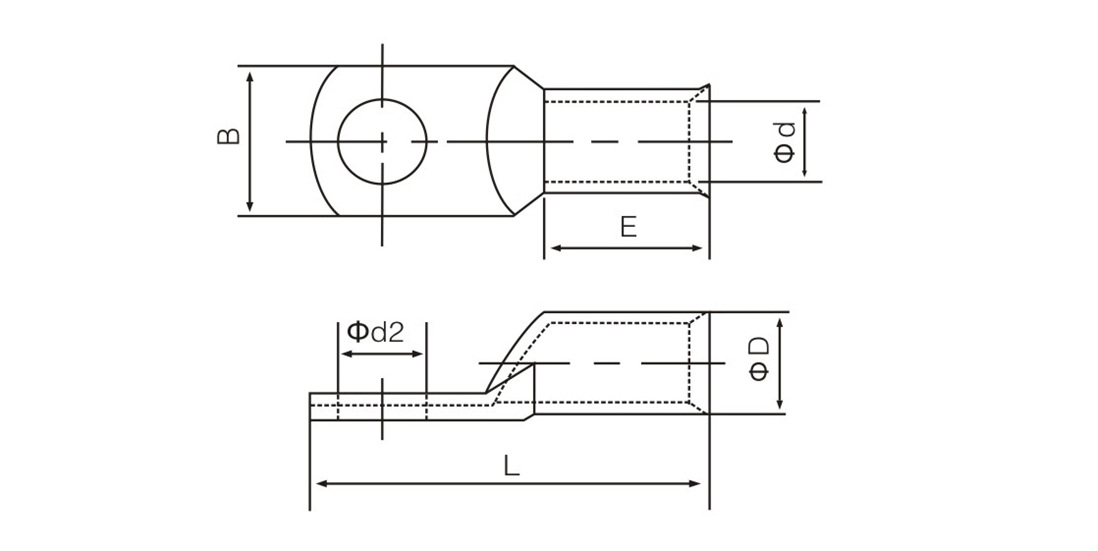

    型号 尺寸(mm)
    Φd2 B L ΦD Φd E
    8AWG #10 5.1 11.8 33.3 7.1 4.8 13
    8AWG *1/4 6.8 11.8 33.3
    8AWG *5/16 8.3 11.8 33.3
    8AWG *3/8 10.4 14.5 33.3
    8AWG *1/2 13.1 17 33.3
    6AWG #10 5.1 11.8 37.3 8.1 5.9 15
    6AWG *1/4 6.8 13.7 37.3
    6AWG *5/16 8.3 13.7 37.3
    6AWG *3/8 10.4 13.7 37.3
    6AWG *1/2 13.1 17 37.3
    4AWG *1/4 6.8 13.8 38.9 9.5 7.3 15.5
    4AWG *5/16 8.3 13.8 38.9
    4AWG *3/8 10.4 14.5 38.9
    4AWG *1/2 13.1 17 38.9 15
    2AWG *1/4 6.8 16.5 41.1 11.1 8.5 16
    2AWG *5/16 8.3 16.5 41.1
    2AWG *3/8 10.4 16.5 41.1
    2AWG *1/2 13.1 17 41.1 15.3
    1AWG *1/4 6.8 16.4 43.6 11.7 9.1 16
    1AWG *5/16 8.3 16.4 43.6
    1AWG *3/8 10.4 17.1 43.6
    1AWG *1/2 13.1 19.1 43.6
    1/0AWG *1/4 6.8 18.4 46.8 13 10.4 19
    1/0AWG *5/16 8.3 18.4 46.8
    1/0AWG *3/8 10.4 18.4 46.8
    1/0AWG *1/2 13.1 21 46.8
    2/0AWG *1/4 6.8 21 52.4 14.2 11.7 22
    2/0AWG *5/16 8.3 21 52.4
    2/0AWG *3/8 10.4 21 52.4
    2/0AWG *1/2 13.1 21 52.4 21
    3/0AWG *1/4 6.8 23.1 55.9 15.7 13 22.5
    3/0AWG *5/16 8.3 23.1 55.9
    3/0AWG *3/8 10.4 23.1 55.9
    3/0AWG *1/2 13.1 23.1 55.9
    4/0*1/4 6.8 25.8 60.5 17.2 14.2 24
    4/0*5/16 8.3 25.8 60.5
    4/0*3/8 10.4 25.8 60.5
    4/0*1/2 13.1 25.8 60.5

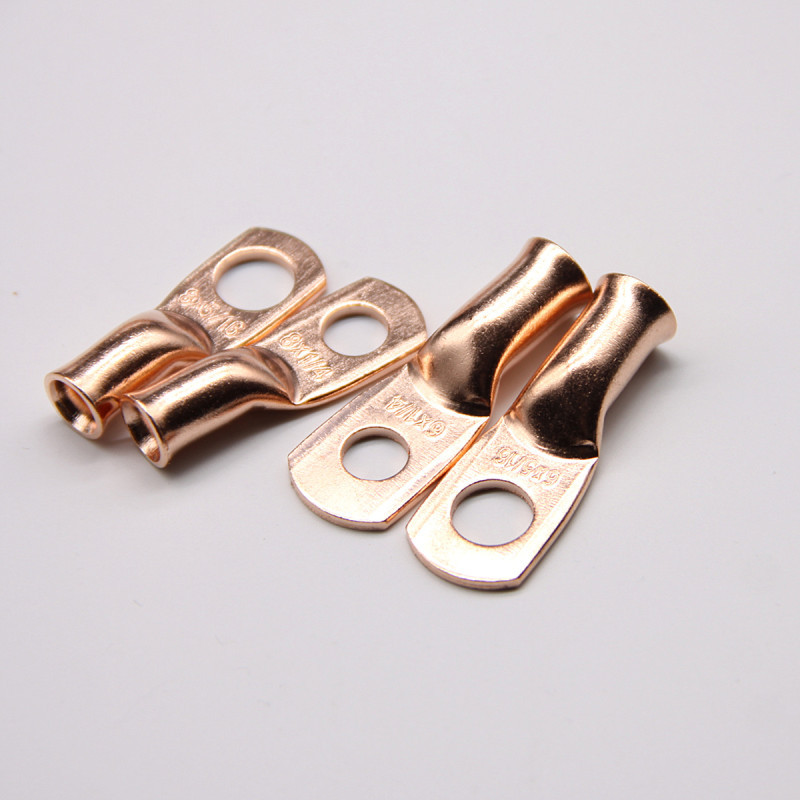

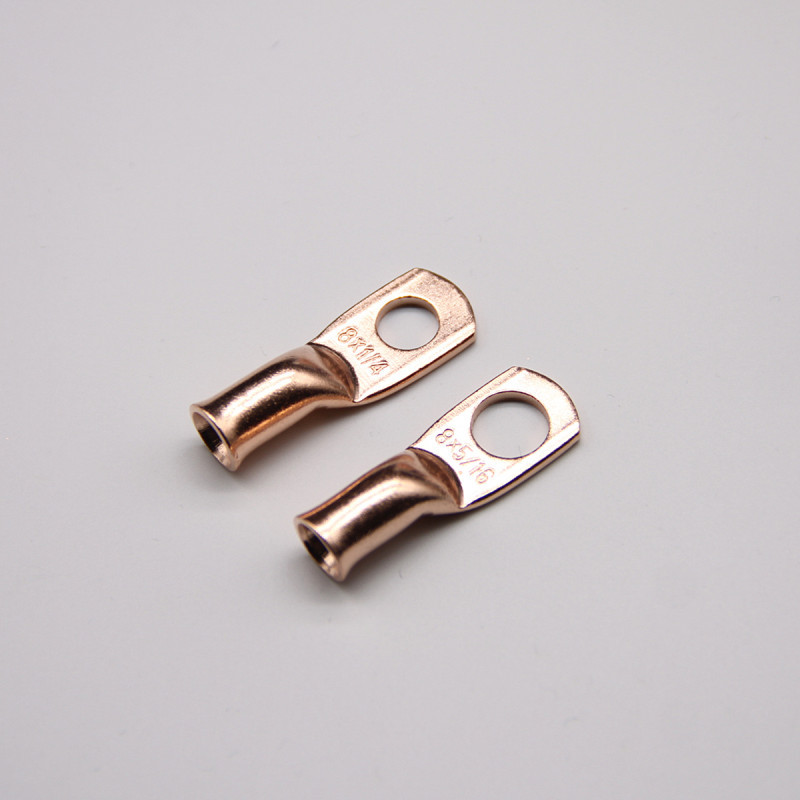

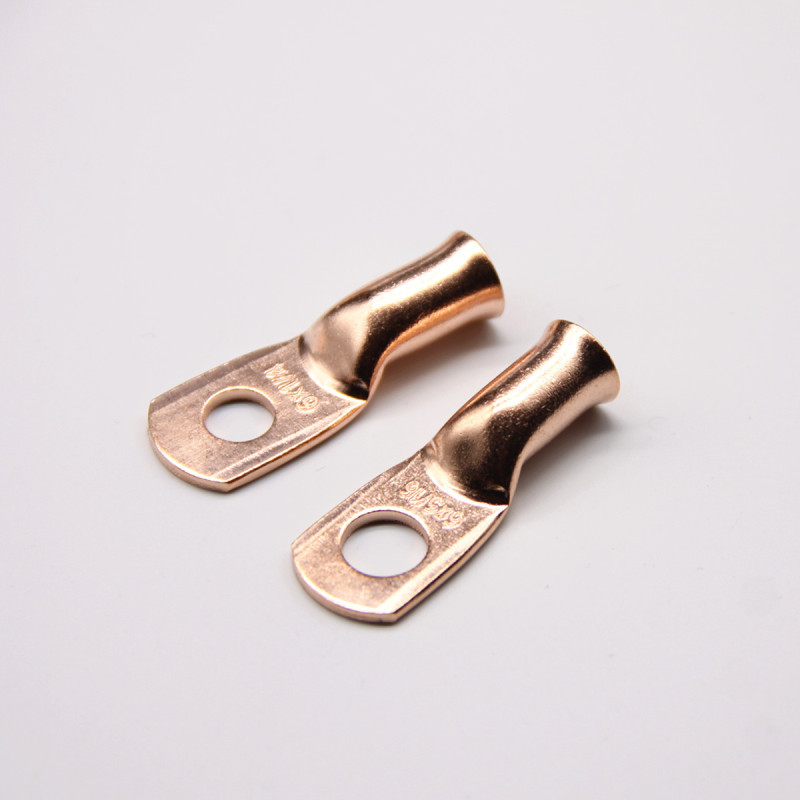

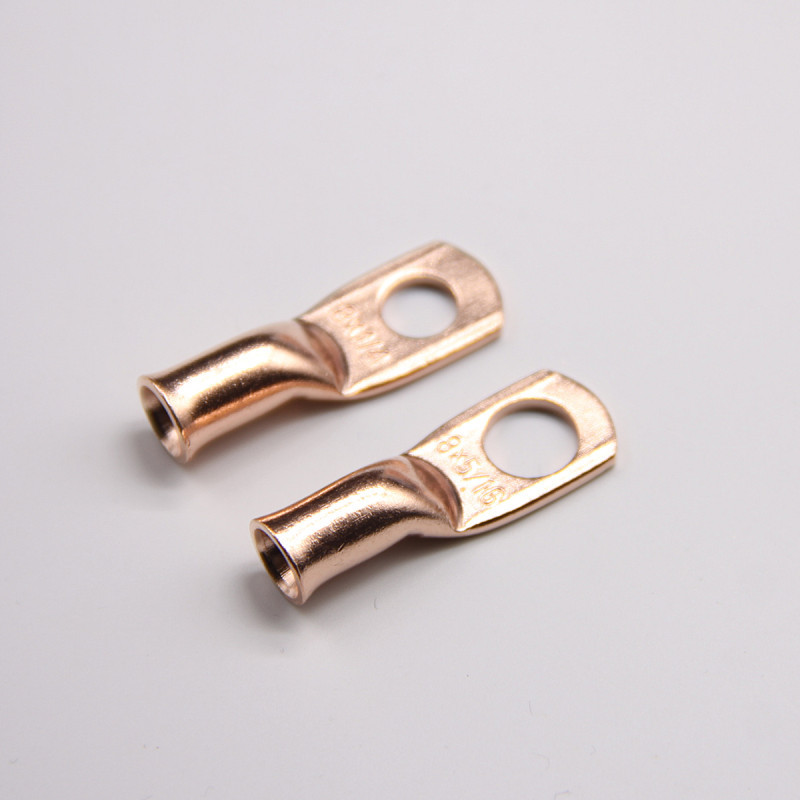

     产品图片

     undefined

    undefined

    undefined

    undefined

    undefined

    undefined

    undefined

    undefined

    undefined



    说明:产品的重量由人工称量的,可能会存在1%-3%的误差,请谅解。






    欢迎新老客户前来洽谈


    联 系  人 :陈晓玉 (销售经理)

    邮箱 :381368556@qq.com

    移动电话 :18025475648 (同VX)

    地      址 :中国 广东 广州 天河区 华观路1933号















    상품정보 제공고시

    브랜드 시안나
    모델 AWG
    코어 수 1
    최소 패키지 수 40
    응용 분야 전기 기사
    사양 SKU000207
    접점 재료 T2 적색 구리 (97% 이상의 전도도)
