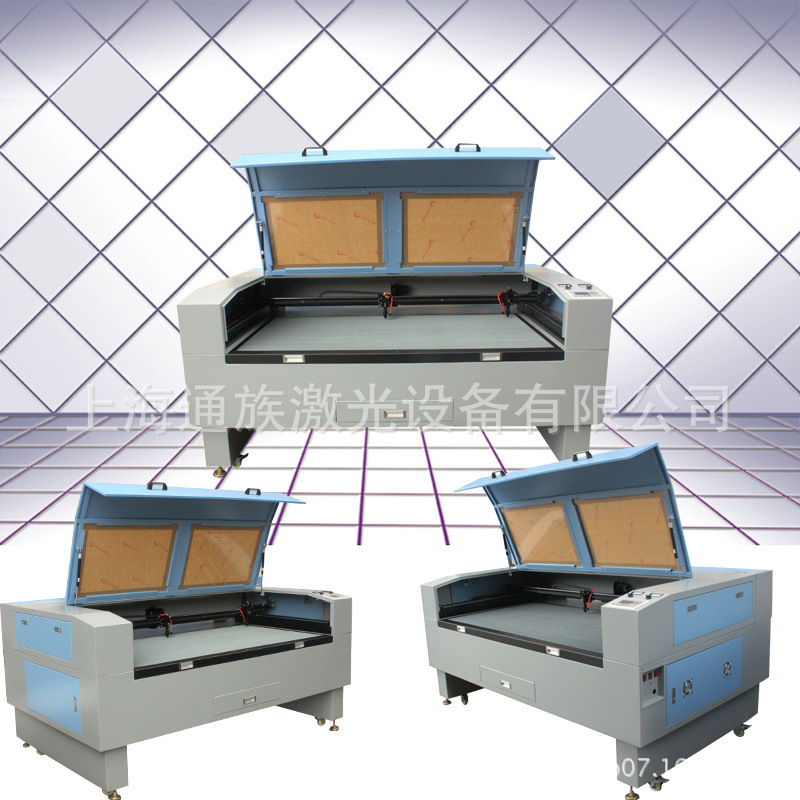

机型简介:(Means of indicators)
DSP工控系统,确保平稳、高效运行;激光能量实时可调,切割能量自动补偿功能;双向通讯,提高传送速度与准确性,自带文件存储功能,实现脱机运行,高速免维护导轨,防锈镀锌蜂窝平台;特别适用加工布料、皮革等柔性材料。
DSP industrial control system ensures smooth and efficient operation.The laser energy can be adjusted in real time and the cutting energy can be compensated automatically.Two-way communication, improve transmission speed and accuracy, with file storage function, realize offline operation, high-speed maintenance-free guide rail, anti-rust galvanized honeycomb platform;Especially suitable for processing flexible materials such as cloth and leather.
技术参数:(Technical parameters)
激光类型 CO2激光器/射频管激光器 激光功率 80W/100W/130W/150W(可根据客户要求定制) 雕刻速度 0-800mm/s 切割速度 0-600mm/s 运动系统 步进控制系统/伺服控制系统 冷却方式 强制水冷及保护系统 支持格式 DXF/BMP/AI/PLT/DSF 机器型号 1390/1680(可根据客户需求定制) Laser type
CO2 laser/RF tube laser
Laser power
80W/100W/130W/150W
Engraving speed
0-800mm/s
Cutting speed
0-600mm/s
Motor system
Step control system/servo control system
Cooling way
Forced water cooling and protection system
Supported formats
DXF/BMP/AI/PLT/DSF
Product model
1390/1680(Can be customized according to customer requirements)

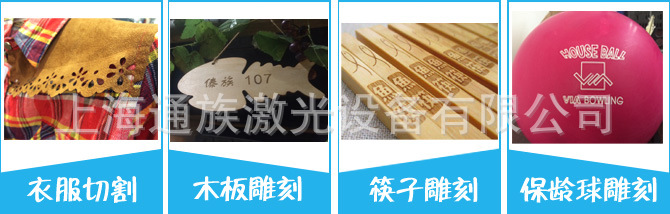

应用行业:(Application industry)窗花剪纸、服装。皮革、毛绒玩具、箱包、布艺工艺品、毛毡制品、纸制品等行业。
Paper-cut window, clothing.Leather, plush toys, luggage, cloth arts and crafts, felt products, paper products and other industries.
适用材料:(Applicable materials)

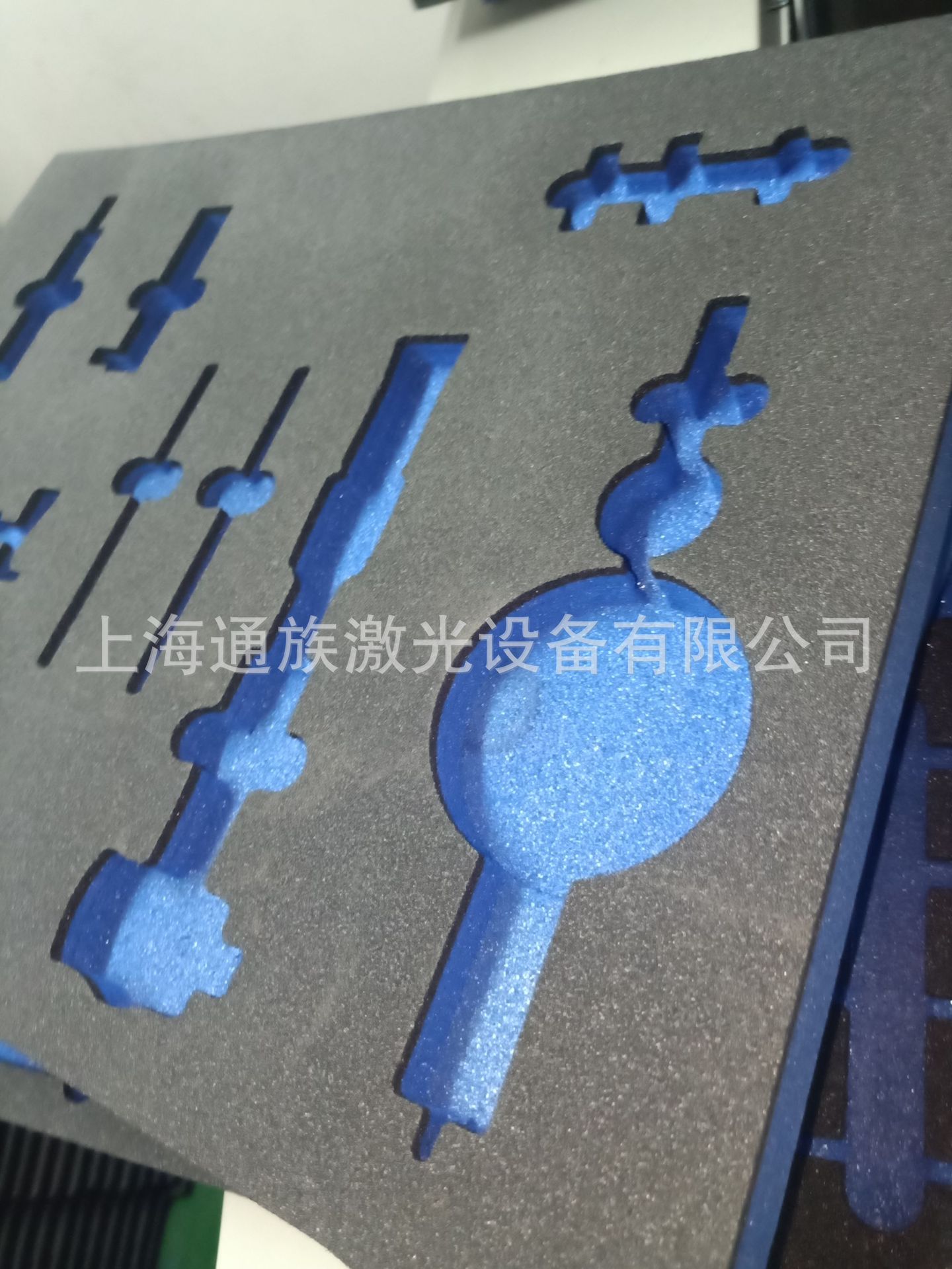

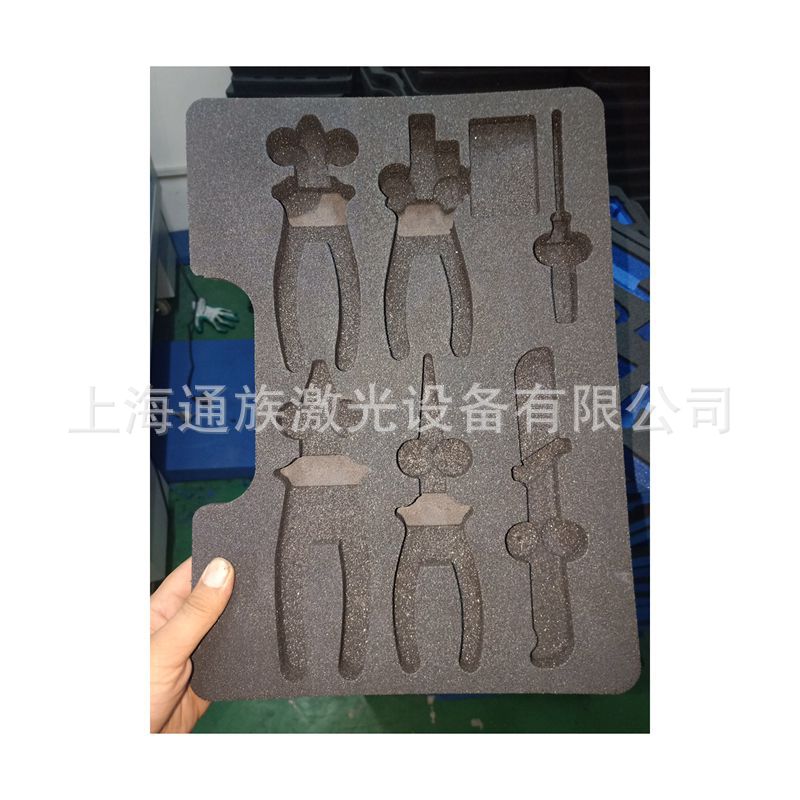

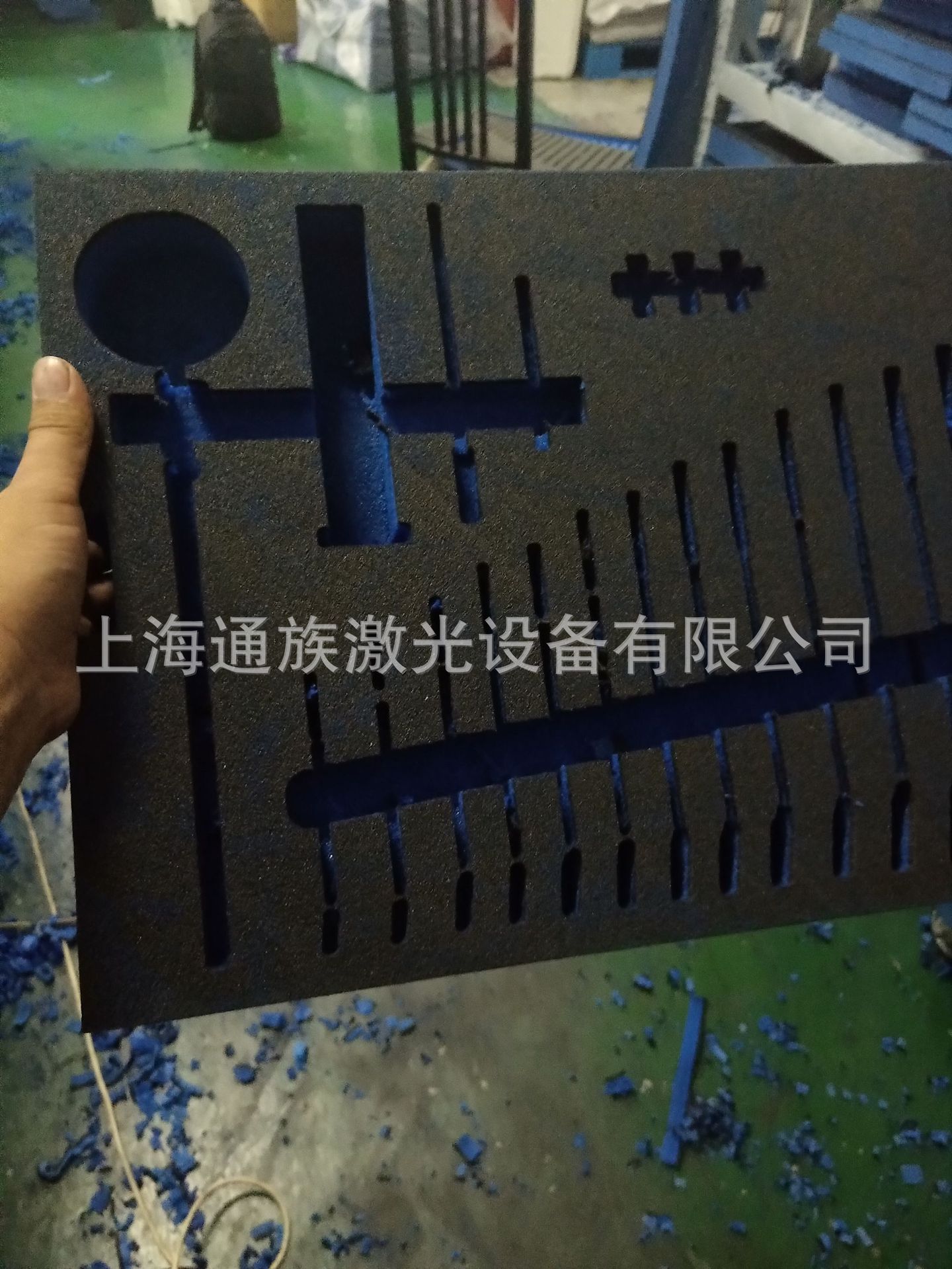

真丝面料、纯棉布料、涤纶面料、化纤面料、真皮、亚克力、木板、纸张等。
Silk fabrics, cotton fabrics, polyester fabrics, chemical fiber fabrics, leather, acrylic, wood, paper, etc.


















상품정보 제공고시
원산지 상하이 주문번호 1410 브랜드 상하이 Tongzu 레이저 수치 제어 장비 (주) 제어 모드 CNC 세트 단일 헤드 1390-80W 품목 번호 1410 -
