产品中文名称：亚马逊爆款高清电视天线带放大器增强器USB电源提升信号室内电视天线
产品英文名称：High definition TV antenna with amplifier intensifier USB power to enhance signal indoor TV antenna

特点：HDTV室内电视天线,外观设计美观大方,轻薄,体积小等特点,背部采用粘贴式可撕胶,便于安装,配套F转IEC转换插件,欧美/日本使用都可方便 相互转换，专门为免费电视节目接收数字信号。接收1080P的频道，没有合同或每月的账单。安装时不需要任何工具。

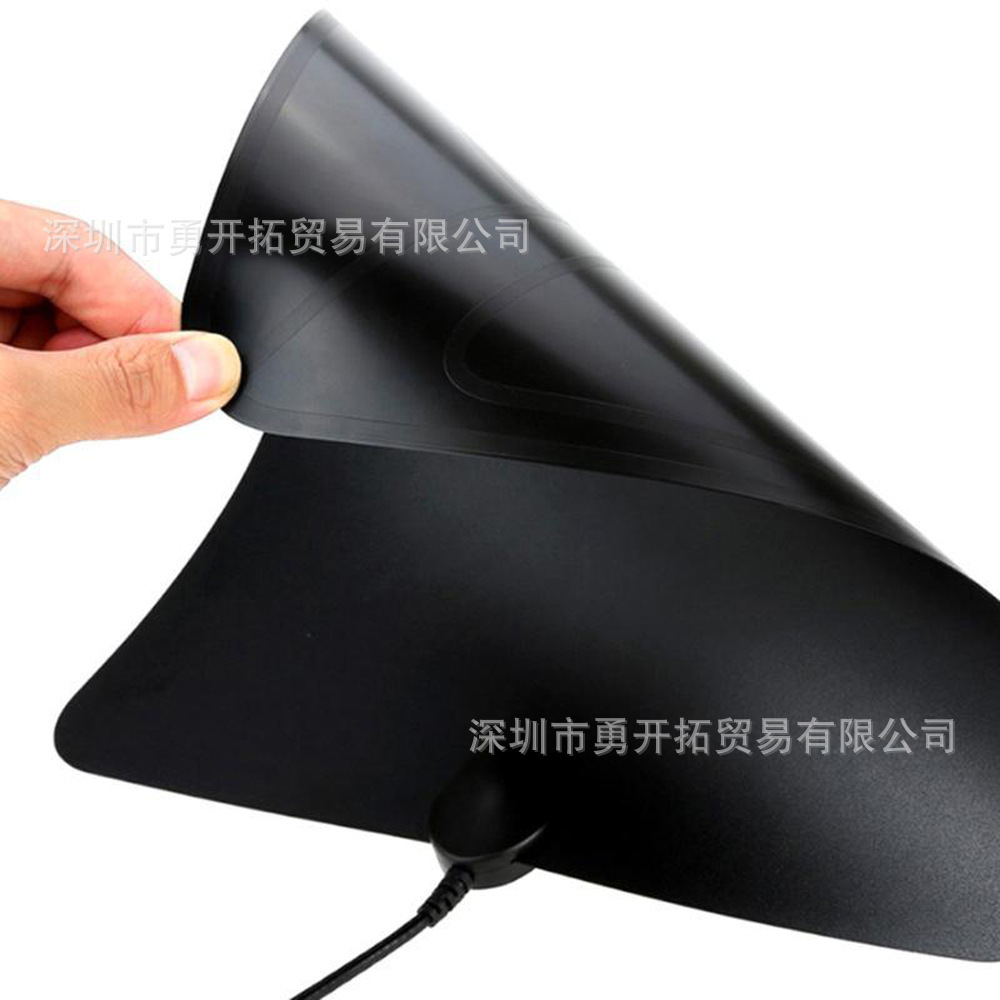

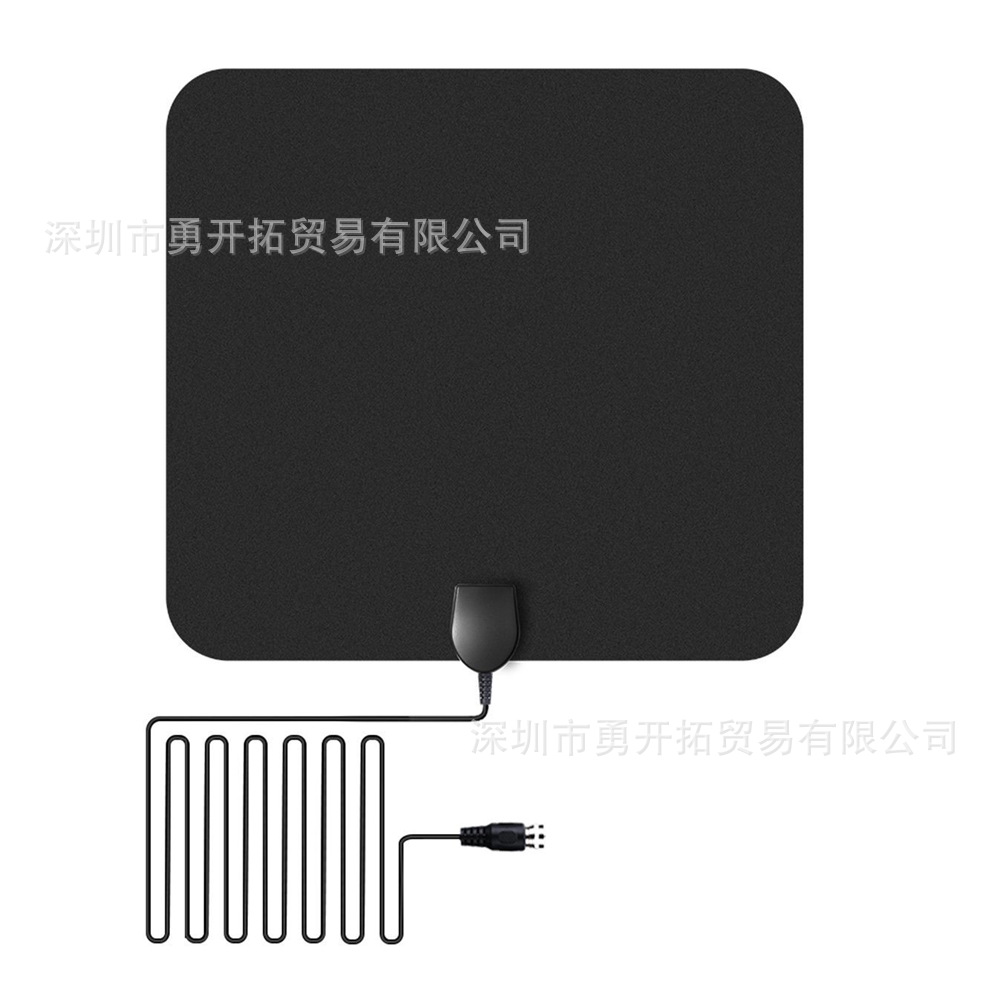

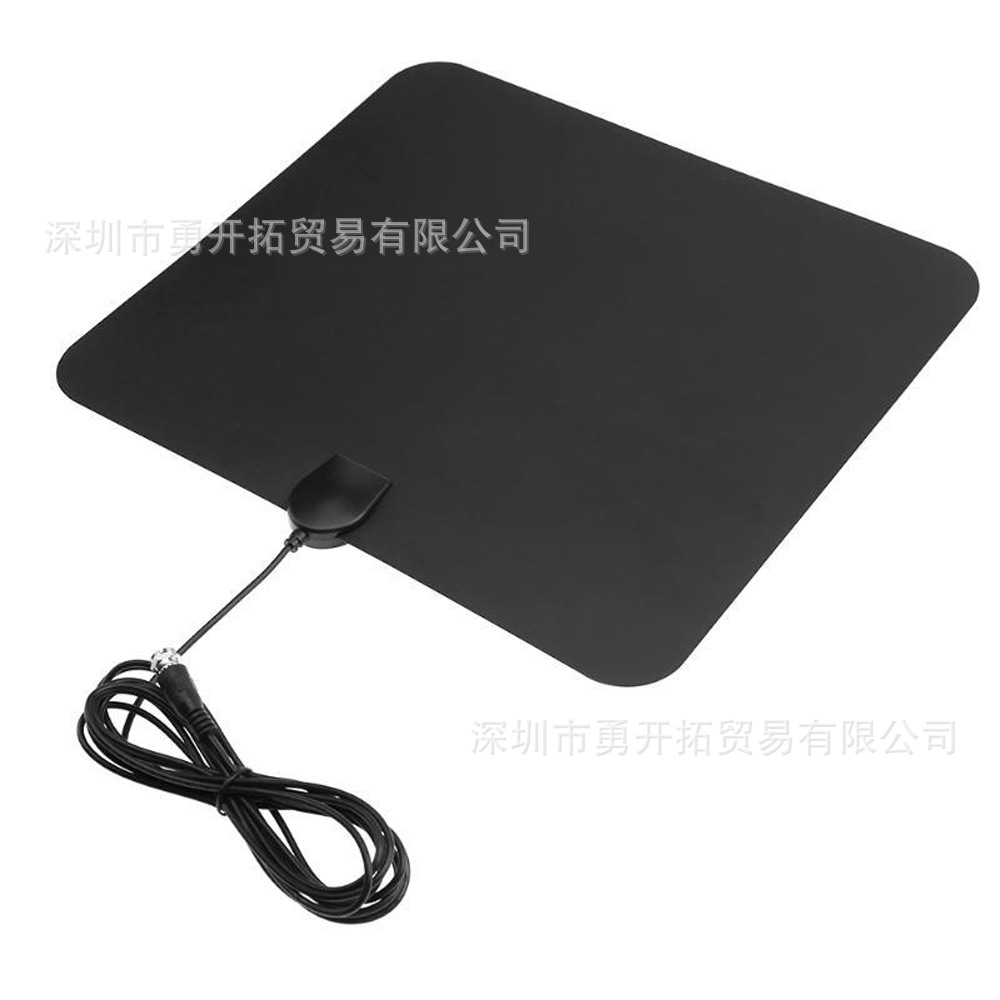

HDTV indoor TV antenna, the appearance design is beautiful and generous, light and light, small size and other characteristics, the back adopts pasted adhesive, which is easy to install, and it is equipped with f-turn IEC conversion plug-in, which can be used in Europe, America and Japan to facilitate mutual conversion, and is specially used to receive digital signals for free TV programs.Receive 1080P channels without contracts or monthly bills.No tools are required for installation.

产品技术规格

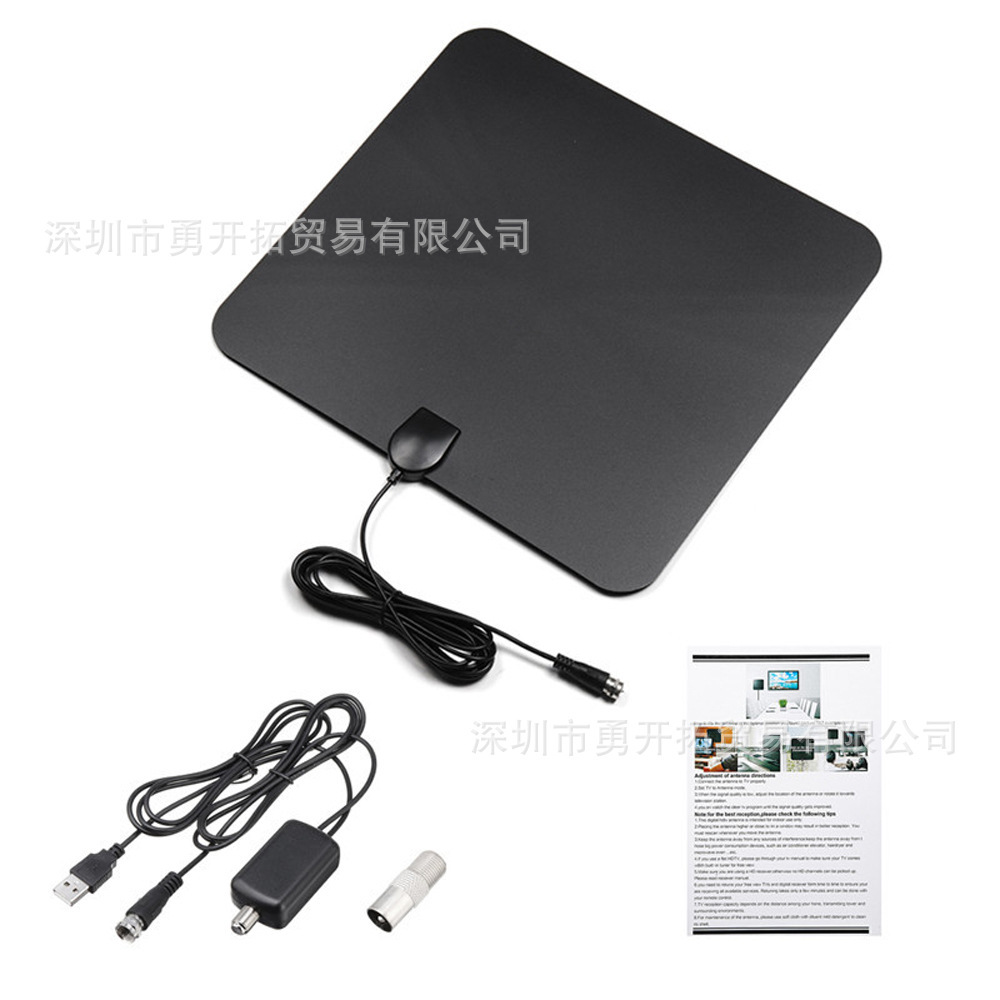

天线3米+放大器1米=总长4米延长线

平板天线：250X223mm 重量：带包装:240g

不带包装:170g

Plate antenna: 250x 223 mm weight: packing: 240 g
No packing: 170g

( 1 )支持1080 p高清模式
( 2 )50英里范围
( 3 )同轴电缆:4m长度
( 4)连接器类型:F公头转TV
( 5 ) v.s.w.r. : < = 1.5，最大值: 1
( 6 )阻抗: 75欧
( 7)多向能力
( 8)可以接收到所有“免费”频道
( 9 )增益: 28 DBI (带放大器)
( 10)常规天线板颜色分为白色、黑色、透明、支持来样及图纸订做。
( 11)中性牛皮纸包装
( 12 )工作频率: 174～240mhz，470～862mhz
( 13 )产品尺寸(毫米) : 250*223 * 0.6

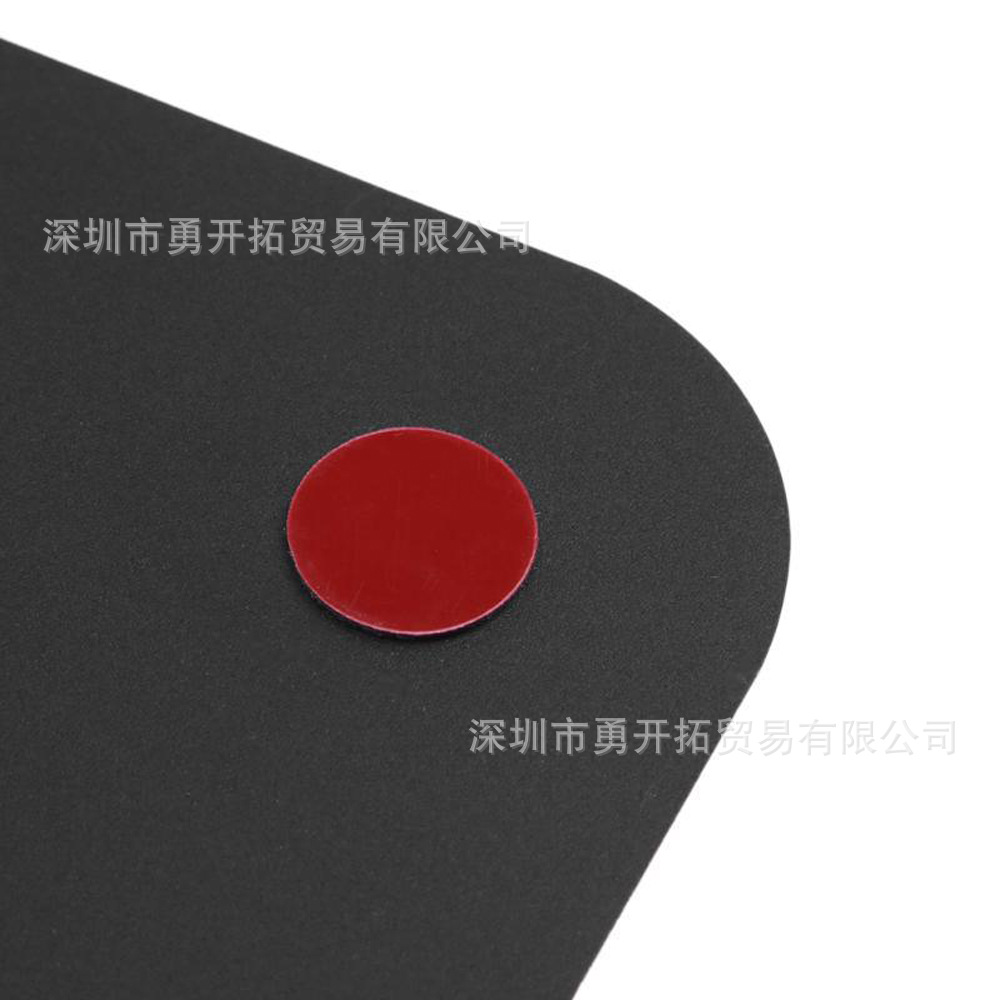

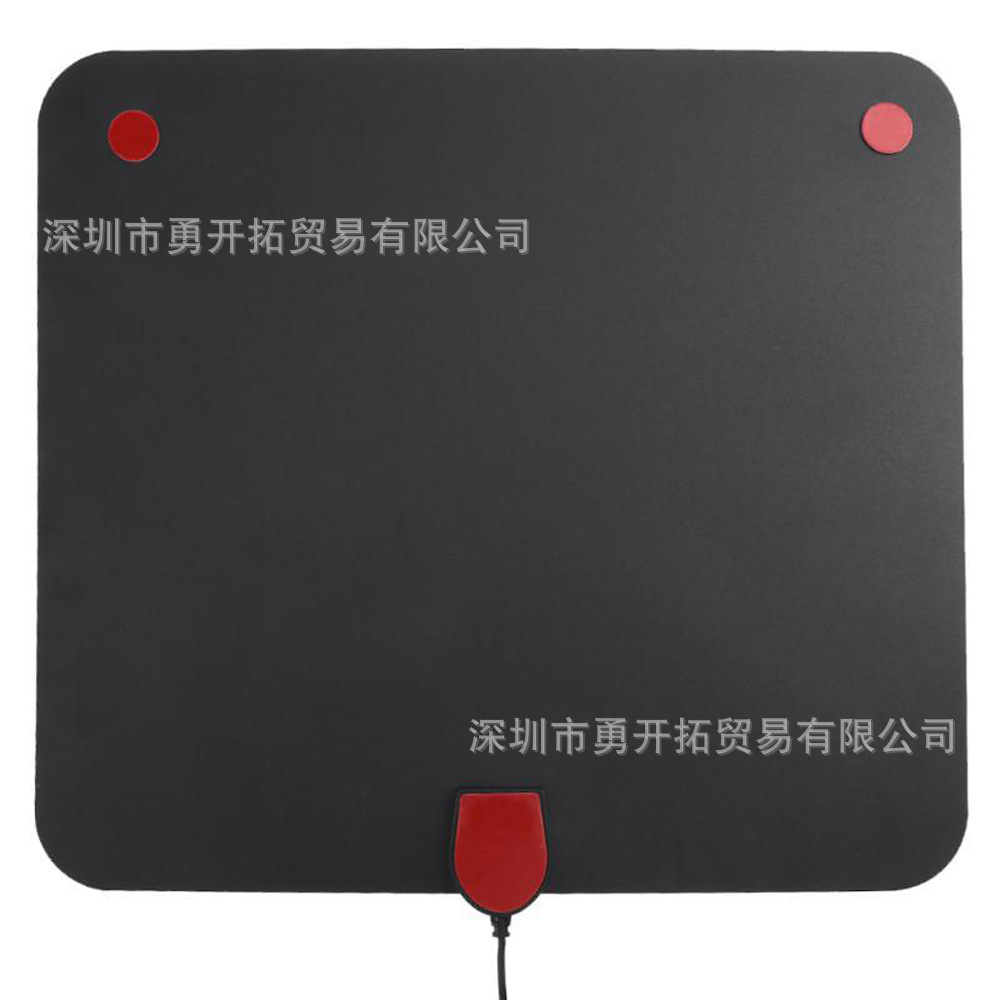

( 14)双面胶
（15）天线罩颜色黑色
（16）操作温度: -45～85℃
( 17)。储存温度: -45～85℃
（ 1)Support 1080p
（2)50 miles range
（3)Coaxial Cable: 4M length
（4)Connector Type:F Male
（5)V.S.W.R.:<=1.5,Max:1
（6)Impedance:75Ohm
（7) Multi-directional capability
（8)call out all "Free" channels
（9)Gain:28 dBi(with amplifier)
（10) Conventional antenna panels are divided into white, black, transparent, support for samples and drawings to order
（11) Neutral kraft paper packaging
（12)Working Frequency: 174~240MHz,470~862MHz
（13）Product size（MM）：250*223*0.6
（14）Mounting Paste
（15）Radome Color Black

（16）. Operation Temperature : -45 ~ 85℃
（17）. Storage Temperature : -45 ~ 85℃
