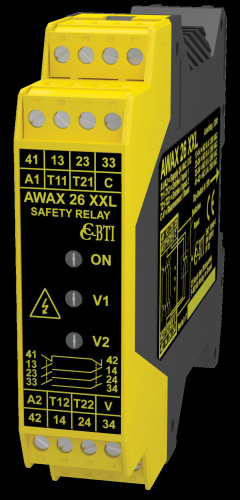

AWAX26XXL : Safety/diagnostic contacts: 3x NO 8A/250V redundant / 1x NF 8A/250V serial (XXL version) or parallel (XXLP version)

AWAX26XXLT6 : Safety/diagnostic contacts: 3x NO 6A/250V redundant / 1x NC 6A/250V redundant serial (XXL version) or parallel (XXLP version)

• Time before dangerous failure: MTTFd = 415 years
• Cycle before dangerous failure: B10d=100,000 at 5A
• Risk duration: 20 ms max.
• Cable severing protection: yes (opening of safety lines)
• Short-circuit and overload protection: yes, using DLC (opening of safety lines and current limiting in contacts)
• Reaction 2 µs ultrafast
• Indicators: 3 LEDs for diagnostics
• Reset: configurable by dip-switch (SR=Automatic, N=manual)
• Mounting: symmetrical DIN 35mm rail on DIN 50022
• Mounting: IP 54 electrical box
• Electrical connection: Maximum 14 AWG (2.08 mm²) / 250V minimum
• Temperature: -20°C to +60°C
• Certification: TÜV Rheinland 01/205/5168/11
• UL 508 / C22.2 no.14 C-UL-US listed 34CB (file E214209)
