参数(Item):                                               型号(Model):

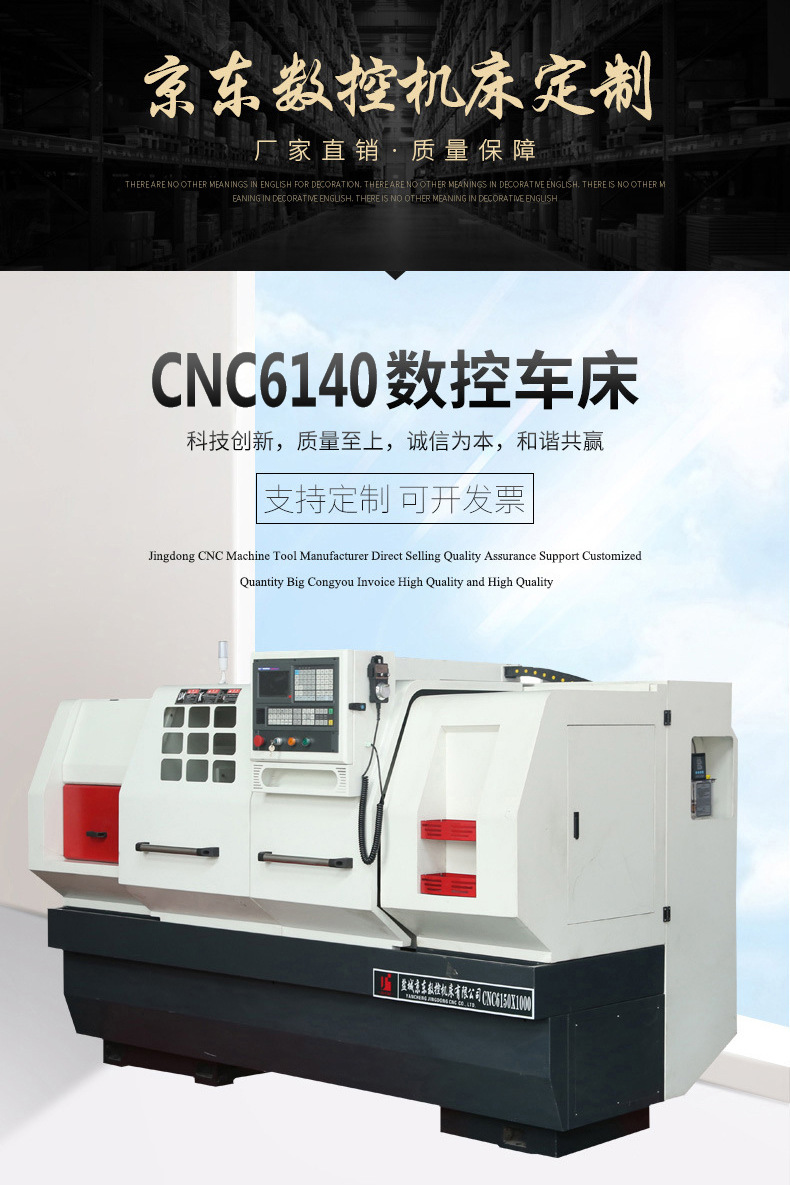

CNC6140*1500

加工能力

CAPACITIES

床身上最大回转直径Max.swing over bedmm4

400

刀架上最大回转直径Max.swing over arriagemm

290

最大车削长度Max truning length

床身宽度Bed width

360

行程
TRAVEL

X轴行程Xaxis travelmm

Z轴行程Yaxis travelmm

1500

主轴
SPINDLE

主轴转速范围Spindle speed  rpm

70~1600无极变速

主轴端部尺寸Spinele nosemm

C6

主轴内控锥度Spindle taper

MT6

主轴通孔直径Spindle hole

82(150)

刀架
TURRET

刀具数量Number of stations

4(6)

刀柄尺寸Tool shank sizemm

25×25

换刀时间Indexing timesec

2.0

进给
FEEDS

X轴快速进给Rapid traverse of X axismm/min

6000

Z轴快速进给Rapid traverse of Z axismm/min

6000

每转切削进给量Cutting feed X and Z axismm/r

0.005-100

尾座
AJAILSTOCK

尾座套筒锥度Taper of tailstock sleeve

MT4#/MT5#

尾座套筒直径Dia.of tailstock sleeve

65

尾座套筒行程Travel of tailstock sleeve

140

电机
MOTOR

主电机功率Main motor power                kw

7.5

X轴、Z轴电机X and Z axis motor          Nm

5/7.5

长×宽×高L×W×H                                     mm

2700×1500×1700

净重Net weight                                       kg

2900

数控系统Type of CNC Controller
