    Product Name:

    3-12V 6 Bits Digital LED Module Display indicator Board for Arduiuo Marquees Water lights Breadboard PCB UNO MEGA2560


    Packing list:

    1 pcs 6 bit    RED    3V 3.3V 5V 9V 12V LED's Board



    Description:

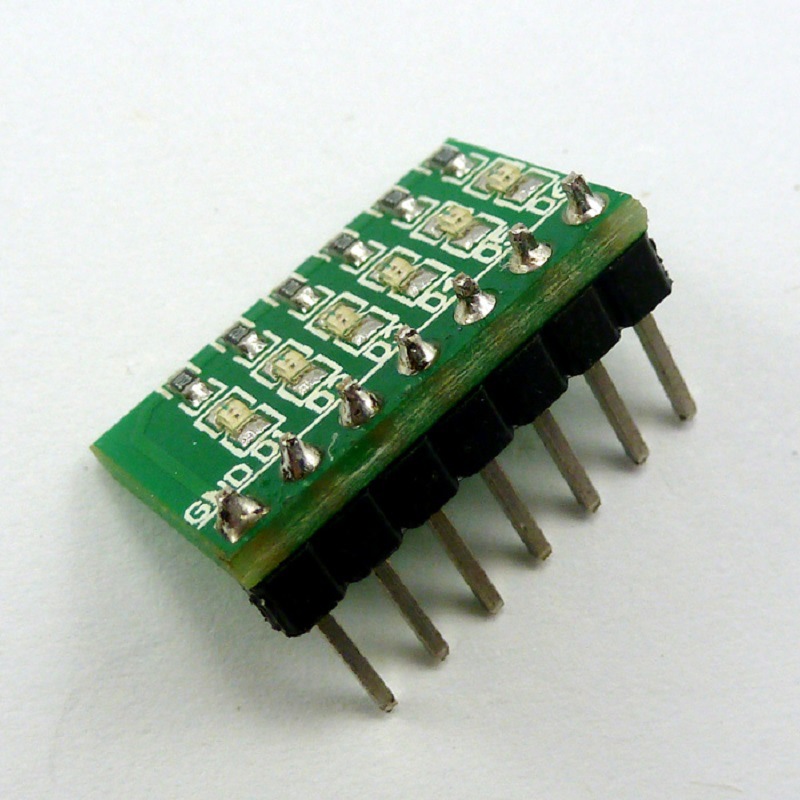

    2.54MM PIN 6 Digital LED Board ,Can be inserted directly into Breadboard Universal board     ,Ideal for linking up to your Arduiuo UNO Pro Mini Nano Mega2560 DUE etc,or others MCU ( AVR STM32 ARM7 ARM9 ARM10 ARM11 PIC C8051 C51 STC MSP430 FPGA/CPLD etc.)


    1 6   Digital     RED    Common Cathode LEDs.

    2 7 PIN OUT  2.54mm

    3 1K ohm   Limiting resistor

    4 Power Supply Voltage: 3-12V;

    5 Size: 17.78MM x 11.43MM.

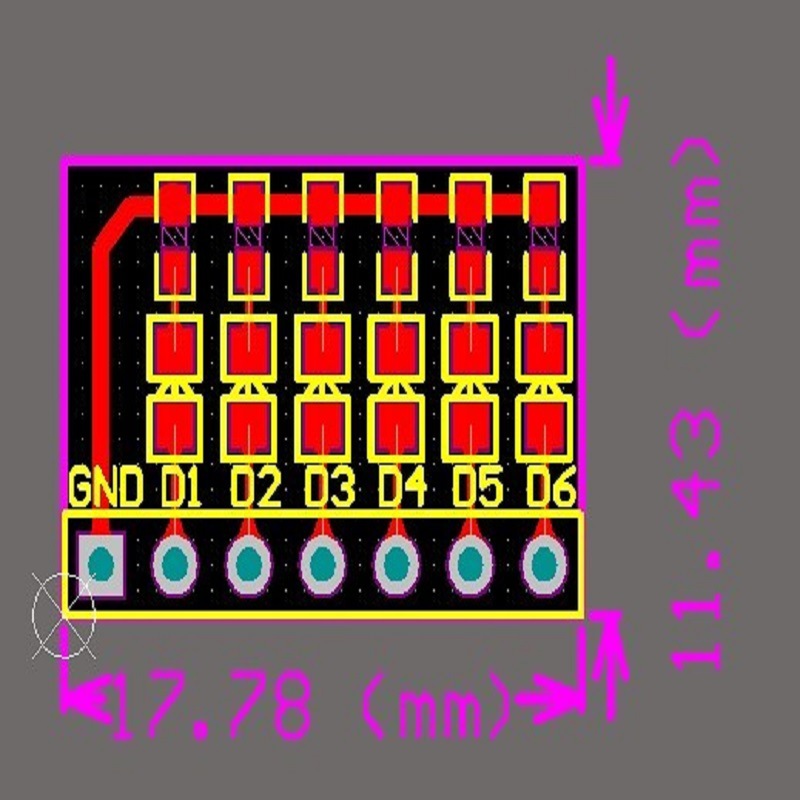

    PCB:



    Circuit schematics :

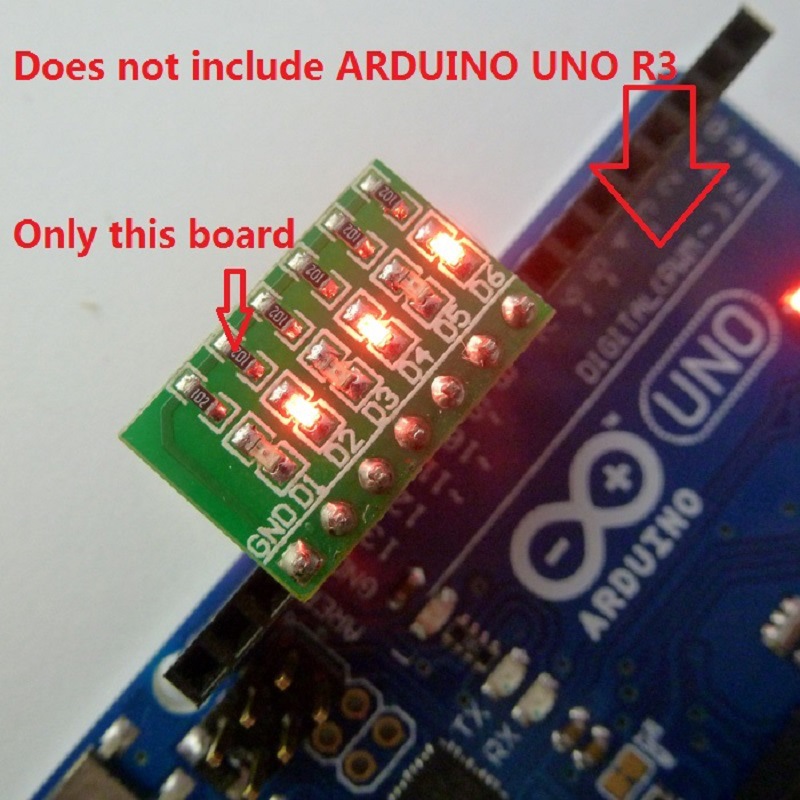

    Connection with Arduiuo(Only 6 bit LED's Board ,Does not include ARDUIUO UNO R3) :



    Arduiuo uno/mega2560 Code  1pcs

    //******************************************************//

    /*
      Arduiuo_6led

      This example code is in the public domain.
     */

    // give it a name:
    int D1 = 13;
    int D2 = 12;
    int D3 = 11;
    int D4 = 10;
    int D5 = 9;
    int D6 = 8;

    // the setup routine runs once when you press reset:
    void setup() {
      // initialize the digital pin as an output.
    pinMode(D1, OUTPUT);
    pinMode(D2, OUTPUT);
    pinMode(D3, OUTPUT);
    pinMode(D4, OUTPUT);
    pinMode(D5, OUTPUT);
    pinMode(D6, OUTPUT);
    }

    // the loop routine runs over and over again forever:
    void loop() {

      digitalWrite(D1, HIGH);   // turn the LED on (HIGH is the voltage level)
      delay(200);               // wait for a 200 Millisecond
      digitalWrite(D1, LOW);    // turn the LED off by making the voltage LOW

      digitalWrite(D2, HIGH);   // turn the LED on (HIGH is the voltage level)
      delay(200);               // wait for a Millisecond
      digitalWrite(D2, LOW);    // turn the LED off by making the voltage LOW

      digitalWrite(D3, HIGH);   // turn the LED on (HIGH is the voltage level)
      delay(200);               // wait for a Millisecond
      digitalWrite(D3, LOW);    // turn the LED off by making the voltage LOW

      digitalWrite(D4, HIGH);   // turn the LED on (HIGH is the voltage level)
      delay(200);               // wait for a Millisecond
      digitalWrite(D4, LOW);    // turn the LED off by making the voltage LOW

      digitalWrite(D5, HIGH);   // turn the LED on (HIGH is the voltage level)
      delay(200);               // wait for a Millisecond
      digitalWrite(D5, LOW);    // turn the LED off by making the voltage LOW

      digitalWrite(D6, HIGH);   // turn the LED on (HIGH is the voltage level)
      delay(200);               // wait for a Millisecond
      digitalWrite(D6, LOW);    // turn the LED off by making the voltage LOW

    }

    //******************************************************//


    Arduiuo uno/mega2560 Code(  Insert two LED board)

    //******************************************************//


    /*
      Arduiuo_6led

      This example code is in the public domain.
     */

    // LED Board 1
    int D1 = 13;
    int D2 = 12;
    int D3 = 11;
    int D4 = 10;
    int D5 = 9;
    int D6 = 8;

    // LED Board 2
    int D11 = 1;
    int D12 = 2;
    int D13 = 3;
    int D14 = 4;
    int D15 = 5;
    int D16 = 6;
    int GND = 7;//Common Cathode

    // the setup routine runs once when you press reset:
    void setup() {
      // initialize the digital pin as an output.
    pinMode(D1, OUTPUT);
    pinMode(D2, OUTPUT);
    pinMode(D3, OUTPUT);
    pinMode(D4, OUTPUT);
    pinMode(D5, OUTPUT);
    pinMode(D6, OUTPUT);

    pinMode(D11, OUTPUT);
    pinMode(D12, OUTPUT);
    pinMode(D13, OUTPUT);
    pinMode(D14, OUTPUT);
    pinMode(D15, OUTPUT);
    pinMode(D16, OUTPUT);
    pinMode(GND, OUTPUT);

    digitalWrite(GND, LOW);
    }

    // the loop routine runs over and over again forever:
    void loop() {



      digitalWrite(D1, HIGH);   // turn the LED on (HIGH is the voltage level)
      delay(200);               // wait for a 200 Millisecond
      digitalWrite(D1, LOW);    // turn the LED off by making the voltage LOW

      digitalWrite(D2, HIGH);   // turn the LED on (HIGH is the voltage level)
      delay(200);               // wait for a Millisecond
      digitalWrite(D2, LOW);    // turn the LED off by making the voltage LOW

      digitalWrite(D3, HIGH);   // turn the LED on (HIGH is the voltage level)
      delay(200);               // wait for a Millisecond
      digitalWrite(D3, LOW);    // turn the LED off by making the voltage LOW

      digitalWrite(D4, HIGH);   // turn the LED on (HIGH is the voltage level)
      delay(200);               // wait for a Millisecond
      digitalWrite(D4, LOW);    // turn the LED off by making the voltage LOW

      digitalWrite(D5, HIGH);   // turn the LED on (HIGH is the voltage level)
      delay(200);               // wait for a Millisecond
      digitalWrite(D5, LOW);    // turn the LED off by making the voltage LOW

      digitalWrite(D6, HIGH);   // turn the LED on (HIGH is the voltage level)
      delay(200);               // wait for a Millisecond
      digitalWrite(D6, LOW);    // turn the LED off by making the voltage LOW

      digitalWrite(D16, HIGH);   // turn the LED on (HIGH is the voltage level)
      delay(200);               // wait for a Millisecond
      digitalWrite(D16, LOW);    // turn the LED off by making the voltage LOW

       digitalWrite(D15, HIGH);   // turn the LED on (HIGH is the voltage level)
      delay(200);               // wait for a Millisecond
      digitalWrite(D15, LOW);    // turn the LED off by making the voltage LOW

      digitalWrite(D14, HIGH);   // turn the LED on (HIGH is the voltage level)
      delay(200);               // wait for a Millisecond
      digitalWrite(D14, LOW);    // turn the LED off by making the voltage LOW

      digitalWrite(D13, HIGH);   // turn the LED on (HIGH is the voltage level)
      delay(200);               // wait for a Millisecond
      digitalWrite(D13, LOW);    // turn the LED off by making the voltage LOW


      digitalWrite(D12, HIGH);   // turn the LED on (HIGH is the voltage level)
      delay(200);               // wait for a Millisecond
      digitalWrite(D12, LOW);    // turn the LED off by making the voltage LOW

      digitalWrite(D11, HIGH);   // turn the LED on (HIGH is the voltage level)
      delay(200);               // wait for a 200 Millisecond
      digitalWrite(D11, LOW);    // turn the LED off by making the voltage LOW

    }


    //******************************************************//
