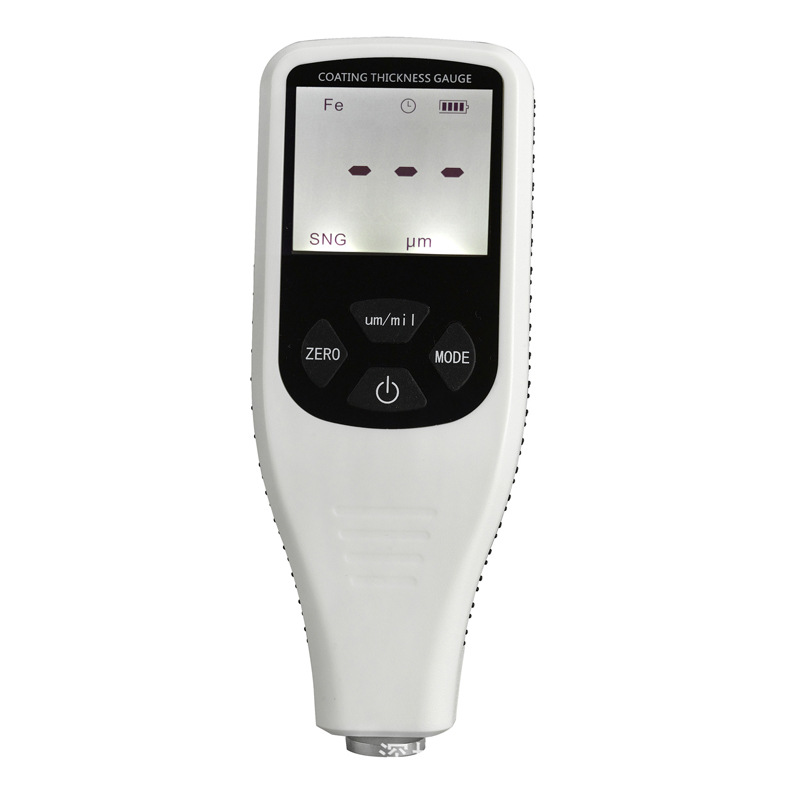

产品概述:
本测厚仪用于测量金属表面电镀层或涂层的厚度，具体可测量钢/铁等磁性材料表面的非磁性涂镀层厚度（如铬/油漆/陶瓷等），也可测量铜/铝等非磁性材料表面的涂层厚度（如油漆等）。仪表内置精密探头，通过电磁感应和涡流效应自动检测基材属性并探测涂镀层厚度。
应用领域:
本仪器可以无损伤、快速、精密地测量涂、镀层厚度。广泛应用于制造业、金属加工业、化工业、商检等检测领域，是材料表面处理工程必备仪器。可以稳定地工作于实验室、车间现场和户外。
功能简介:
全视角大屏液晶显示
屏幕自带背光功能
F&NF一体化探头，可自动测量铁基表面涂镀层以及铝等非磁基表面涂镀层。

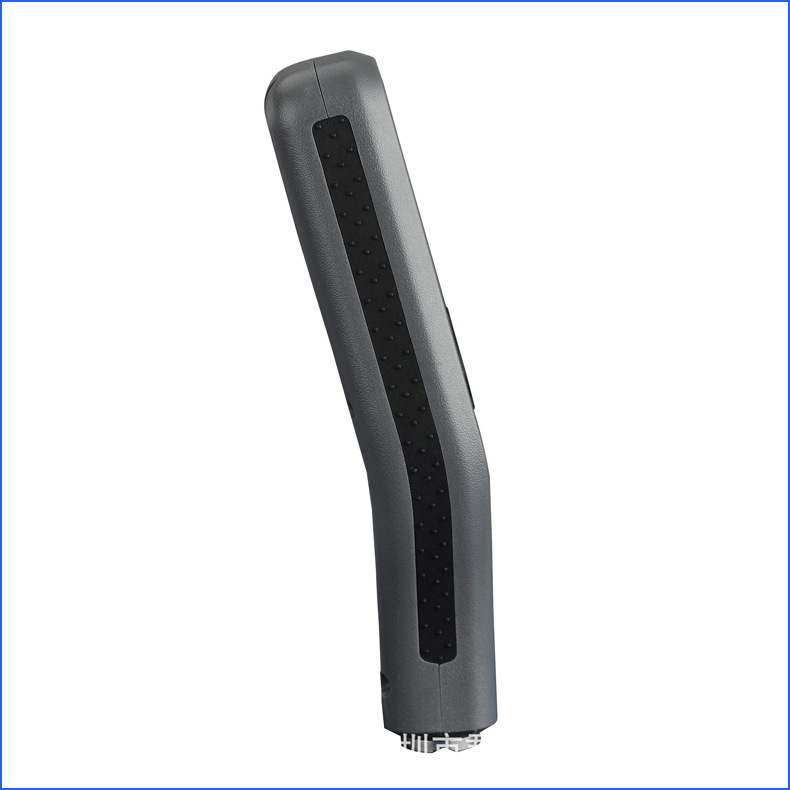

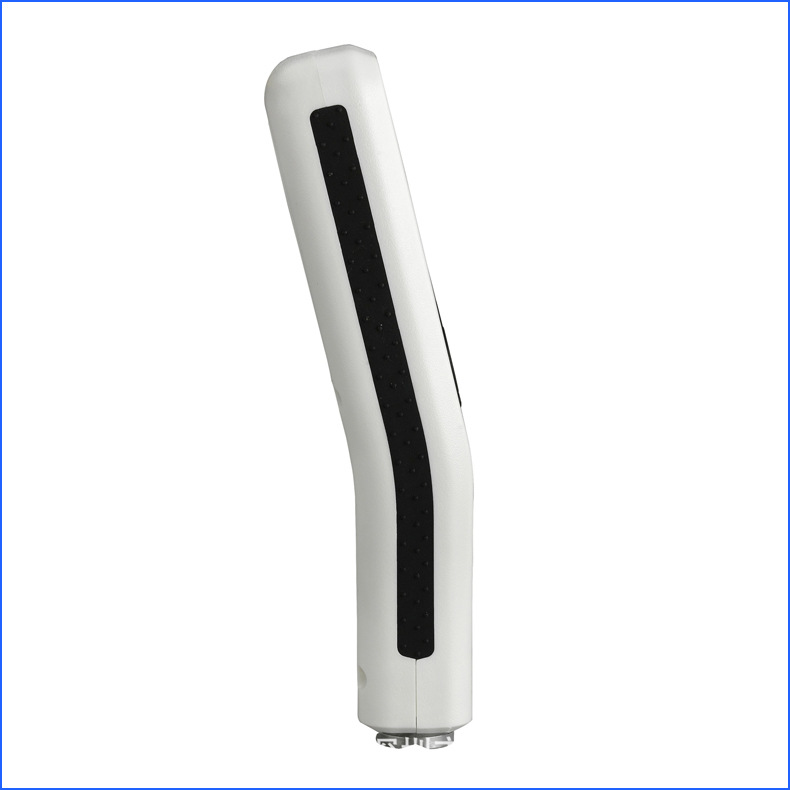

机身斜腰设计，测量读数更方便
机身两侧包裹胶硅防滑，提升手感
测量范围: 0~1300um
测量精度：±(2.5%+1um)
最小分辨率: 0.1um
设有6个较准点，0/50/100/250/500/1000um, 调较非常方便
具有自动关机省电功能，5分钟无操作自动关机省电
电源：4颗七号电池（AAA）
可工作环境温度: 0 to 40℃ (32 to 104℉)
产品尺寸: 155mm x 62mm x 35mm
产品重量: 125克

The thickness gauge is used to measure the thickness of the plated and coated sheet on metal, e.g. paint/enamel/ chrome on steel, paint and anodizing coating on aluminum/copper. The gauge takes the precision integrated probe, and uses principles of electro-magnetic induction and the eddy current effect, which automatically detects the attribute of substrates.
The Gauge is designed for non-destructively measuring the thickness of coating and painting. It is essential for material surface treatment and widely used in manufacturing industry, metal-processing industry, chemical industry, commodity inspection area, and also able to work steadily in the laboratory, workshop and outdoor.
Features:
FSTN LCD Display
Built-in Black Light
Integral Probe F&NF, Auto detecting attribute of substrates
Nice shell design for easy reading
Built-in Silicone Slip Strip
Measurement Range: 0~1300um
Accuracy: ±(2.5%+1um)
Resolution: 0.1um
Zero Calibration and 50/100/250/500/1000um Calibration Points
5 minutes auto power off to saving power
Power Supply: 4 x AAA batteries
Operating Temperature: 0 to 40℃ (32 to 104℉)
Size: 155mm x 62mm x 35mm (6.10” x 2.44” x 1.38”)
Weight: 125g (4.41 oz)
