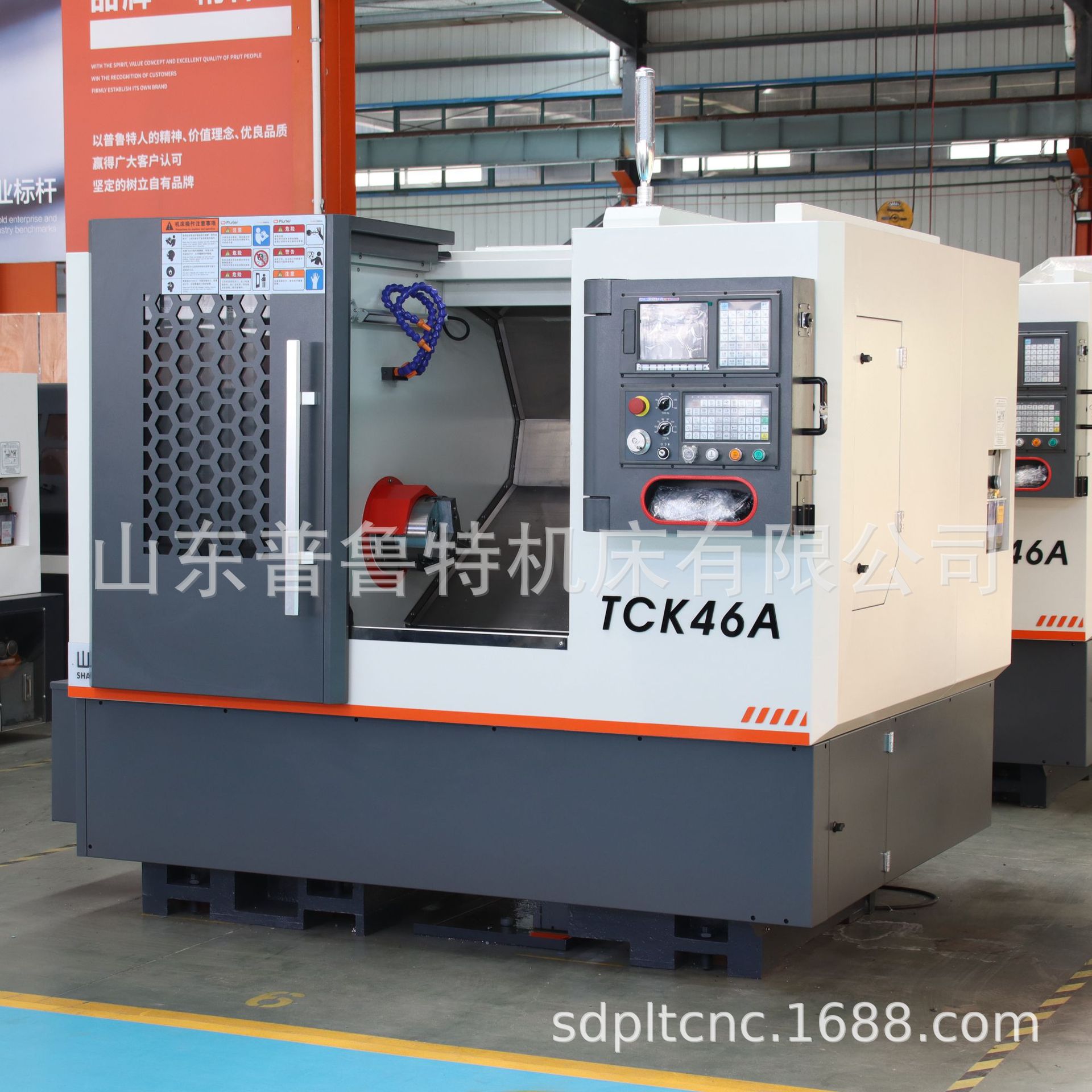

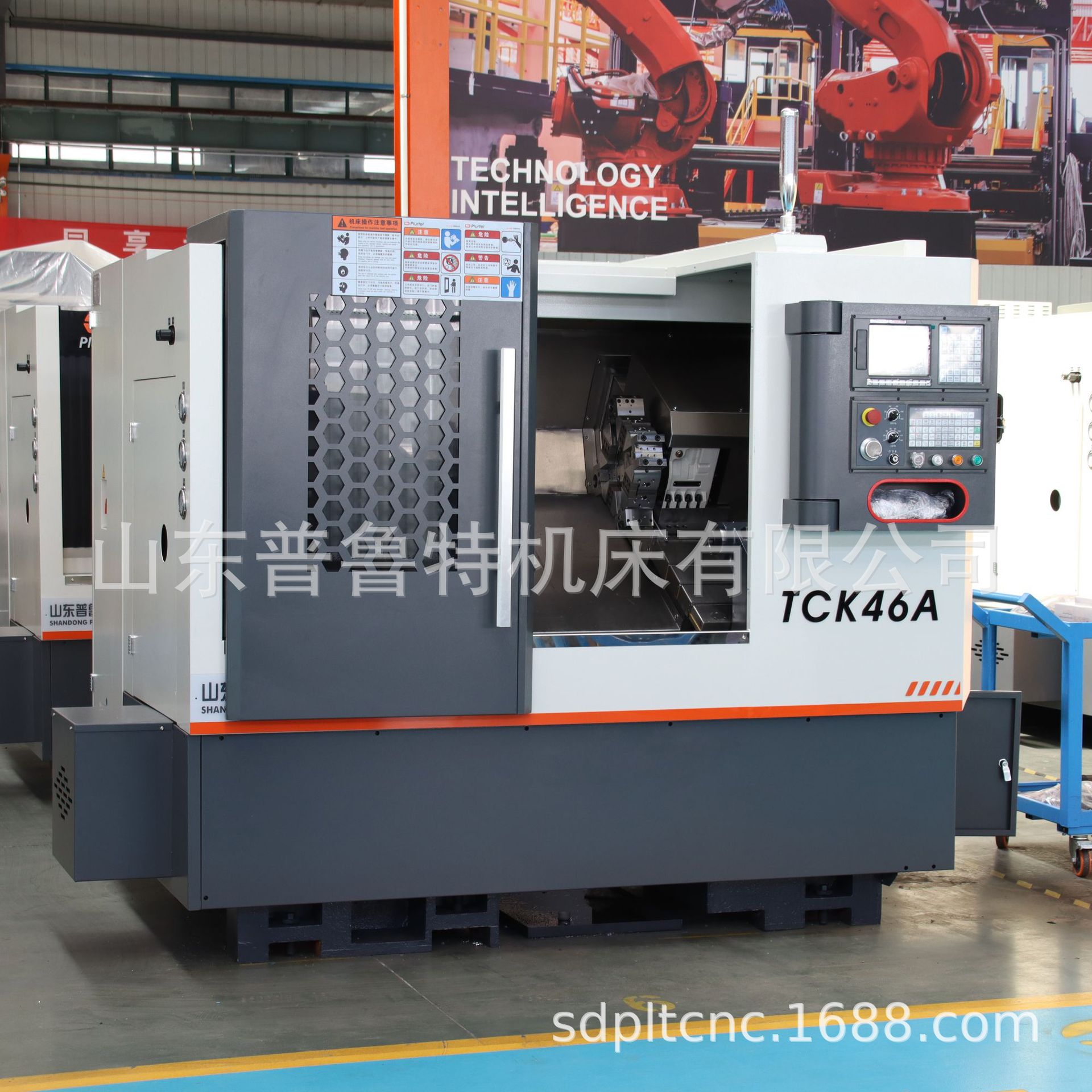

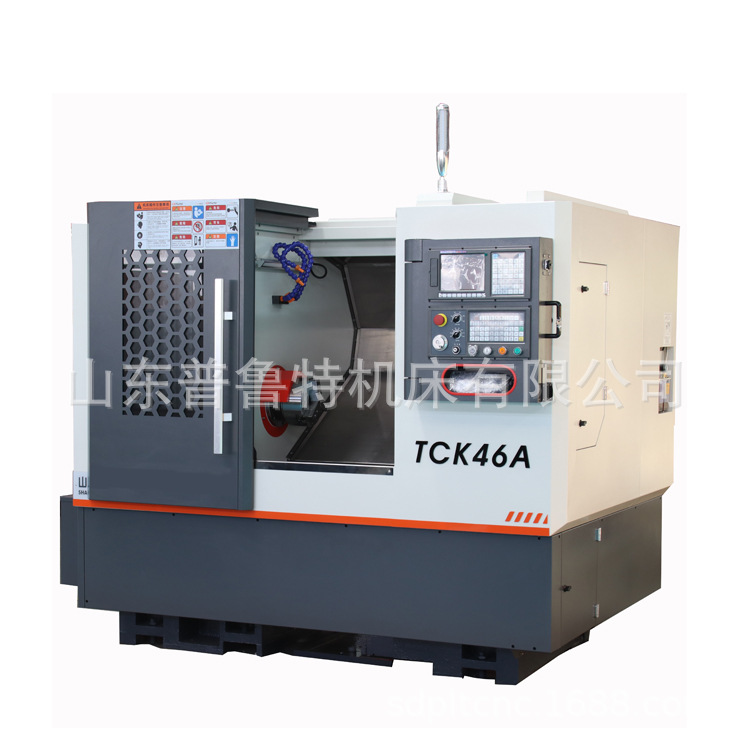

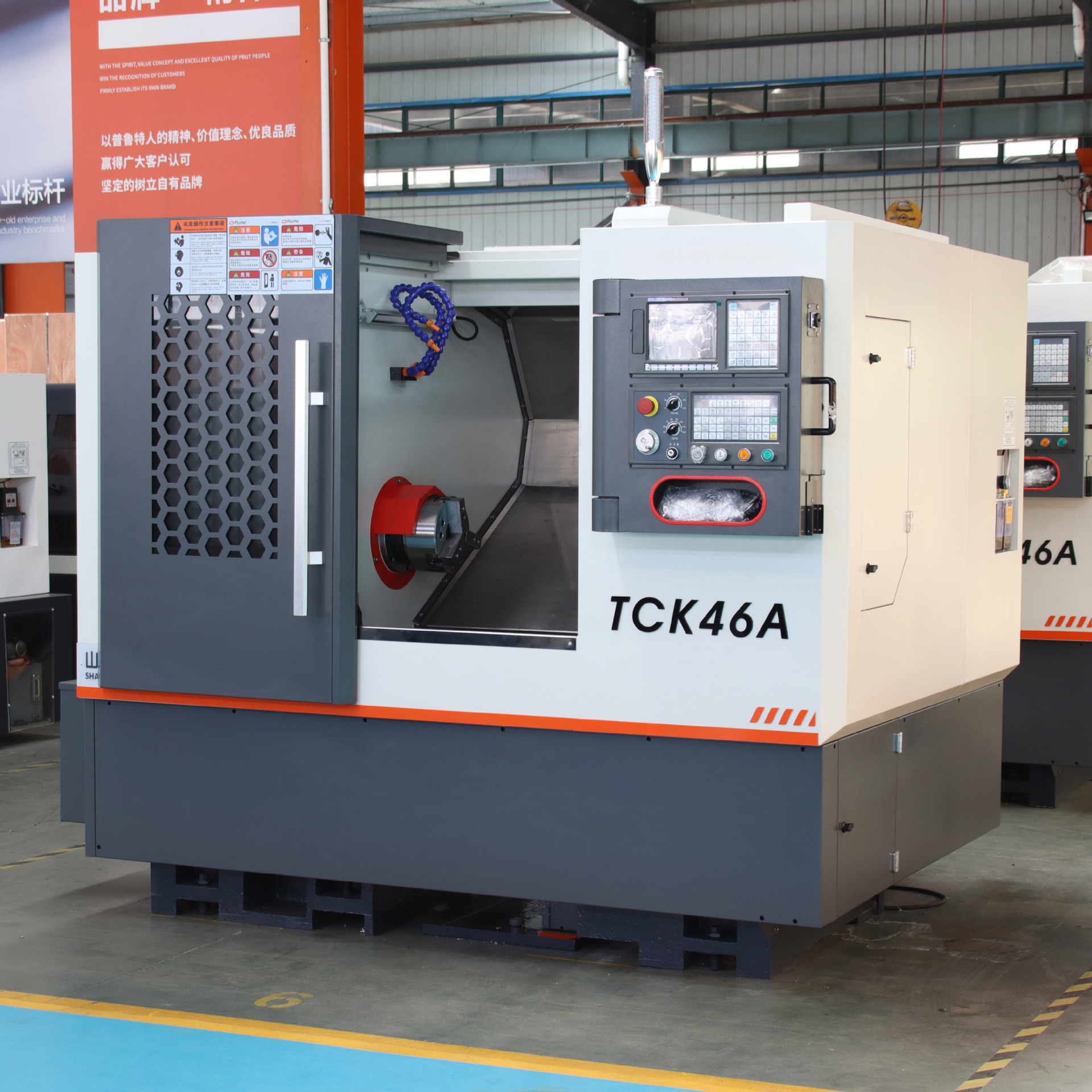

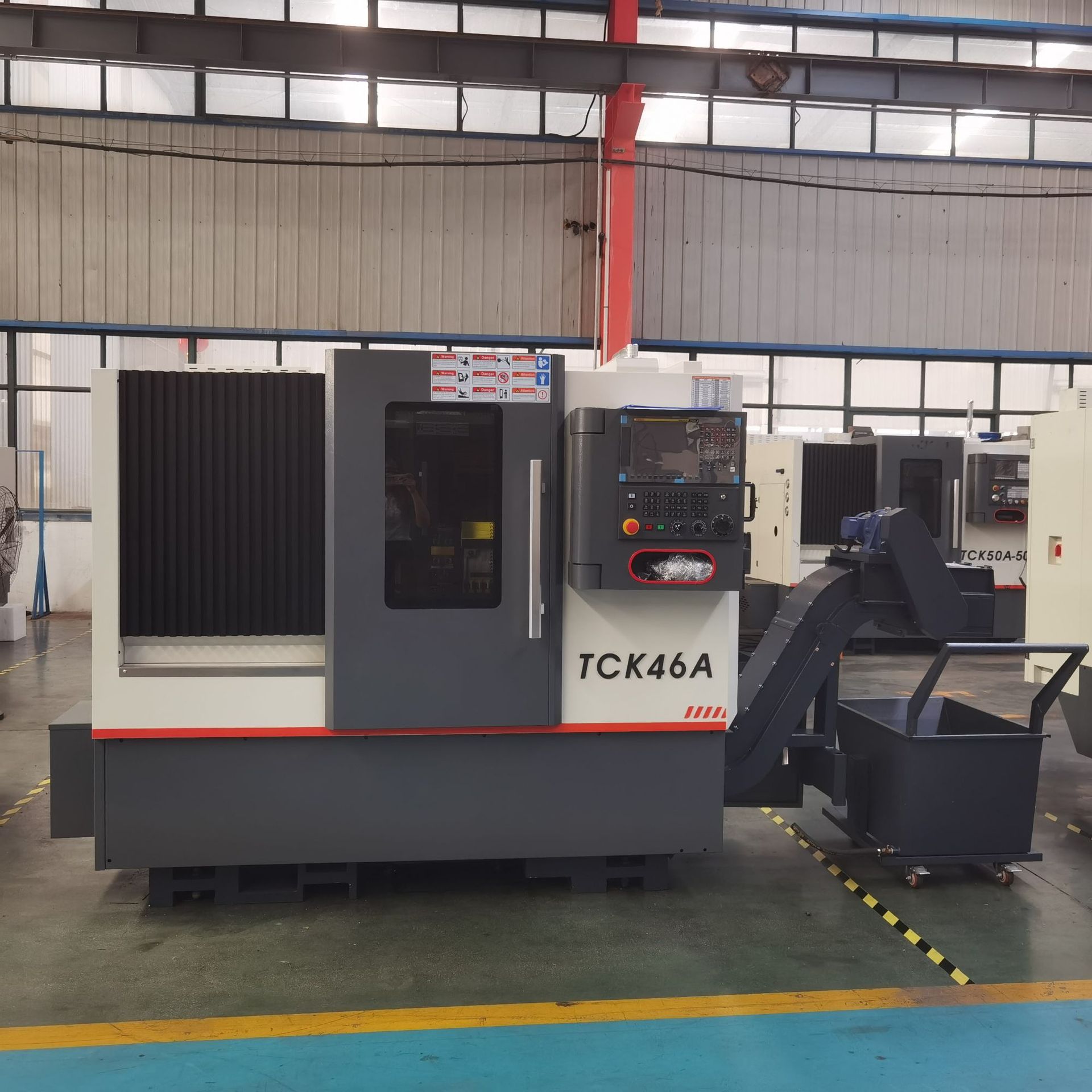

床身上最大回转直径/Max. swing dia.over bed

拖板上最大回转直径Max. swing dia.over slide

460mm

260mm

最大盘类车削直径/ Max. processing diameter（plate）

420mm

最大车削长度/ Max. turning length

500mm

卡盘尺寸/ Chuck size

8”

X轴行程/ X axis travel

240mm

Z轴行程/ Z axis travel

540mm

X轴 快速移动/ Rapid feed (X)

20000mm/min

Z轴 快速移动/ Rapid feed (Z)

20000mm/min

主轴转速/Spindle speed

3500r/min

主轴变速范围/ Spindle speed range

无级变速/Stepless

主轴孔锥度/ Spindle nose

A2-5

主轴通孔直径/ Spindle bore

56mm

拉管通孔直径/ Spindle pull tube through hole diameter

45mm

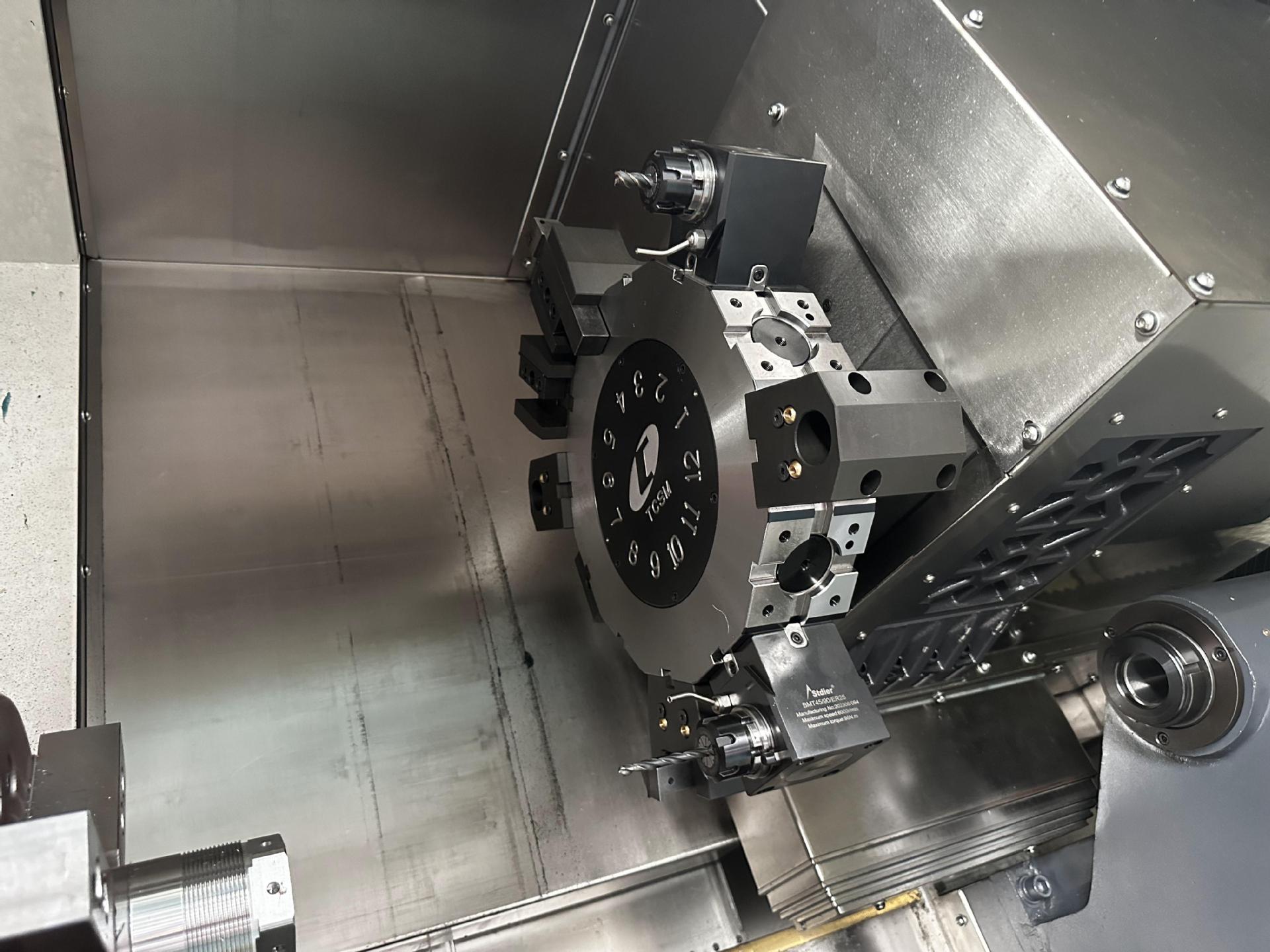

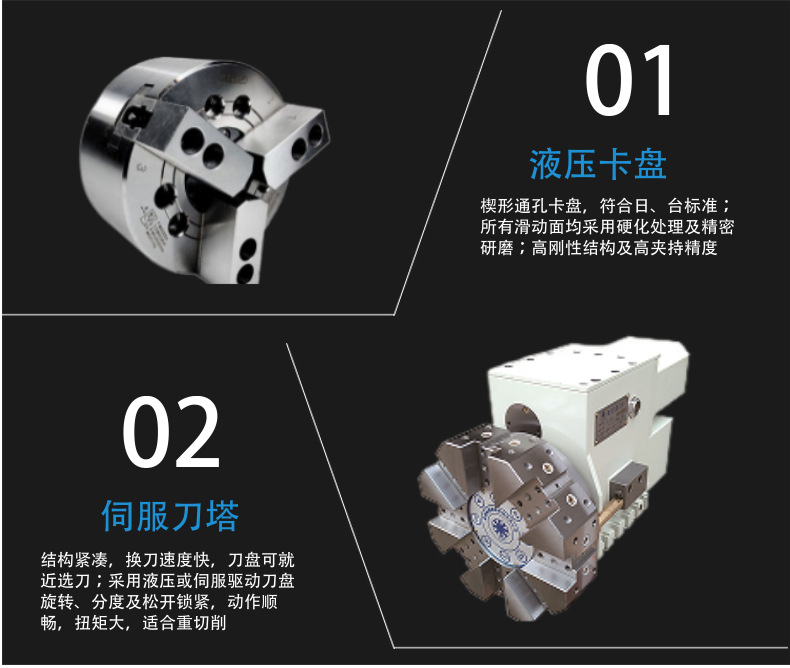

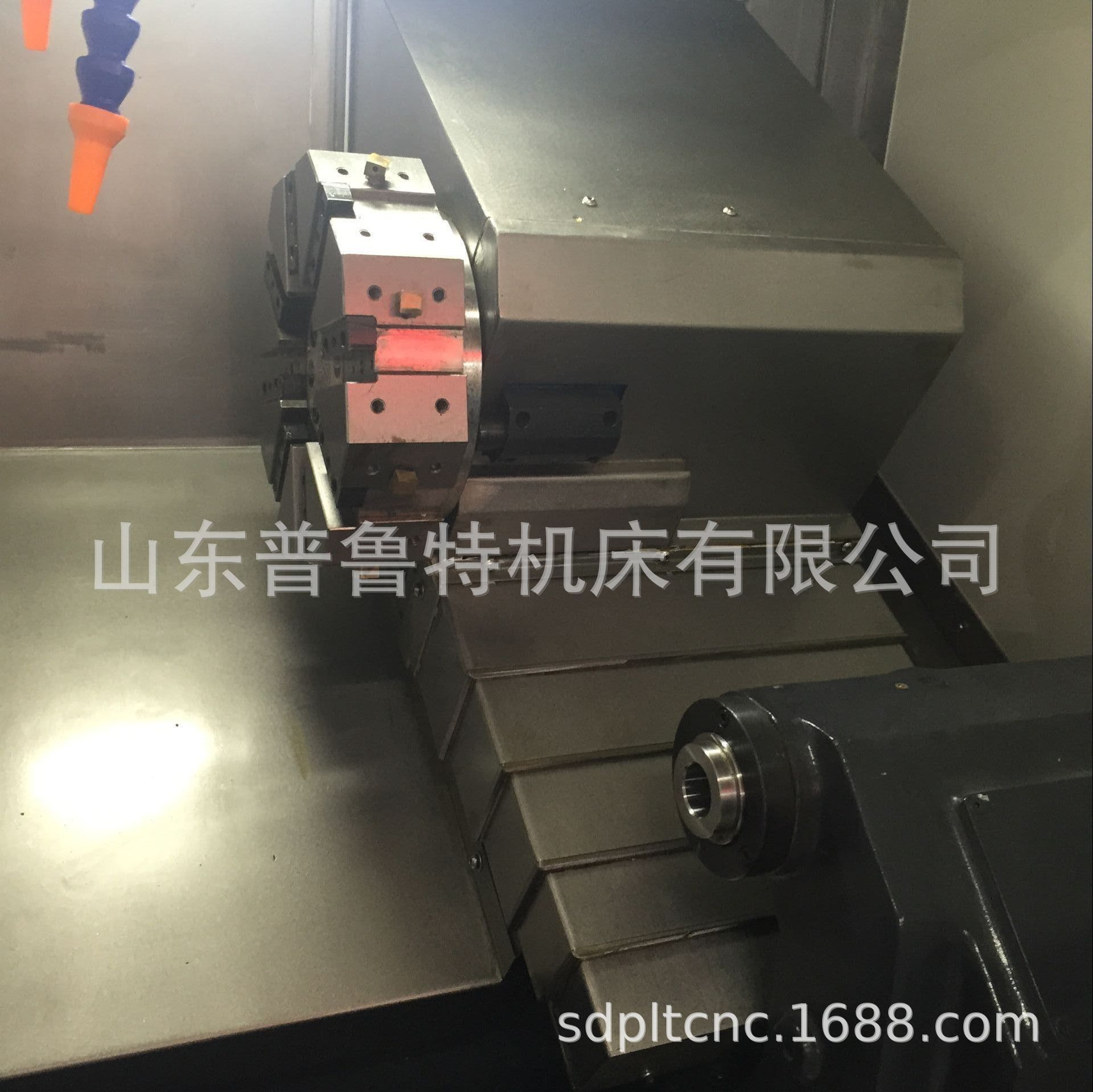

刀塔形式/Type of turret head

伺服刀塔/servo  turret

刀盘尺寸/ Disc diameter

300mm

刀具位置数量/ Number of tool stations

8工位/8station

刀具尺寸(方柄)/Tool size(square shank)

25mm

刀具尺寸(圆柄)/Tool size (round shank)

32mm

刀座数量/Number of cutting tools

4(2圆2方)(2square2round)

定位精度

Accuracy of position

X-轴/x-axis

0.009mm

Z-轴/x-axis

0.009mm

重复定位精度Repeatability

X-轴/x-axis

0.004mm

Z-轴/x-axis

0.004mm

主轴径向跳动 Radial runout of spindle

0.005mm

主轴轴向窜动 Axial movement of the main shaft

0.005mm

主轴端面跳动 Side face run-out

0.008mm

圆度 Circular degree

0.005mm

圆柱度 Cylindricity

0.01/100mm

平面度 Flatness

0.015/300mm

床身倾斜角度/Tilt angle of machine tool

30°

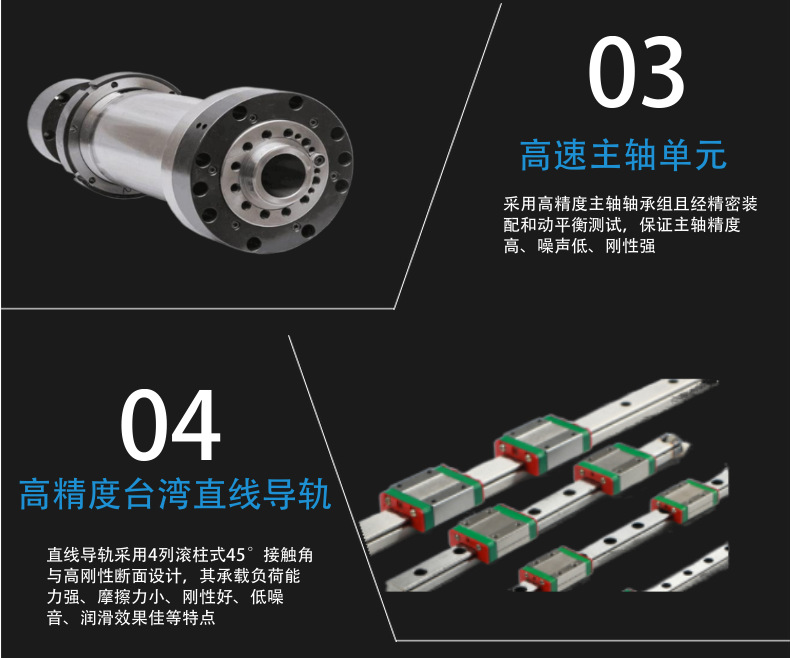

导轨类型/Guideway type

直线导轨/ Linear guide rail

X-轴导轨宽度/X axis Rail width

35mm

Z-轴导轨宽度/Z axis  Rail width

35mm

X-轴丝杆/X axis ball screw

3210

Z-轴丝杆/Z axis ball screw

4012

尾座形式/Tail stock

液压尾座/Hydraulic

尾座套筒直径/Tailstock sleeve diameter

70mm

顶尖行程/Sleeve travel

80mm

尾座套筒锥度/Sleeve taper

MT5#

尾座的移动形式/Tail seat movement form

手动/manual

数控系统/ System

GSK988TA

X轴伺服电机扭矩/X axis motor torque

7.5NM

Z轴伺服电机扭矩/Z axis motor torque

7.5NM

主轴电机功率/spindle motor power

7.5kW

润滑泵/Lubrication pump

3ZK（3L）

冷却泵/Cooling pump

450W

机床电压/Machine voltage

380V/50HZ

电源/ Power supply

14KVA

机床外形尺寸/ Machine overall dimensions

2700x2170x2000mm

机床重量/ Machine weight

3100kg
