方形变压器 低频工频电源变压器UL认证ce认证 220v110v转12v24v36 RMB:10 SMD pulse poe贴片变压器模块电源ep7ep10ep13 厂家定制 RMB:1.8 UL/cUL认证环形变压器 电源变压器 60W100W150W200W 厂家直销 RMB:80 立即定制 立即定制 立即定制 我公司专业生产710-系列PCB 型电源变压器， 系列产品已通过UL/cUL认证， 欢迎广大客商前来选购。

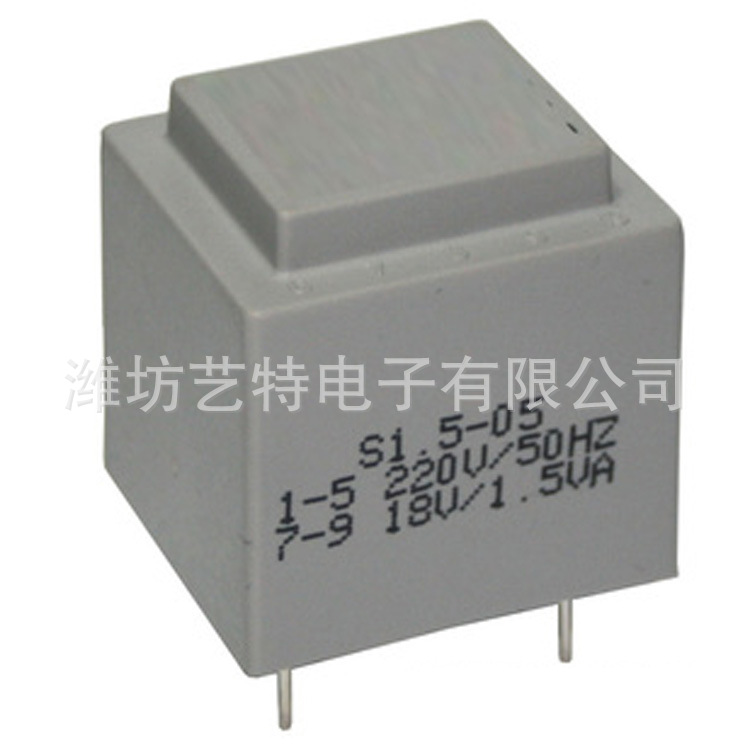

710-PCB型电源变压器系列
Our UL File No。：E228087 EN6500 or 50065
Core Size
铁芯型号
Dimensions
窗口尺寸
PowerVA）
功率（W）
Bobbin
骨架型号
Overall Size (mm)外形尺寸（毫米）
A
B
H
D
E x
F x
I
EI-19
5 x 8
0.3
GL3+3C
19.0
18.0
18.0
12.7
5.1 x 2
5.1 x 2
0.8
5 x 22
1.00
GL2+3C
19.0
31.0
15.0
26.8
5.9 x 2
8.4 x 1
0.8
5 x 29
1.80
GL3+4C1
19.0
38.0
15.0
34.0
6 x 2
4 x 3
0.8
5 x 29
1.80
GL3+4C2
19.0
38.0
15.0
34.0
4 x 2
4 x 3
0.8
EI-24
6 x 7
0.15
GL3+3C
24.0
23.0
18.0
15
5 x 2
5 x 2
0.8
6 x 10
0.30
GL2+4C2
24.0
24.0
18.0
19.0
12 x1
3.9 x 3
0.8
6 x 10
0.30
GL3+4C
24.0
24.0
18.0
16.8
6 x 2
4 x 3
0.8
6 x 15
0.70
GL2+3C
24.0
29.0
18.0
22.0
12 x 1
6 x 2
0.8
EI-28
28 x 11
0.60
GL3+3C
28.0
26.1
25.0
22.0
6 x 2
6 x 3
0.8
28 x 11
0.60
WW3+4C
28.0
25.0
31.0
20.0
7 x 2
5 x 3
0.8
28 x 12
0.80
WW3+4B
28.0
25.0
29.01
22.0
7.5 x 2
5 x 3
0.8
28 x 12
0.80
WW5+5C
28.0
25.0
23.4
22.0
4.9 x 4
4.9 x 4
0.8
28 x 15
1.20
GL2+2C
28.0
28.0
25.0
23.0
15 x 1
15 x 1
0.8
28 x 15
1.20
GL2+3C
28.0
28.0
25.0
23.0
15 x 1
7.5 x 2
0.8
28 x 15
1.20
GL2+4C
28.0
28.0
25.0
23.0
15 x 1
5 x 3
0.8
28 x 15
1.20
GL3+3C
28.0
28.0
25.0
23.0
7.5 x 2
7.5 x 2
0.8
28 x 15
1.20
GL3+4C
28.0
28.0
25.0
23.0
7.5 x 2
5 x 3
0.8
28 x 15
1.20
GL4+4C
28.0
28.0
25.0
23.0
5 x 3
5 x 3
0.8
28 x 18
1.80
WW5+5C
28.0
25.0
29.4
20.0
4.9 x 4
4.9 x 4
0.8
28 x 20
2.20
WW5+5C
28.0
25.0
31.4
20.0
4.9 x 4
4.9 x 4
0.8
28 x 30
4.80
WL4+4C
28.0
43.00
25.0
39.0
5.0 x 3
5.0 x 3
0.7
EI-35
35 x 7
0.50
WW3+4B
35.0
29.5
23.0
22.0
7.4 x 2
6 x 3
0.8
35 x 10
0.90
GL3+4C
35.0
21.0
23.0
16.1
8.0 x 2
5.3 x 3
0.8
35 x 10
0.90
WW4+4C
35.0
29.5
27.0
21.5
5 x 3
5x2 +4
0.8
35 x 10
0.90
WW4+4L
35.0
29.5
25.0
21.0
5 x 3
5x2+3.7
0.8
35 x 13
1.60
WW4+4L
35.0
29.5
29.4
18.5
6 x 3
6 x 3
0.8
35 x 13
1.60
GL2+2C
35.0
31.0
29.5
21.8
15 x 1
15 x 1
0.8
35 x 13
1.60
GL2+3C
35.0
31.0
29.5
21.8
15 x 1
7.5 x 2
0.8
35 x 13
1.60
GL2+4C
35.0
31.0
29.5
21.8
15 x 1
5.0 x 2
0.8
35 x 13
1.60
GL3+3C
35.0
31.0
29.5
21.8
7.5 x 2
7.5 x 2
0.8
35 x 13
1.60
GL3+4C
35.0
31.0
29.5
21.8
7.5 x 2
5.0 x 3
0.8
35 x 13
1.60
GL4+4C
35.0
31.0
29.5
21.8
5.0 x 3
5.0 x 3
0.8
35 x 15
2.0
GL3+3C
35.0
29.5
29.5
22.0
7.5 x 2
7.5 x 2
0.8
35 x 15
2.0
WL3+3A
35.0
32.0
29.50
25.0
8.5 x 2
8.5 x 2
0.8
35 x 15
2.0
WW3+4B
35.0
29.5
30.0
22.0
8.5 x 2
6 x 3
0.8
35 x 15
2.0
WW5+5A
35.0
29.5
35.0
23.0
6 x 4
5 x 4
0.8
35 x 15
2.0
WW5+5B
35.0
29.5
31.0
20.5
4.9 x 4
5 x 4
0.8
35 x 16
2.0
WW2+3C
35.0
29.5
28.0
21.3
14.7 x 1
7.3 x 2
0.8
35 x 18
2.80
WW4+4L
35.0
29.5
34.0
22.7
5.6 x 3
5.6 x 3
0.8
35 x 18
2.80
WW5+5L
35.0
29.5
33.0
21.5
5.0 x 4
5.0 x 4
0.8
35 x 20
3.40
WW3+2A
35.0
29.5
35.0
21.0
10 x 2
20 x 1
1.0
35 x 20
3.40
GL3+3C
35.0
35.0
29.5
27.2
7.5 x 2
7.5 x 2
0.8
EI-41
41 x 11
1.50
WW3+2C
41.0
33.0
27.0
20.5
20 x 1
9.5 x 2
1.0
41 x 12
1.80
WW5+5C
41.0
33.0
27.0
23.6
5.0 x 4
5.0 x 4
1.2
41 x 13
2.50
WW3+4A
41.0
33.0
31.0
24.0
10.5 x 2
7.0 x3
1.2
41 x 14
2.80
WW3+4C
41.0
33.0
24.0
34.9
7.5 x 2
5.0 x 3
1.2
41 x 16
3.5
WW7+7L
41.0
33.0
33.5
22.5
4.9 x 6
4.9 x 6
1.2
41 x 18
4.50
WW4+5B
41.0
33.0
35.5
23.0
7.3 x 3
5+6.2x2+5
1.2
41 x 19
4.80
GL5+5C
41.0
36.0
33.0
32.0
5.0 x 4
5.0 x 4
1.2
41 x 20
5.0
WW4+5L
41.0
33.0
37.9
22.9
7.4 x 3
5+6x2+5
1.2
41 x 20
5.0
WW5+5C
41.0
33.0
35.0
27.0
5 x 4
5 x 4
1.2
41 x 20
5.0
WW7+7L
41.0
33.0
35.0
22.5
5 x 6
5 x 6
1.2
41 x 21
6.0
WW6+6A
41.0
33.0
38.0
30.0
5.0 x 5
5.0 x 5
1.2
41 x 22
7.0
WW4+5B
41.0
33.0
39.0
22.5
7.5 x 3
5.6 x4
1.2
41 x 22
7.0
WW4+5B2
41.0
33.0
38.6
22.5
7.4 x 3
5+7.5x2+5
1.2
41 x 22
7.0
WW4+5B3
41.0
33.0
43.0
22.6
7.5 x 3
4.4+6.8x2+4.4
1.2
41 x 23
8.0
WW4+5B
41.0
33.0
43.0
22.5
7.3 x 3
4.2+7x2+4.2
1.2
41 x 26
9.0
WW4+5B
41.0
33.0
43.0
23.0
7.4 x 3
4.9+6.1x2+4.9
1.2
EI-48
48 x 8
1.5
WW7+7L
48.0
40.0
26.0
15.9
5.0 x 6
5.0 x 6
1.2
48 x 16
6.0
GW6+6L
48.0
40.0
31.7
28.0
7.7 x 5
7.7 x 4 +5
1.2
48 x 16
6.0
WW5+5A
48.0
40.0
34.0
29.7
7.4 x 4
7.4 x 4
1.2
48 x 18
7.0
WW5+5A
48.0
40.0
36.0
29.6
7.5 x 4
7.5 x 4
1.2
48 x 20
8.50
GL3+3L
48.0
40.0
40.0
30.0
12.0 x 2
12.0 x 2
1.2
48 x 20
8.50
WW5+5A
48.0
40.0
38.0
29.4
7.5 x 4
7.5 x 4
1.2
48 x 22
11.0
WW5+5A
48.0
40.0
40.0
29.7
7.5 x 4
7.5 x 4
1.2
48 x 24
13.00
WW5+5A
48.0
40.0
42.0
29.5
7.5 x 4
7.5 x 4
1.2
EI-57
57 x 17
10.00
WW4+4L
57.0
47.5
36.2
28.0
7.7+10+7.7
7.7+10+7.7
1.2
57 x 20
11.50
WW6+6A
57.0
47.5
41.5
37.0
4.9x2+10+4.9x2
4.9x2+10+4.9x2
1.2
57 x 30
28.00
WW7+7L
57.0
47.5
50.5
32.0
5.0 x 6
5.0 x 6
1.2
상품정보 제공고시
원산지 웨이팡 수입 여부 아니 전력 위상 번호 단일 위상 정격 전력 3va 방습 모드 오픈 냉각 모드 공기 냉각 형태 건조 주파수 특성 저주파 브랜드 ETe 권선 형태 2 개 이상 권선 코어 형태 EI 또는 광장 코어 모양 E 형 개요 구조 수직 또는 수평 효율성 (n) 90% 모델 710-10003001224-e 국경 간 수출이 독점적으로 가능한지 여부 아니 신청 범위 전력 공급 -
