인기 판매 90% 새것 중고 삼풍 이미지 측정기 QV302 화면형 자동 2차원 측정기

가격
24,000,000
가격
¥80,000.00
구매수량별 가격
1~¥80,000.00
최소구매수량 1개

옵션

선택하세요.

선택한 옵션

예상 내륙운임비
/
총 상품금액(내륙운임 포함)
/
수입시 예상 금액
?

수입시 예상 금액이란?

물품대금 · 국제운임 · 검수 · 바코드 부착 · 관부가세까지 수입에 필요한 모든 비용이 포함되어 있습니다.

위시리스트

관련상품

  • 상품 상세설명

    买大送小 惠州博罗二手三丰影像测量仪|自动2.5元 含电脑和软件

    https://offer.1688.com/offer/post



    1:规格及技术参数

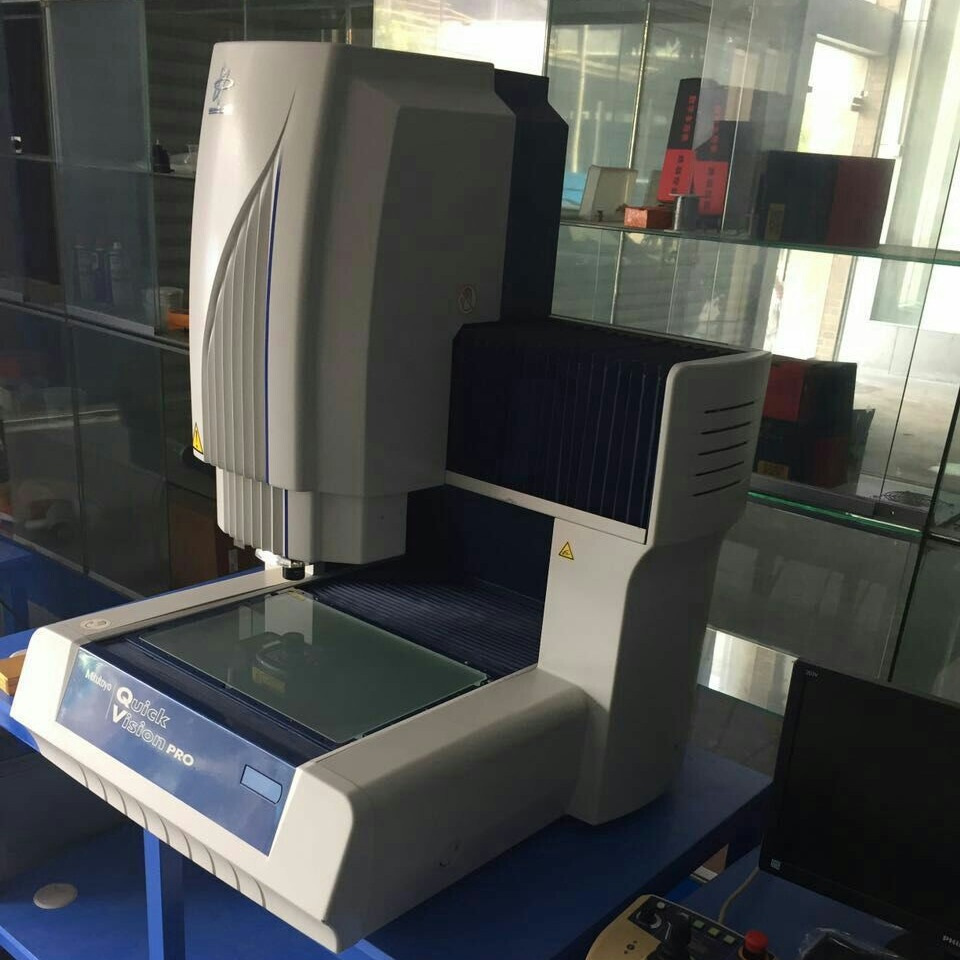

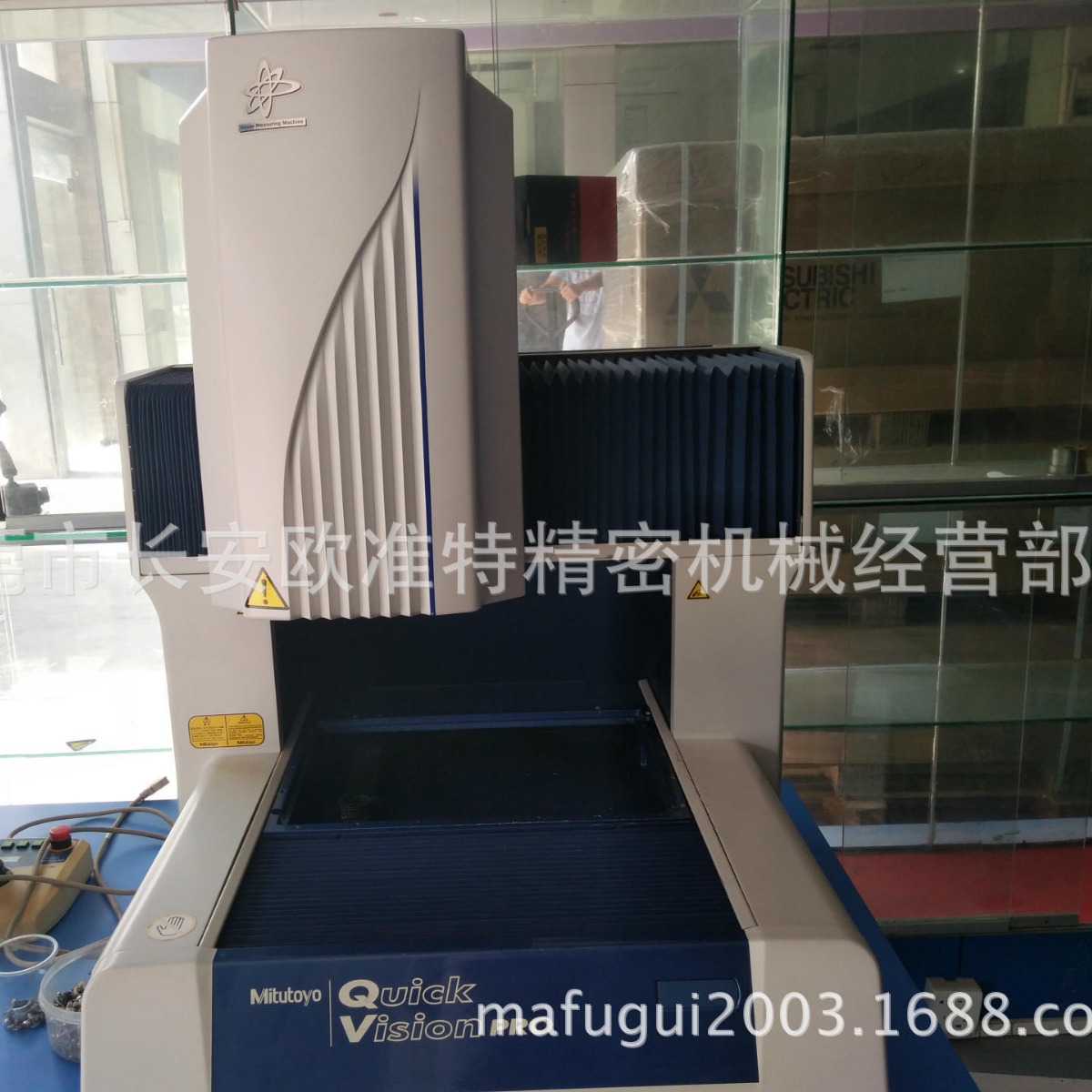

    QUICK VISION  Measuring Machine(Made in JAPAN )
    MITUTOYO 影像三次元
    Model型号:QV302 影像仪
    1.Specifications技术规格:
    - Measuring Range测量范围 305(X)×305(Y) ×200(Z)  mm
     - Measuring Accuracy测量精度(20°C E1xy(3+4L/1000)μm E1z(4.5+5L/1000)μm (L 测量长度mm)
     - Digital counter测量显示 X, Y, Z  3 axis三轴
     gital counter resolution分辨率 0.0005mm
     - Moving method移动方式 Manual moving自动
     Max. workpiece height最大被测工件高度 100mm
     - Max. workpiece weight 最大工作台载重量 10Kg
     - weight (machine)主机重量 195Kg
    2、Standard Accessories标准附件:
     1. – Main unit         主机 1 set         QUICK VISION 202(原装)
     2. –-Signal cable       测量机与电脑信号线 1 set         (原装)
    3. –Controll Box       操纵盒 1 set         (原装)
    4.- Interface Card      显卡及伺服卡    1 set        (原装)
     5.-Computer         电脑 1 set        (品牌电脑)
    6.- ID               软件ID为加密锁 1 set        (原装)安装在机器电脑内的三轴伺服卡上,对应密码在参数盘内,须妥为保管
    7 –Software       软件 1 set        (原装)三丰原厂QVPAK测量软体
    3. Environment环境要求:
     温度范围:22±2℃,
    温度变化:< 0.5℃/h     < 1°C /24h
    湿度范围:30%-70%
     电源: 220V±10% ,50Hz
    地面振动:   振动频率≤10 Hz     振幅≤0.5μm, 10 Hz<振动频率≤30 Hz      振幅≤1μm
    4. service售后服务:
    *Machine installation, commissioning and training atcustomer site (2-3 working days)
     仪器现场安装,调试及培训(2-3个工作日)
    *Training培训:
     To be done by the Mitutoyo engineer.
    *  The training covers installation, initial calibration of machine and operational training.
    由Mitutoyo的工程师负责安装调试校准及培训.
    *The envirronmental conditions for machine such as power supply, air supply,  are to be prepared at the customer"s side
     机器的安装环境如电源,气源等由买方负责.
    * Warranty质保:12 months from the date of installation to be completed.
     质保期由机器安装调试完毕,验收合格之日始.12个月。
    *This warranty is against manufacturing fault only.
     质保只对应由制造之原因而产生的质量问题.
    *This warranty is applicable only for the items stated in this quotation.
    质保只对应本报价所注明之项目.
    5. Payment and Delivery place付款方式及交货
    Delivery time:                       Terms and Conditions   交货周期:10天内。
    Payment:                           Pre-paid 90% of the goods to pay the balance on acceptance 0k
    付款方式                           预付90%货到验收0K付余款10%。
    Delivery place                       Sandvik Hard Material SHENZHEN Plant
    交货地:







    买大送小 惠州博罗二手三丰影像测量仪|自动2.5元 含电脑和软件

    https://offer.1688.com/offer/post/fill_product_info.htm



    火爆中古二手三丰影像测量仪 QV302 全自动影像测量系统 提供发票

    상품정보 제공고시

    원산지 동관
    수입 여부 아니
    맞춤형 처리 아니
    항목 번호. QV302
    브랜드 미투토요/산펑
    해상도 0.0005
    뇌졸중 측정 300*200
    작동 모드 프로그램 제어
    측정 정확도 0.003
    국경 간 수출이 독점적으로 가능한지 여부 아니
