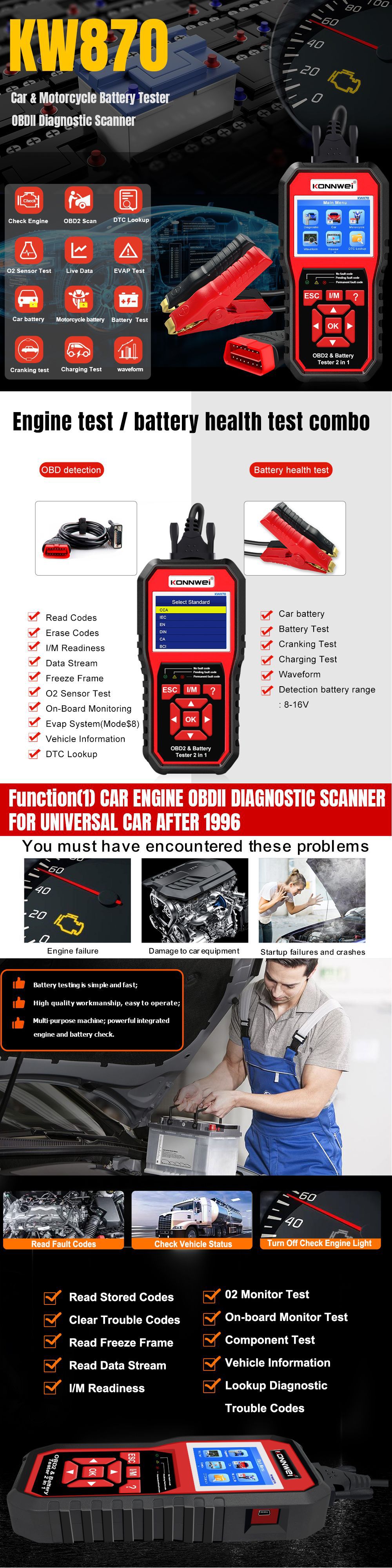

Car Automotriz obd2 diagnostic tools scanner :

KW870 works on all 12V gasoline and diesel car that are OBDII compliant, It can identify the cause of your CHECK ENGINE and perhaps fix it without going to see your dealer. It also assists you in easily passing annual emissions tests and SOMG CHECK, It covers full OBD II/EOBD diagnostic functions for engine system. O2 sensor test, EVAP systems test, and board monitoring test give you full control of your vehicles’ running status, while a graphical and numeric live data stream display will help you to find out the faulty sensor reading.

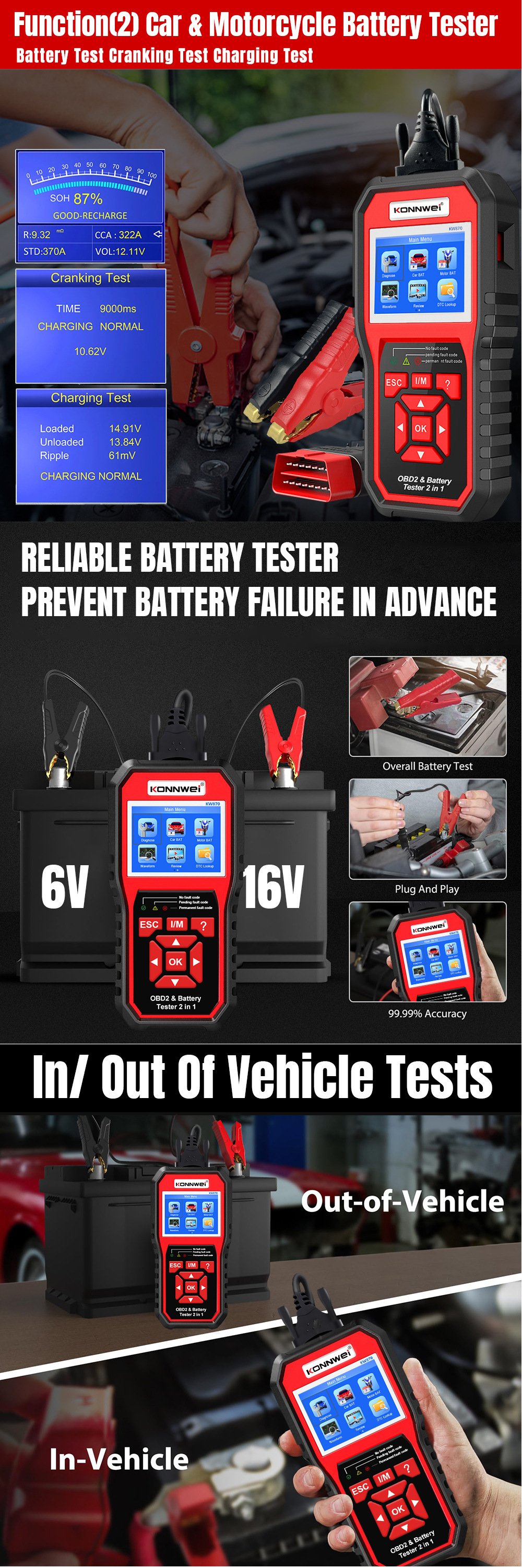

Car motorcycle battery tester :

KW870 Battery Test can test all automotive cranking lead acid battery, including ordinary lead acid battery, AGM flat plate battery, AGM spiral battery, and Gel battery,etc on on car & motorcycle& Truck&Lawn mower&Steamship etc .  It adopts the state-of -the-art conductance testing technology in the world to easily,quickly and accurately measure the actual cold cranking amps capability of the vehicle starting battery, healthy state of the battery itself, and common fault of the vehicle starting system and charging system, which can help maintenance personnel to find the problem quickly and accurately, thus to achieve quick vehicle repair. It support multi-languages, customer can select different language which include English, French, German,Dutch,Spanish,Russian,Portuguese, Italian,Polish.



Top reasons to choose KONNWEI KW870 battery tester

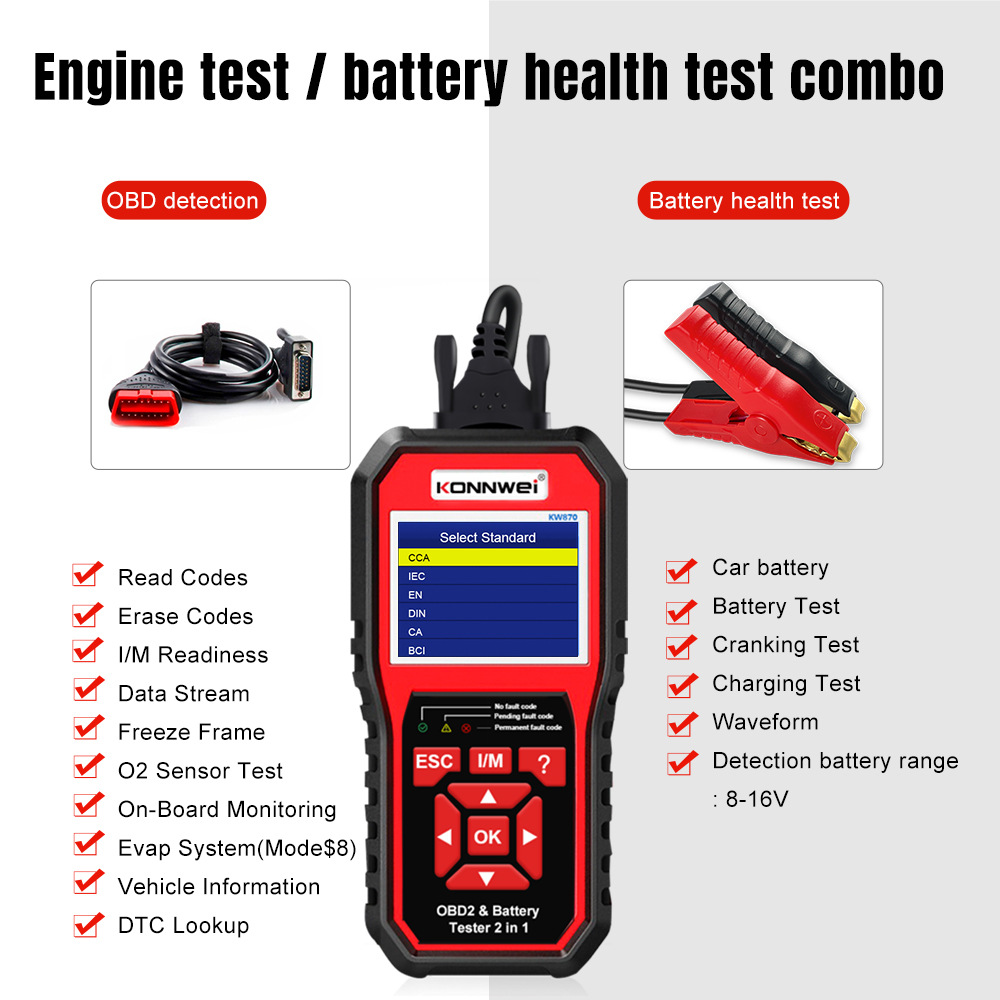

1. Battery tester & car obd II diagnostic tool 2in 1

2. Support test wide range of 6V/12V batteries

3. Accurate results in milliseconds

4. Battery life analysis, health percentage

5.Add One-key entering battery voltage waveform analysis

6.Multi-function OBD2 Automotive Scanner with good price.

7. High Quality and High Resolution TFT colorful display helps you easily to find out the troubles of your car.

8. Featured battery real-time monitoring during diagnostics, avoid un-expected happened.

9.Intergrated memory card allows storage of Trouble Codes, Live Data and freeze frame, Playback and review data when out of vehicles. 10.Lifetime update free and print via PC.

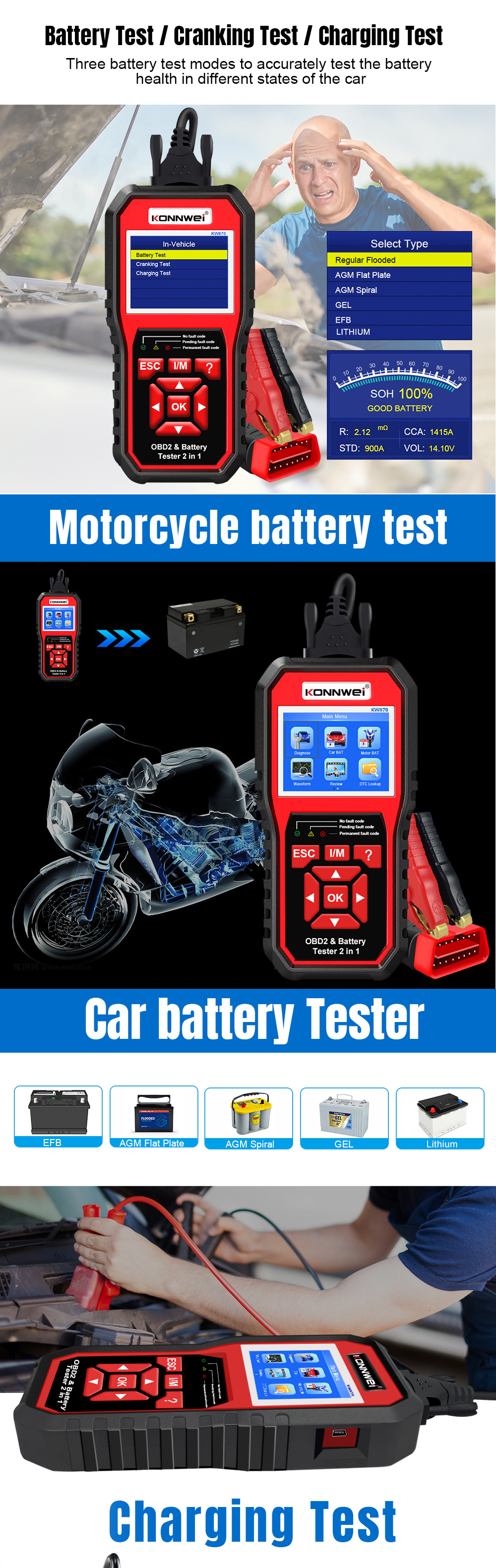

Battery tester Function

KONNWEI KW870 6-16V car battery tester is able to effectively analyze and read important car data such as voltage, internal resistance, cold crankingamp and AH capacity, battery health and charge status.  It provides accurate results, calculates the cold cranking capability of the battery and the aging extent, allowing for a quicker, more precise car repairing. Test results display in both text and graphing, but the real-time battery voltage showing in a waveform. With an intelligent 2.8” LCD screen and STM-32 main chip, reading access is practical and rapid! Lifetime update service is supported .



car battery tester DATA READINGS: The KONNWEI KW870,6-16V car battery tester is able to effectively analyze and read important car data such as voltage, internal resistance, cold cranking amp and AH capacity, battery health and charge status.

 car battery tester ACCURATE MEASUREMENTS :This professional automotive battery tester provides accurate results, calculates the cold cranking capability of the battery and the aging extent, allowing for a quicker, more precise car repairing.

 car battery tester WIDELY COMPATIBLE:Beginner or expert, this car battery diagnostic tester can be used with a wide selection of 6-18V 100-2000 CCA regular flooded batteries, AGM flat plate, AGM spiral, as well as GEL batteries.

 car battery tester EXTRA FEATURES:The KW870 car battery tester displays test results in text and graphing, displaying the real-time battery voltage in a waveform. With an intelligent 2.8” LCD screen , reading access is practical and rapid! Lifetime update service is supported by KONNWEI .



Battery tester specification :

1. System voltage: 6-12 Volts

2. 2.Test Result: Good, Recharge or Replace

3. 3.Capacity - Cold Cranking Amps (CCA), DIN, EN and IEC information relative to battery rating. 4.Internal resistance value (mΩ)

5.Life in percentage (%)

6.Cranking system

7.Charging system

8.Voltage test in waveform

9.Record and re-play battery data, Life-time free update service

10.Battery test, cranking test, charging test and other additional functions.



Support all 6V/12V batteries & Cover 9 Battery Measure Standards:

CCA:100-2000/BCI:100-2000/CA:100-2000/MCA:100-2000/JIS:26A17-24SH52/DIN:100-1400 /IEC:100-1400/EN:100-2000/SAE:100-2000



Escaner automotriz OBD II diagnostic functions:

 OBD2 Scanner KONNWEI Code Reader OBD II Auto Diagnostic Code Scanner OBD EOBD Car Engine Fault CAN Diagnostic Scan Tool with I/M Readiness (Upgraded Version)



KW870 Works on most 1996 US-based, 2003 EU-Based and Asian (OBDII & CAN) domestic and imported vehicles, including passenger cars, SUVs, light trucks, etc. Supports all OBDII protocols. Simply plug into the OBD II port on your car, turn the ignition on and you are ready to go. No battery or complicated apps install needed.A look-up library with over 8, 000 built-in generic code definitions allows you to accurately identify the cause of your CHECK ENGINE and perhaps fix it without going to see your dealer. It also assists you in easily passing annual emissions tests and SMOG CHECK. It covers full OBDII/ EOBD diagnostic functions for engine system. O2 sensor test, EVAP systems test, and on-board monitoring test give you full control of your vehicle's running status, while a graphical and numeric live data stream display will help you to find out the faulty sensor readings. (Please be noticed: this function is for ENGINE System only).



KW870 obd2 scanner diagnostic tool

Function and Features :

1. Works on ALL OBD II Enabled vehicles, both Gasoline and Diesel cars - domestic and imported.

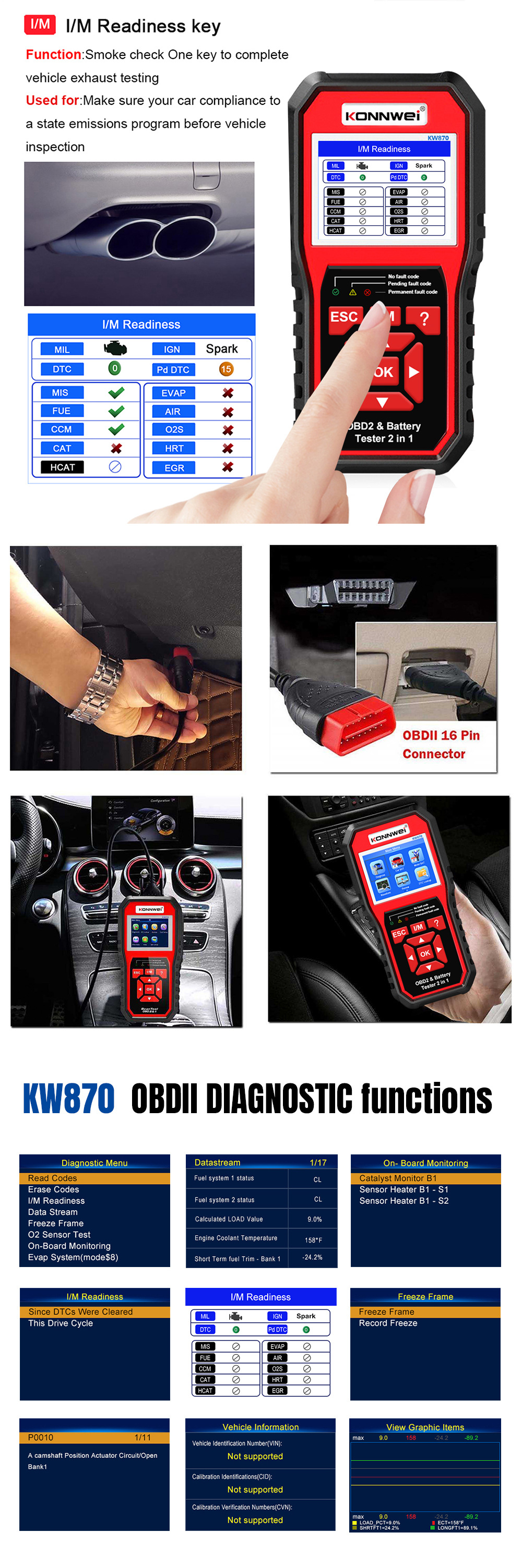

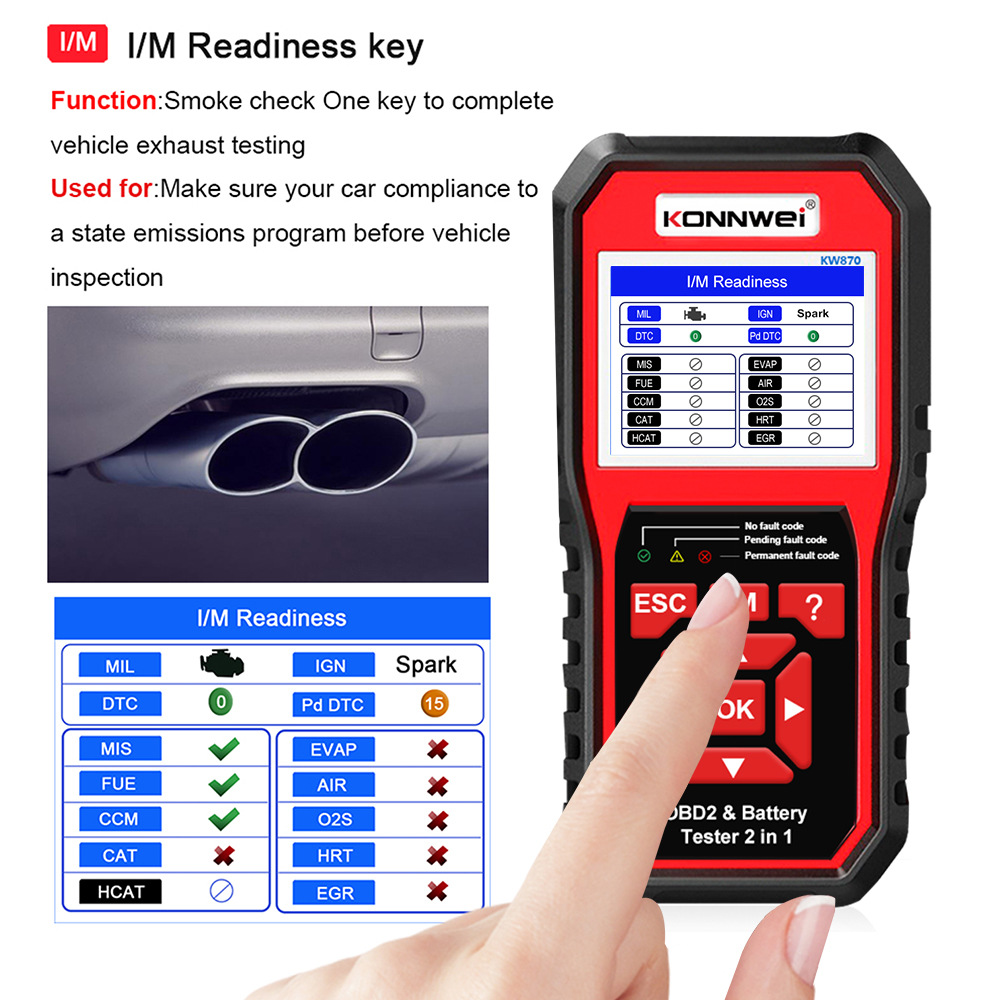

2. Features the unique patented One-Click Readiness Key for quick State Emissions readiness check and drive cycle verification.

3. Bright color coded LEDS indicators and built-in speaker provide both visual and audible tone for readiness verification

4. Retrieves generic (P0, P2, P3 and U0), manufacturer specific (P1, P3 and U1) codes and pending codes

5. Easily determines the cause of the Check Engine Light(MIL)

6. Turns off Check Engine Light (MIL), clears codes and resets monitors

7. Enhanced OBD2 Mode 6 On Board Monitoring Test Results for Specific Monitored Systems.

8. Views freeze frame dataThe KONNWEI KW870 OBD2 / EOBD / CAN Car Diagnostic Scanner supports all 10 OBDII test modes on all OBDII compliant vehicles for a complete diagnosis. Featuring the unique patented One-Click I/M Readiness Key, TFT color display and built-in speaker, Real Time Battery Voltage Monitoring, the KONNWEI KW870 is truly the ultimate in power and affordability, allowing users to do their jobs faster.



 In addition, thousands of troubleshooter code tips(by press ? button) help technicians and home DIY users to accurately diagnose even the toughest problems. With the newest friendly diagnostic interface, KW870 will be the most useful car diagnostic tool for every family and professional mechanic technician! KW870 is the best engine code reader better than AUTEL AL519 with unique design and widest compatibility!

9. Displays monitor and I/M readiness status (emissions)

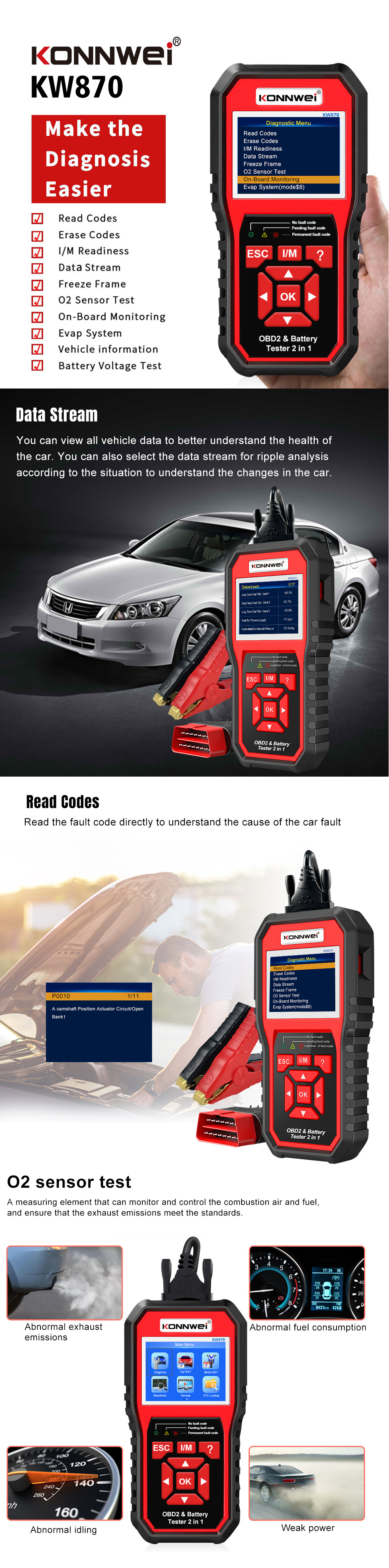

10. Reads live PCM Datastream

11. Displays live O2 sensor test data

12. EVAP System test data

13. Live sensor data in text mode and graph mode (1996 and newer vehicles)

14. Reads, stores and playbacks live sensor data

15. Troubleshooter code tips guide technicians to the root cause of a trouble code faster, saving diagnosis and repair time

16. Battery Voltage real time monitoring,better than other expensive item from others brand.

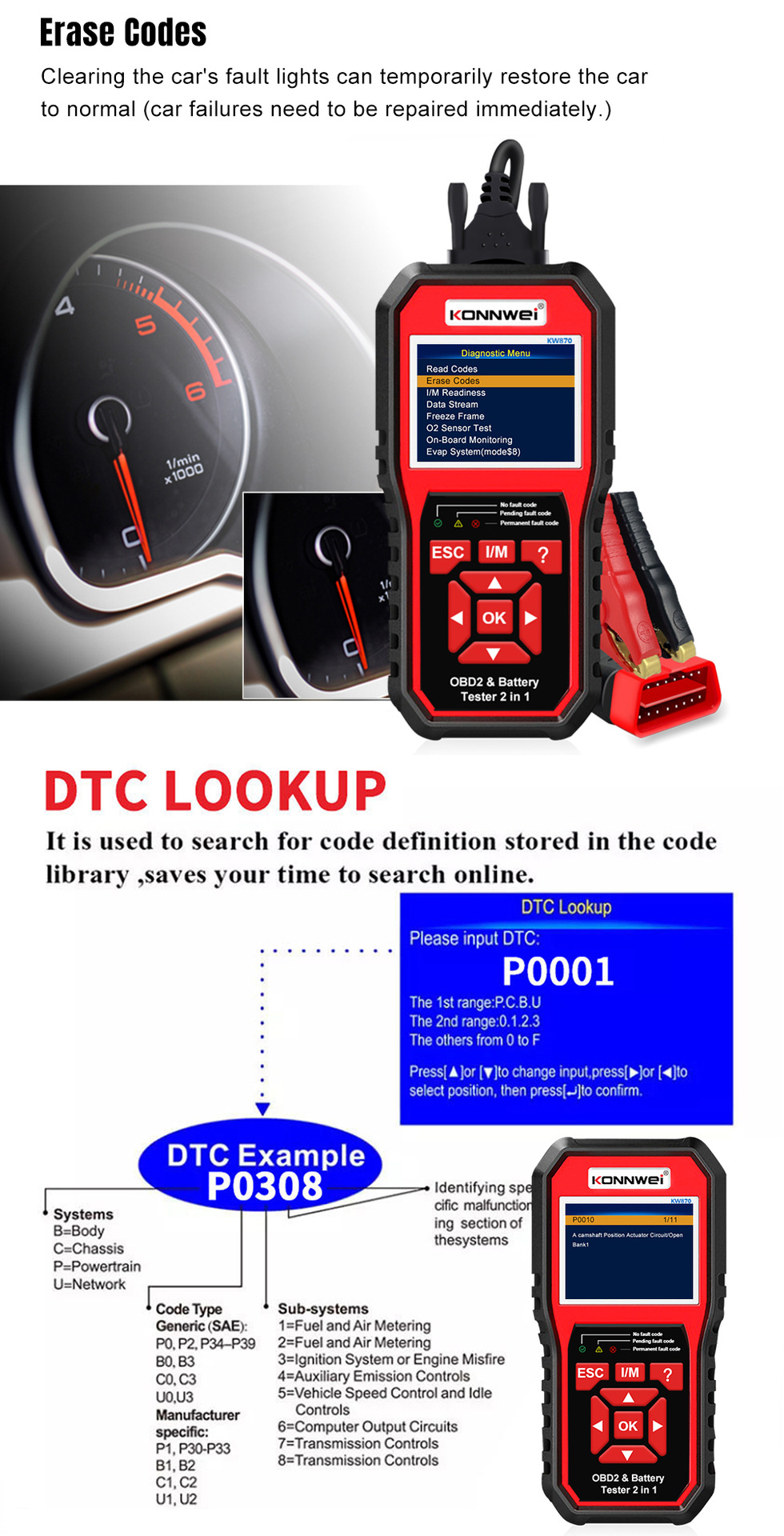

17. Built-in DTC look-up library and display definition.

16. Retrieves vehicle information (VIN, CIN and CVN)

17. Internet updatedable and upgradeable

18. Prints data via PC.



Why Choose KW870 automotriz Scanner diagnostic tools ?

Shocked u from 8 reason below:

Reaon 1. Multilingual diagnostic interface: KW870 Supports up to 8 different languages user interface,such as English, Spanish, Portuguese, French, Russian, German, Dutch, Italian.

Reason 2. High Quality and High Resolution TFT colorful display helps you easily to find out the troubles of your car.

Reason 3. Bright color coded LEDs and built-in speaker provide both visual and audible tone for readiness verification.

Reaon 4. Brand New design Key pad, unique patented One-Click I/M Readiness Key, it is the best partner for your car repairing.

Reason 5. Featured battery real-time monitoring during diagnostics, avoid un-expected happened.

Reason 6. Intergrated memory card allows storage of Trouble Codes, Live Data and freeze frame, Playback and review data when out of vehicles.

Reason 7. Data printable through USB cable, allows modify and print-out storaged data.

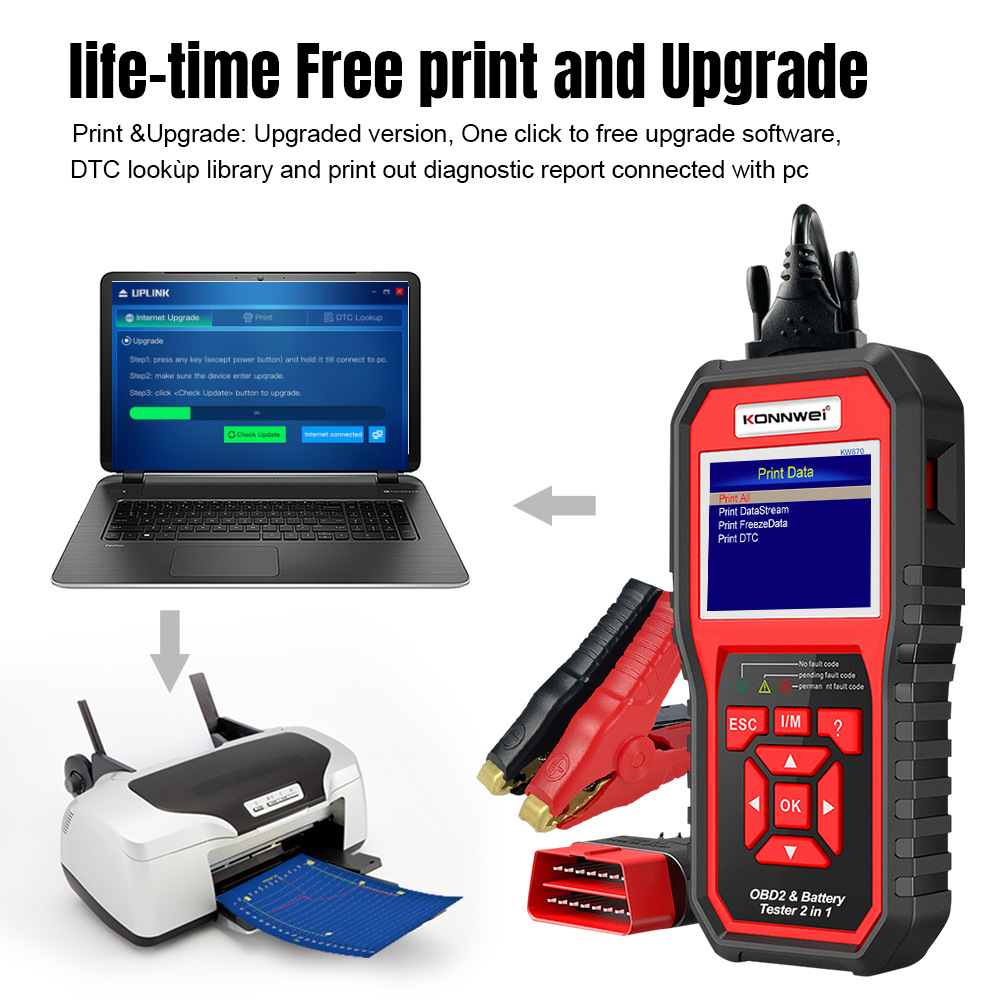

Reason 8. Internet upgradable via usb port, adapted to Windows XP- Windows 10.





KONNWEI KW870 obd2 scan tool Support Full OBD II Protocols:

1. SAE J1850 PWM(41.6Kbaud)

2.SAE J1850 VPW(10.4Kbaud)

 3.ISO9141-2(5 baud init,10.4Kbaud)

 4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)

 5.ISO14230-4 KWP(fast init,10.4 Kbaud)

 6.ISO15765-4 CAN(11bit ID,500 Kbaud)

7.ISO15765-4 CAN(29bit ID,500 Kbaud)

 8.ISO15765-4 CAN(11bit ID,250 Kbaud)

9.ISO15765-4 CAN(29bit ID,250 Kbaud)



Kw870 car obd2 scanner / battery tester Support Languages:

English,Russian,French,German,Italian,Spanish,Portuguese,Dutch,Polish.

KW870 car diagnostic tool / car battery analyzer

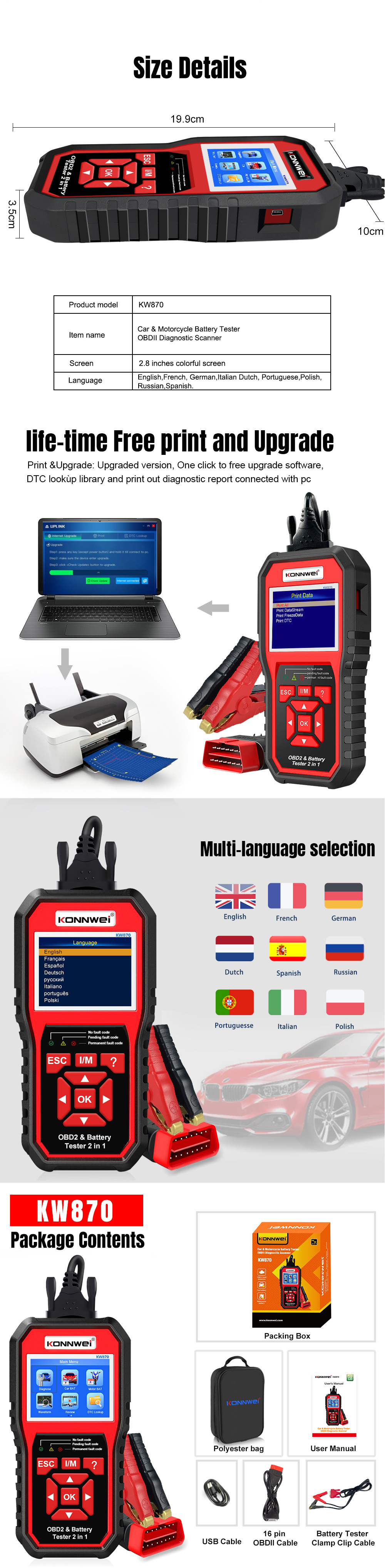

Package list:

*KONNWEI KW870 car OBD II scanner PlUS car battery tester

*User manual

*Retail box

* Nylon bag

* Mini USB Cable for update and printing data

*Battery Clamp clip cable for battery tester function

*16 pin OBD cable for obdii scanner function



Product size (cm):20*10*3.5
Package size (cm):25.5*18.5*7
Product net weight (kgs):0.78
Package net weight (Kg):0.905
Packing quantity: 25pcs/cn,
Box size: 56*37*46cm,
Total carton weight: 24KG/carton
